Description

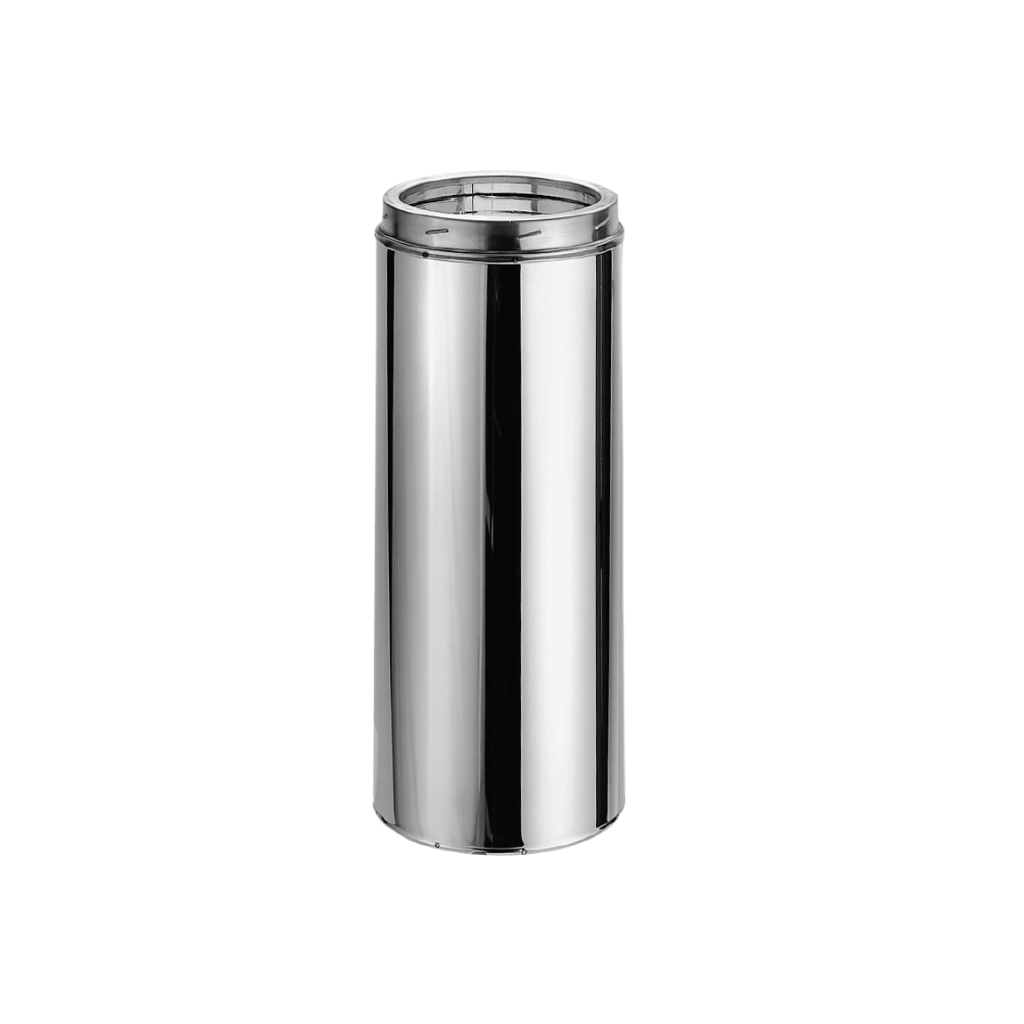

Introducing the DuraVent DuraTech 8" Stainless Steel Chimney Pipe, a product that redefines safety and performance for all-fuel chimney systems. This sleek 60" pipe length is meticulously designed to meet your needs, and here's why it's the smart choice for your installation.
DuraTech boasts a double-wall structure with a Thermal Tech blanket insulation sandwiched between, ensuring optimal safety and performance. With this innovative design, it effectively keeps the outer wall of the chimney cool while maintaining high flue gas temperatures for impeccable draft performance. What's more, the inner wall is a remarkable 25% thicker than comparable chimneys, providing an extra layer of protection. No locking bands or mechanical fasteners are needed, making installation a breeze.
DuraTech's ingenious 1" wall design simplifies installation, especially through 16" on-center framing. Even in tight spaces, you have the option of a Reduced Clearance Square Ceiling Support Box (6" diameter DuraTech only) to ensure the perfect fit. Designed for continuous operation at 1000°F flue gas temperatures, DuraTech exceeds the rigorous requirements of the UL standard. It endures one hour at 1400°F and three ten-minute chimney fire tests at a scorching 2100°F, providing you with unparalleled peace of mind.
Benefits:
- Versatile Sizing: Available in various diameters and lengths to meet your specific needs.
- Easy Installation: Twist-lock fittings eliminate the need for locking bands or mechanical fasteners, saving time and effort.
- Industry Leader: Manufactured by an industry leader with over 50 years of experience, ensuring top-notch quality.
- Swivel Base: The swivel base simplifies elbow alignment, saving both time and money during installation.
- Code-Approved Offset: Included elbow support bracket for a properly code-approved offset.
- Lifetime Warranty: Enjoy the best warranty in the industry, offering 15 years at 100% and up to 50% for the next 15 years. Your peace of mind is our priority.
- Chimney Installation Support: Refer to our Typical Installation guide to select the right components for your installation.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-60SSCF |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 60 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
