Description

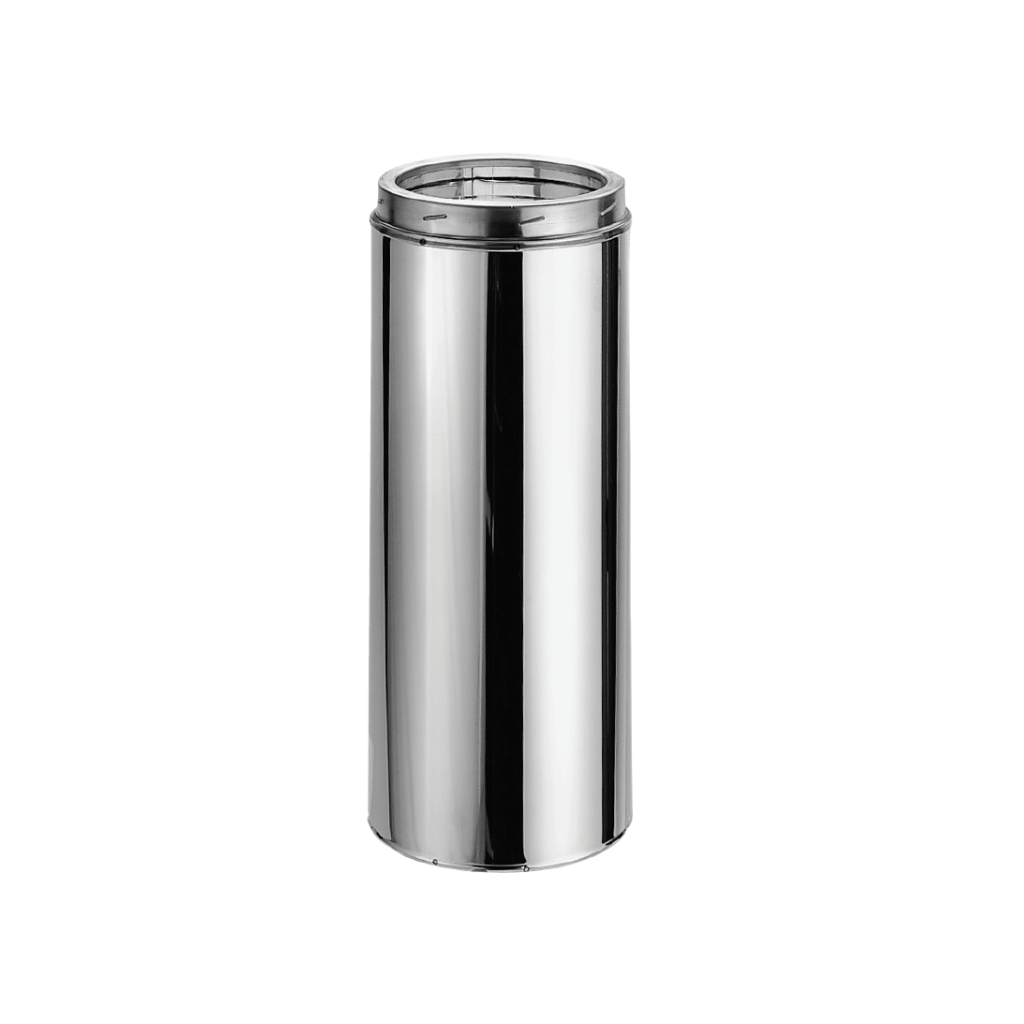

Elevate your home's safety and efficiency with the DuraVent DuraTech 8" Stainless Steel Chimney Pipe. This is more than just a chimney pipe; it's a safeguard for your hearth. With its double-wall design and Thermal Tech blanket insulation, DuraTech ensures that your chimney stays cool on the outside while maintaining optimal flue gas temperatures for superior draft performance.
The inner wall of this chimney pipe is not just safe; it's 25% thicker than other chimneys on the market, providing an additional layer of security. Plus, there's no need for cumbersome locking bands or mechanical fasteners. DuraTech's sleek 1" wall design makes installation a breeze, even in tight spaces. If space is a concern, our Reduced Clearance Square Ceiling Support Box (for 6" diameter DuraTech) is the perfect solution.
Designed for continuous operation at flue gas temperatures up to 1000°F, DuraTech has undergone rigorous testing, including exposure to 1400°F for one hour and a series of three ten-minute chimney fire tests at 2100°F. Rest easy, knowing that your home is protected by the industry's best.
Benefits:
- All-Fuel Performance: Use it with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, as well as zero-clearance fireplaces.
- Premium Materials: The inner wall features .020" 430 stainless steel, with outer wall options of .016" 430 stainless steel or .021" galvalume steel. Refractory insulation provides extra protection.
- Easy Installation: Enjoy lightweight insulation, twist-lock fittings, and adjustable pipe lengths, making installation a breeze.
- Safety First: With a 2" clearance to combustibles, you can trust your home's safety.
- Shroud Options: Create a UL-listed shroud for a clean and safe chimney termination.
- Versatile Sizes: Choose from a variety of diameters and lengths to fit your needs.
- Time and Money-Saving: Twist-lock fittings eliminate the need for locking bands or mechanical fasteners, while the swivel base saves you time during installation.
- Exceptional Warranty: Our Limited Lifetime Warranty, the best in the industry, provides peace of mind with 15 years at 100% and up to 50% coverage for 15 years.
Product Details:
| Model | DuraTech 8" |
| Part no. | 8DT-36SS |
| Part no. | 8DT-36SSCF |
| Inner Diameter, A | 8 inch |
| Outer Diameter, B | 10 inch |
| Pipe Length | 36 inch |
| Inner Wall Material |
0.020” 430 Stainless Steel |
| Outer Wall Material | 0.016” 430 Stainless Steel |
Applications:
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Materials and Construction: 5”, 6" 7", or 8” diameter pipe features an inner wall of .020” 430 stainless steel. Outer wall options of .016” 430 stainless steel or .021” galvalume steel. Refractory insulation is encased between walls. Stainless steel end rings seal the pipe.
DuraTech features lightweight insulation, twist-lock fittings, support boxes with factory-installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, five-foot length pipe sections, and adjustable pipe lengths.
Clearances: 2” clearance to combustibles.
Shrouds: Shroud specs allow the installer to create a UL-listed shroud to hide the termination at the top of the chase for the safest installation.
Features:
- A wide variety of diameters is available.
- Most lengths are available.
- Twist-lock fittings. No locking bands or mechanical fasteners are required.
- Made by the industry leader with over 50 years of manufacturing.
- The swivel base allows an installer to line up the elbow without unlocking and repositioning the elbow, saving time and money.
- Ensures that the installer gets both the offset and return elbow along with an elbow support bracket to make a properly code-approved offset.
- Limited Lifetime Warranty The best Warranty in the industry. 15 years 100%, 15 years, and up 50%. Gives the installer and homeowner the greatest peace of mind in a quality installation.
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
