Description

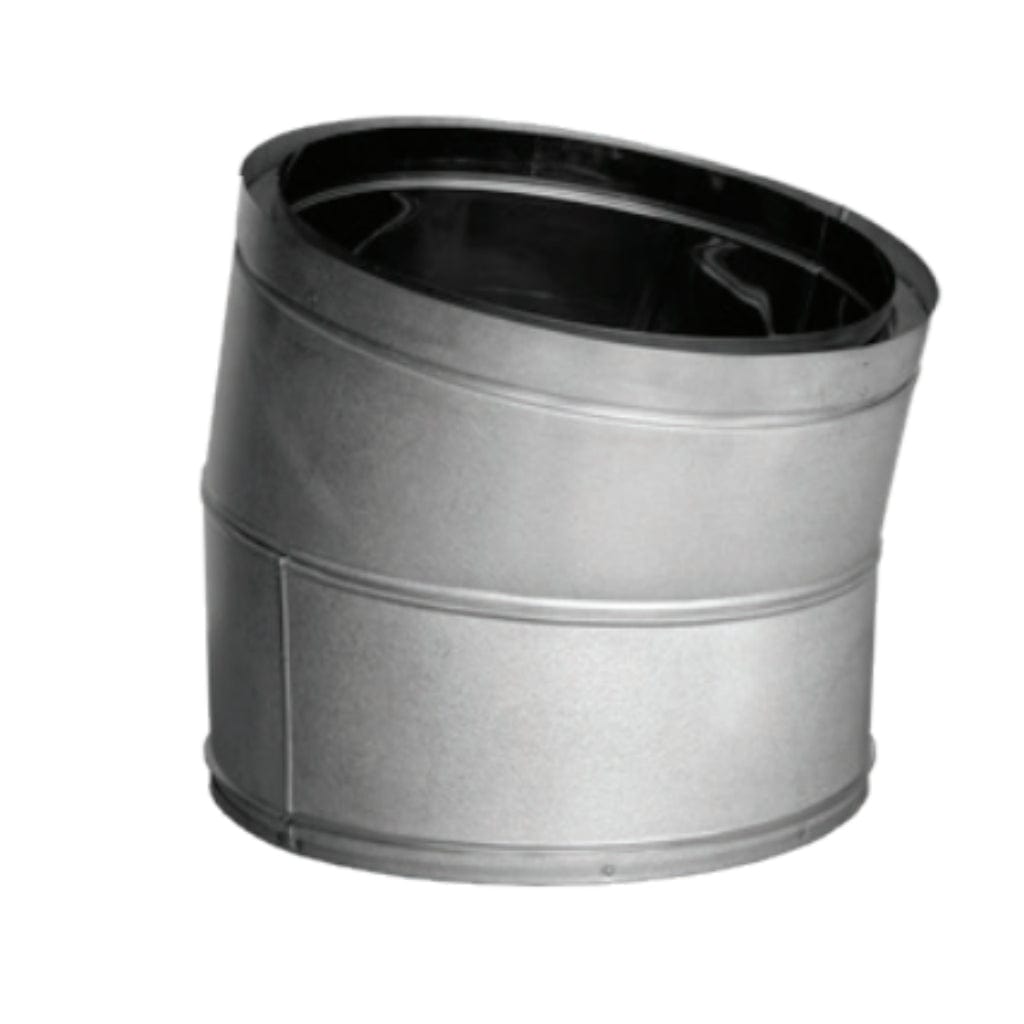

Introducing the DuraVent DuraTech 15-Degree Elbow in Stainless Steel
Elevate your venting solution with the DuraVent DuraTech 15-Degree Elbow in stainless steel. As the industry leader in venting products, DuraVent delivers excellence in safety, innovation, and professionalism for both the HVAC and Hearth markets. With its refractory insulation encased between dual walls, DuraTech sets a new standard for safety and performance.
Benefits:
-
Unrivaled Safety: DuraTech's dual-wall construction keeps the outer chimney wall cool, ensuring optimum draft performance while maintaining high flue gas temperatures. With a 25% thicker inner wall than its competitors, this elbow adds an extra layer of safety without the need for locking bands or mechanical fasteners.
-
Versatile Offset: Perfect for navigating around obstructions like rafters, ridgepoles, or joists, this 15-degree elbow is a flexible solution for your venting needs.
-
High-Temperature Reliability: Tested and listed for continuous operation at 1000°F flue gas temperatures, one hour at 1400°F, and ten minutes at 1700°F, in accordance with UL 103 standards, this elbow can handle the heat, providing peace of mind.
-
Durability: Crafted from stainless steel, this elbow is built to last, and it requires minimal maintenance, making it a cost-effective choice in the long run.
-
Easy Installation: Fasten securely with screws, ensuring a hassle-free installation process that saves you time and effort.
-
Multiple Sizes: With a range of sizes available, you can find the perfect fit for your venting system, catering to various project requirements.
-
Certified Quality: DuraVent's DuraTech 15-Degree Elbow is c-UL-us listed to UL 103 and ULC S604 (MH7399), guaranteeing compliance with rigorous safety and quality standards.
Features:
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- Offsets greater than 30° are not permitted in accordance with UL 103 standards.
- Large diameters are restricted to one pair of elbows.
- Available in galvalume (GA) and stainless steel (SS) outer wall and stainless steel inner wall.
- Fasten with screws.
Specifications:
| Model | Dimensions |
| 12DT-E15SS | 12" (A) x 14" (B) x 6.75" (C) x 7" (D) |
| 14DT-E15SS | 14" (A) x 16" (B) x 6.75" (C) x 7" (D) |
| 16DT-E15SS | 16" (A) x 18" (B) x 7.25" (C) x 6.5" (D) |
| 18DT-E15SS | 18" (A) x 20" (B) x 9" (C) x 9" (D) |
| 20DT-E15SS | 20" (A) x 22" (B) x 9" (C) x 9" (D) |
| 22DT-E15SS | 22" (A) x 24" (B) x 9" (C) x 9" (D) |
| 24DT-E15SS | 24" (A) x 26" (B) x 9" (C) x 9" (D) |
| Clearances | 2" clearance to combustible. |
| Listings | c-UL-us listed to UL 103 and ULC S604 (MH7399) |
| Warranty | Limited-lifetime warranty |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
