Description

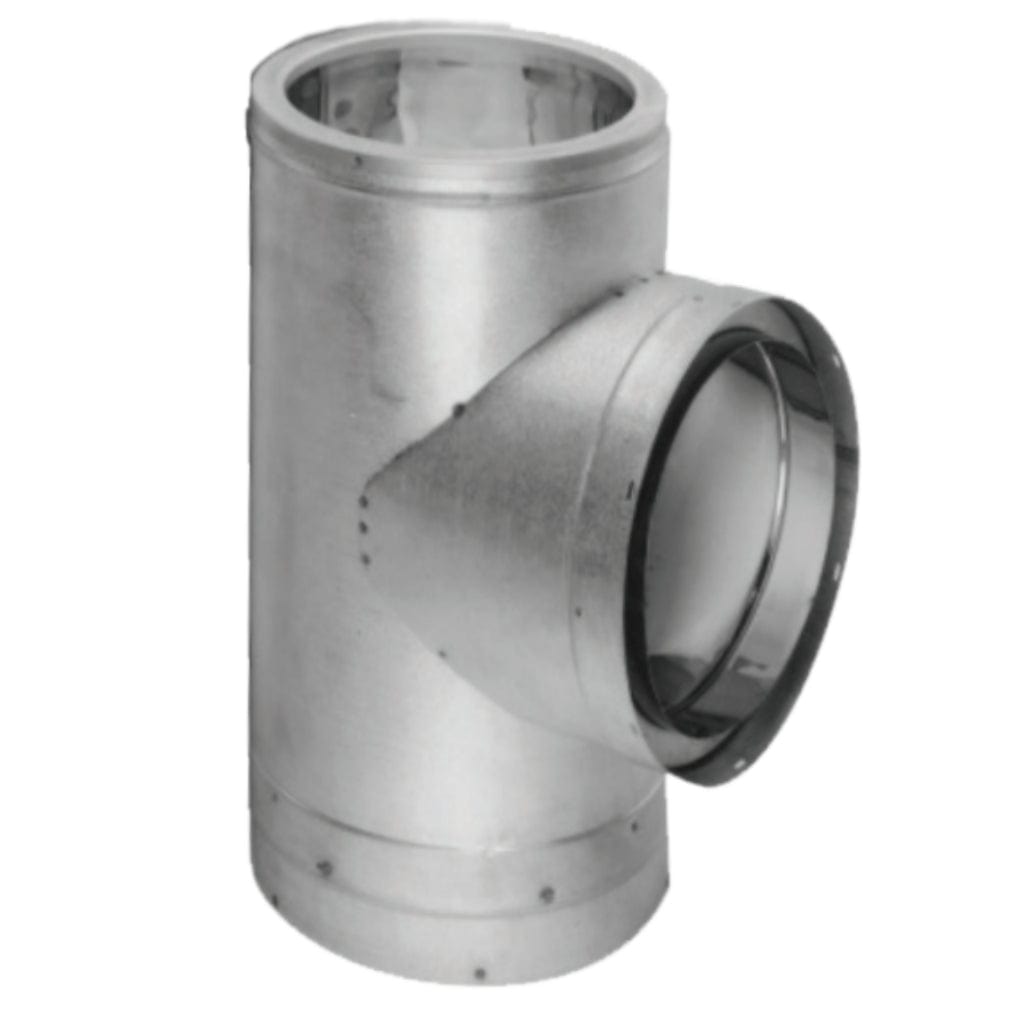

Introducing the DuraVent DuraTech Tee with Cap Galvalume, the cornerstone of safety and efficiency for your chimney system. When it comes to venting products, DuraVent stands head and shoulders above the competition. As the industry leader, DuraVent has earned a reputation for providing innovative, safe, and professional solutions for the HVAC and Hearth markets.
DuraTech, with its unique refractory insulation encased between dual walls, ensures the utmost in safety and performance. This ingenious design keeps the outer wall of your chimney cool while maintaining high flue gas temperatures for optimal draft performance. The inner wall is a remarkable 25% thicker than that of competitive chimneys, providing an extra margin of safety without the need for locking bands or mechanical fasteners.
But what truly sets the DuraVent DuraTech Tee with Cap Galvalume apart is its exceptional durability. Tested and listed for continuous operation at 1000°F flue gas temperatures, it can withstand one hour at 1400°F and endure ten minutes at 1700°F, all in accordance with the UL 103 test standard. This means that, even in demanding conditions, this chimney component excels in maintaining safety and efficiency.
Benefits:
-
Enhanced Safety: With refractory insulation and a thicker inner wall, our DuraTech Tee provides unmatched safety for your chimney system.
-
Optimal Performance: Experience top-tier draft performance with high flue gas temperatures.
-
Easy Maintenance: The removable Tee Cap ensures chimney cleaning and inspection are hassle-free.
-
Versatile Installation: Suitable for through-the-wall installations, this tee is designed for your convenience.
-
Quality Materials: Choose between stainless steel or galvalume outer wall and a stainless steel inner wall, all built to last.
-
Compliance Assurance: DuraTech Tee is c-UL-us listed to UL 103 and ULC S604 (MH7399), so you can trust its quality.
-
Peace of Mind: Enjoy a limited-lifetime warranty, knowing your investment is protected.
Features:
- Use for through-the-wall installations.
- Includes removable Tee Cap for easy chimney cleaning or inspection.
- Wall Straps, a Wall Thimble, and an Adjustable Tee Support Bracket must be installed with the Tee as directed.
- Available in stainless steel or with a galvalume outer wall and stainless steel inner wall.
- See installation instructions for proper location and installation of Tee.
- 18”-24” Tee is not UL listed.
Specifications:
| Model | Dimensions |
| 12DT-T | 12" (A) x 14" (B) x 11" (C) x 11" (D) x 22" (E) |
| 14DT-T | 14" (A) x 16" (B) x 12" (C) x 12" (D) x 24" (E) |
| 16DT-T | 16" (A) x 18" (B) x 13" (C) x 13" (D) x 26" (E) |
| 18DT-T | 18" (A) x 20" (B) x 14" (C) x 14" (D) x 28" (E) |
| 20DT-T | 20" (A) x 22" (B) x 15" (C) x 15" (D) x 30" (E) |
| 22DT-T | 22" (A) x 24" (B) x 16" (C) x 16" (D) x 32" (E) |
| 24DT-T | 24" (A) x 26" (B) x 17" (C) x 17" (D) x 34" (E) |
| Clearances | 2" clearance to combustible. |
| Listings | c-UL-us listed to UL 103 and ULC S604 (MH7399) |
| Warranty | Limited-lifetime warranty |
Downloads:
About the Manufacturer:
Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
