Description

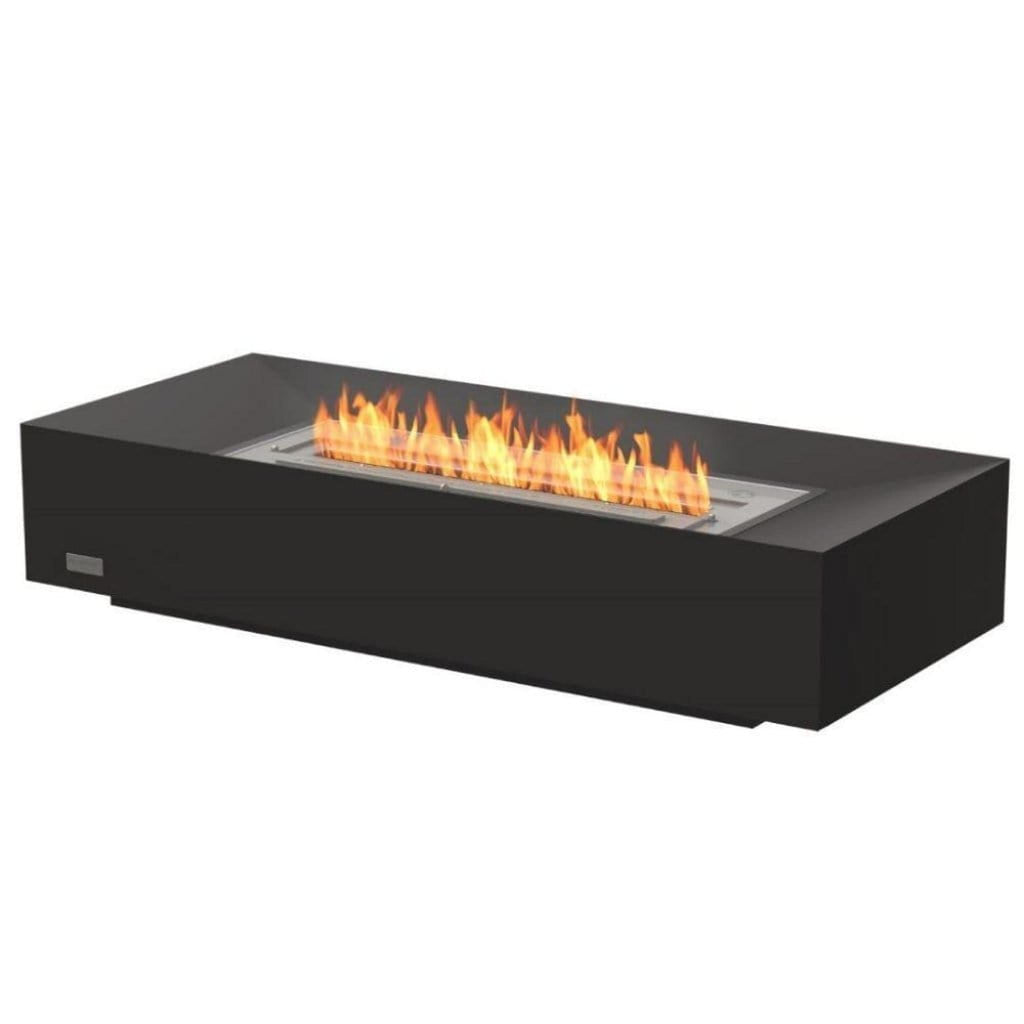

The EcoSmart Fire 30" Grate Ethanol Fireplace Insert by Mad Design Group transforms traditional fireplaces into modern, eco-friendly focal points. Delivering the natural ambience of an open flame without smoke, soot, or ash, it runs on clean-burning e-NRG bioethanol for a hassle-free, sustainable heating experience.
Crafted from a durable concrete composite and Grade 304 stainless steel, this insert features EcoSmart’s innovative Fluid™ Concrete Technology for exceptional strength and style. The self-contained burner design eliminates the need for gas lines or electrical connections, making installation quick and simple.
Perfect for indoor settings, the Grate 30 insert provides a safe and efficient heating solution with global safety certifications including UL and EN16647. With effortless maintenance and elegant flame control, it offers both beauty and performance in one sleek design.
Fireplace Grate 30, a modern take on the traditional:

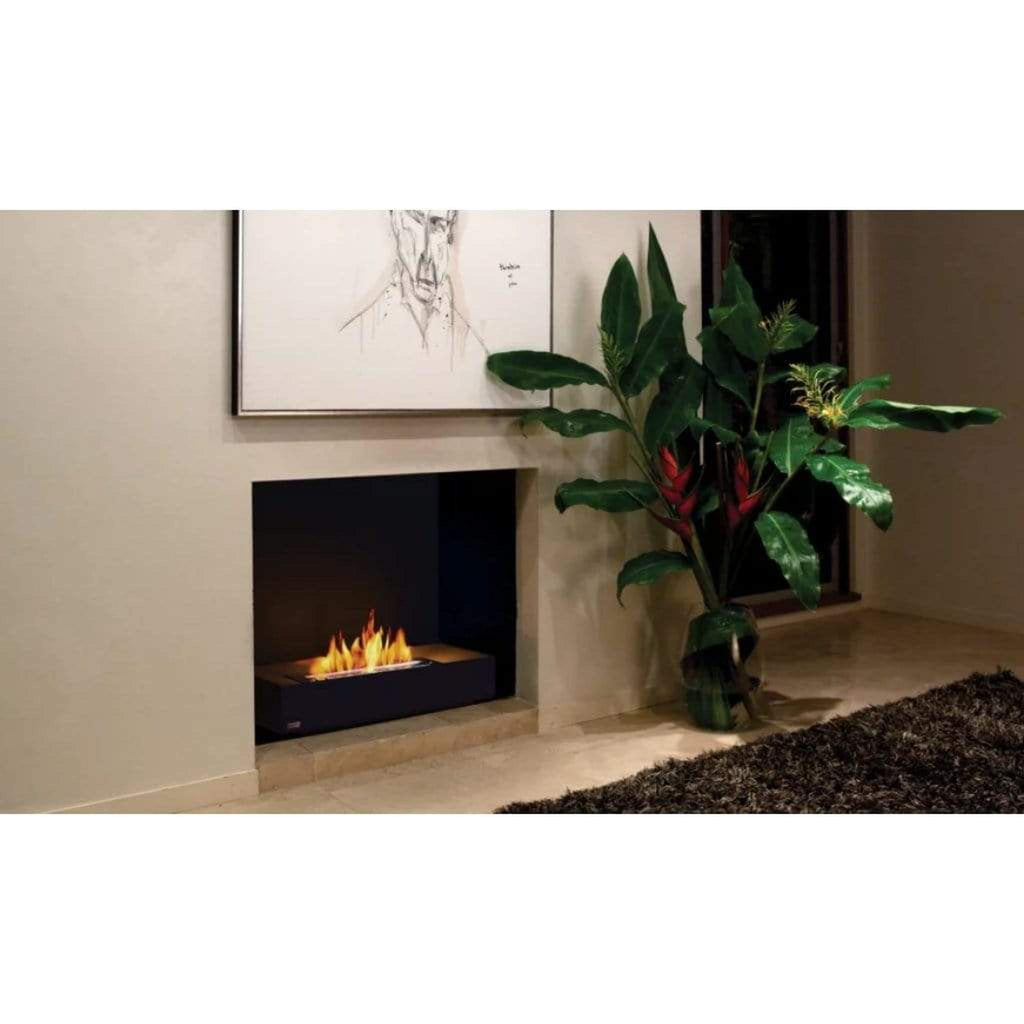

Designed to complement conventional hearths and custom spaces - its bold appearance and elegant flame make it ideal for reinvigorating an old, disused fireplace. And it’s equally at home in both modern and traditional settings.
Slightly shorter in length to Grate 36, Grate 30 is available for narrower fireplace setting. It accommodates the EcoSmart Fire XL500 Burner which is perfect for those looking to incorporate a long flame style into a compact setting.
O-TL Listed in accordance with UL 1370.
What's Included:
- Fire Lighter
- Lighting Rod
- Jerry Can 1.25 Gal
- Bottle Adapter
- Butane
Not Included (Sold Separately):
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
- Twin Feet Fixing
Features:
Minimum Fuss
Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.
Fluid™ Concrete Technology
EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.
Convert an existing fireplace in minutes
Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.
Optional Sizes
The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).
No Gas or Electricity
All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls
Tested World Wide
EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight |
41.23lb [18.70kg] |
|---|---|
| Application | Indoor |
| Material |
Concrete Composite, Stainless Steel Grade 304 |
| Color | Graphite |
Fuel Efficiency
|
|
1.3 Gal [5 L]
|
|
Heats on Average |
431ft2 [40m2] |
|
Minimal Room |
2825ft3 [80m3] |
|
Thermal Output |
11430 BTU/h [3.4 kW 12 MJ/h] |
|
Burn Time |
10 - 13 h [1.3 Gallon] |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 13in [330mm] |
| Height | 6.1in [156mm] |
| Depth | 30in [762mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Side View |
|
| Top View |  |
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files:
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
