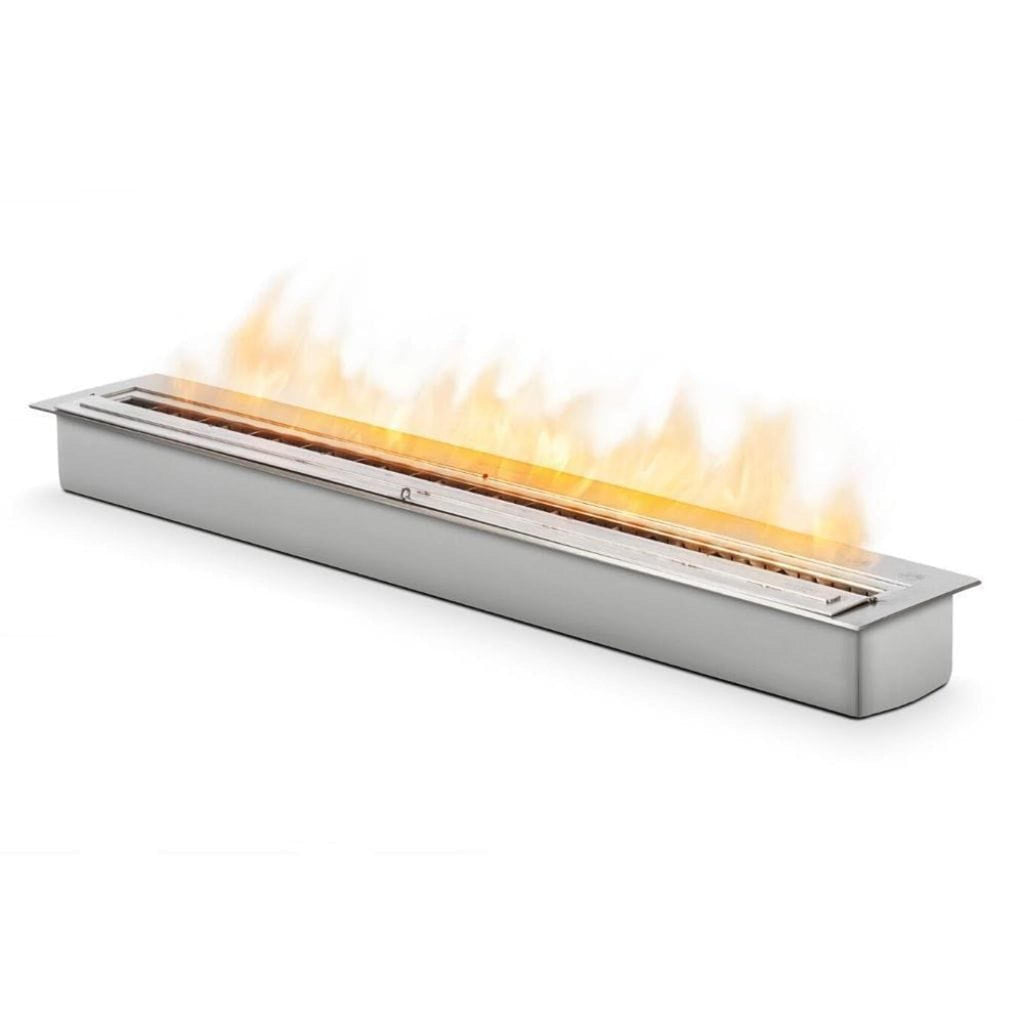

EcoSmart Fire 47" XL1200 Stainless Steel Ethanol Burner with Flame Control by MAD Design Group

The EcoSmart Fire 47" XL1200 Stainless Steel Ethanol Burner by MAD Design Group brings style, flexibility, and safety to bespoke fireplace designs. Crafted from premium 304-grade stainless steel, it can be seamlessly integrated into cabinetry, media units, walls, floating timber, stone benches, or pillars.

Compatible with a wide range of materials, including concrete, marble, stacked stone, hard timber, stainless steel, or even cut metal barrels, this burner allows for truly personalized fireplace installations. Purpose-designed baffle inserts enable precise flame control, delivering a vibrant orange flame that burns cleanly without smoke, soot, or ash.

Awarded the 2009 Hearth & Home Vesta Award, the XL1200 can be used as a standalone ethanol burner or in combination with a zero-clearance Flex Fireplace Insert. Tested and certified worldwide, it ensures safe, reliable, and environmentally friendly performance for indoor or outdoor settings.

Due to popular demand - our longest burner just got longer:

Creating distinctive social settings that are welcoming and feel like ‘home’ is a vital trend across myriad architectural environments - from commercial to hospitality to residential.

Because bioethanol is a clean-burning fuel source you don’t need a flue or chimney at all. This means that you can create a beautiful fireplace feature with ease. The linear features and absolute versatility of the XL1200 burner lends itself to the creation of stunning architectural masterpieces.

O-TL Listed in accordance with UL 1370.

What's Included:

• Bioethanol Burner
• 1.25 Gallon Jerry Can
• Bottle Adapter
• Fire Lighter
• Lighting Rod
• Butane
• XL Baffles

Not Included (Sold Separately):

• Plasma Fire Screen

• Twin Feet Fixings
• Black Glass Charcoal
• e-NRG Bioethanol Fuel

Features:

Design Versatility

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.

Myriad Materials

Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!

Flame Regulation

Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.

No Harmful By-products

e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.

Award-winning

Awarded the 2009 Hearth & Home Vesta Award (USA).

Standalone or Integrated

Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Dimensions:

Width	7.7in [195mm]
Height	47.2in [1200mm]
Depth	4.4in [112mm]

Technical Drawings:

Front View
Top View
Side View

Warranty:

	Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
	Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files:

• Download Installation and Operation Manual
• Download Specs Sheet
• Download Technical Specification
• Download Ethanol Burners Look Book

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
