Description

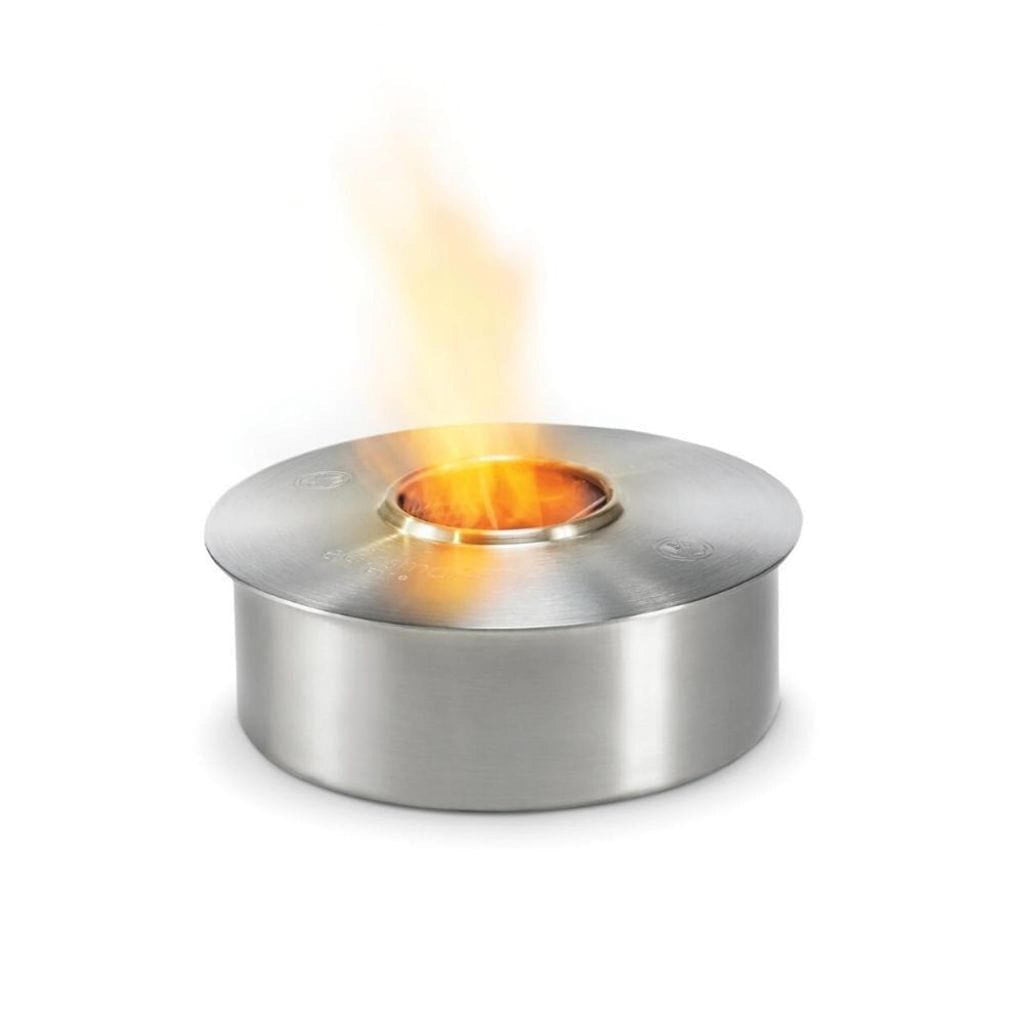

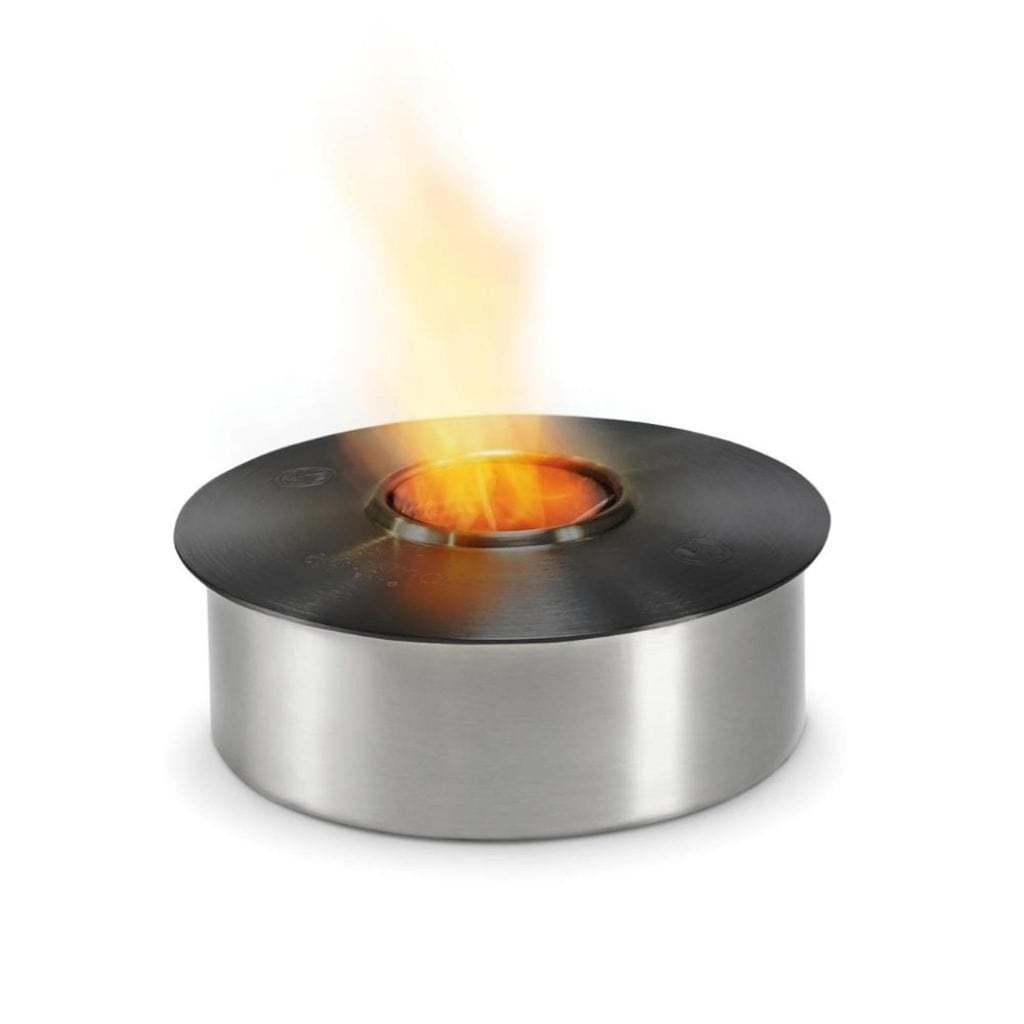

The EcoSmart Fire AB3 10" Stainless Steel Ethanol Burner by MAD Design Group combines compact design with outstanding performance. With minimal clearance requirements, it provides ultimate flexibility for creating a bespoke installation tailored to your space.
Fuelled by eco-friendly e-NRG bioethanol, this burner offers up to 11 hours of enduring, vibrant flame without producing smoke, soot, or harmful by-products. Its stainless steel 304 construction ensures long-lasting durability, while steel wool inside the burner stabilizes the flame and improves fuel efficiency.
Safe and easy to use, the AB3 requires no chimney, flue, or utility connections, making it suitable for both indoor and outdoor environments. Tested and certified globally, this burner guarantees reliable performance while maintaining an environmentally responsible footprint.
Small but effective round bioethanol burner:
The smallest of EcoSmart’s round ethanol burners, but no less effective. It’s the core of many freestanding, portable designer indoor and outdoor fires, but also provides the versatility to create your own – and the creative designs around the world are testament to this.
O-TL Listed in accordance with UL 1370.
What's Included:
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
-
Butane
Not Included (Sold Separately):
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
Features:
Minimal Clearance
AB3’s minimal clearance requirement gives you the freedom to create the installation you’ve always envisioned.
Enduring Flame
AB3’s 2.5L capacity gives up to 11 hours of burn time.
Environmentally-friendly
The AB3 is fuelled by eco-friendly, renewable energy – e-NRG bioethanol.
No Flue, No Chimney, No Connection
There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any smoke. No utility connections required!
Quality and Durability
Crafted from high quality, 304 grade stainless steel, designed to deliver robust performance time after time.
Stability Assured
The AB3 is filled with steel wool to not only enhance the stability of the flame but to regulate its ethanol fuel efficiency.
Tested World Wide
Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight |
5.3lb [2.4kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Stainless Steel |
Fuel Efficiency:
|
|
0.7 Gal [2.5 L] |
|
Heats on Average |
215ft2 [20m2] |
|
Minimal Room |
1413ft3 [40m3] |
|
Thermal Output |
6.1 MJ/h - 5800 BTU/h - 1.7 kW |
|
Burn Time |
8 - 11h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 10.2in [260mm] |
| Height | 10.2in [260mm] |
| Depth | 3.7in [94mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Side View |
|
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files:
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Technical Specification
- Download Ethanol Burners Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
