Description

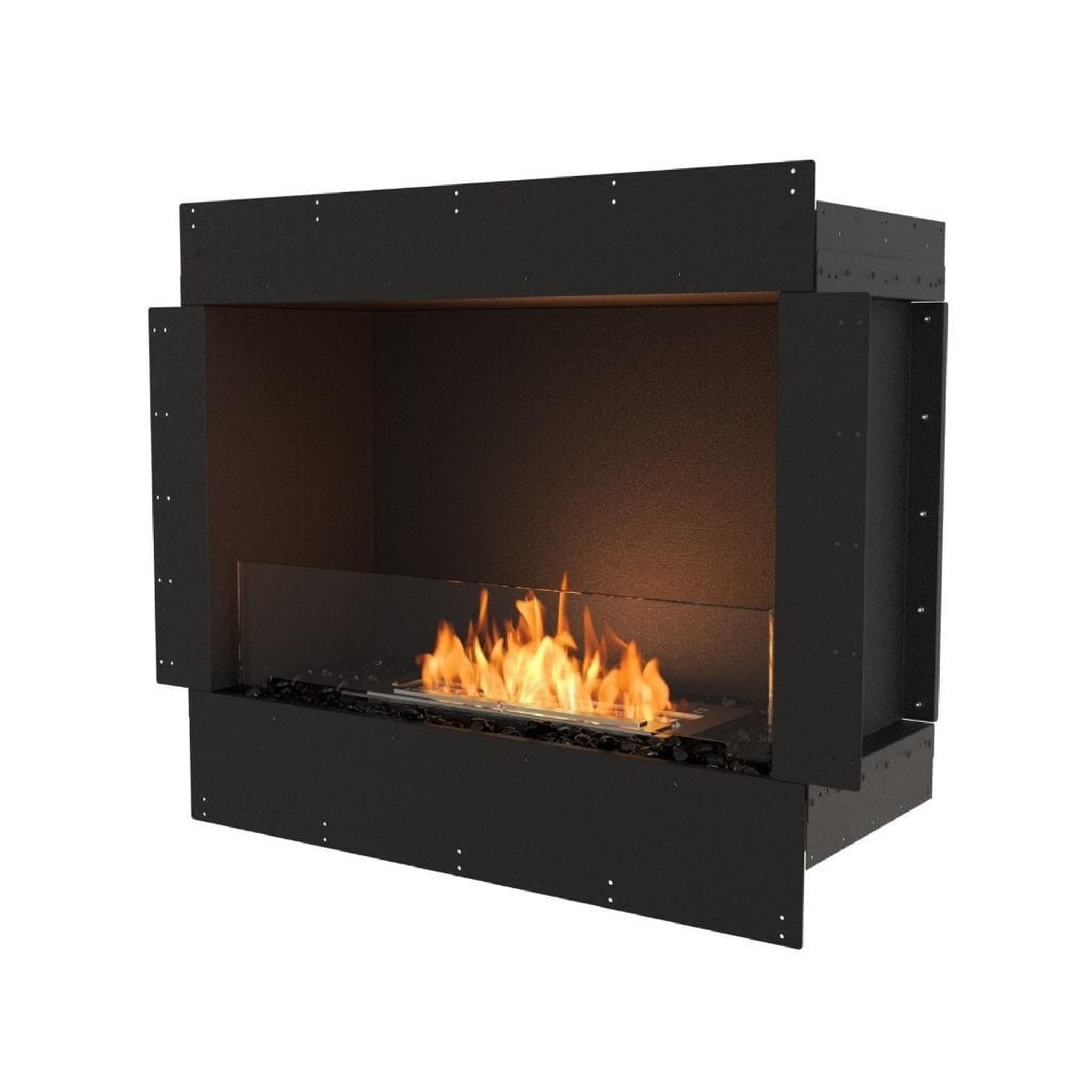

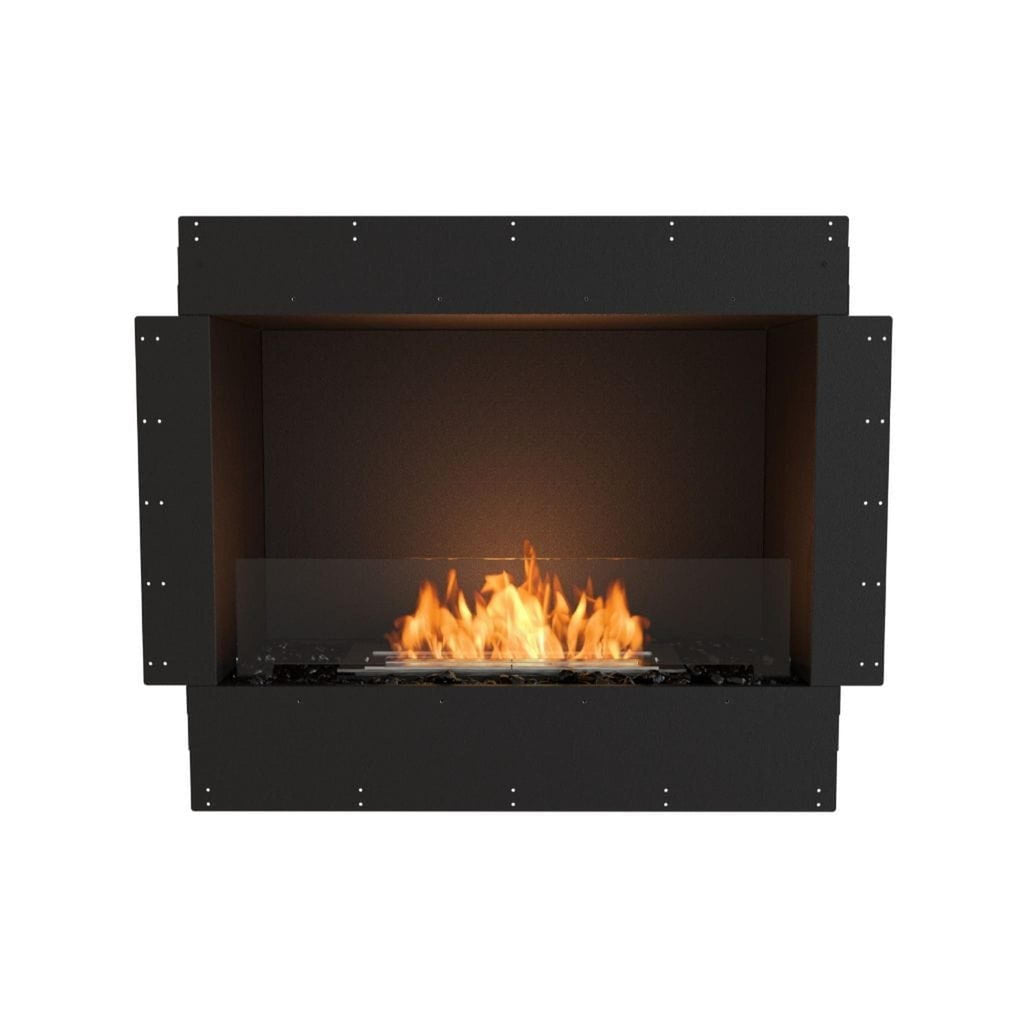

The EcoSmart Fire Flex 32SS 39" Black Single Sided Ethanol Fireplace Insert by Mad Design Group combines sophisticated style with functional performance for both indoor and outdoor environments. Its single-sided layout offers a captivating front-facing view of the flames, adding warmth and modern elegance to any space.
This clean-burning ethanol fireplace requires no gas, electricity, chimney, or venting, providing an eco-friendly heating solution that’s easy to install. With its self-contained burner and zero-clearance design, the Flex 32SS can be safely framed into wood or metal studs, allowing creative freedom for builders and designers alike.
Crafted with zinc-sealed steel and a high-temperature black powder-coated finish, this rust-proof insert ensures long-lasting durability. The stainless steel burner, decorative black glass charcoal, and integrated windscreen deliver both safety and refined aesthetics, making the Flex 32SS a statement piece in contemporary design.
Enjoy an alluring flame from any angle you look at it:

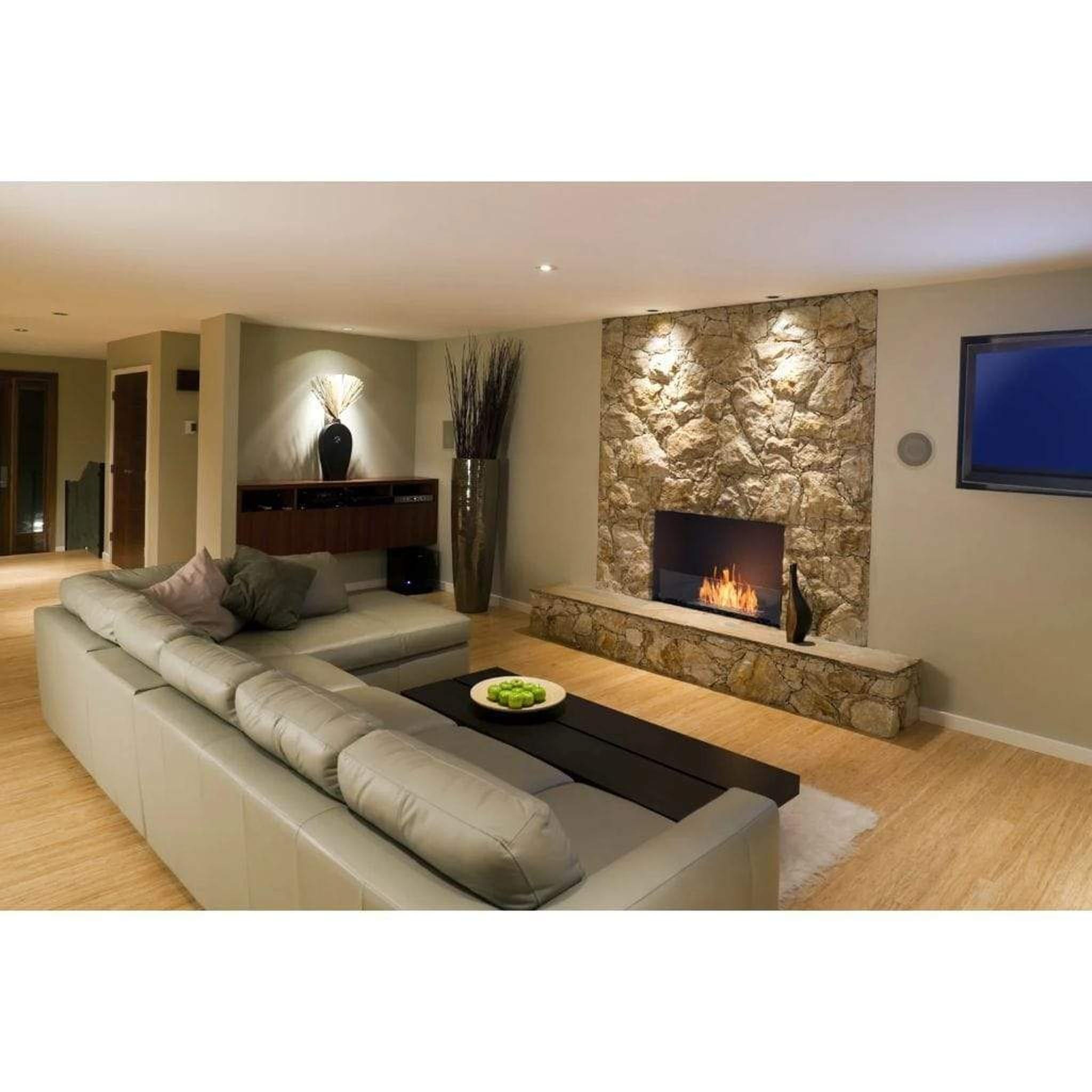

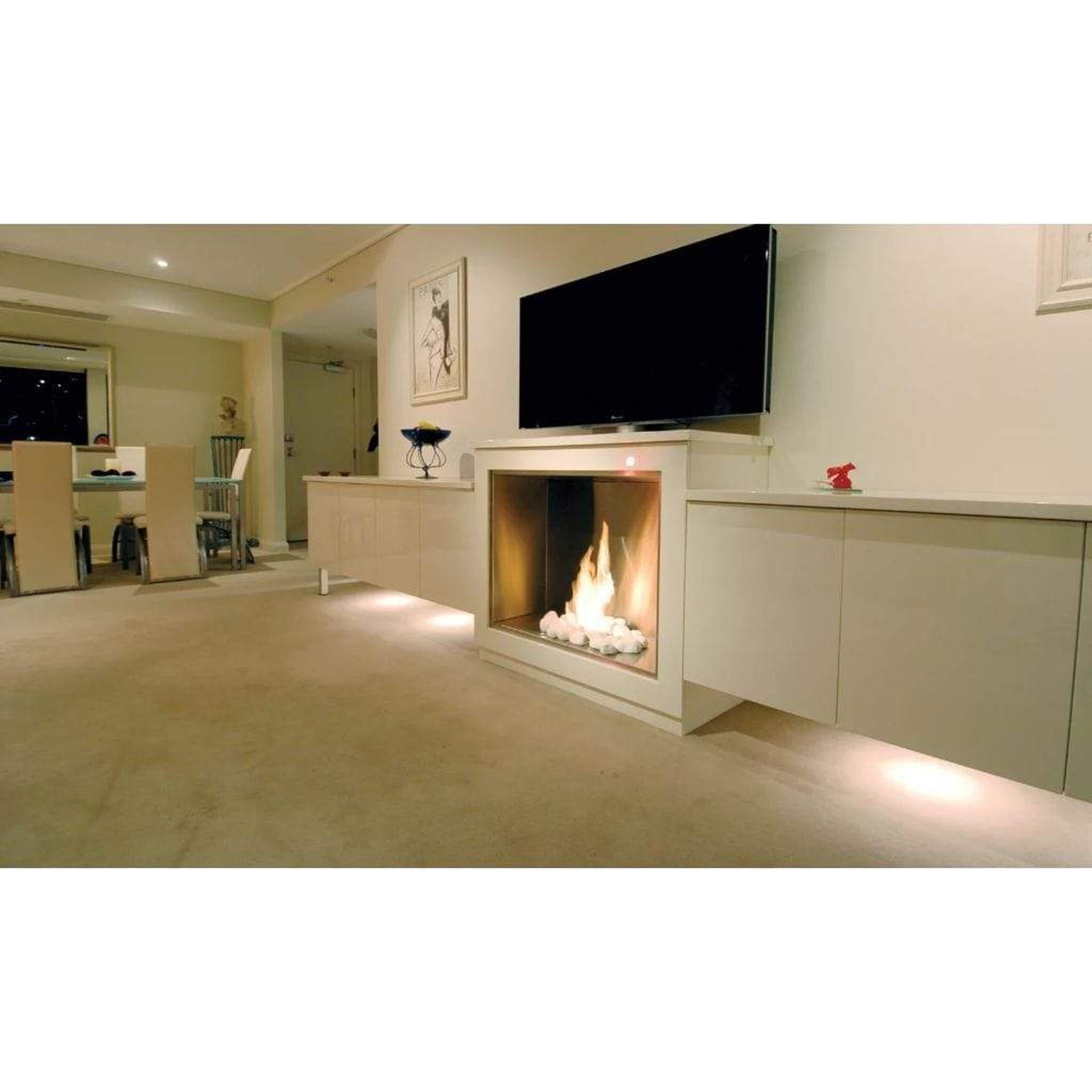

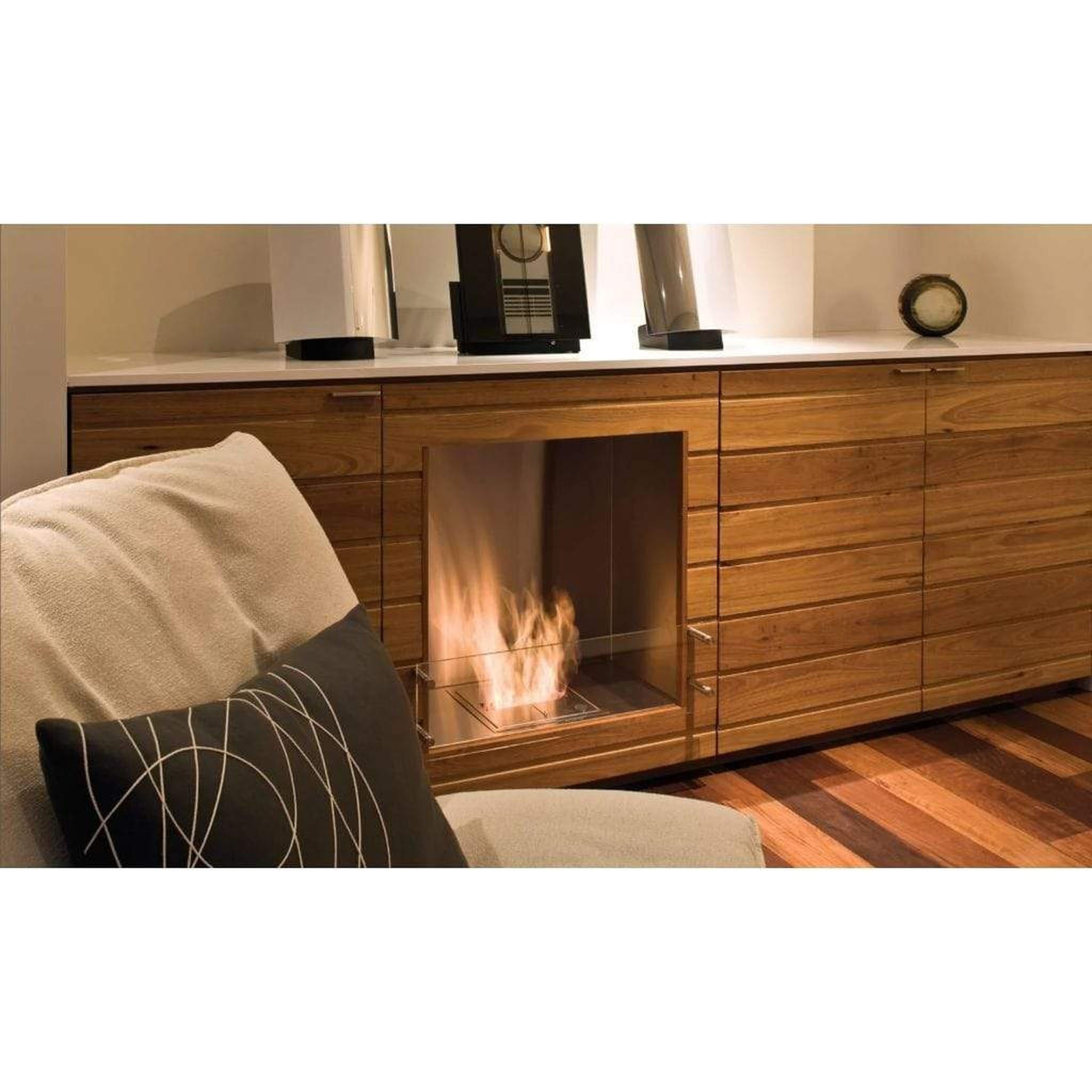

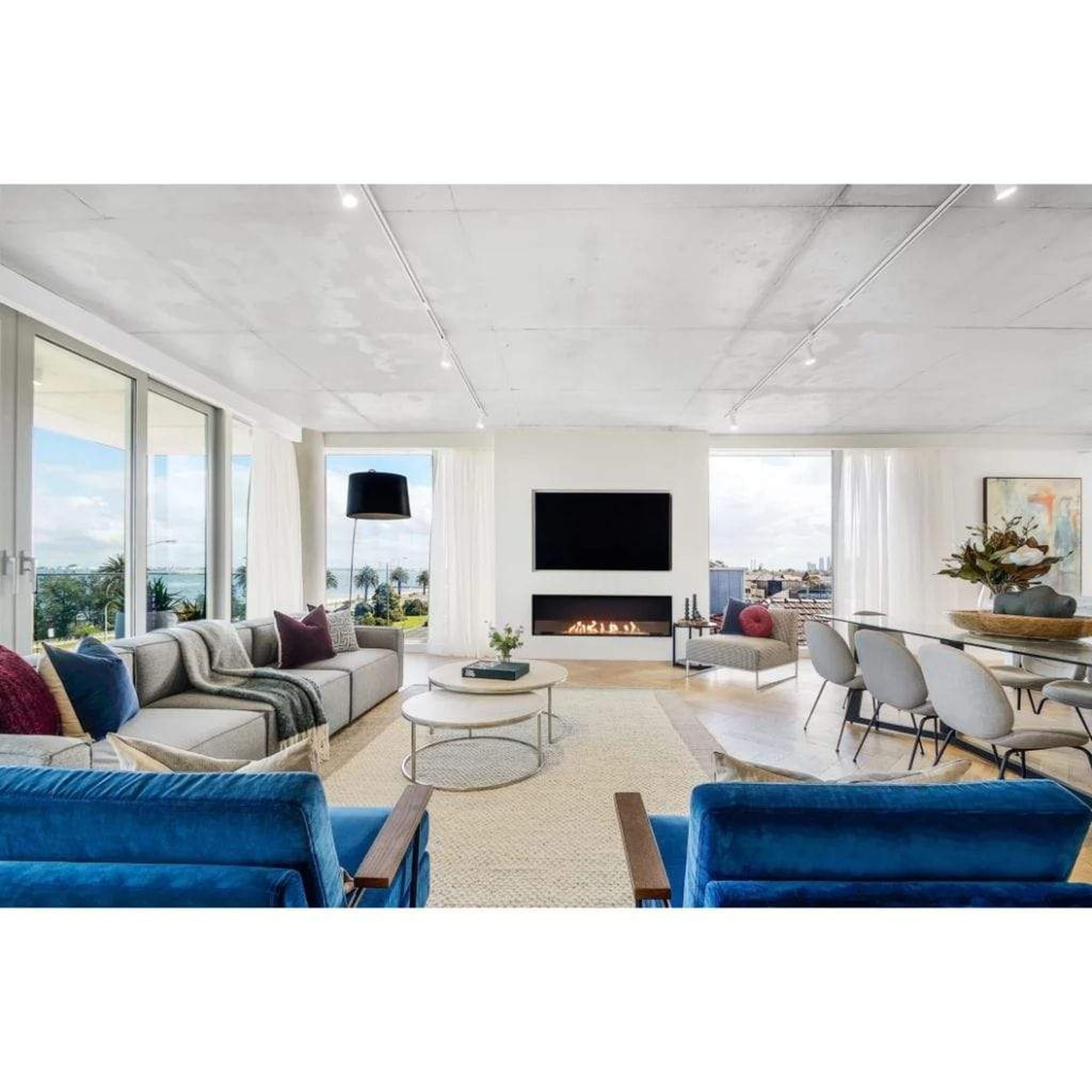

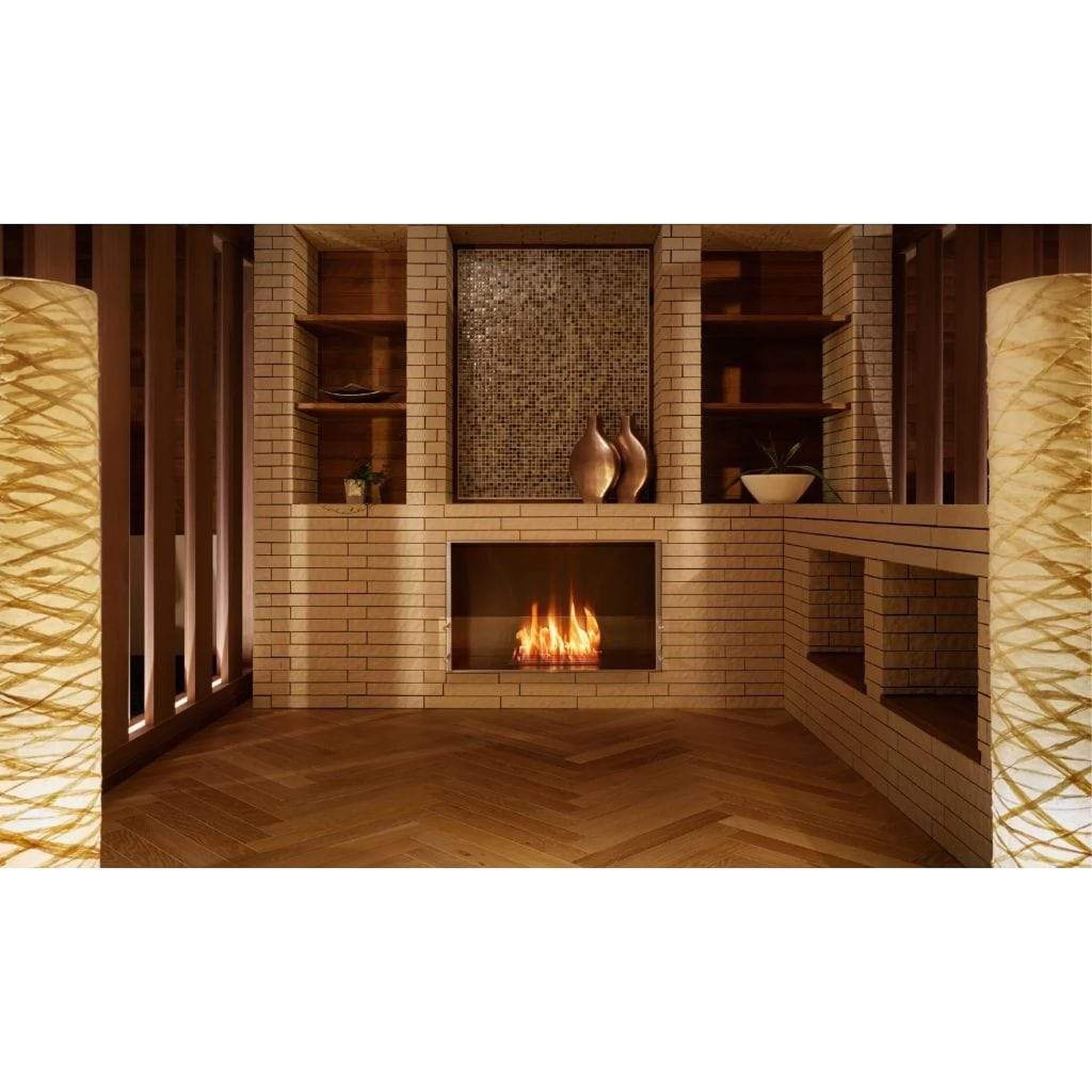

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

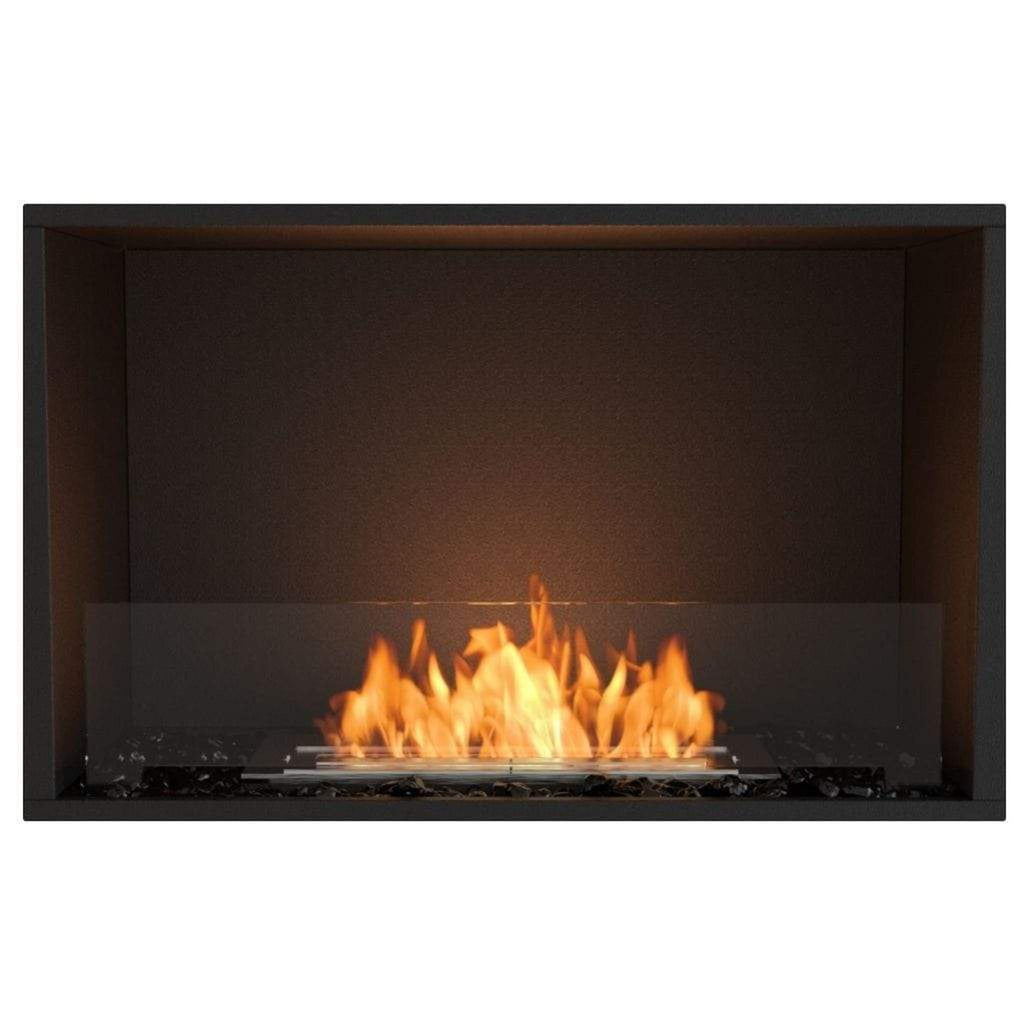

The clean lines and 'all flame' configuration of the Flex 32SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

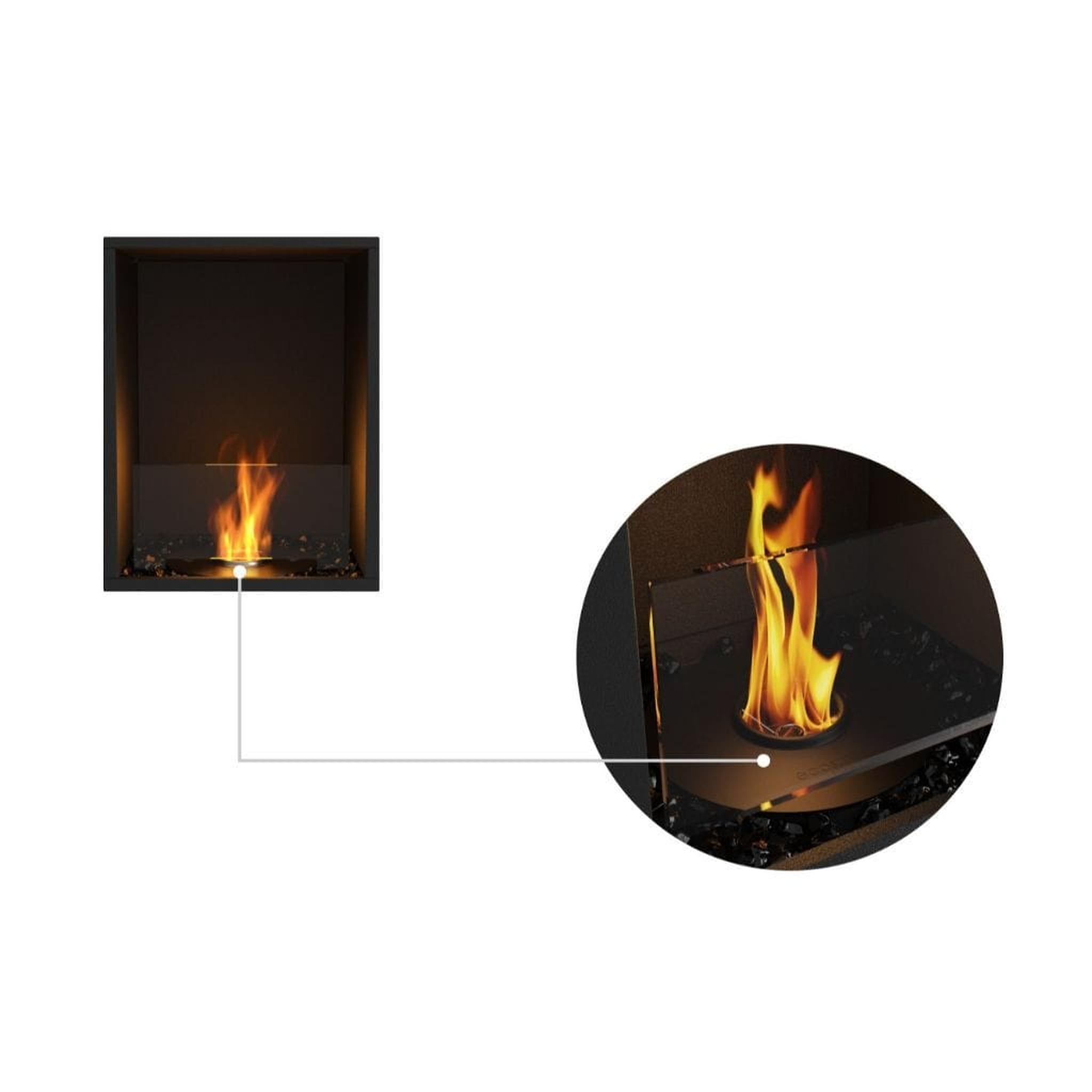

The XL500 burner, the 'baby' of the XL Series, delivers a stunning, long-lasting linear flame. It may be compact in size, but with a 1.3 gallons capacity, this ethanol burner can heat up to 431ft2. Efficiency is a key feature of this burner, delivering up to 13 hours of heat generating flame off a single refill.
O-TL Listed in accordance with UL 1370.
What's Included:
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
- XL Baffles
- Black Glass Charcoal
Not Included (Sold Separately):
- e-NRG Bioethanol Fuel
Features:
Application
Indoor or outdoor single room application. With one open side, view the flame from the front.
Colors
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No Gas or Electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean Burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero Clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and Easy Assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust Proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious Finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Wind Screen
Included integrated windscreen sits flush behind frame.
Tested World Wide
EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight | 101lb [45.70kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Stainless Steel |
Fuel Efficiency:
|
|
1.3 Gal [5 L] |
|
Heats on Average |
431ft2 [40m2] |
|
Minimal Room |
2825ft3 [80m3] |
|
Thermal Output |
12 MJ/h - 11430 BTU/h - 3.4 kW |
|
Burn Time |
10 - 13h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 39.8in [1010mm] |
| Height | 31.8in [807mm] |
| Depth | 14.4in [365mm] |
Technical Drawings:
|
Front View |
![]() |
|---|---|
| Side View |
|
| Top View | ![]() |
Warranty:
| Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase | |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files:
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Summary Brochure
- Download Technical Specification
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
About The Manufacturer:

Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
