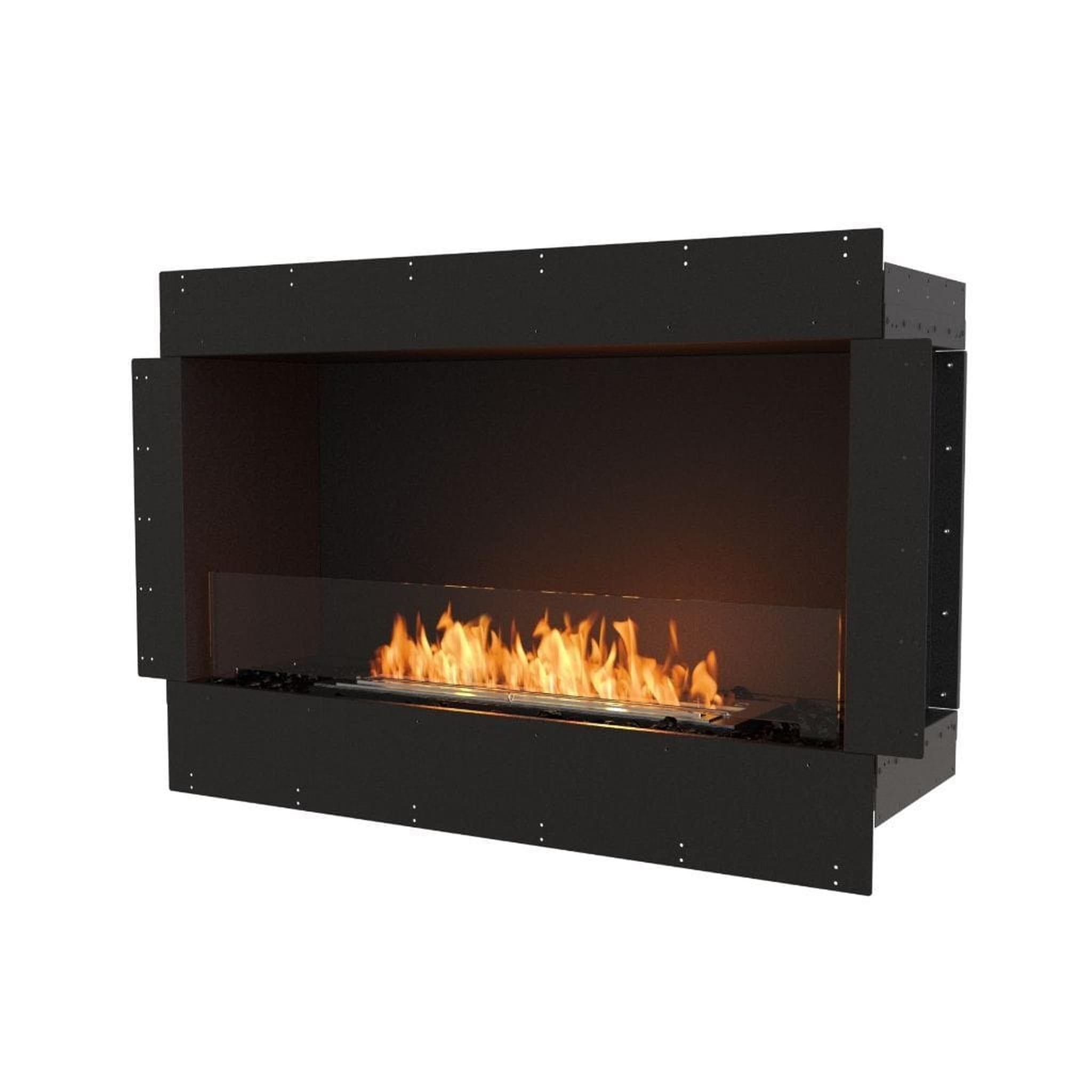

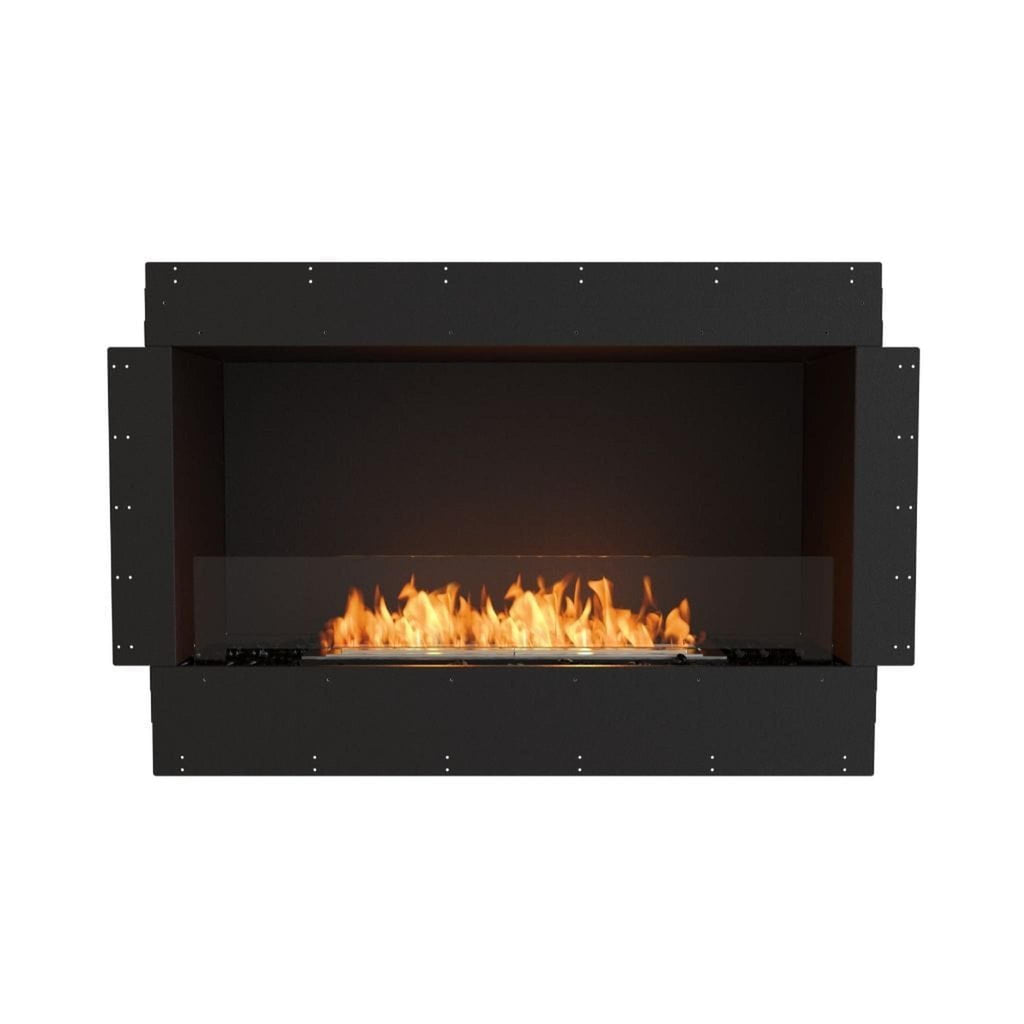

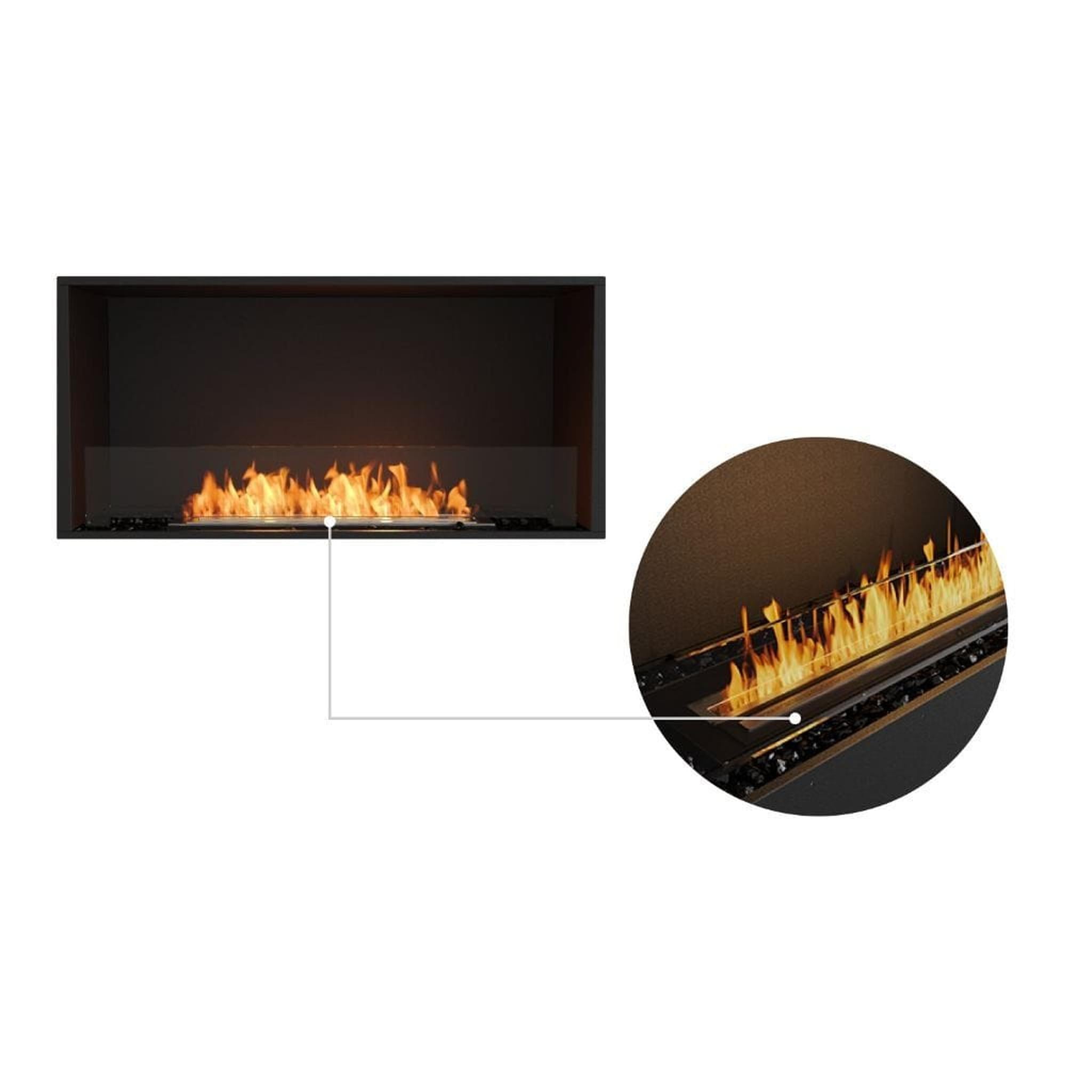

EcoSmart Fire Flex 42SS 49" Black Single Sided Ethanol Fireplace Insert with Clean-Burning Stainless Steel Burner by Mad Design Group

Save 12%
MAD Design GroupSKU: ESF.FX.42SS

Burner Color: Stainless Steel
Price:
Sale price$6,495.00 Regular price$7,400.00

Description

The EcoSmart Fire Flex 42SS 49" Black Single Sided Ethanol Fireplace Insert by Mad Design Group redefines modern fireplace design with its sleek, front-view layout and clean-burning performance. Perfect for both indoor and outdoor settings, it provides a stunning visual centerpiece while offering the warmth and ambiance of a real flame—without the need for gas, electricity, or venting.

Engineered for simplicity and safety, the Flex 42SS features a zero-clearance, self-contained design that allows it to be framed into wood or metal studs. Its efficient ethanol burner is housed entirely within the unit, ensuring easy installation and an environmentally friendly operation free of smoke or ash.

Crafted from zinc-sealed steel with a high-temperature black powder-coated finish, this rust-resistant fireplace insert is built for durability. The stainless steel burner, black glass charcoal, and integrated windscreen add a touch of luxury, making the Flex 42SS an elegant and enduring addition to any contemporary space.

Enjoy an alluring flame from any angle you look at it:

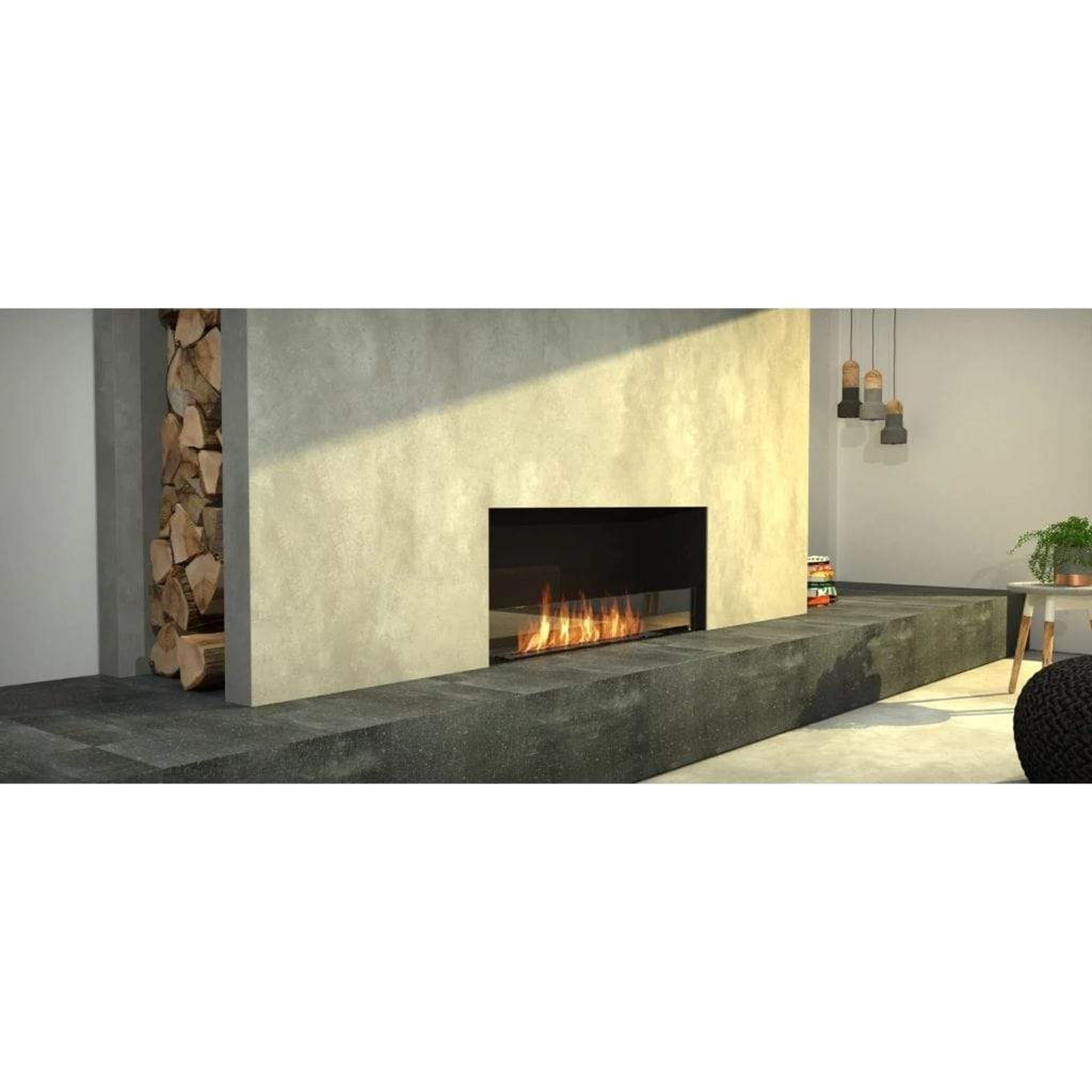

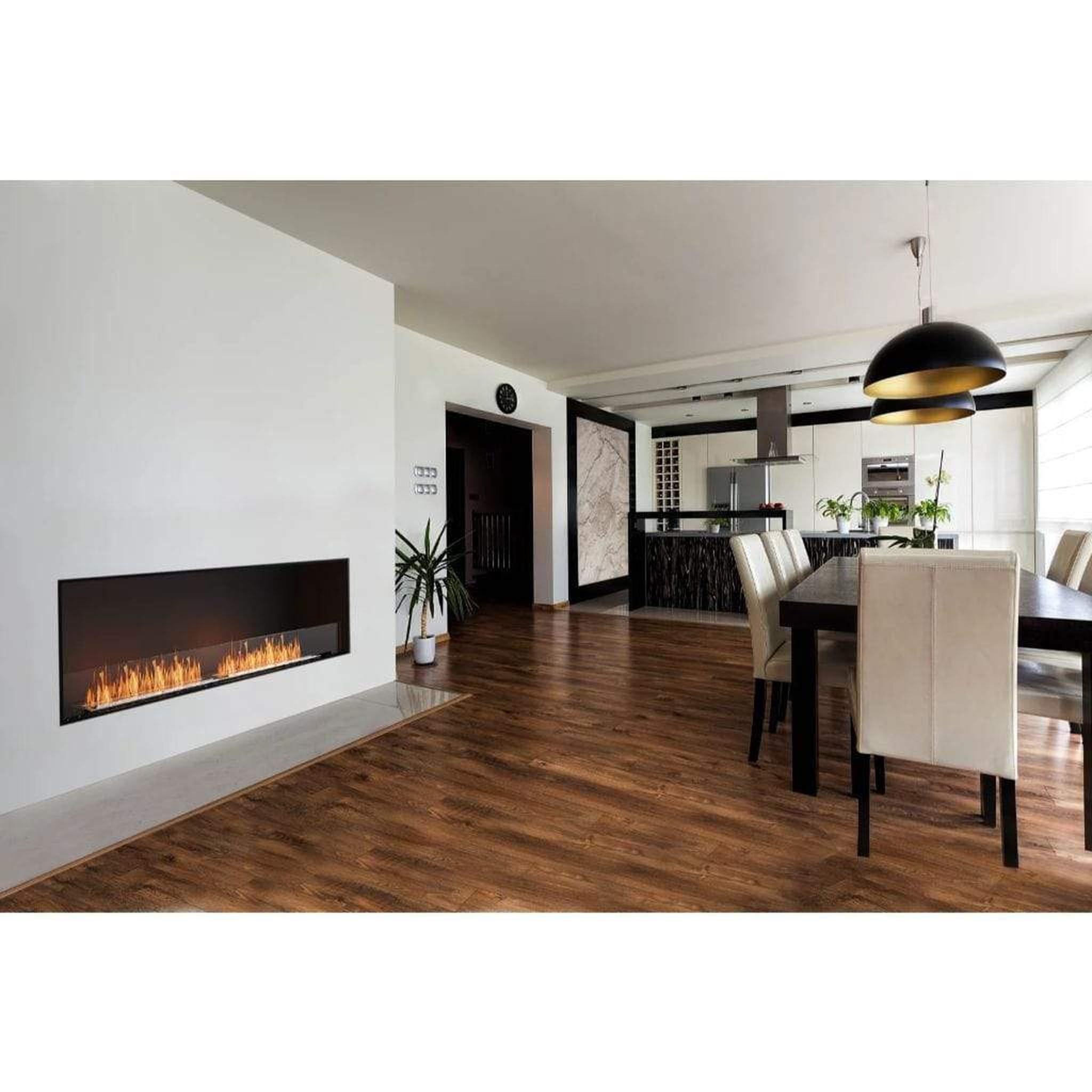

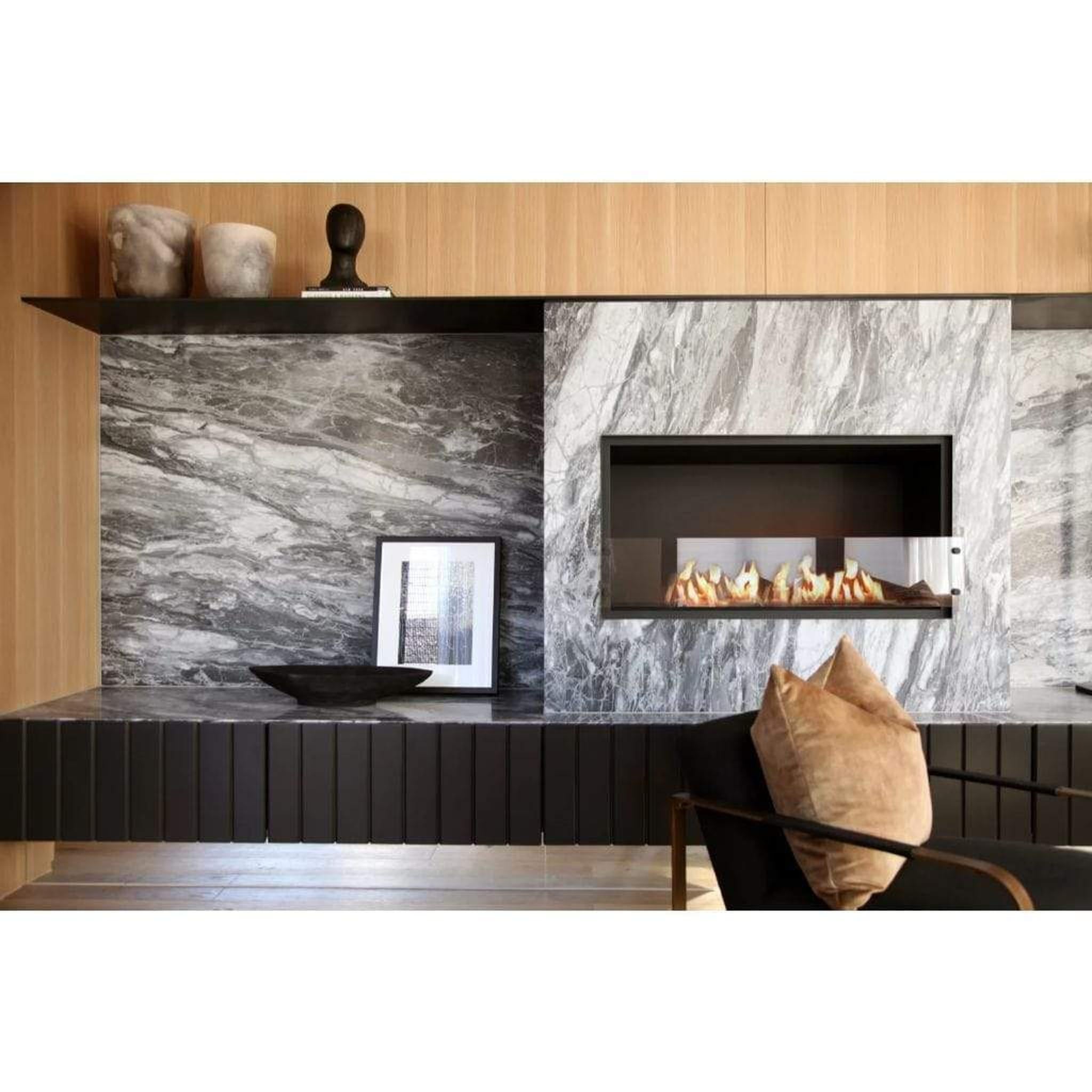

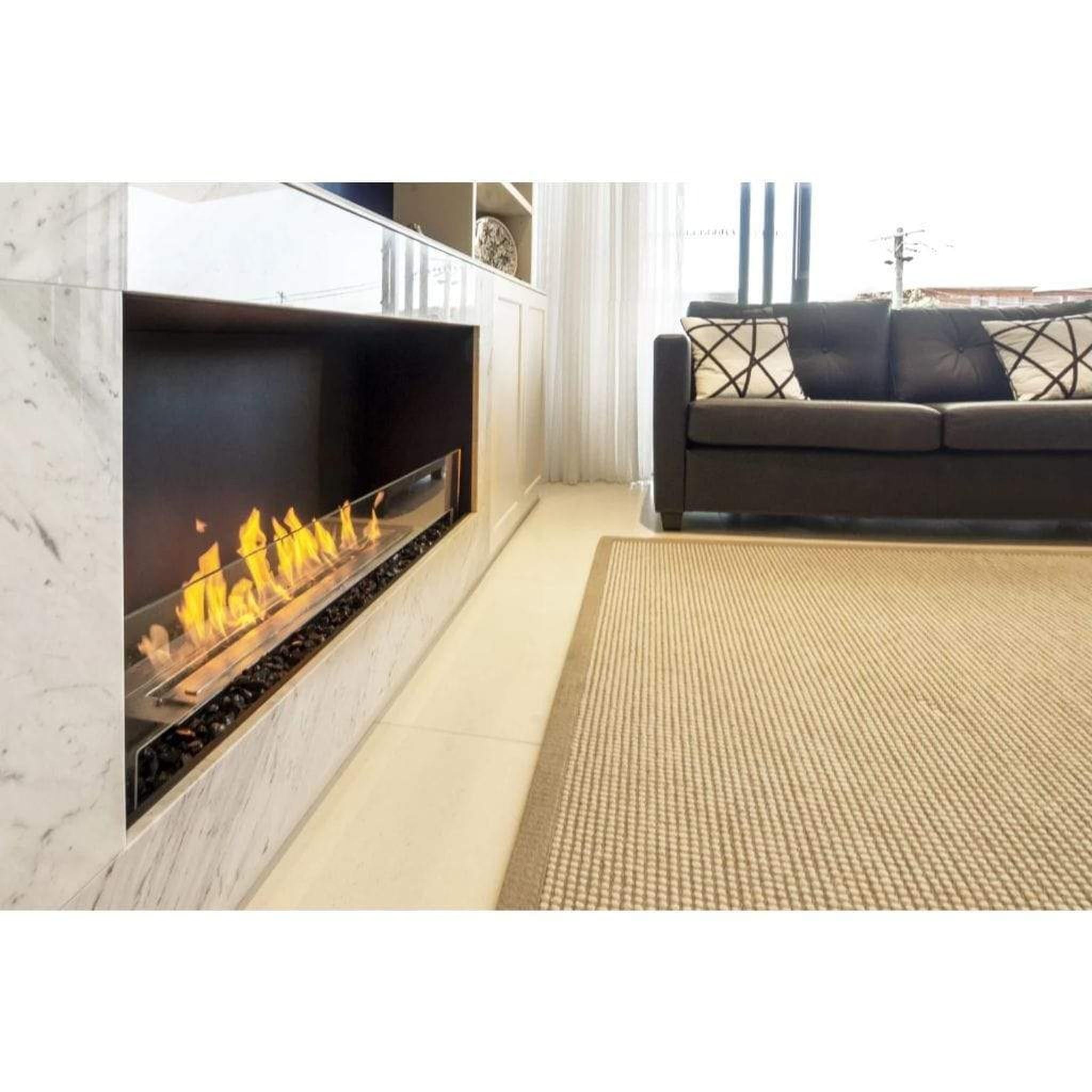

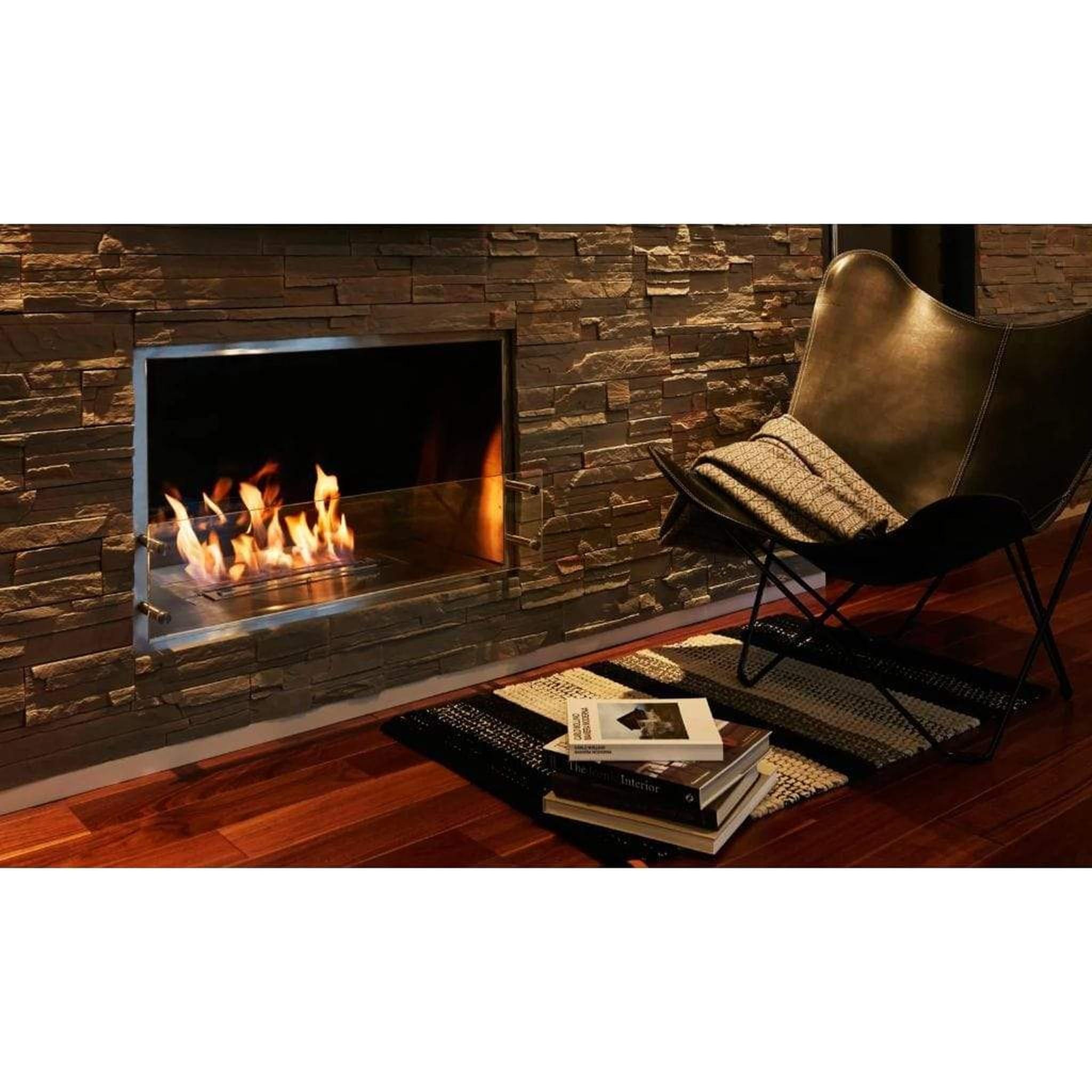

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

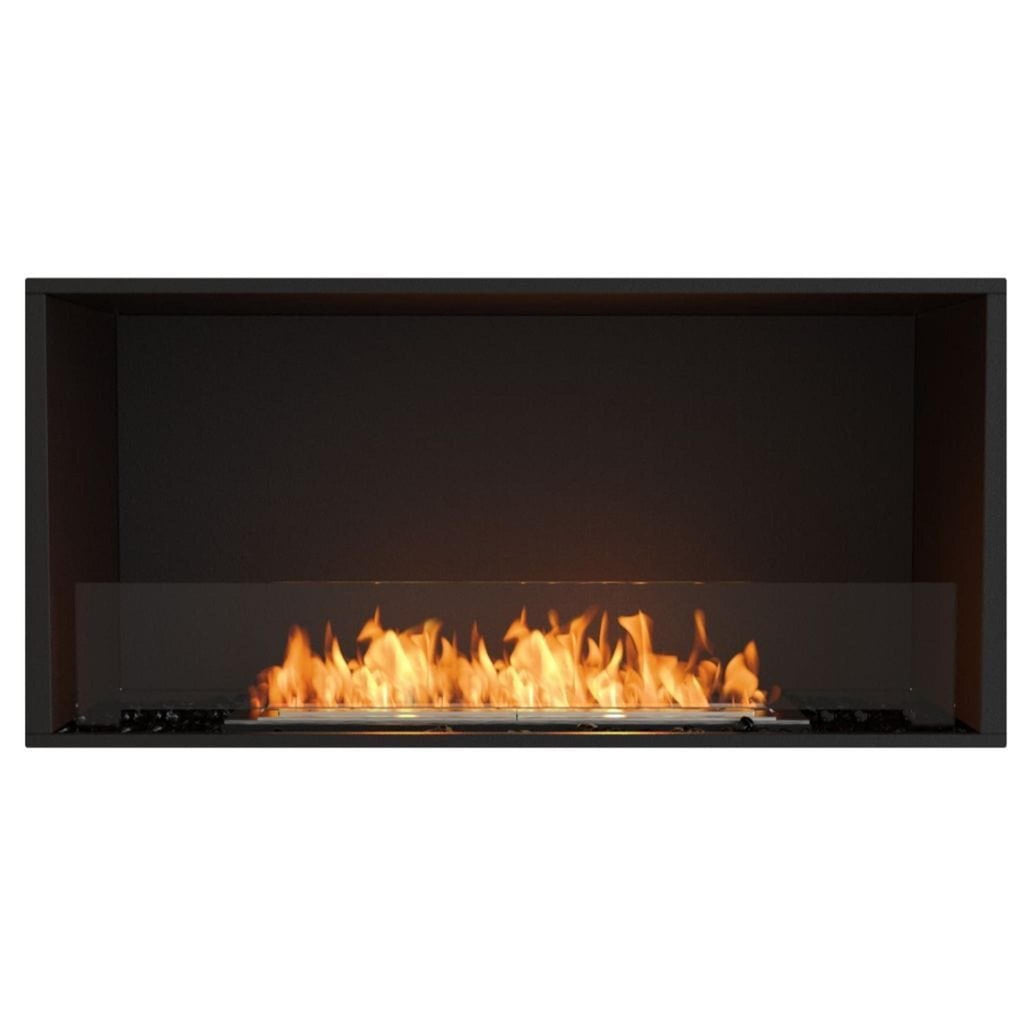

The clean lines and 'all flame' configuration of the Flex 42SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

The XL700 burner delivers a captivating linear flame. With a 1.8 gallons capacity, this elongated ethanol burner has the power to heat up to 538ft2, making it ideal for residential and smaller commercial/hospitality spaces. Efficiency is a key feature of this burner, delivering up to 12 hours of heat generating flame from a single refill.

O-TL Listed in accordance with UL 1370.

What's Included:

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately):

  • e-NRG Bioethanol Fuel

Features:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications:

Weight 132lb [60kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel


Fuel Efficiency:


Volume Capacity

1.8 Gal [7 L]

Heats on Average

538ft2 [50m2]

Minimal Room

3178ft3 [90m3]

Thermal Output

14.50 MJ/h - 13650 BTU/h - 4 kW

Burn Time

9 - 12h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."


Dimensions:

Width 49.8in [1265mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings:

Front View

Side View

Top View

Warranty:

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files:

    *Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

    Videos:

    About The Manufacturer:

    Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
