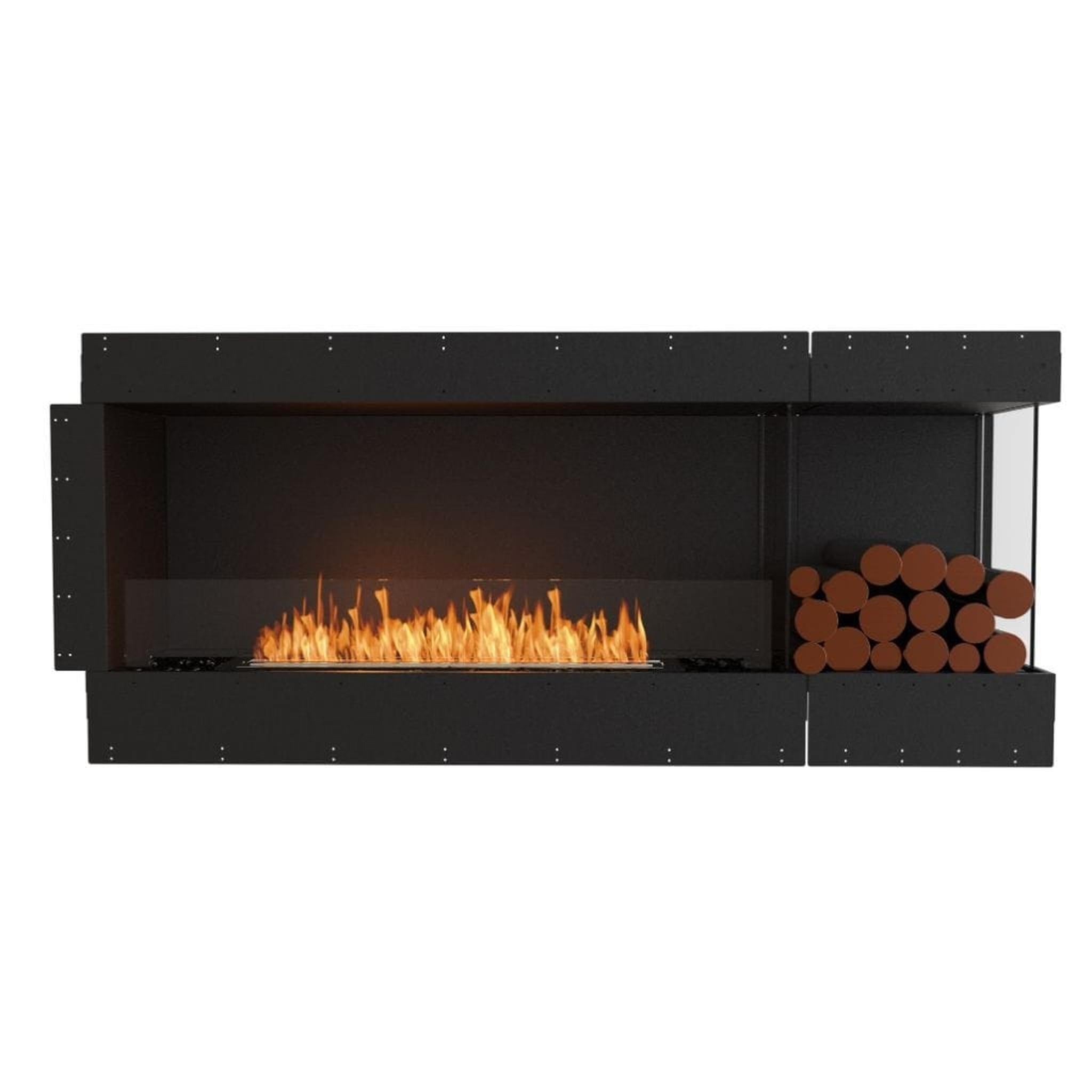

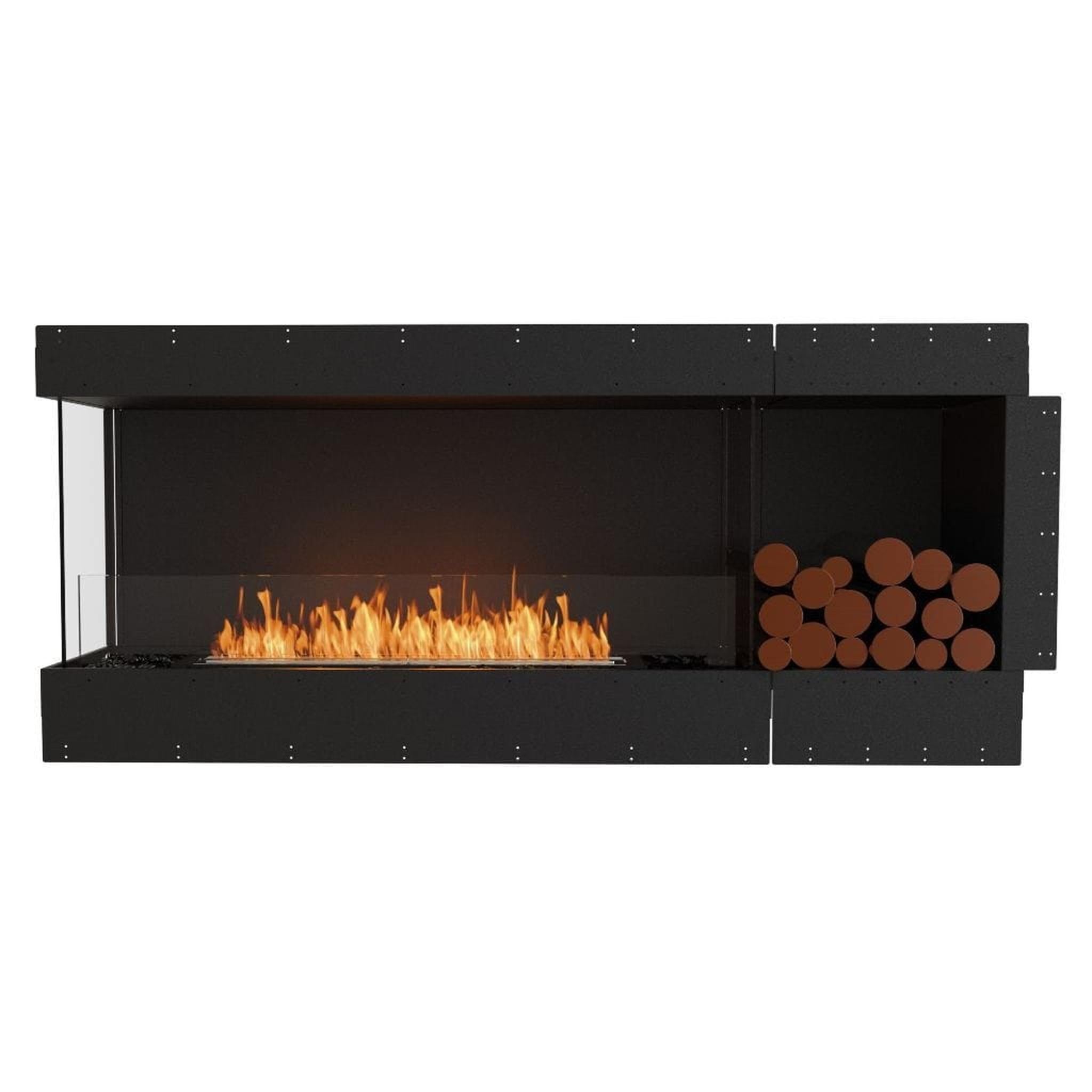

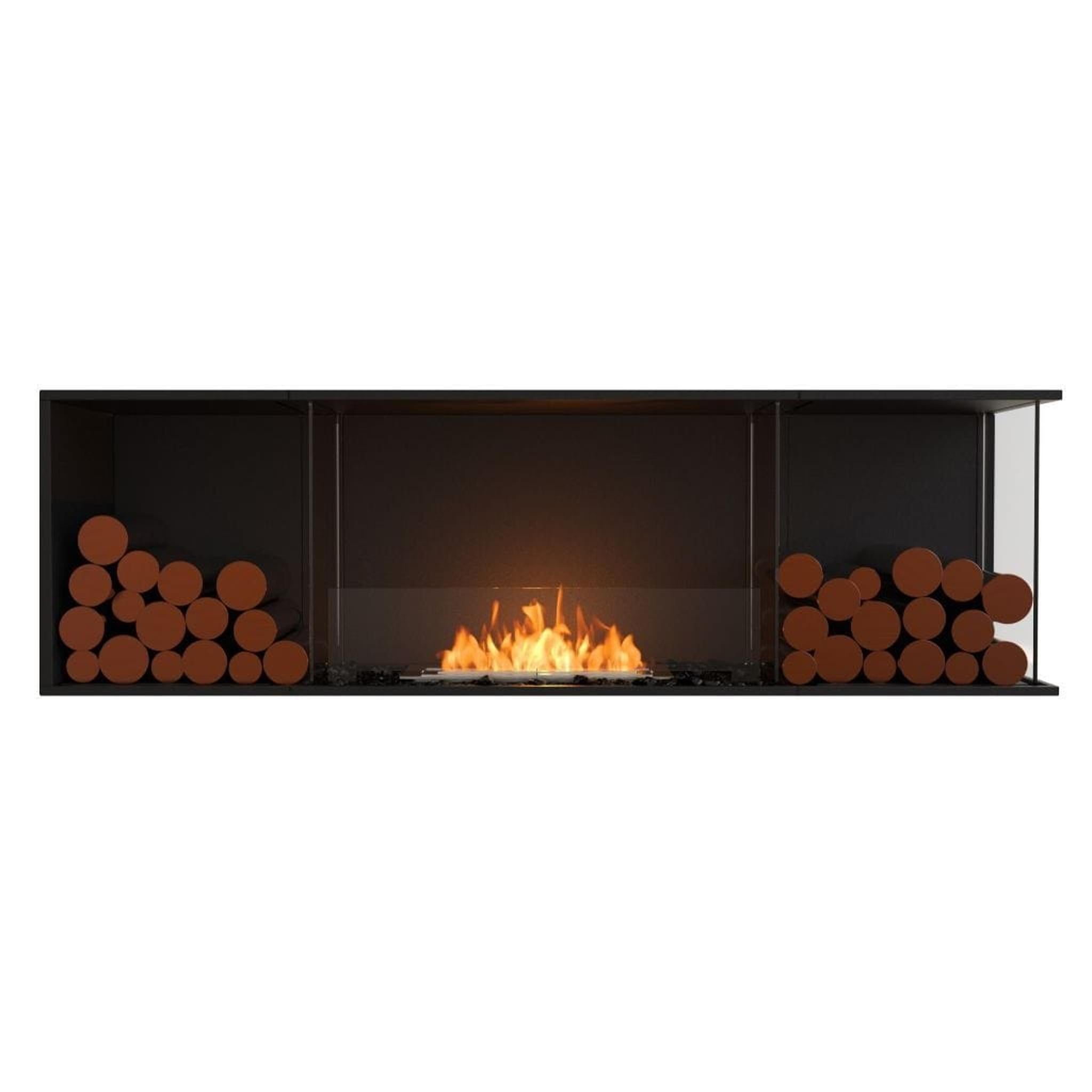

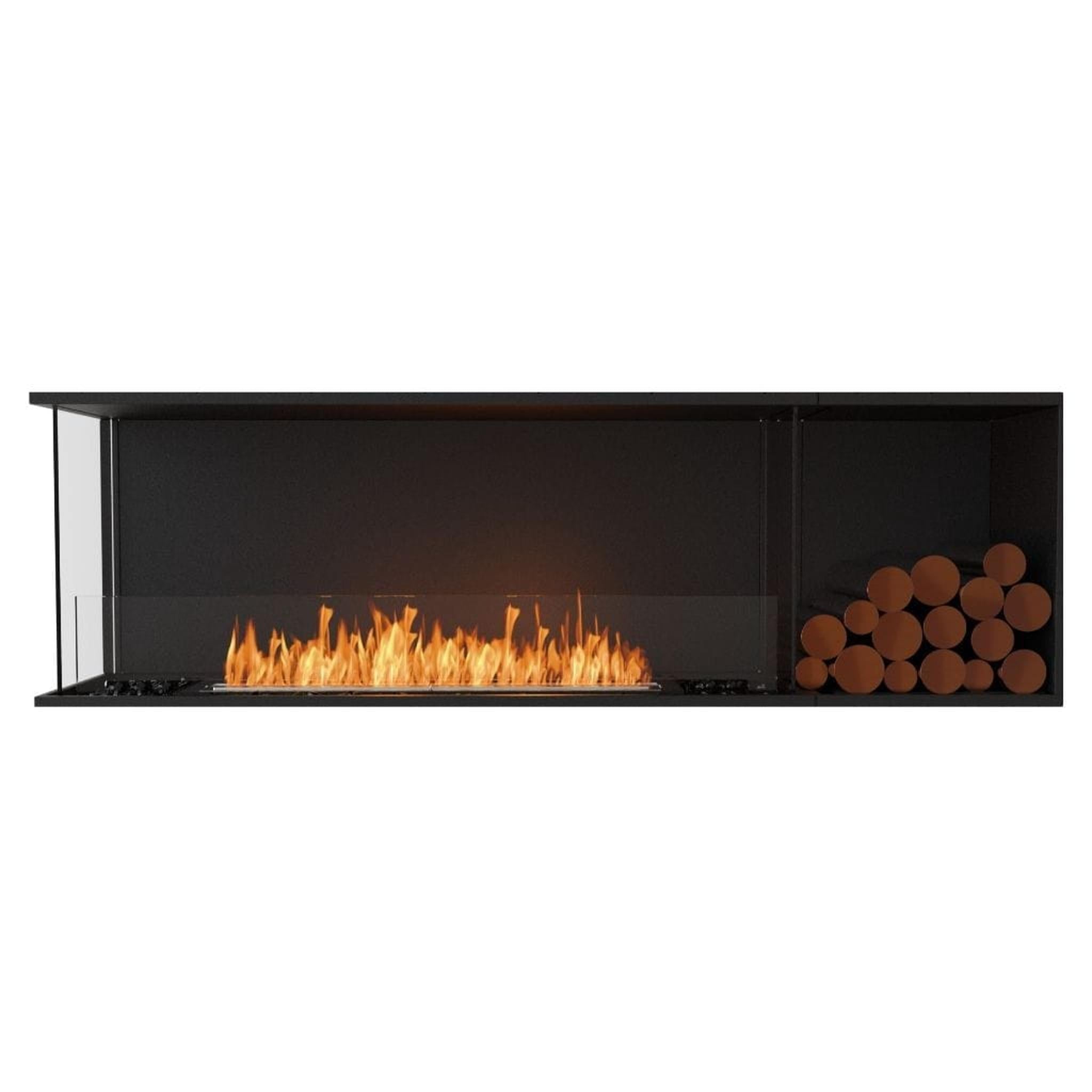

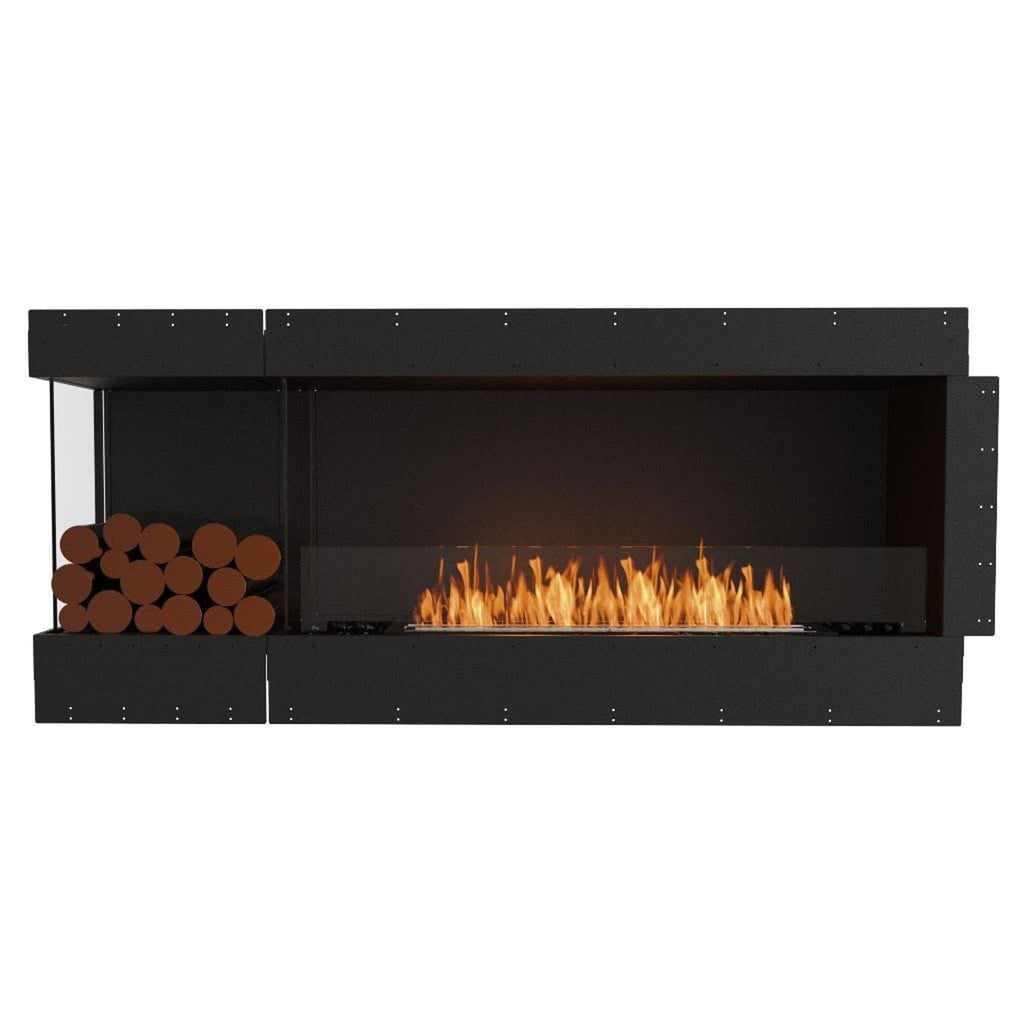

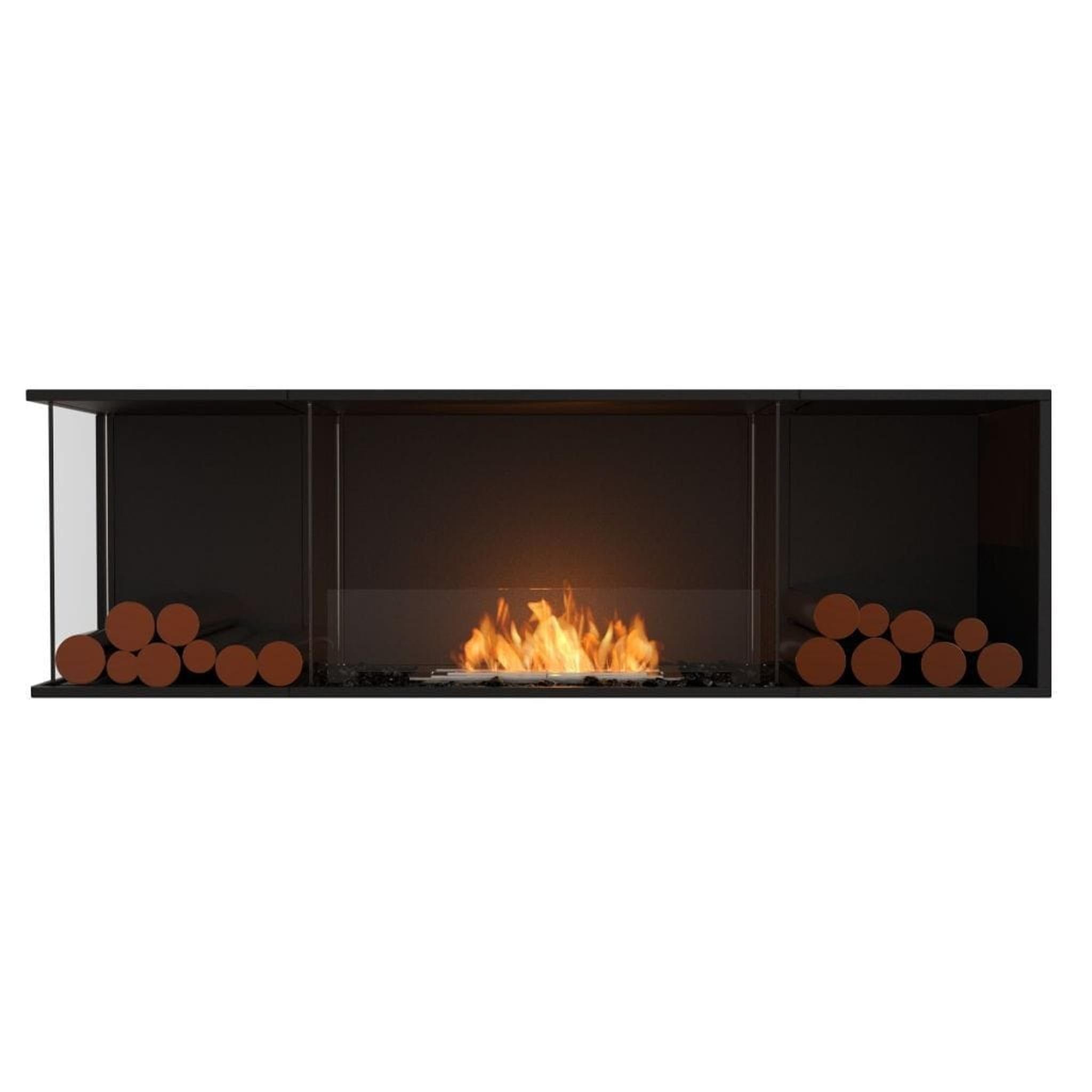

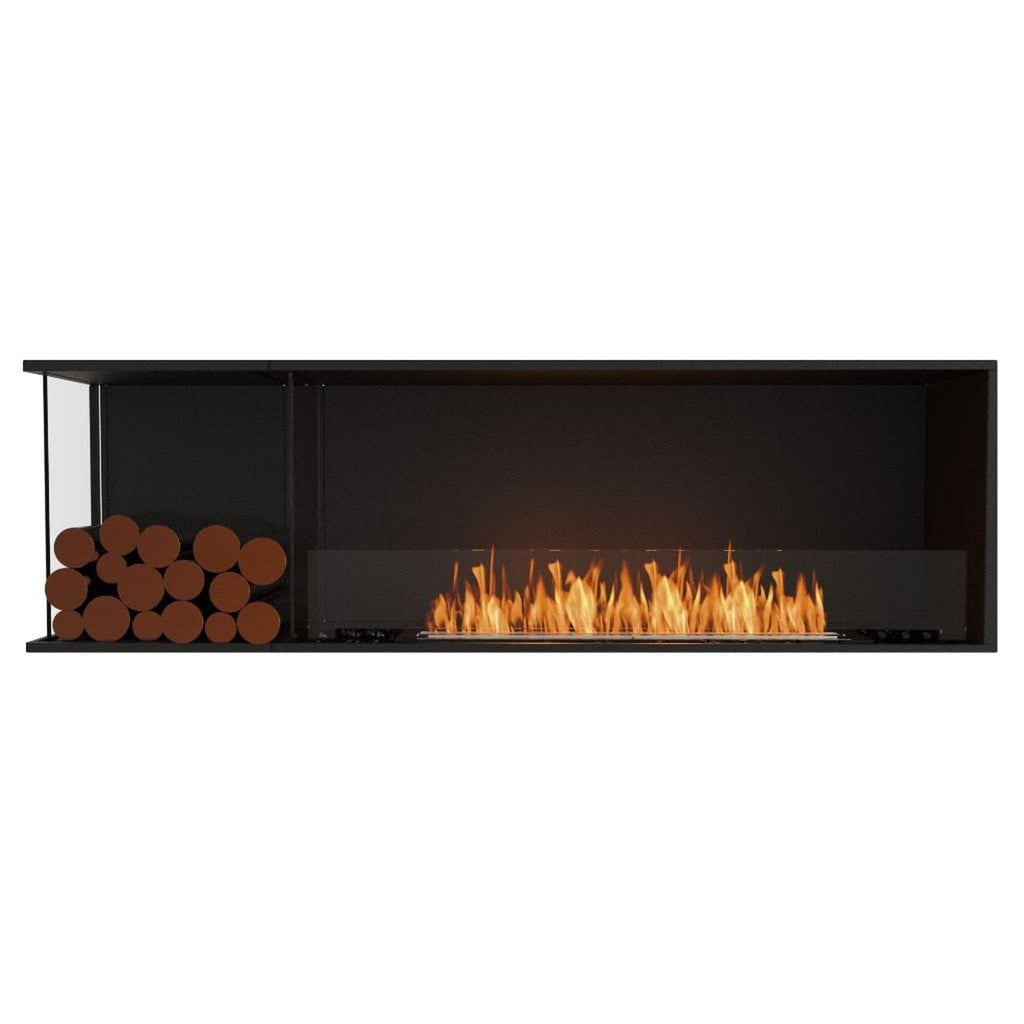

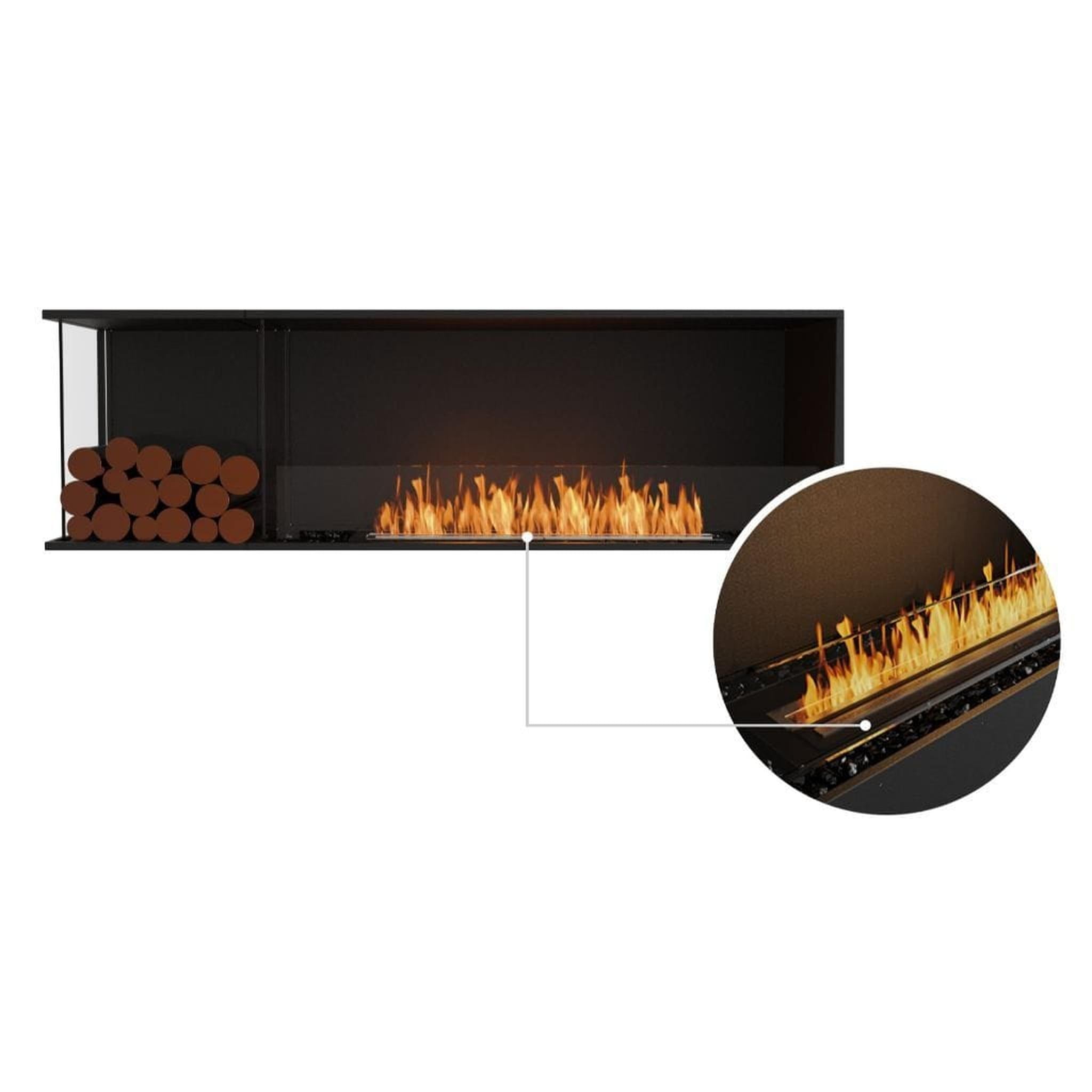

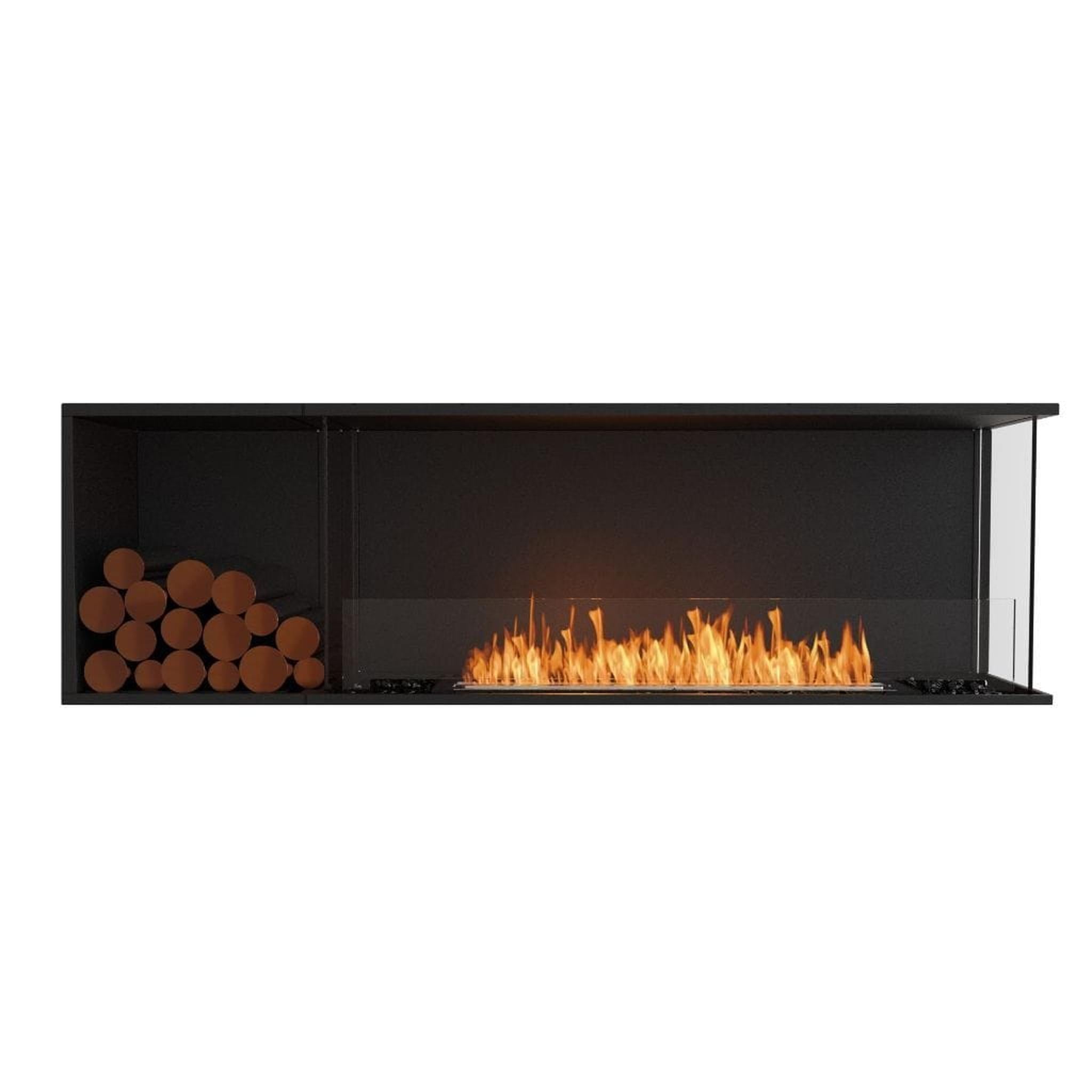

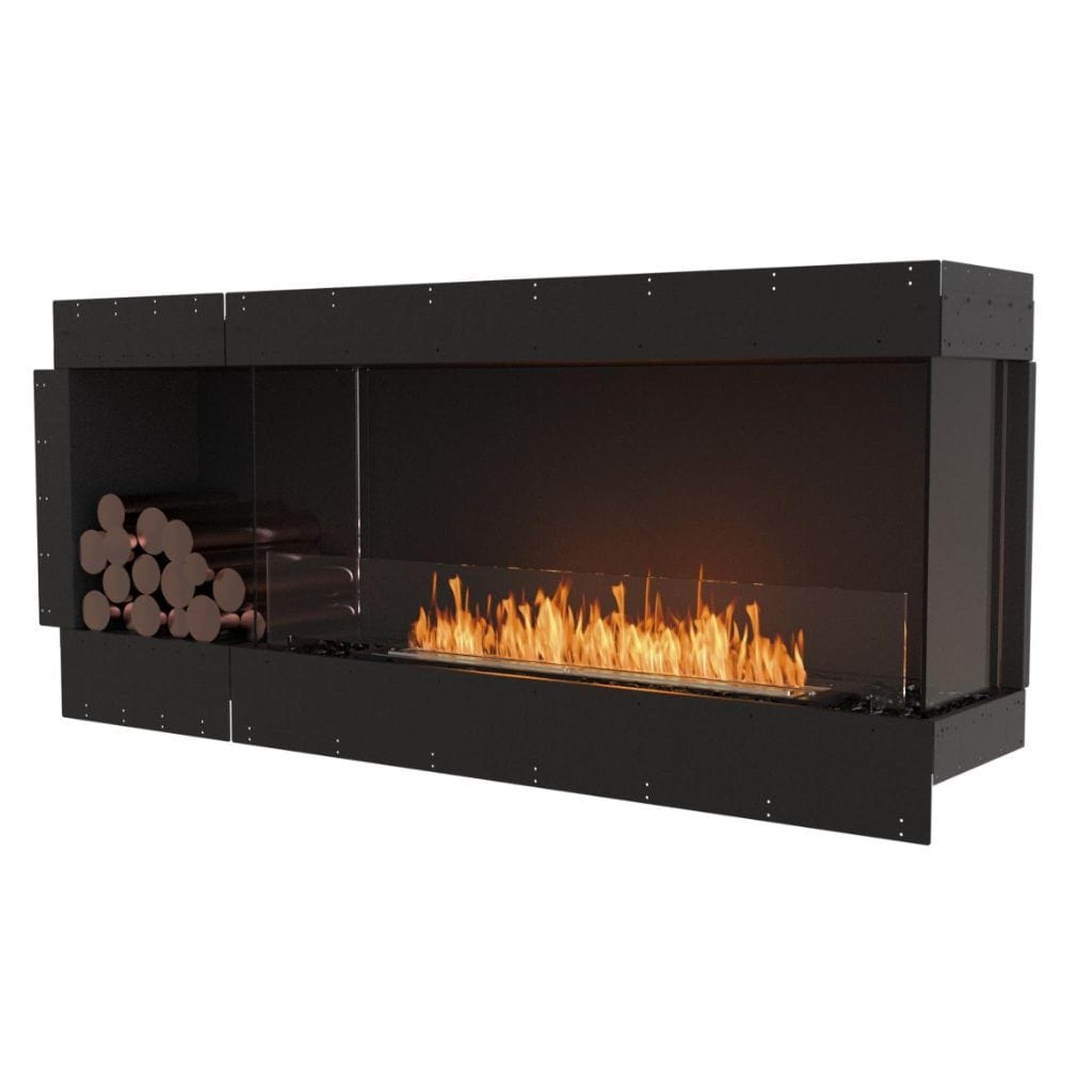

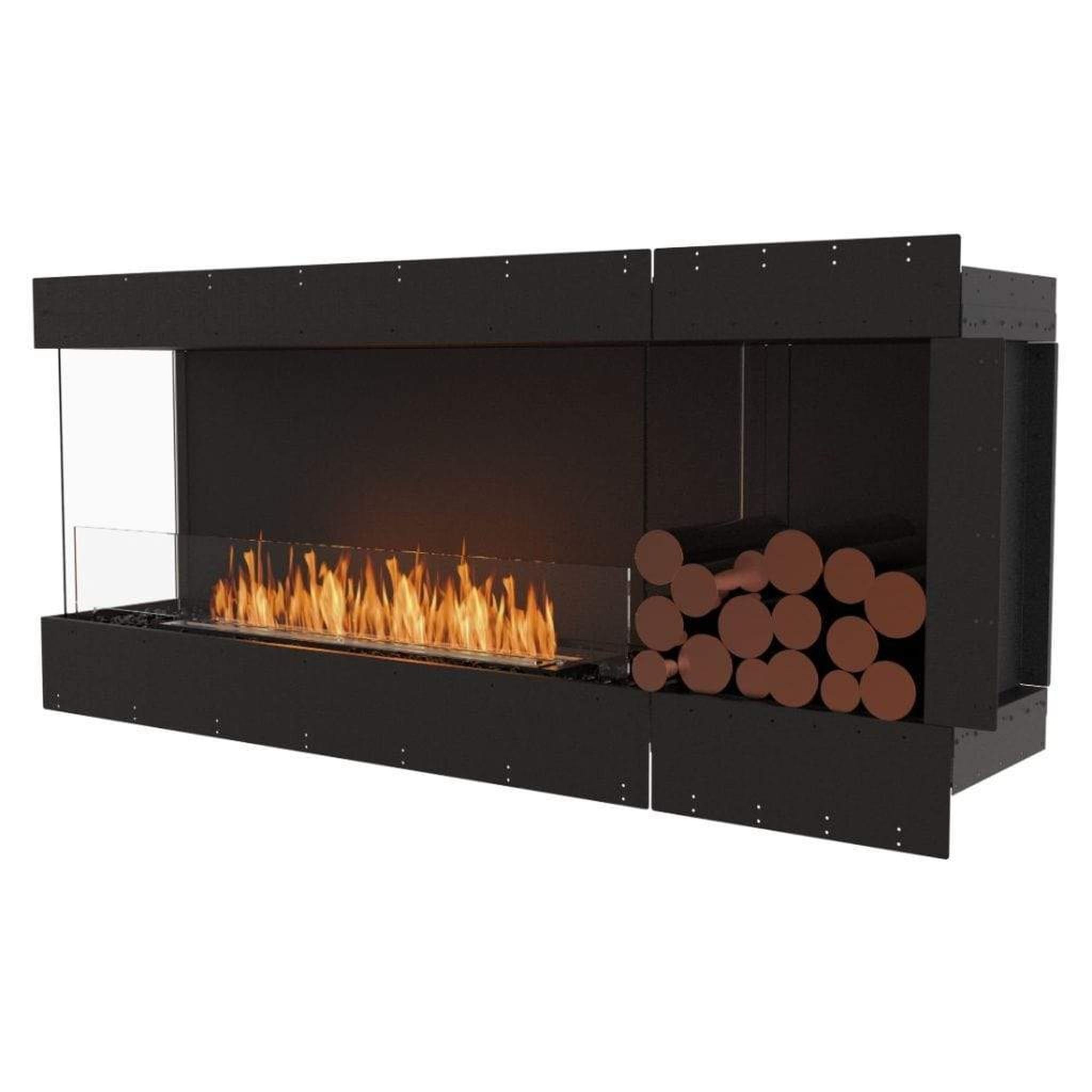

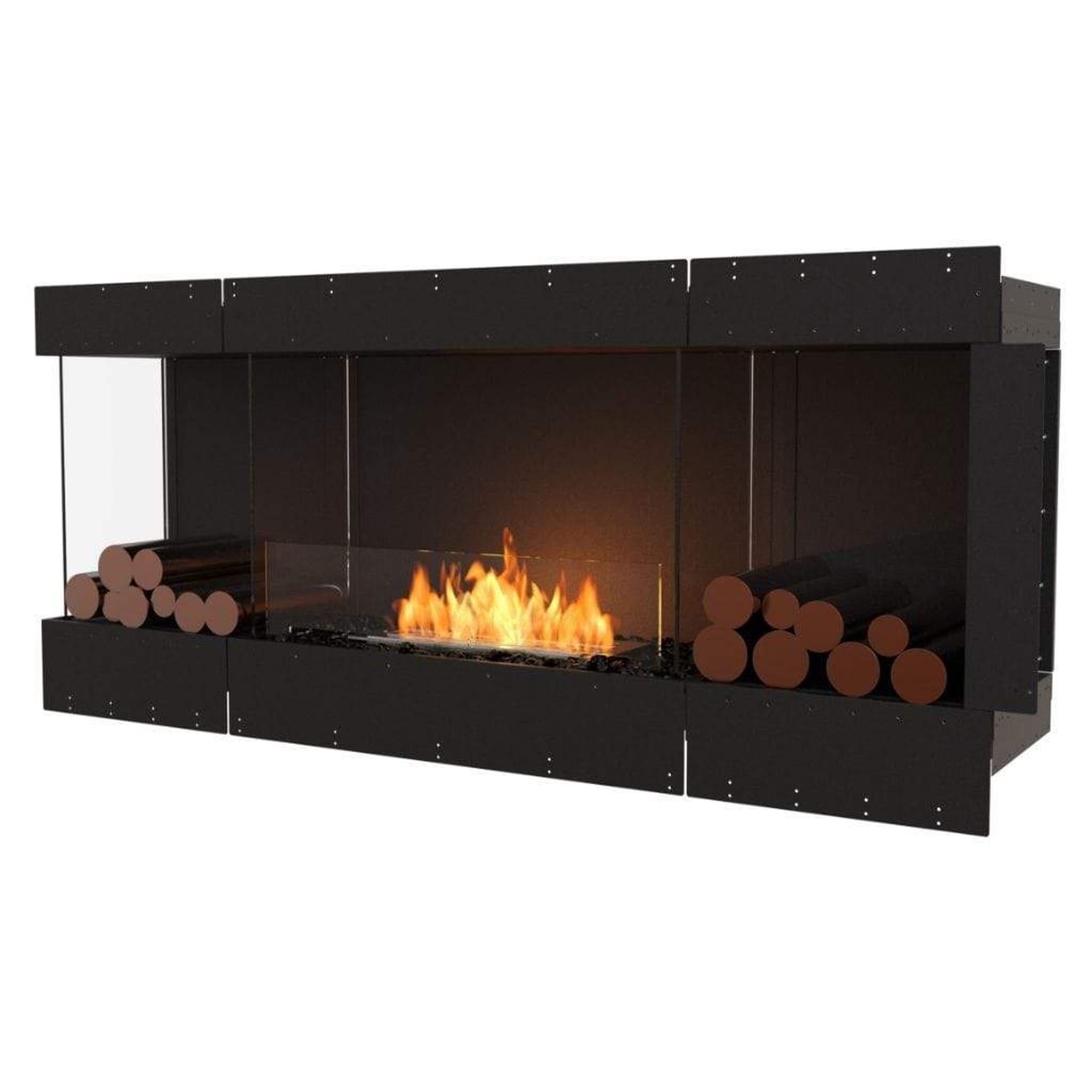

EcoSmart Fire Flex 68LC/68RC 73" Ethanol Fireplace Insert with Decorative Box and Adjustable Flame by Mad Design Group

Save 9%
MAD Design GroupSKU: ESF.FX.68LC.BXL

Burner Color: Stainless Steel
Decorative Box: Left Side
Transparent Glass Corner: Left
Price:
Sale price$9,995.00 Regular price$11,000.00

Description

The EcoSmart Fire Flex 68LC/68RC 73" Ethanol Fireplace Insert with Decorative Box by Mad Design Group combines modern design with functionality. Perfect for indoor or outdoor spaces, it features a left/right corner view and a stylish decorative box for added versatility.

Crafted from mild steel and toughened glass, this fireplace offers zero-clearance construction, requiring no gas, electricity, chimney, or venting. Its sturdy and elegant design ensures durability while enhancing any living or entertaining area.

Left/Right Corner Ethanol Fireplace Inserts are available in other sizes and configuration i.e. 18LC/18RC, 32LC/32RC, 42LC/42RC, 50LC/50RC, 50LC/RC with Decorative Box, 60LC/60RC with Decorative Box, 68LC/68RC, 78LC/78RC with Decorative Box, 86LC/86RC, 86LC/86RC with Decorative Box, 104LC/104RC, 104LC/104RC with Decorative Box, 122LC/122RC, 122LC/122RC with Decorative Box, 140LC/140RC with Decorative Box, 158LC/158RC, 158LC/158RC with Decorative Box

FUEL EFFICIENCY:


Volume Capacity

  • XL500: 1.3 Gal [5 L]
  • XL900: 2.4 Gal [9 L]

Heats on Average

  • XL500: 431ft2 [40m2]
  • XL900: 646ft2 [60m2]

Minimal Room

  • XL500: 2825ft3 [80m3]
  • XL900: 3885ft3 [110m3]

Thermal Output

  • XL500: 12 MJ/h - 11430 BTU/h - 3.4 kW
  • XL900: 16 MJ/h - 15000 BTU/h - 4.4 kW

Burn Time

  • XL500: 10 - 13 h
  • XL900: 8 - 13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

What's Included:

Fireplace Insert, Glass Windscreen, Black Glass Charcoal, Bioethanol Burner, 1.25 Gallon Jerry Can, Bottle Adapter, Lighting Rod, XL Baffles and Refillable Butane Fire Lighter

*Note: "e-NRG Bioethanol Fuel for the burner is sold separately. Glass windscreen included. Black Fireboxes come with Stainless Steel Burners. Model comes with Black Glass Charcoal."

KEY FEATURES:

Application

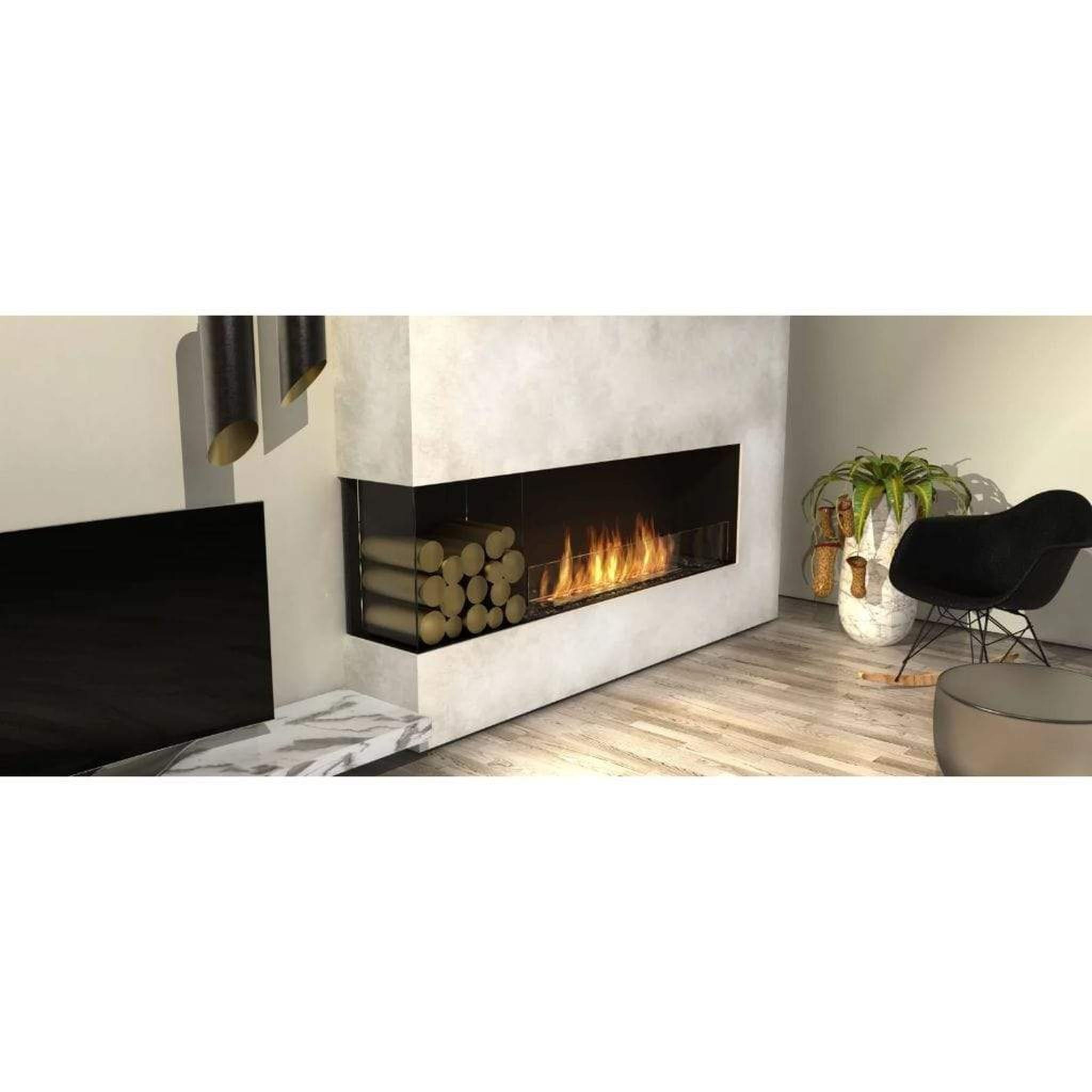

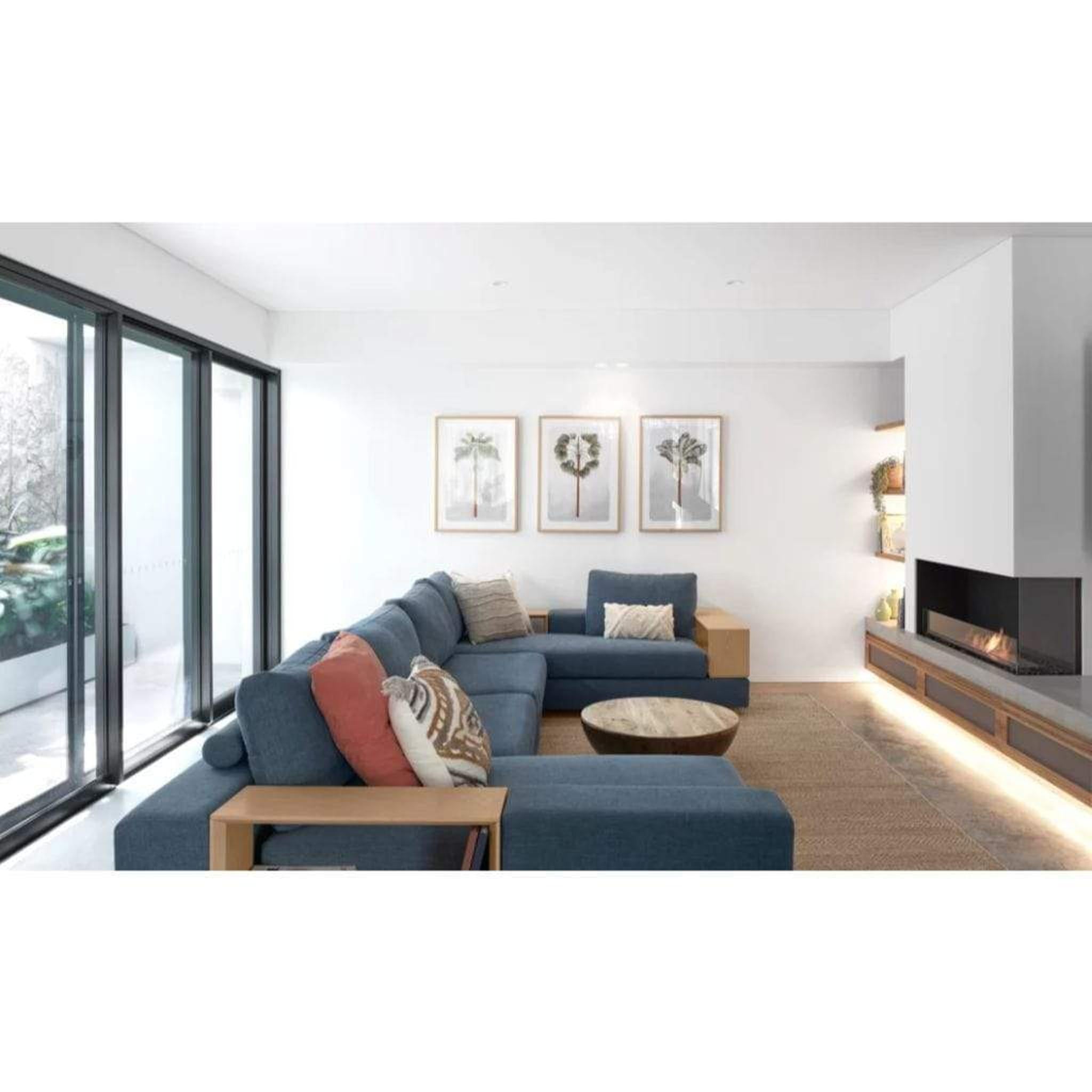

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

STANDARD FEATURES:

  • Suitable for Indoor and Outdoor Use
  • Zero Clearance Construction with Left/Right Corner View
  • Made of Mild Steel and Toughened Glass
  • No Gas, Electricity, Chimney, or Venting Required

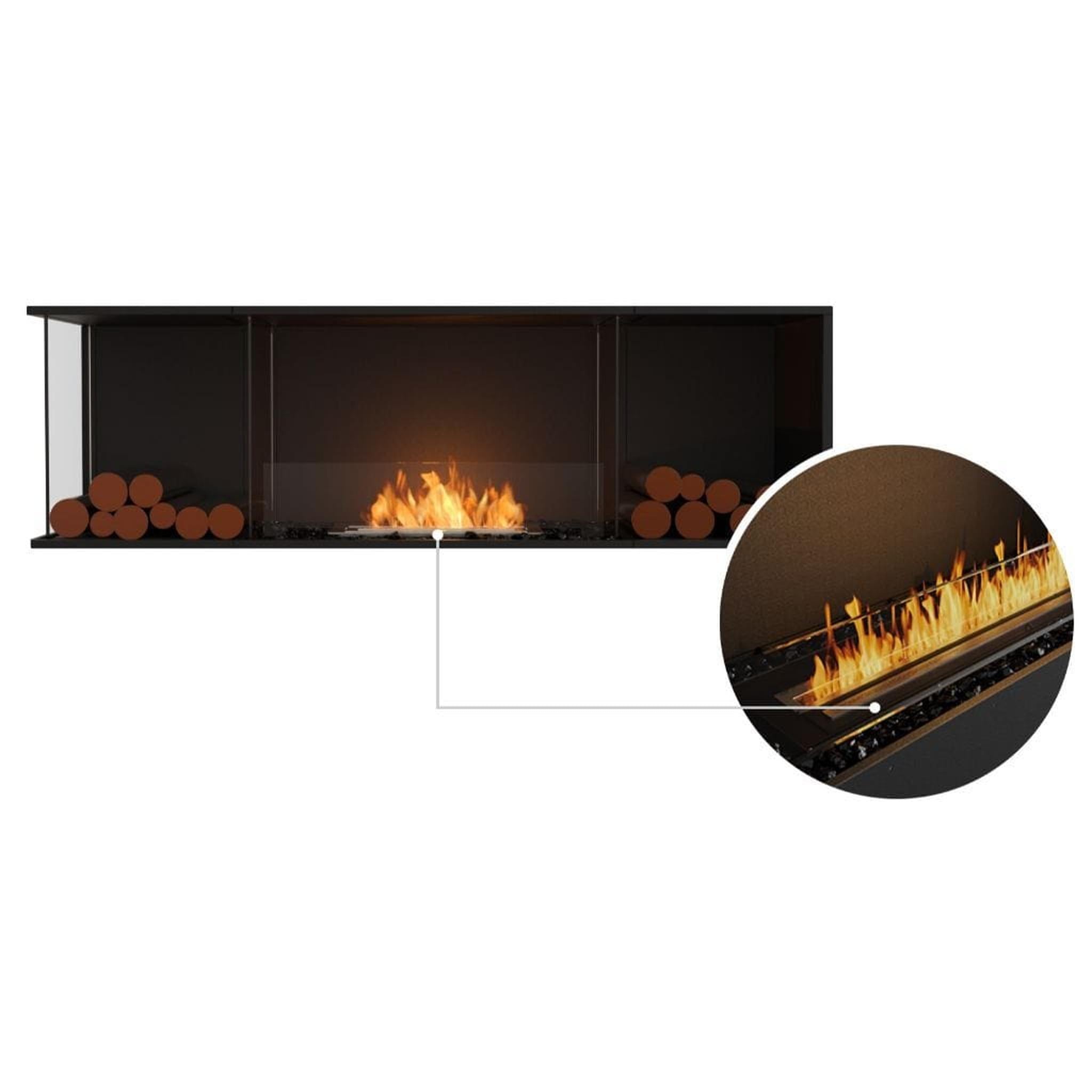

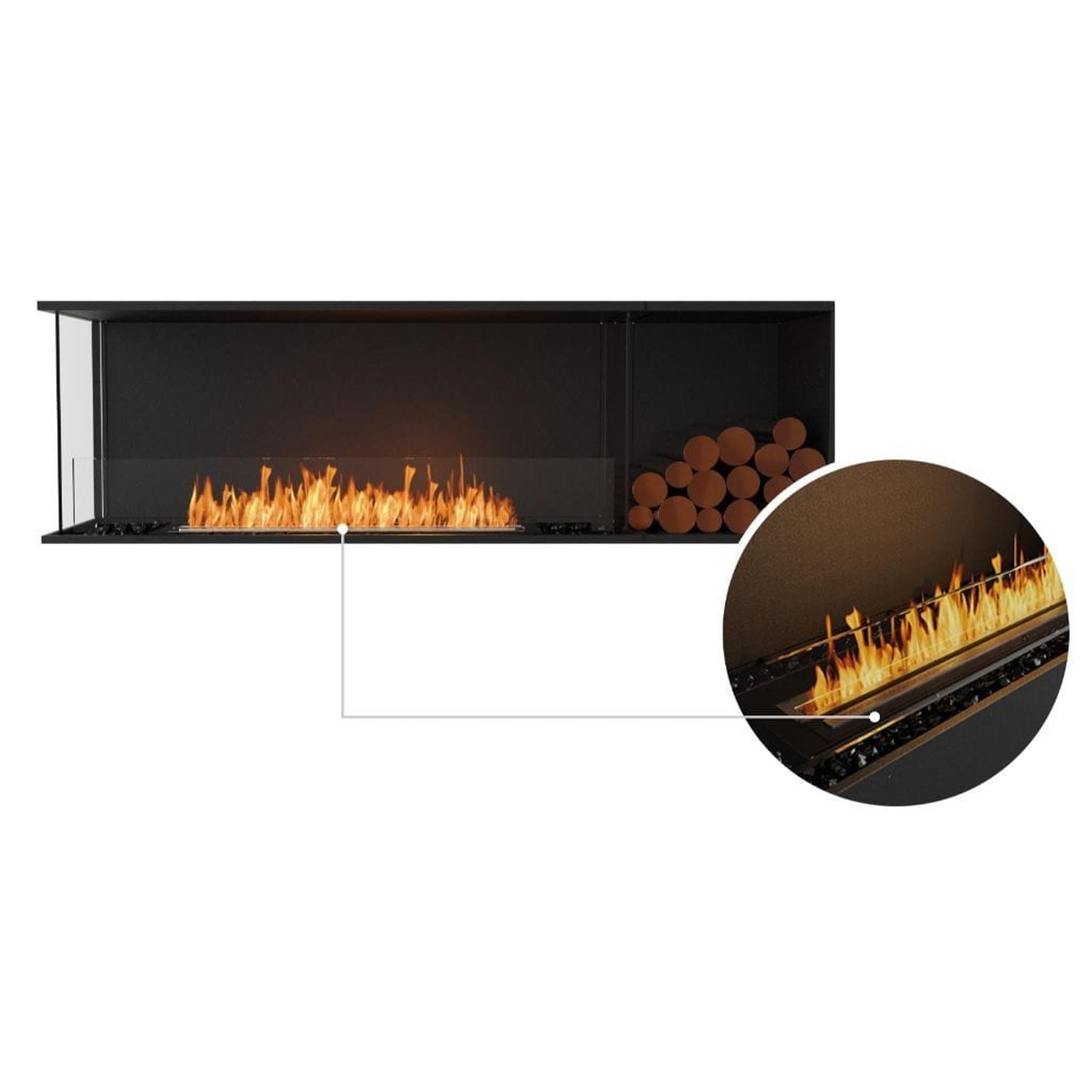

  • Adjustable Flame - allows you to control the flame intensity and heat output.
  • Safe Filling - safer than most other ethanol fireplaces.
  • ISO Certified
  • UL Listed


SPECIFICATIONS:

Dimensions

73.7" W x 14.4" D x 31.8" H
Weight

221lb [100kg]

Warranty
  • Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
  • Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase




TECHNICAL DRAWINGS:

Front View

  • 68LC.BXL

  • 68RC.BXL

  • 68LC.BXR

  • 68RC.BXR

  • 68LC.BX2

  • 68RC.BX2

Side View

Top View
  • BXL

  • BXR

  • BX2

DOWNLOADS:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
