EcoSmart Fire Flex 78SS 86" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Decorative Box – Includes Two Side Boxes by Mad Design Group

Save 8%
MAD Design GroupSKU: ESF.FX.78SS.BX2

Burner Color: Stainless Steel
Price:
Sale price$10,995.00 Regular price$12,000.00

Description

The EcoSmart Fire Flex 78SS 86" Black Single Sided Ethanol Fireplace Insert is designed to be a stunning centerpiece for both indoor and outdoor spaces. Its sleek black finish, stainless steel burner, and elegant decorative glass charcoal provide a sophisticated focal point, visible from the front of the firebox.

This fireplace insert is completely self-contained, requiring no gas, electricity, chimney, or venting. The clean burning ethanol flame produces no smoke, soot, or ash, making it a safe and low-maintenance option. Two included decorative side boxes allow you to personalize your fireplace with non-combustible accessories or optional log sets in brass or copper finishes.

Crafted from durable stainless steel and toughened glass, the Flex 78SS is rust-proof and built for longevity. Its zero-clearance design allows installation within wood or metal studs, while the integrated windscreen ensures safe operation. Tested worldwide, this fireplace insert combines versatility, style, and effortless functionality for year-round enjoyment.

Enjoy an alluring flame from any angle you look at it:

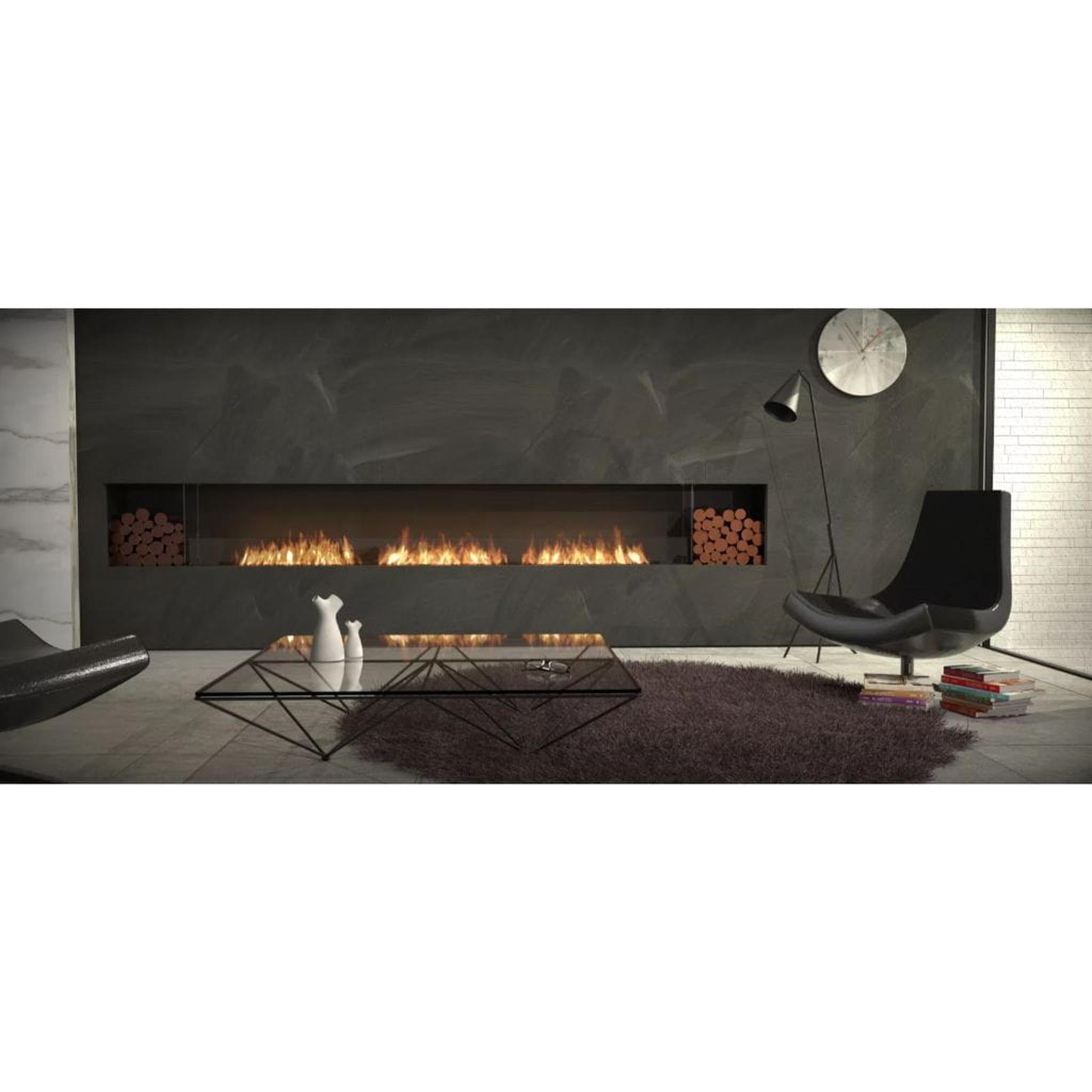

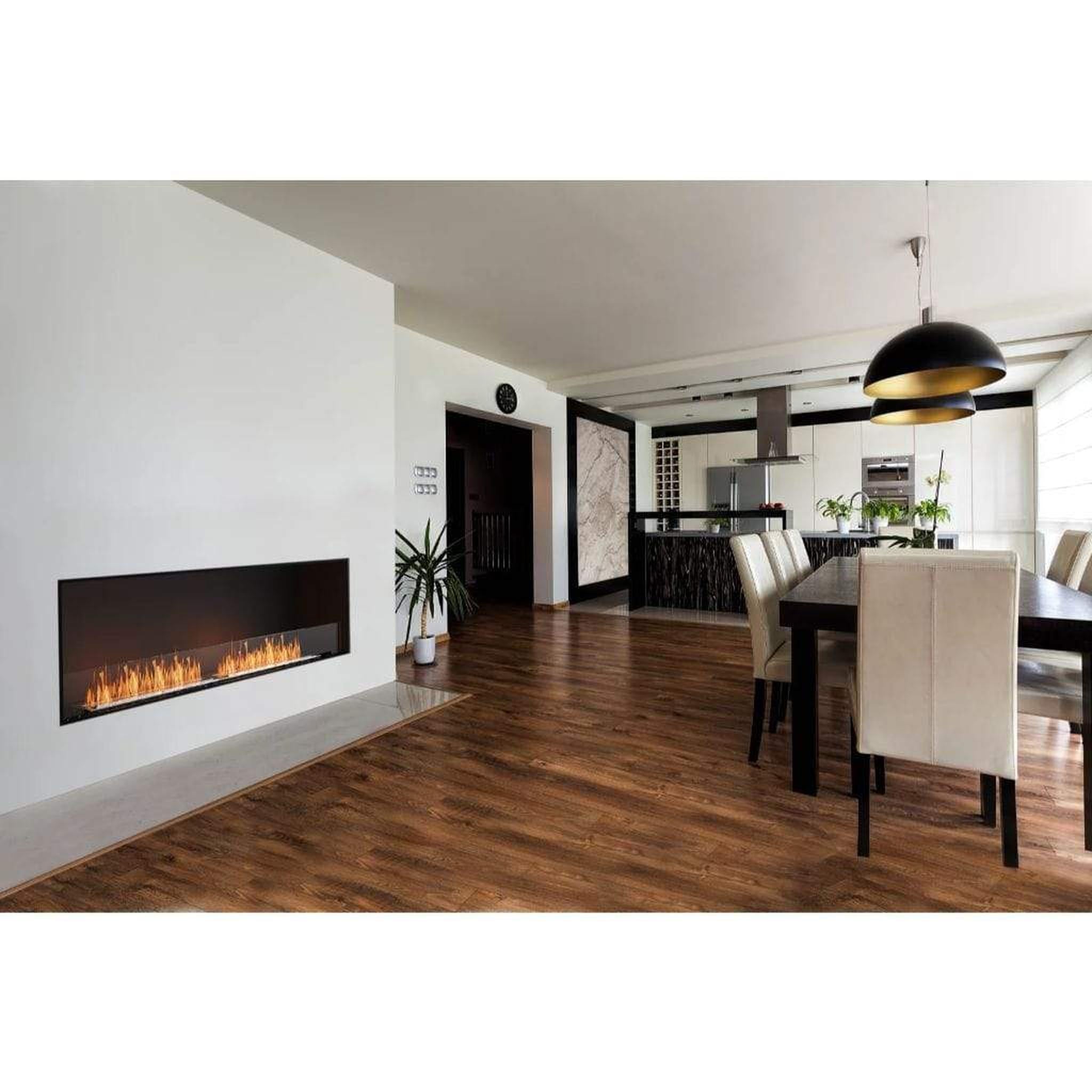

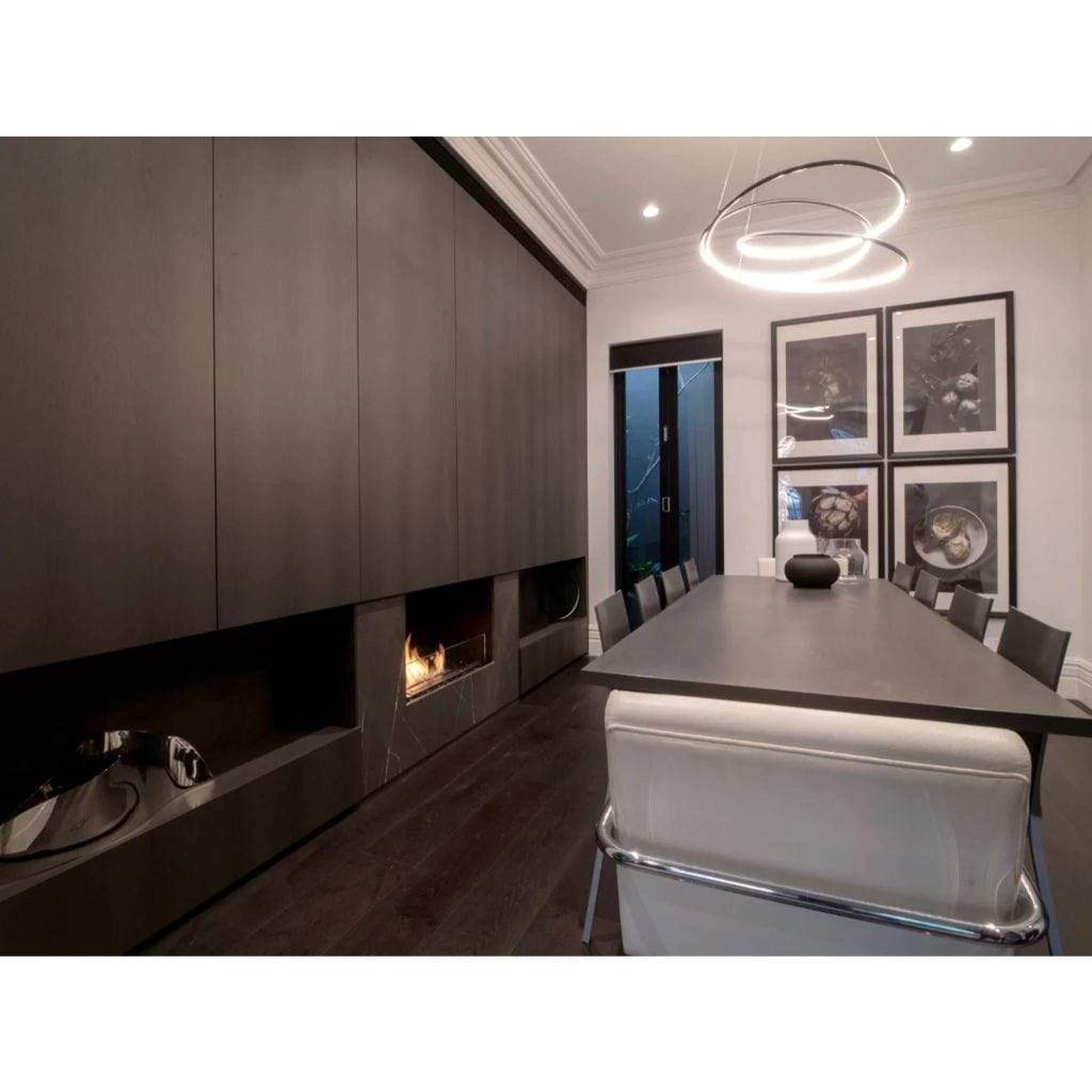

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

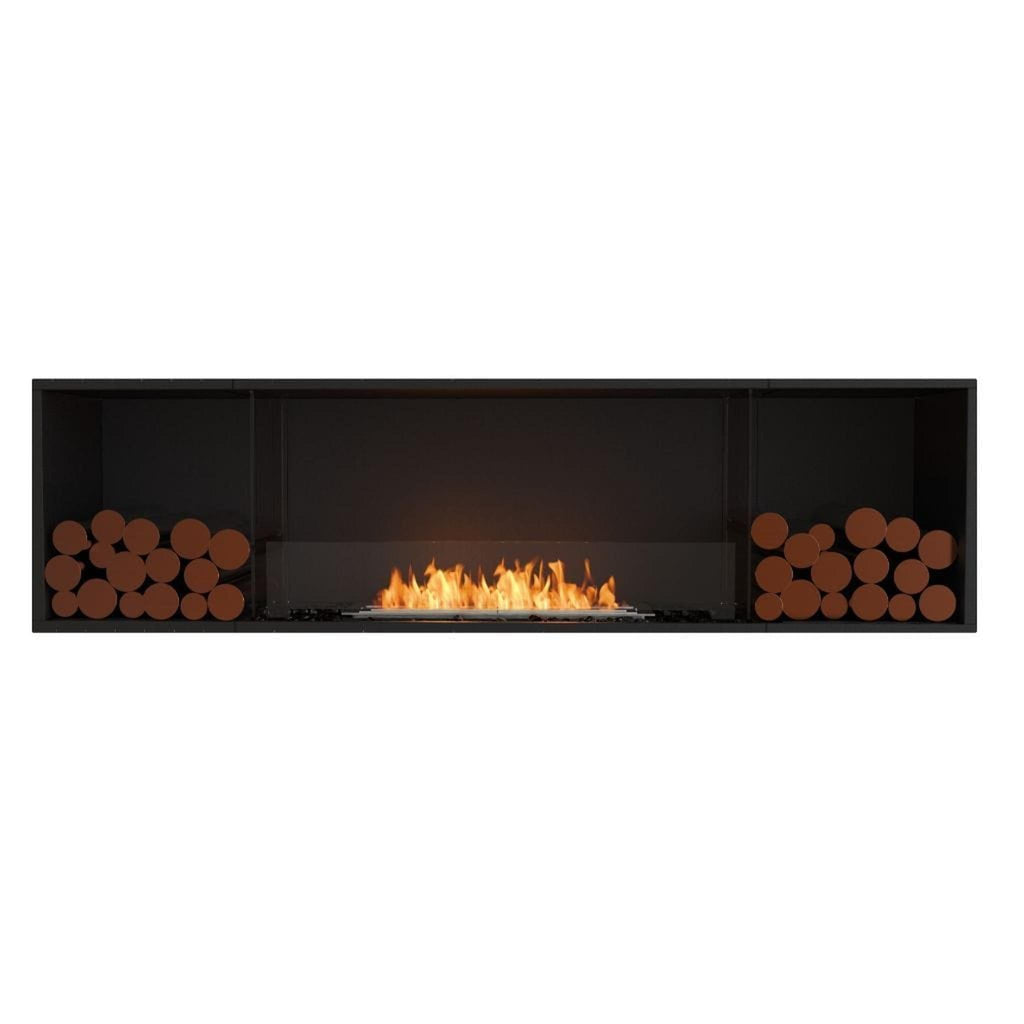

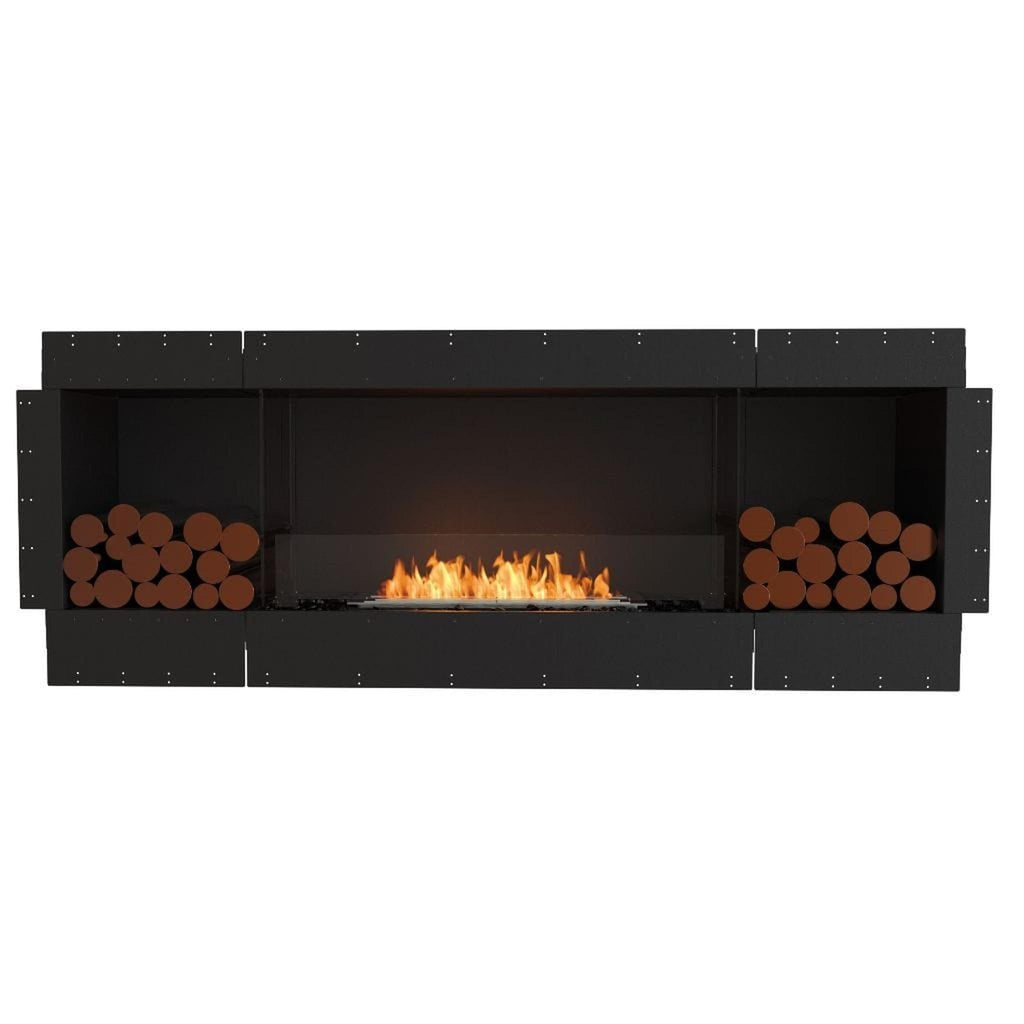

The Flex 78SS.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look.

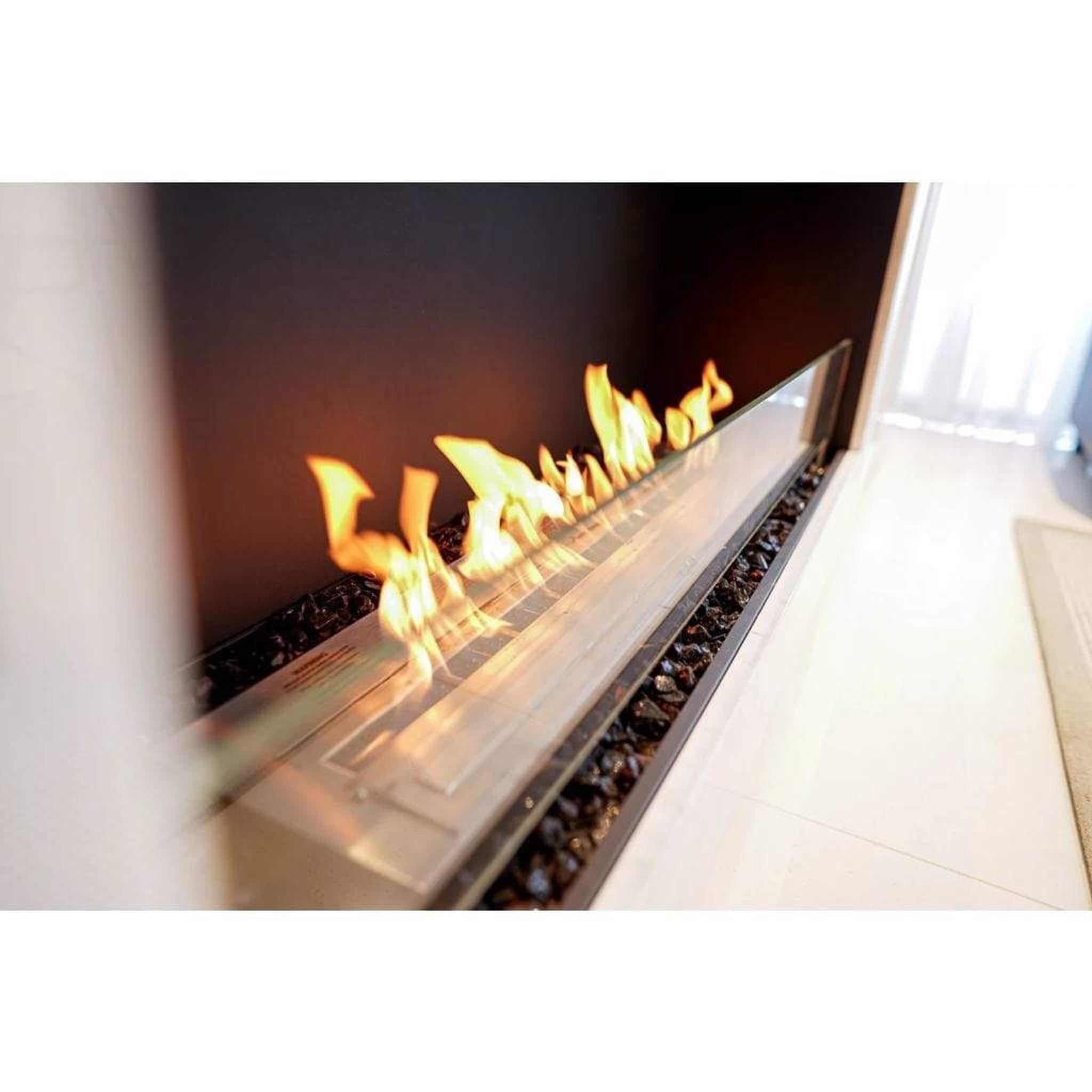

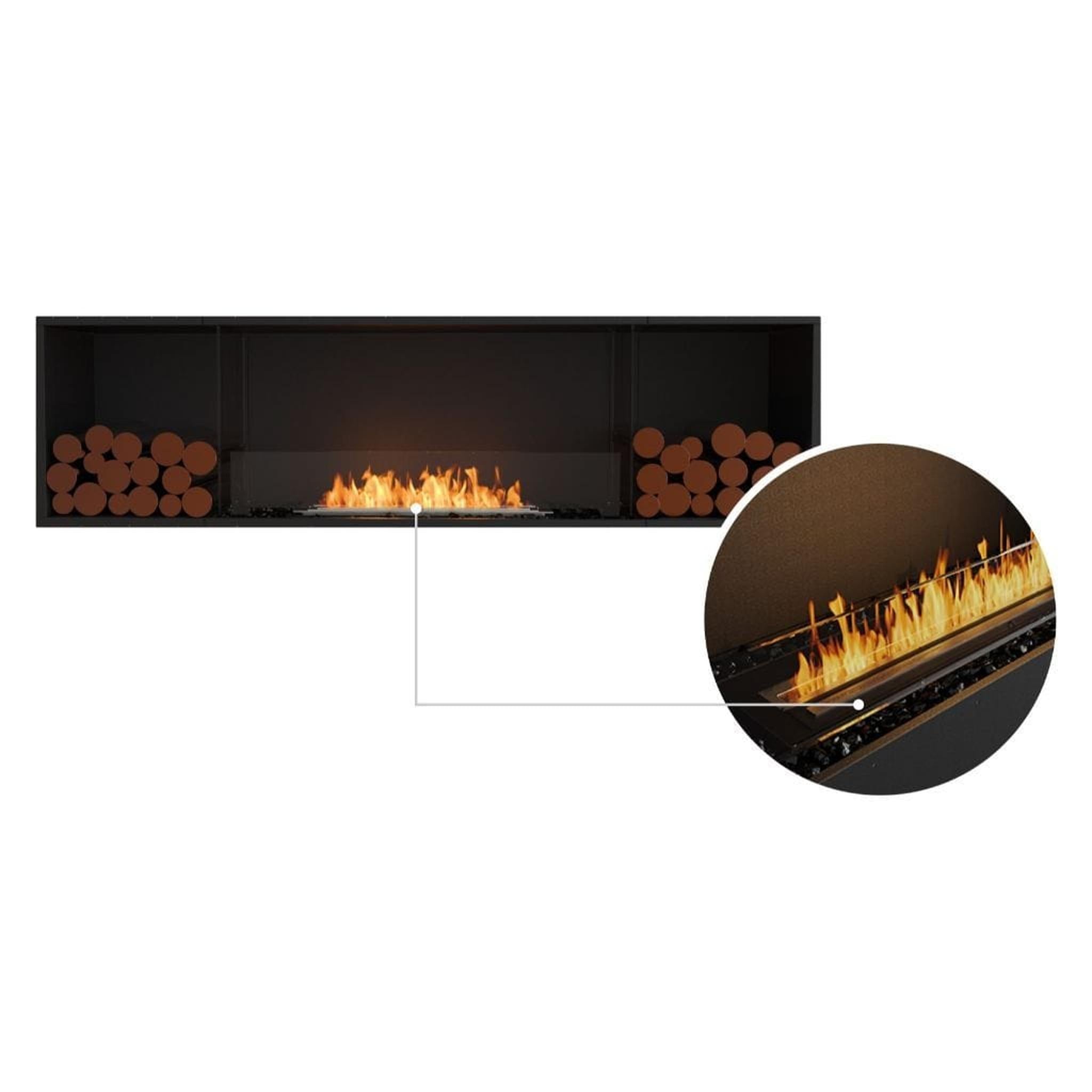

The XL700 burner delivers a captivating linear flame. With a 1.8 gallons capacity, this elongated ethanol burner has the power to heat up to 538ft2, making it ideal for residential and smaller commercial/hospitality spaces. Efficiency is a key feature of this burner, delivering up to 12 hours of heat generating flame from a single refill.

O-TL Listed in accordance with UL 1370.

What's Included:

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately):

  • e-NRG Bioethanol Fuel
  • Decorative Log Set

Features:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

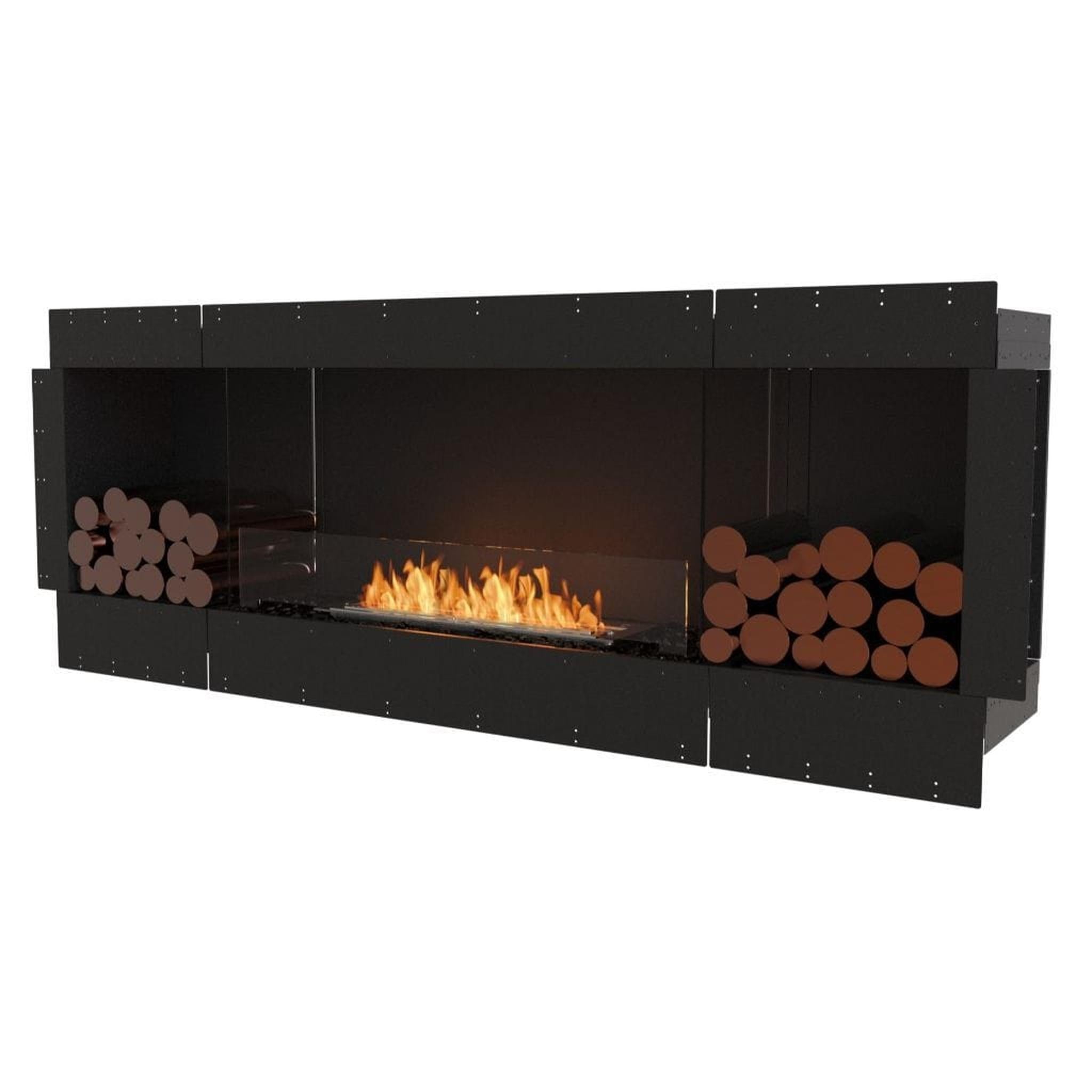

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes two decorative side boxes to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind Screen

Included integrated windscreen sits flush behind frame.


Specifications:

Weight 238lb [108kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Black


Fuel Efficiency:


Volume Capacity

1.8 Gal [7 L]

Heats on Average

538ft2 [50m2]

Minimal Room

3178ft3 [90m3]

Thermal Output

14.50 MJ/h - 13650 BTU/h - 4 kW

Burn Time

9 - 12h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions:

Width 86.1in [2186mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings:

Front View

Side View

Top View

Warranty:

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos:

About The Manufacturer:

Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
