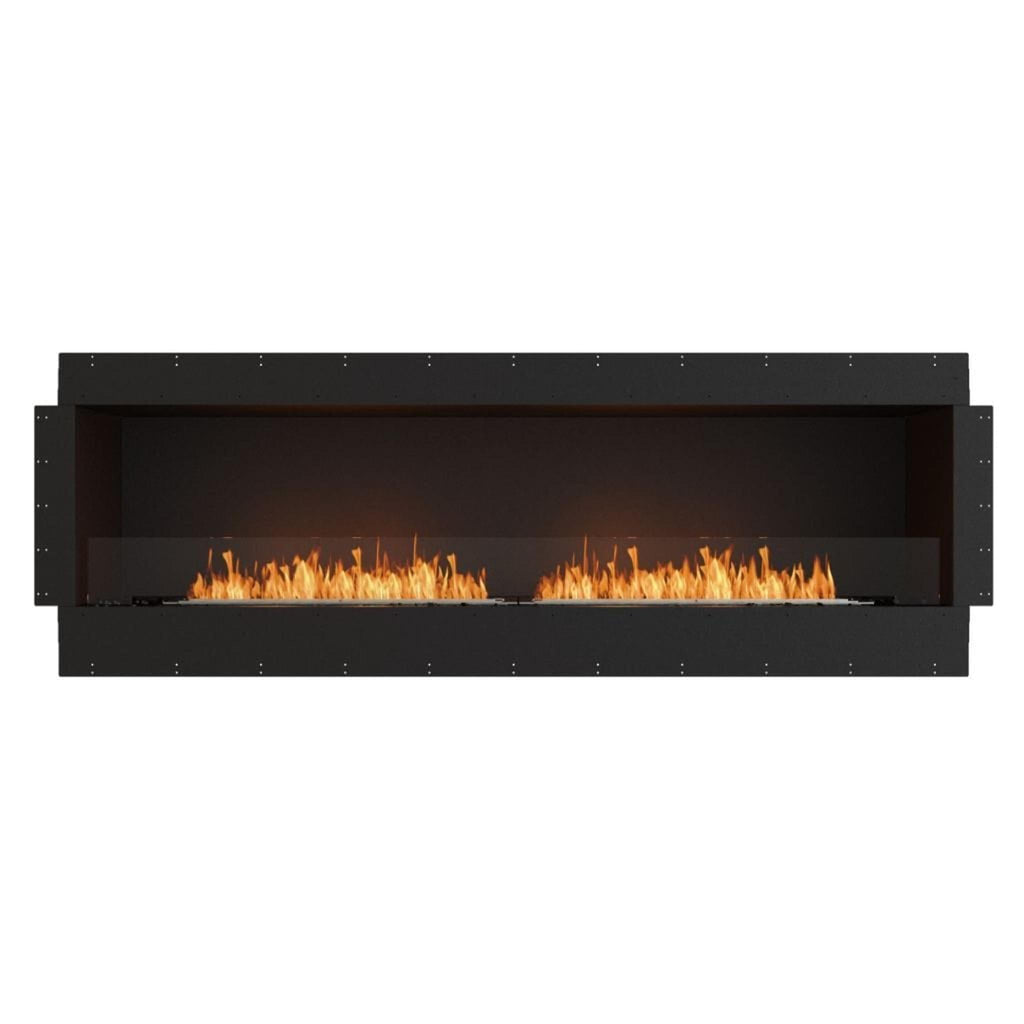

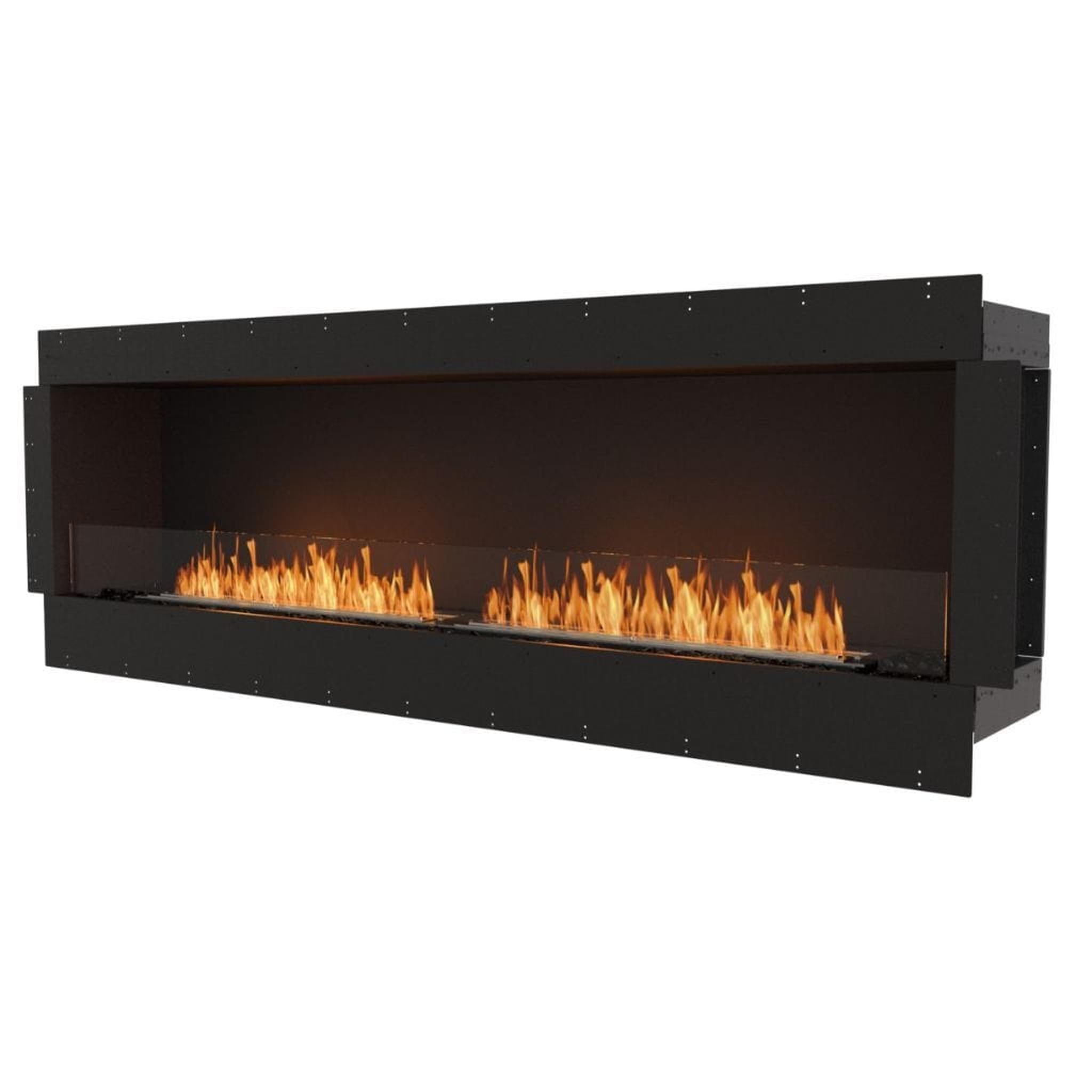

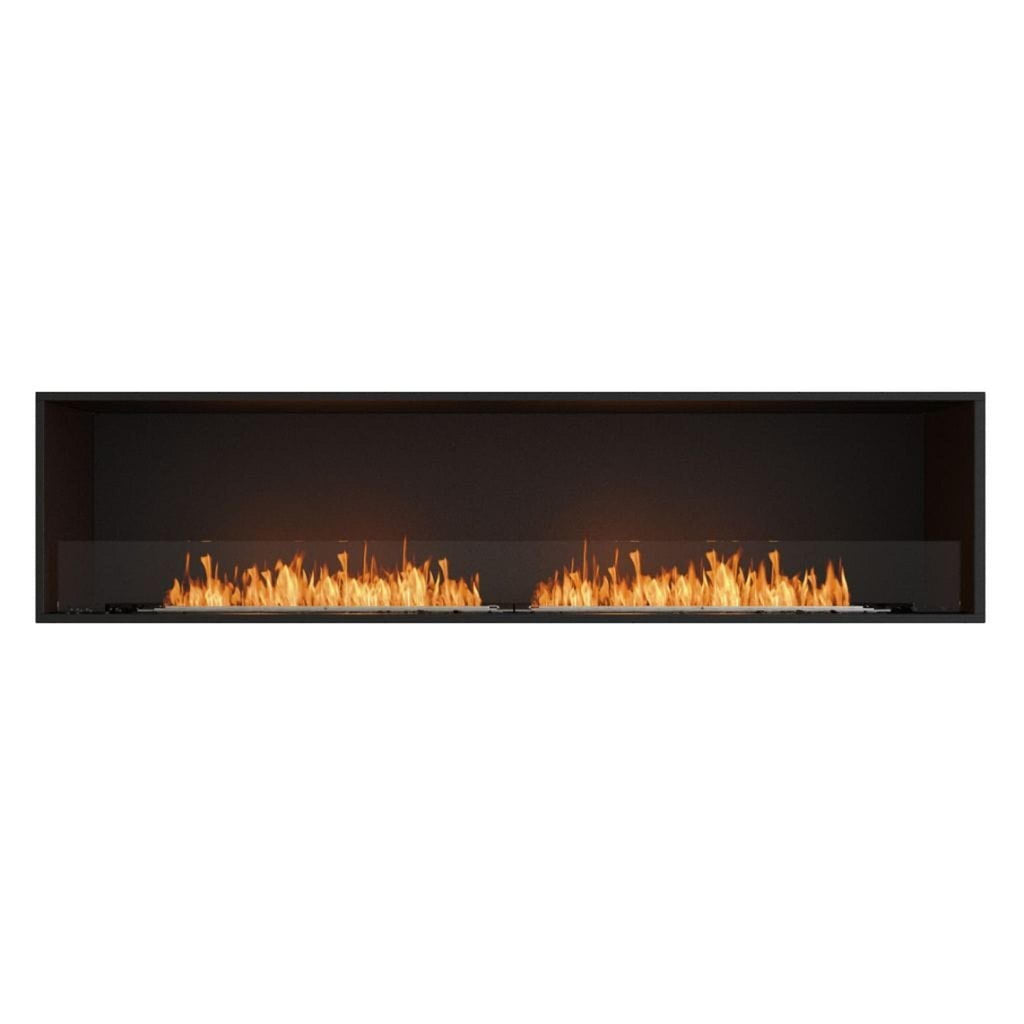

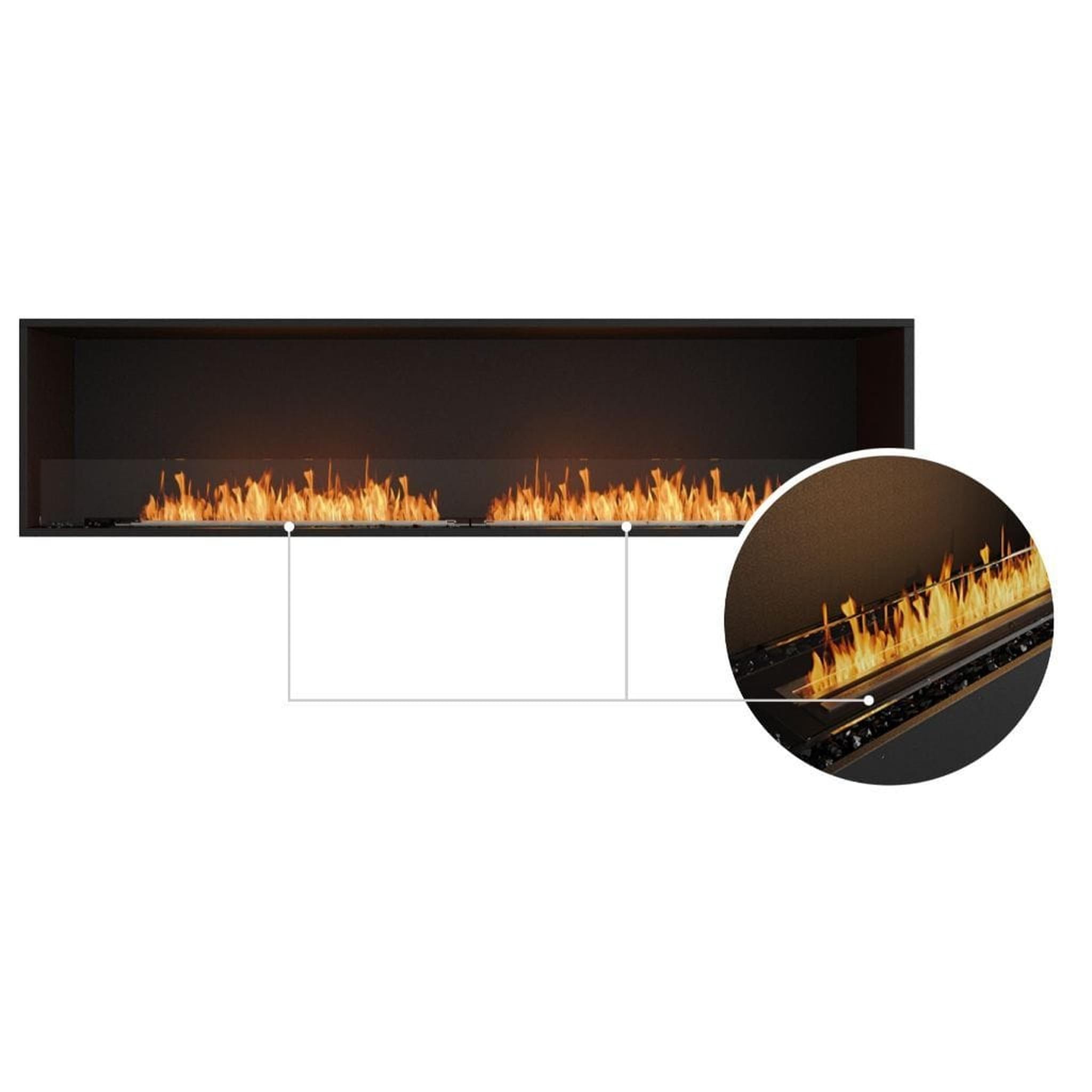

EcoSmart Fire Flex 86SS 94" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Decorative Black Glass Charcoal by Mad Design Group

Save 7%
MAD Design GroupSKU: ESF.FX.86SS

Burner Color: Stainless Steel
Price:
Sale price$12,995.00 Regular price$14,000.00

Description

The EcoSmart Fire Flex 86SS 94" Black Single Sided Ethanol Fireplace Insert is designed as a stylish focal point for any indoor or outdoor setting. Its sleek black finish, stainless steel burner, and decorative black glass charcoal create an elegant and modern flame display visible from the front.

This fireplace insert is fully self-contained, requiring no gas, electricity, chimney, or venting. Its clean-burning ethanol flame produces no smoke, soot, or ash, ensuring a safe and low-maintenance experience. The zero-clearance design allows installation within wood or metal studs, providing flexible placement options for custom spaces.

Built from durable stainless steel and toughened glass, the Flex 86SS is rust-proof and built to last. Quick and easy to assemble, it includes an integrated windscreen to enhance safety and enjoyment. Tested worldwide, this fireplace insert combines versatility, sophistication, and convenience for year-round enjoyment.

Enjoy an alluring flame from any angle you look at it:

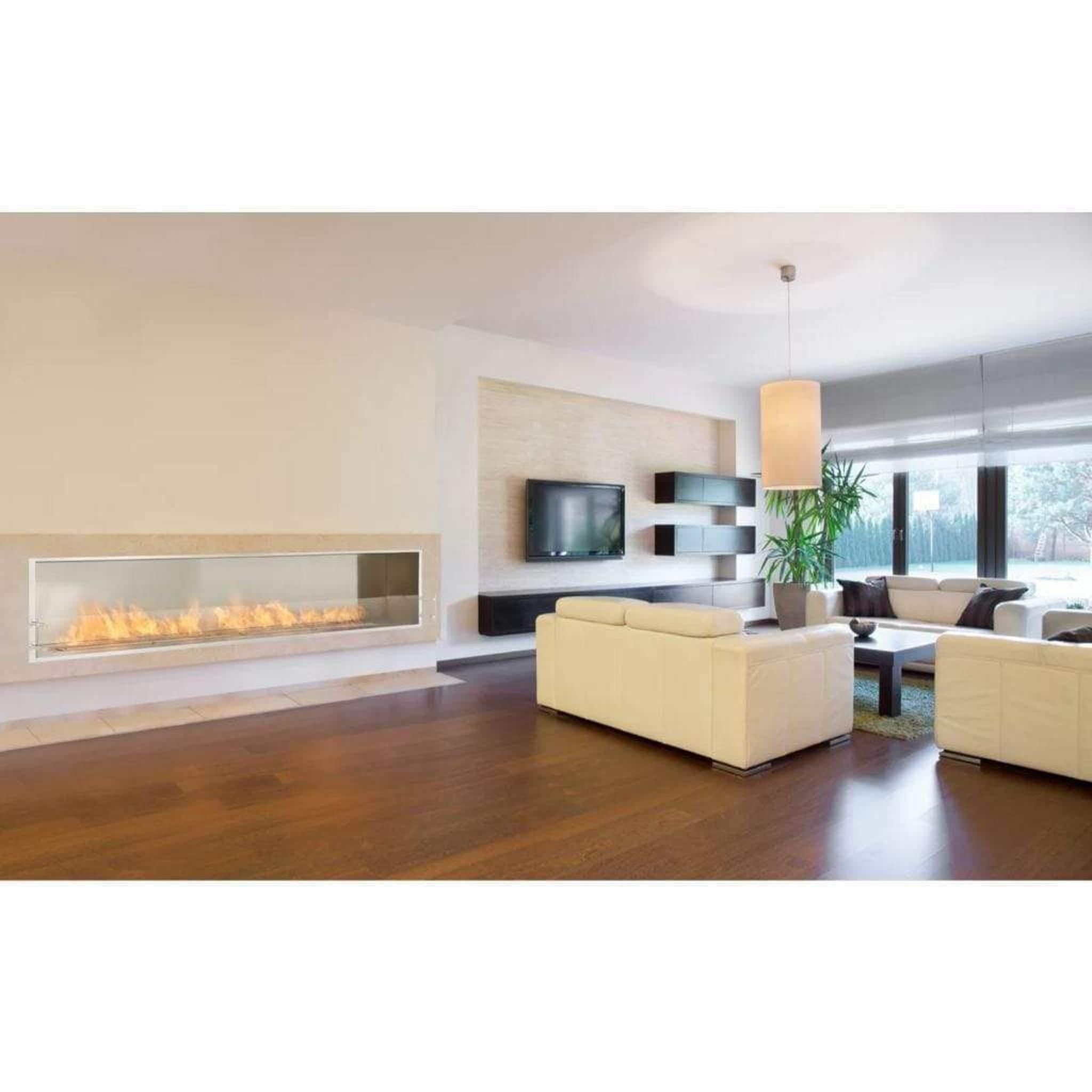

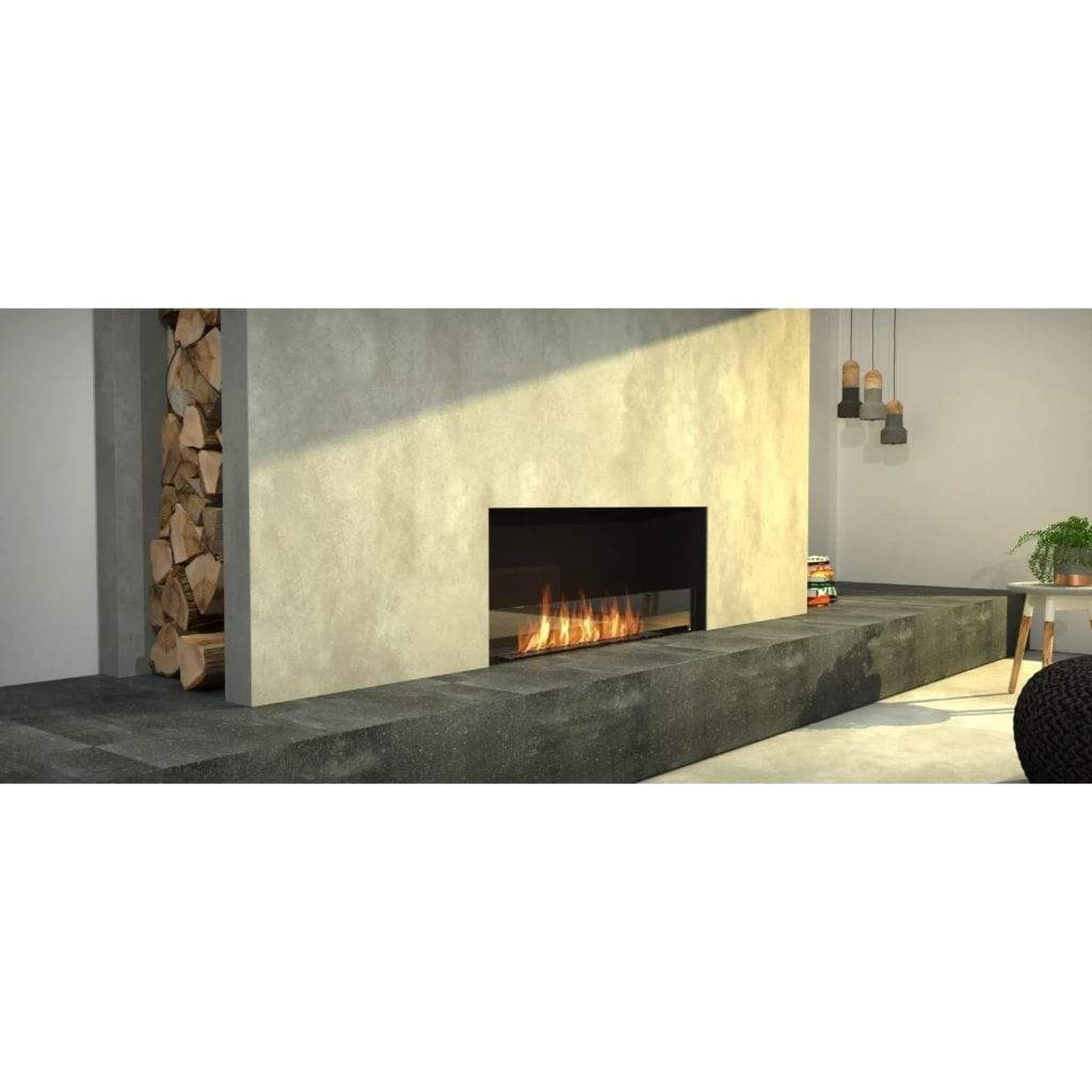

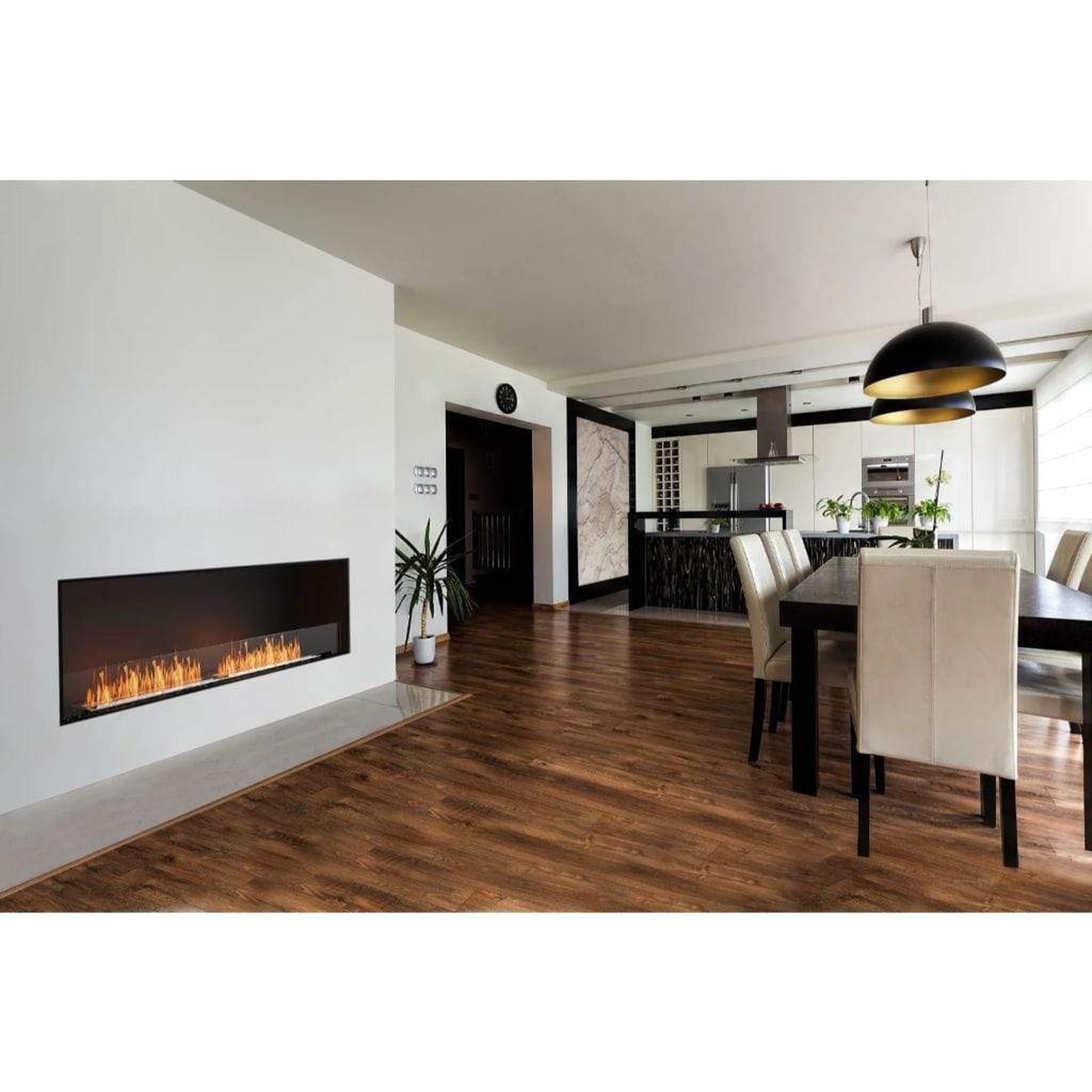

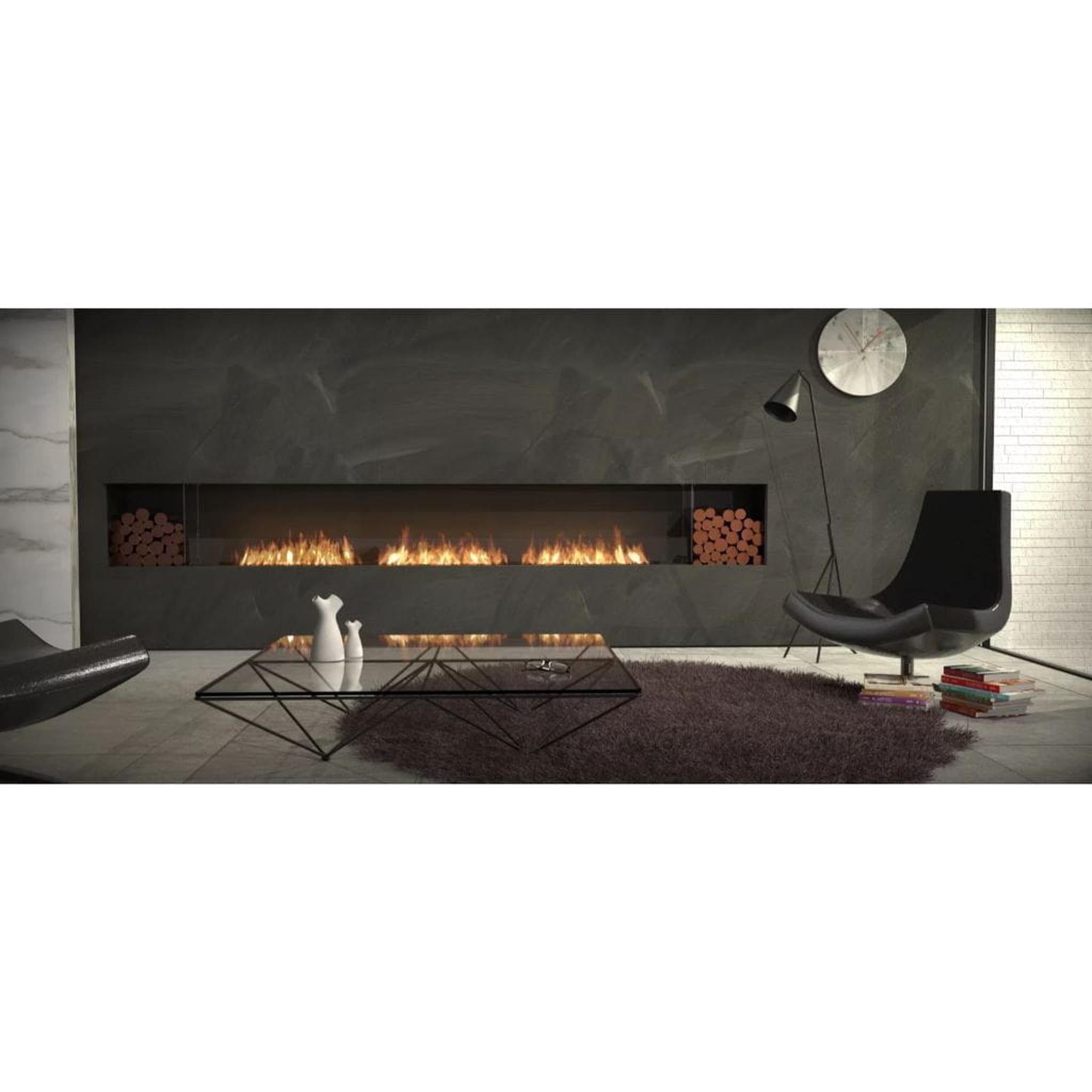

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

The clean lines and 'all flame' configuration of the Flex 86SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 Burners. With an overall heating capacity of 1292ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants. Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.

O-TL Listed in accordance with UL 1370.

What's Included:

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately):

  • e-NRG Bioethanol Fuel
  • Decorative Log Set

Features:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.


Specifications:

Weight 268lb [122kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Black


Fuel Efficiency:


Volume Capacity

2.4 Gal [9 L]

Heats on Average

646ft2 [60m2]

Minimal Room

3885ft3 [110m3]

Thermal Output

16 MJ/h - 15000 BTU/h - 4.4 kW

Burn Time

8 - 13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions:

Width 94.1in [2390mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings:

Front View

Side View

Top View

Warranty:

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos:

About The Manufacturer:

Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
