EcoSmart Fire Flex 86SS 94" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Left Side Decorative Box with Black Glass Charcoal by Mad Design Group

Save 7%
MAD Design GroupSKU: ESF.FX.86SS.BXL

Burner Color: Stainless Steel
Decorative Box: Left Side
Price:
Sale price$12,995.00 Regular price$14,000.00

Description

The EcoSmart Fire Flex 86SS 94" Black Single Sided Ethanol Fireplace Insert offers a striking centerpiece for any indoor or outdoor space. Featuring a sleek black finish, stainless steel burner, and decorative black glass charcoal, it provides a modern and elegant flame display visible from the front.

This fireplace insert is fully self-contained, requiring no gas, electricity, chimney, or venting. Its clean-burning ethanol flame produces no smoke, soot, or ash, making it a safe and low-maintenance option. The zero-clearance design allows for framing within wood or metal studs, offering maximum installation flexibility.

Durable and rust-proof, the Flex 86SS includes a left side decorative box for personalized accessories and an integrated windscreen for safety. Quick to assemble and tested worldwide to meet global safety standards, it combines elegance, convenience, and versatility for year-round enjoyment.

Enjoy an alluring flame from any angle you look at it:

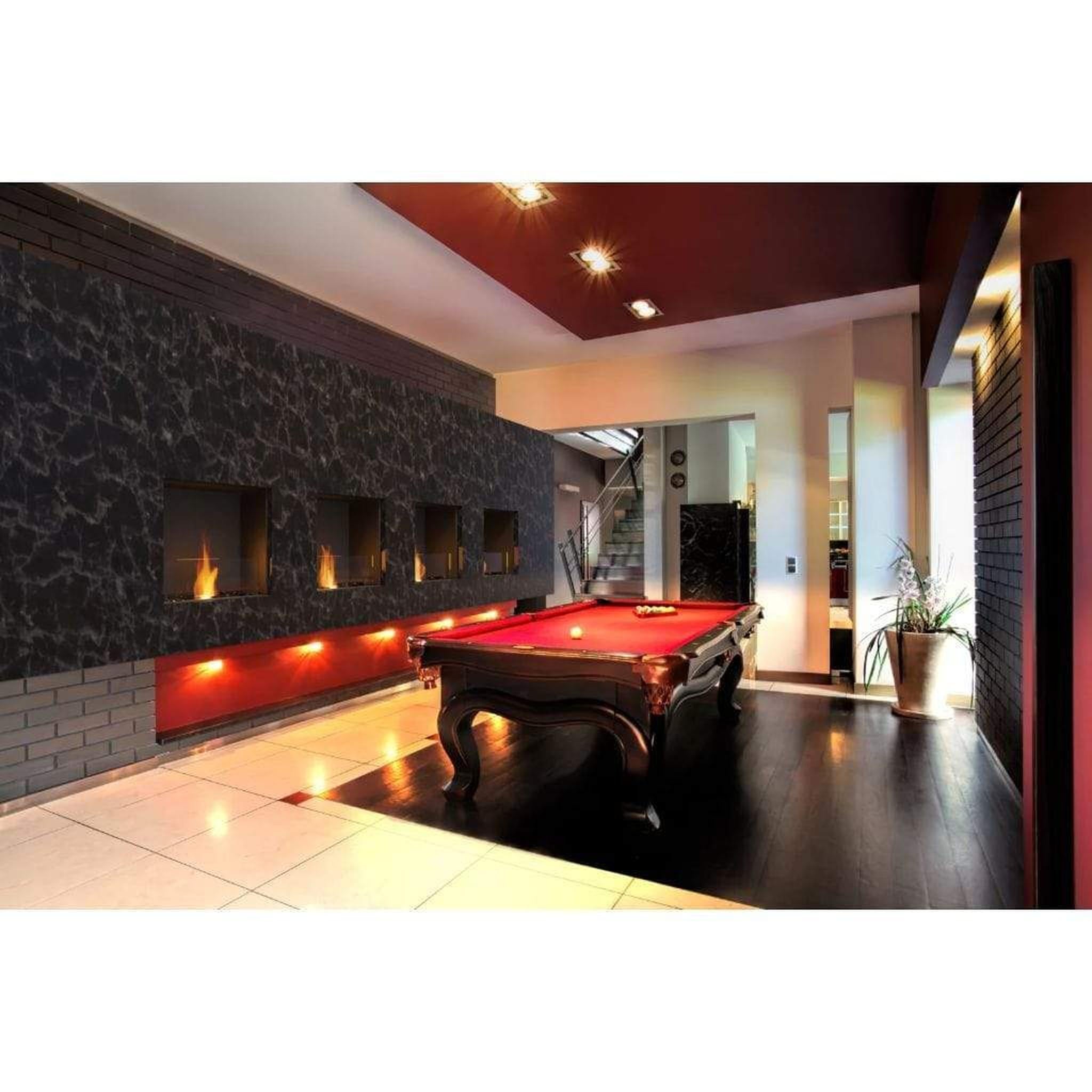

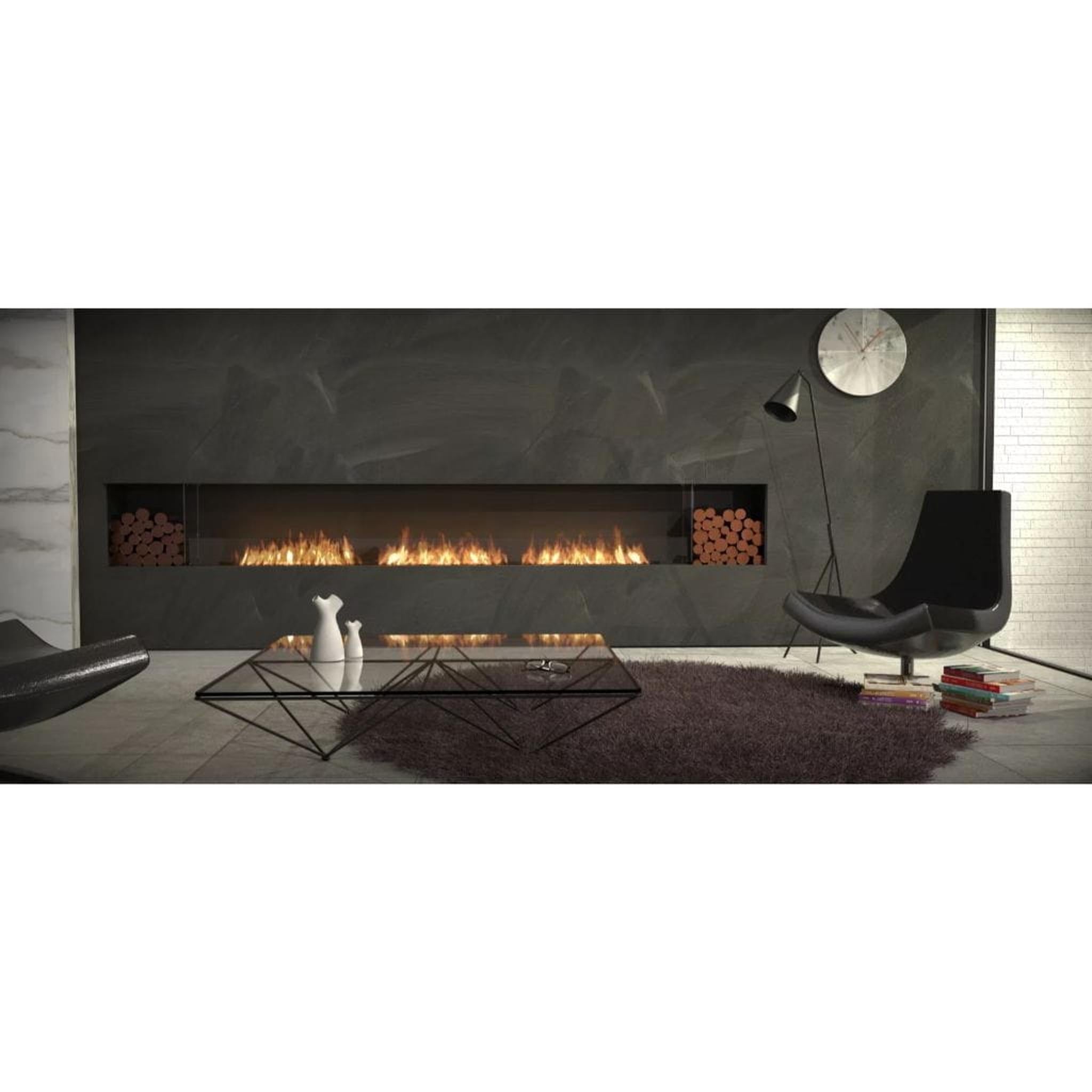

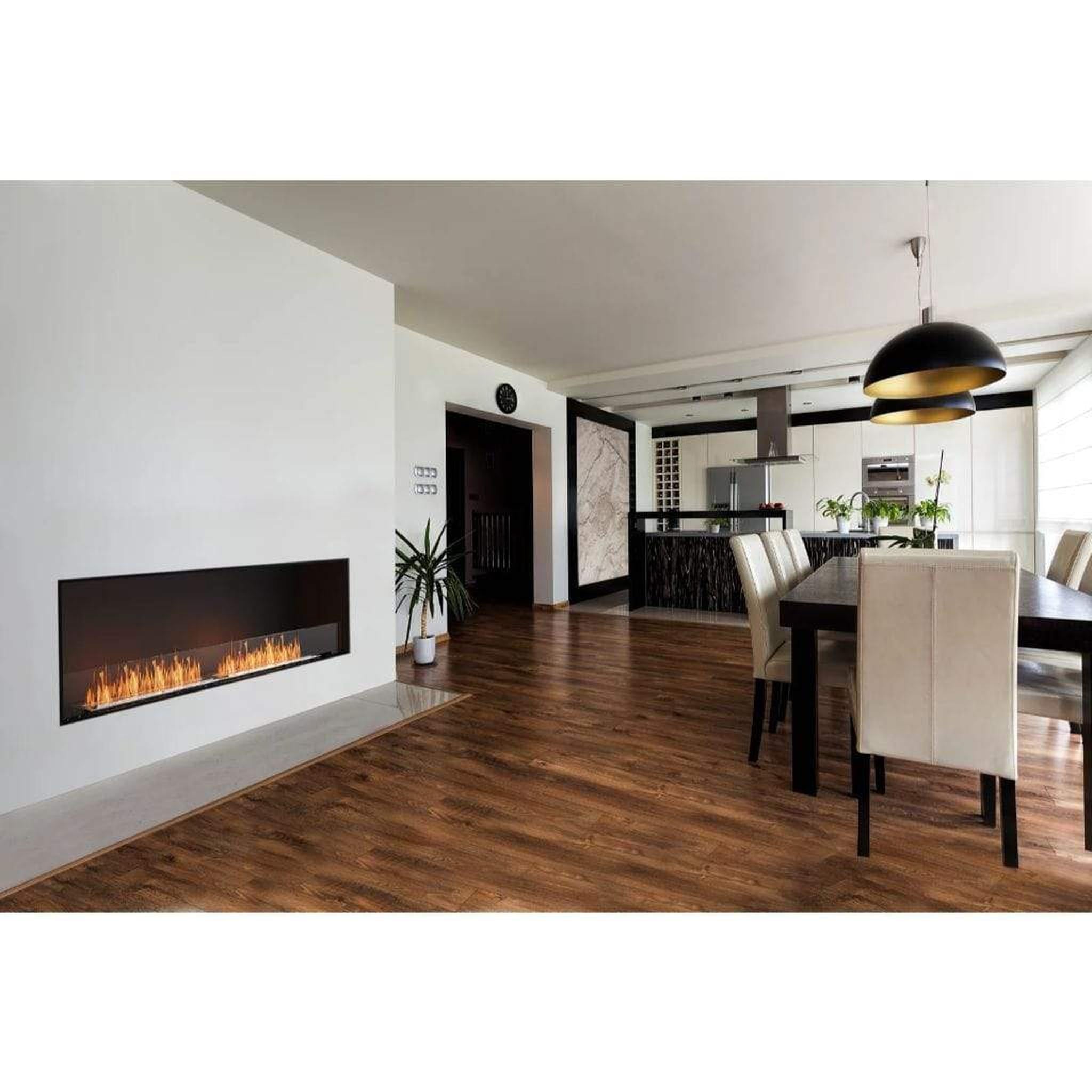

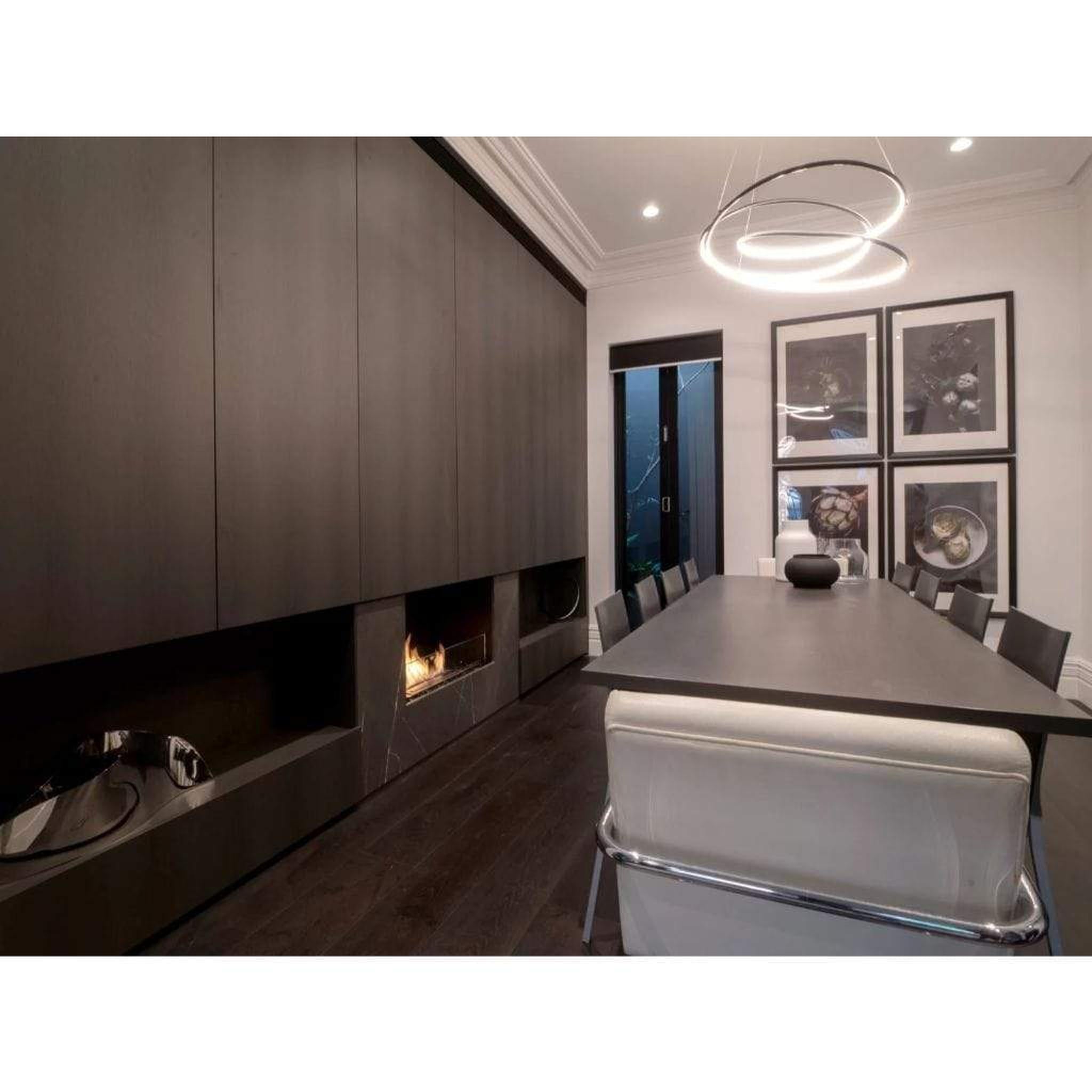

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

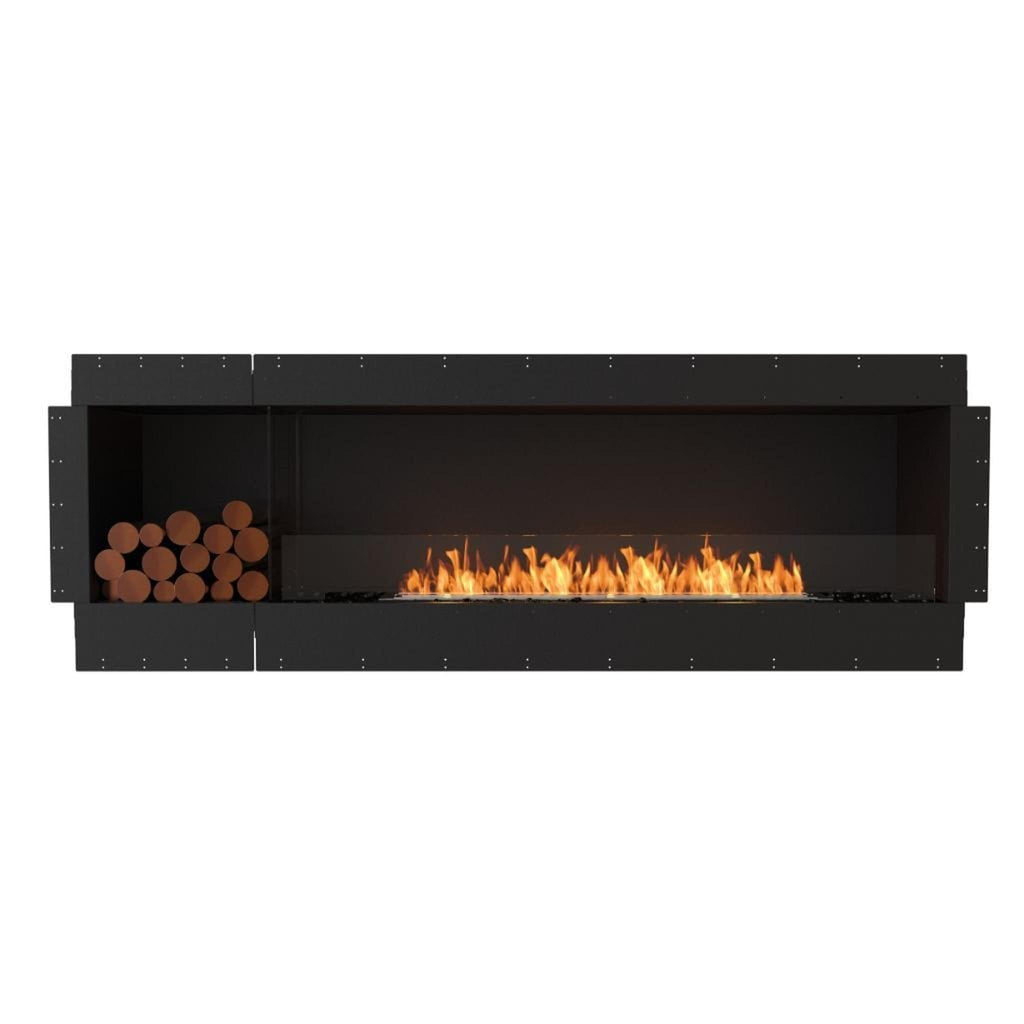

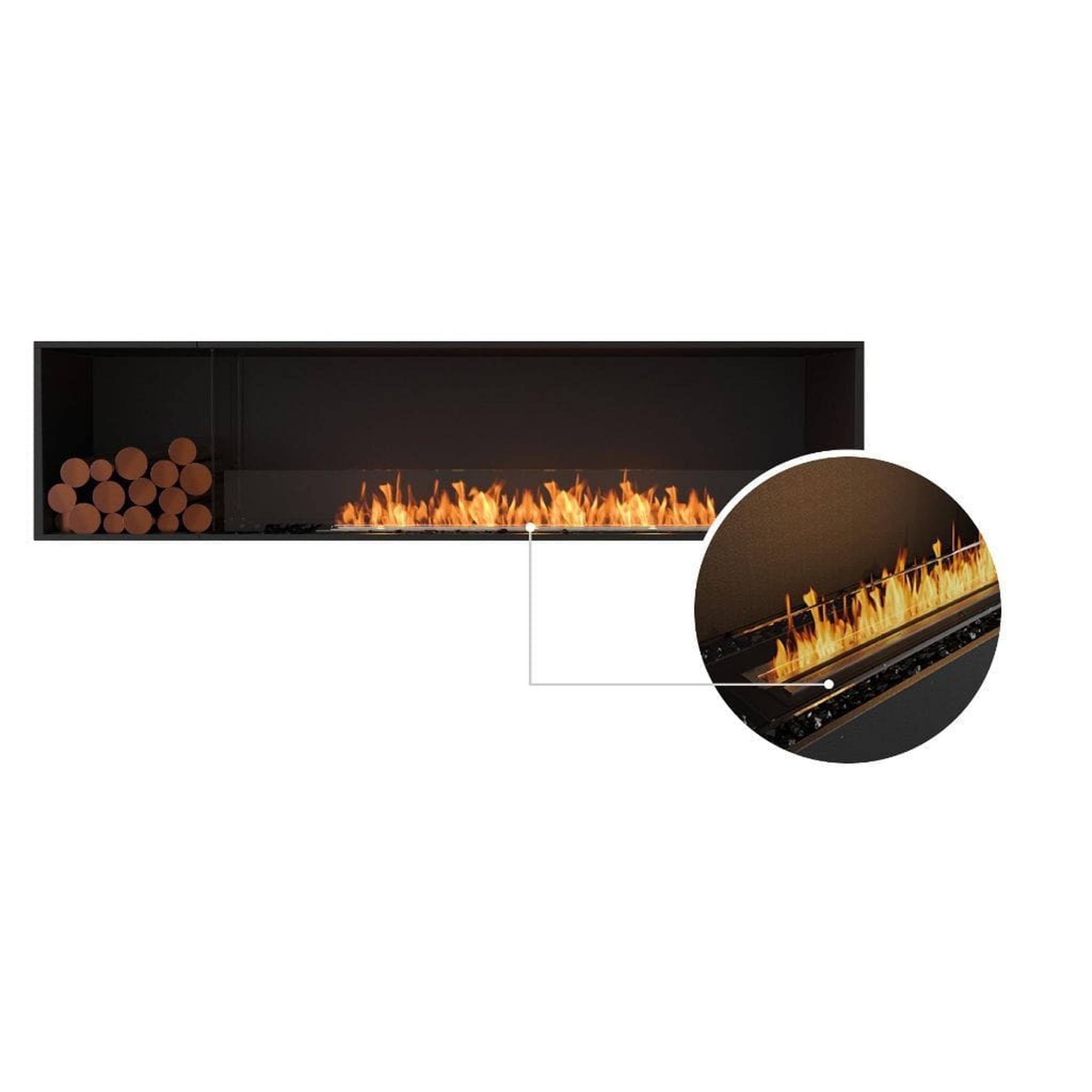

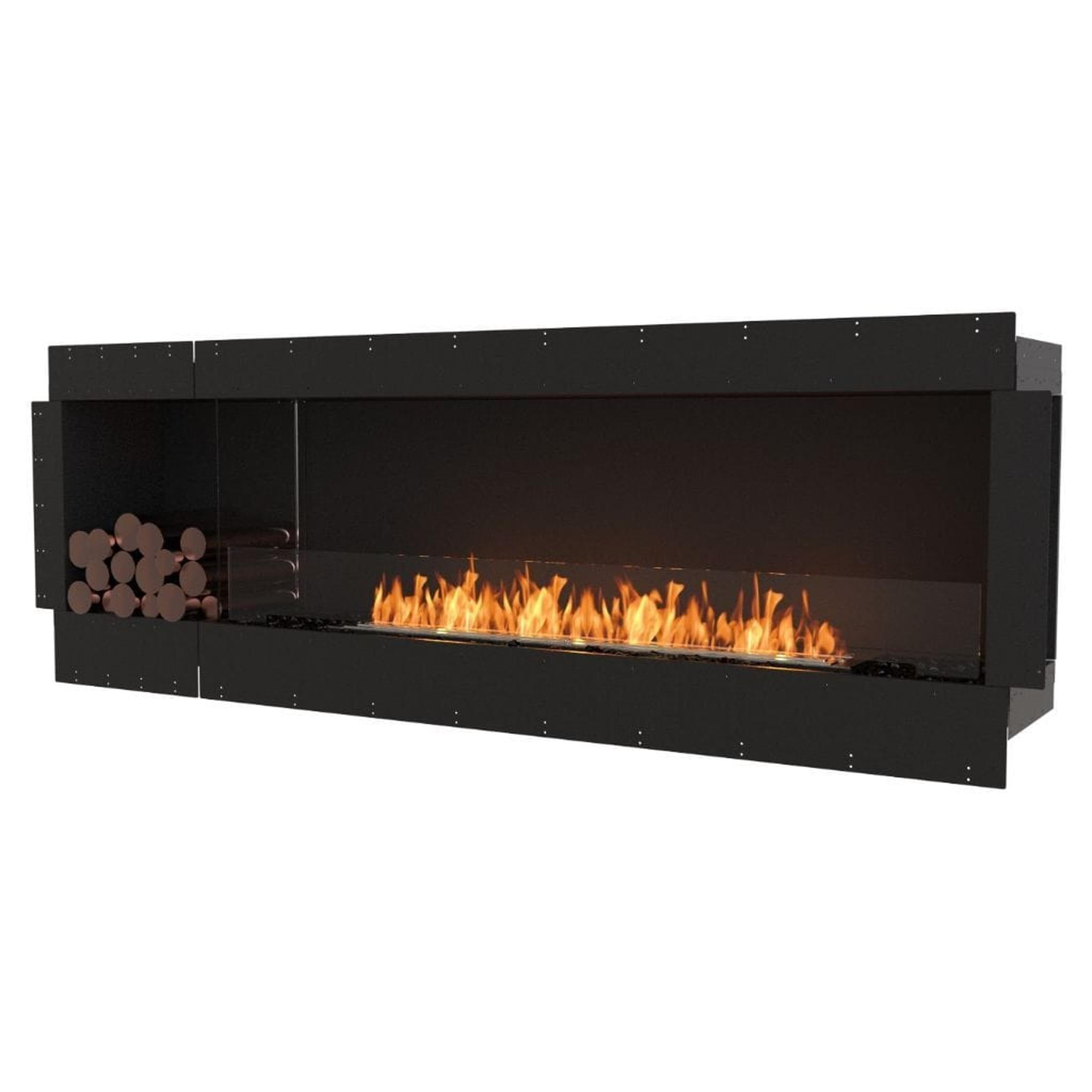

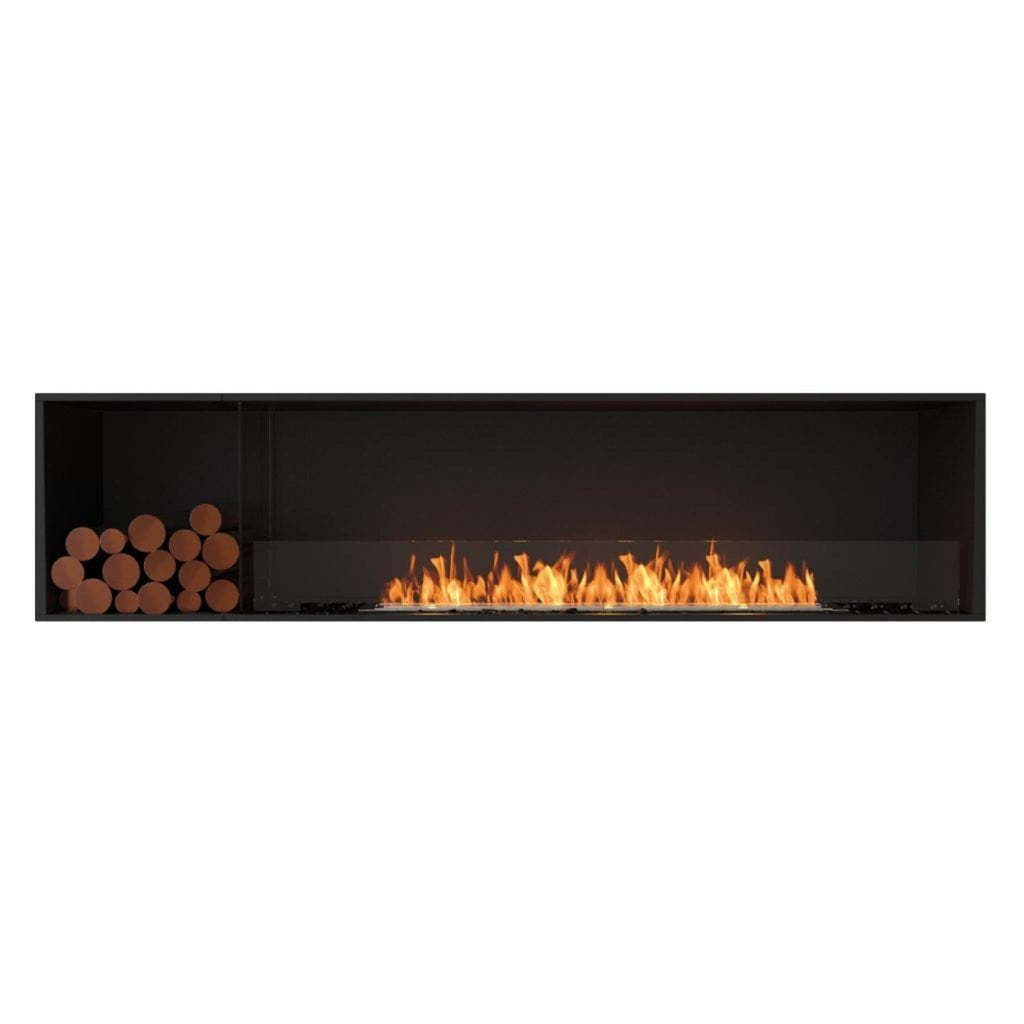

The Flex 86SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

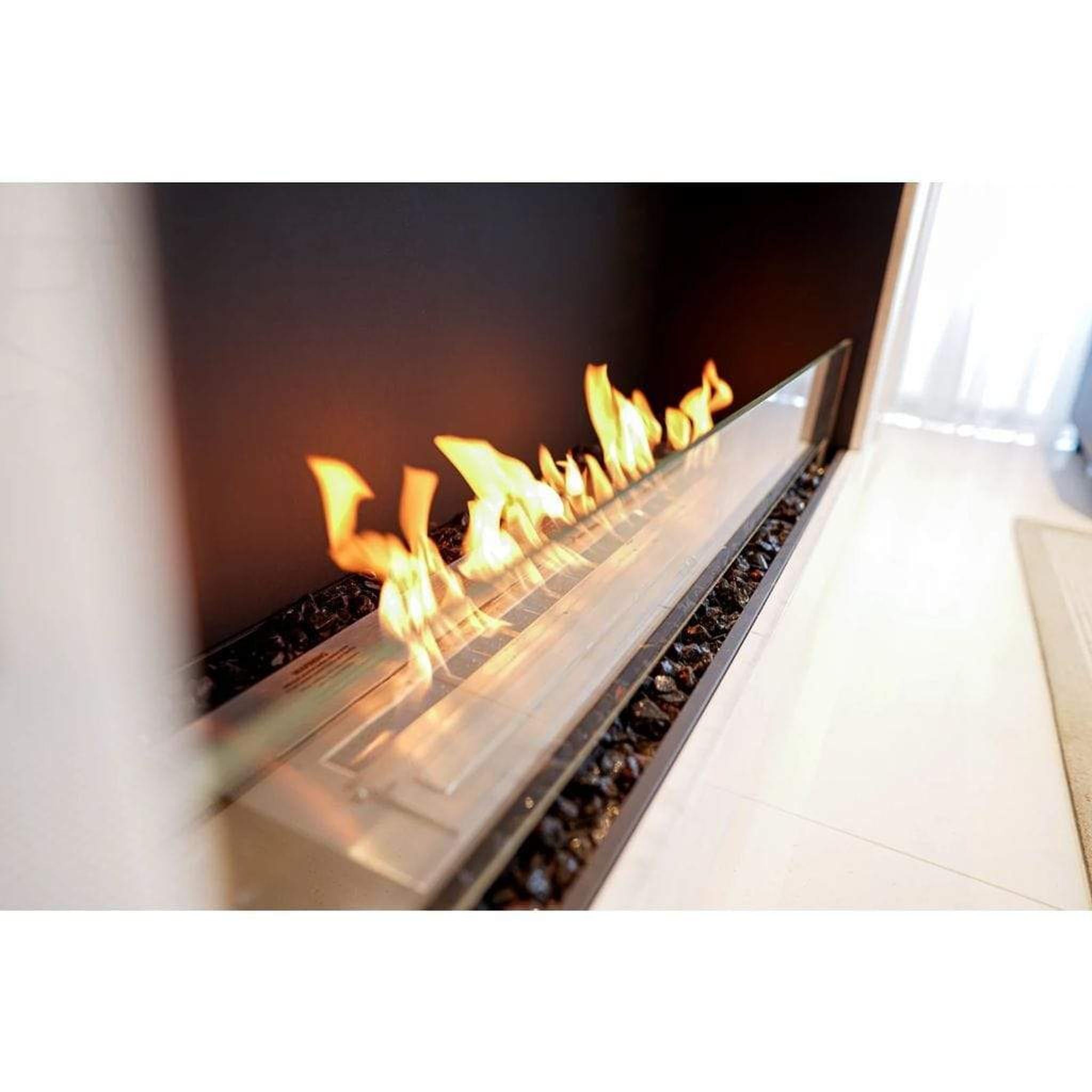

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. This elongated burner can heat up to 700ft2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars. Each burner holds 2.6 gallons of fuel, and can deliver a stunning flame for up to 14 hours.

O-TL Listed in accordance with UL 1370.

What's Included:

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately):

  • e-NRG Bioethanol Fuel
  • Decorative Log Set

Features:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.


Specifications:

Weight 263lb [119kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Black


Fuel Efficiency:


Volume Capacity

2.6 Gal [10 L]

Heats on Average

700ft2 [65m2]

Minimal Room

4061ft3 [115m3]

Thermal Output

17 MJ/h - 15290 BTU/h - 4.5 kW

Burn Time

9 - 14h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions:

Width 94.1in [2390mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings:

Front View

Side View

Top View

Warranty:

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
