Description

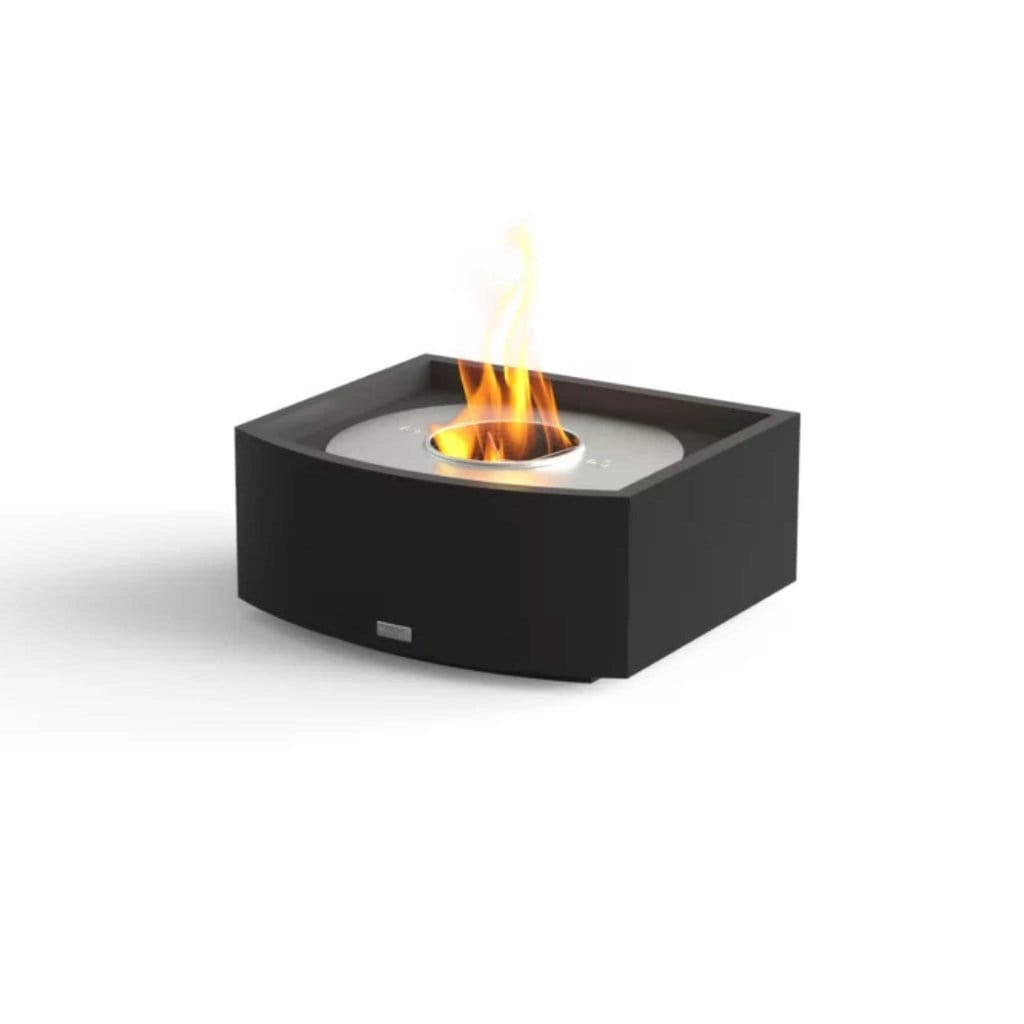

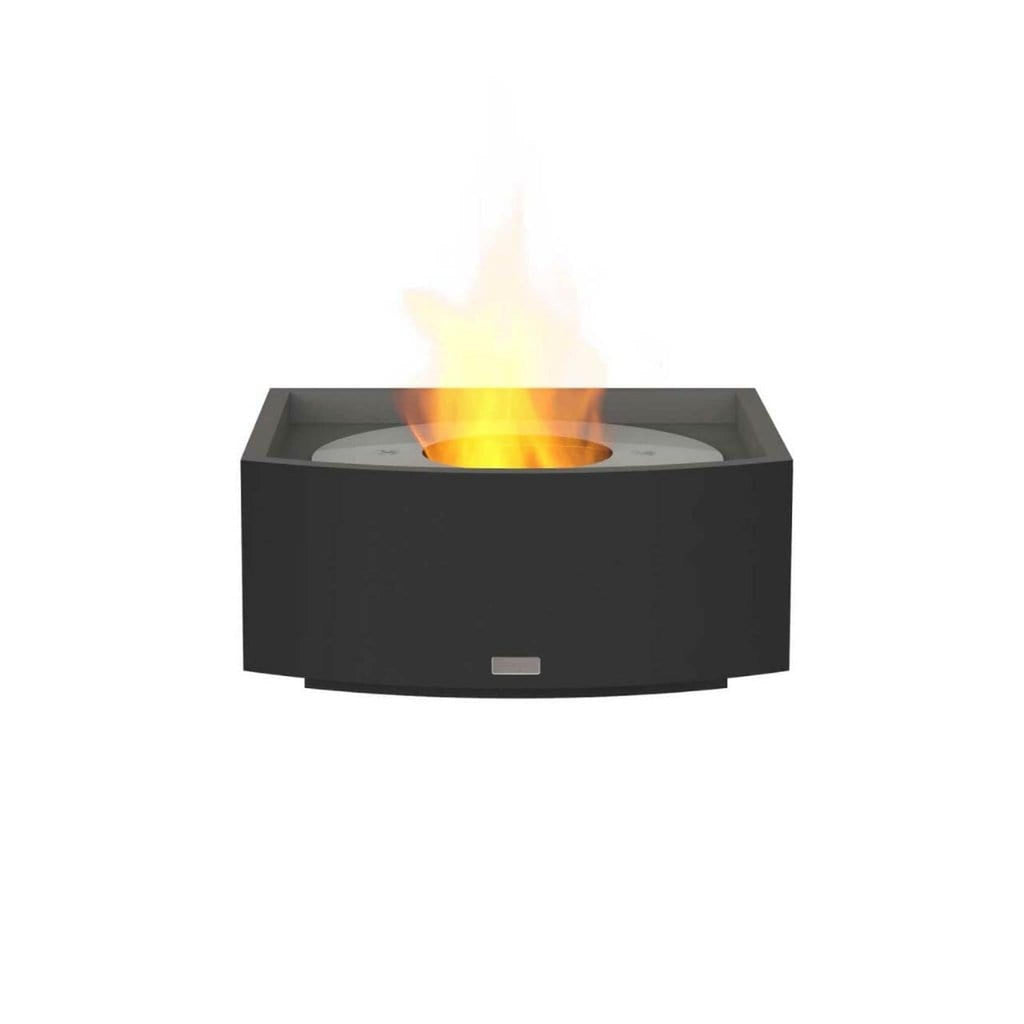

The EcoSmart Fire Grate 18" Ethanol Fireplace Insert by Mad Design Group brings the charm of a traditional open fire without the smoke, soot, or ash. Designed for effortless installation, this compact insert fits seamlessly into existing fireplaces, transforming them into elegant, eco-friendly focal points fueled by clean-burning e-NRG bioethanol.
Crafted with EcoSmart’s advanced Fluid Concrete Technology, the Grate 18 offers exceptional durability and sophistication. Its handcrafted concrete composite body and stainless steel burner deliver both strength and modern appeal, ensuring long-lasting performance with minimal maintenance.
With no need for gas lines or electrical connections, this ethanol insert offers true flexibility and ease of use. Tested and certified to meet global safety standards, the EcoSmart Fire Grate 18 delivers warmth and ambiance while maintaining an environmentally conscious design ideal for contemporary indoor living spaces.
Fireplace Grate 18, a modern take on the traditional:
Versatile and durable, elegant and superbly styled, functional and fabulous – the EcoSmart Fire Grate 18 makes transforming a traditional wood fireplace into a contemporary, eco-friendly ethanol fireplace so simple.
Grate 18 has the smallest footprint in the series. At its centre is the powerful EcoSmart Fire round AB8 Burner delivering a mesmerising flame for up to 11 hours.
O-TL Listed in accordance with UL 1370.
What's Included
- Fire Lighter
- Lighting Rod
- Jerry Can 1.25 Gal
- Bottle Adapter
- Butane
Not Included (Sold Separately)
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
- Twin Feet Fixing
Features:
Minimum Fuss
Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.
Fluid™ Concrete Technology
EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.
Convert an existing fireplace in minutes
Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.
Optional Sizes
The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).
No Gas or Electricity
All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls
Tested World Wide
EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight |
36.16lb [16.40kg] |
|---|---|
| Application | Indoor |
| Material |
Concrete Composite, Stainless Steel Grade 304 |
| Color | Graphite |
Fuel Efficiency:
|
|
2.1 Gal [8 L]
|
|
Heats on Average |
646ft2 [60m2] |
|
Minimal Room |
4097ft3 [116m3] |
|
Thermal Output |
20433 BTU/h [6 kW 21.56 MJ/h] |
|
Burn Time |
7 - 11h [2.1 Gallons] |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 16in [406mm] |
| Height | 7.9in [200mm] |
| Depth | 18in [457mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Side View |
|
| Top View |  |
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files:
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
