Description
The EcoSmart Fire Grate 36" Ethanol Fireplace Insert with Stainless Steel Burner by MAD Design Group delivers the warmth and ambience of an open fire without the mess, sparks, or soot. Its self-contained design uses clean-burning e-NRG bioethanol, making it a safe and eco-friendly solution for indoor fireplaces.
Constructed with EcoSmart Fire’s Fluid™ Concrete Technology, this fireplace insert combines durability and style. The stainless steel burner ensures optimal performance, while the optional Grate sizes allow you to select the perfect fit for your existing fireplace. Installation is quick and simple, converting your wood-burning fireplace in just minutes.
Tested worldwide, this fireplace insert meets UL standards in the USA, EU and UK EN16647 certification, and the ACCC Safety Mandate in Australia. Its graphite concrete composite design makes it both a practical and elegant addition, offering a sleek, modern update to any indoor living space.

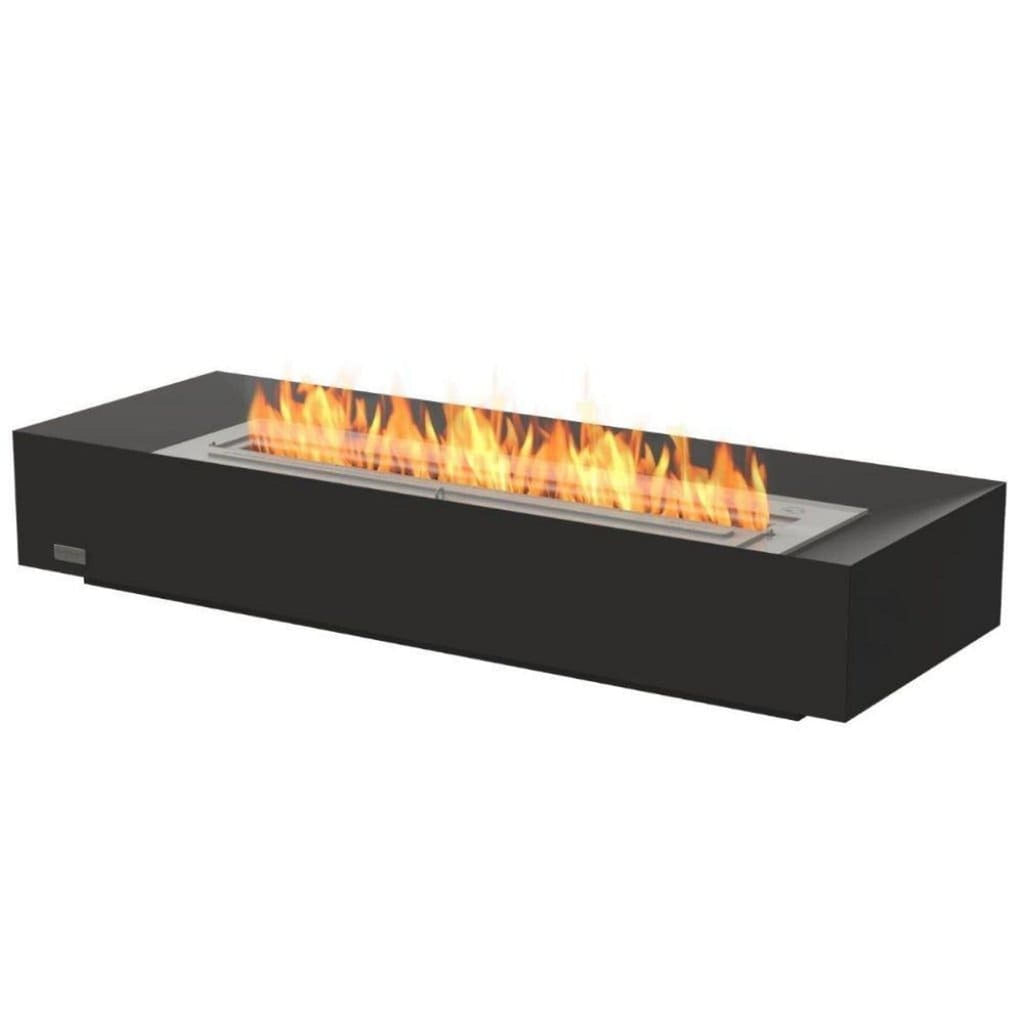

Fireplace Grate 36, a modern take on the traditional:
Grate 36’s bold appearance and long elegant flame make it the ideal choice for bringing life back to an old unused fireplace.
Designed for those looking to make an impact when designing a fireplace, Grate 36 is sturdily constructed from Fluid Concrete Technology in a modern graphite concrete colour, and holds the XL700 Burner.
O-TL Listed in accordance with UL 1370.
What's Included:
- Fire Lighter
- Lighting Rod
- Jerry Can 1.25 Gal
- Bottle Adapter
- Butane
Not Included (Sold Separately):
- Black Glass Charcoal
- e-NRG Bioethanol Fuel
- Twin Feet Fixing
Features:
Minimum Fuss
Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.
Fluid™ Concrete Technology
EcoSmart Fire proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.
Convert an existing fireplace in minutes
Transforming an existing wood burning fire into a clean burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.
Optional Sizes
The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).
No Gas or Electricity
All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables though your walls
Tested World Wide
EcoSmart Fire collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight |
51.59lb [23.40kg] |
|---|---|
| Application | Indoor |
| Material |
Concrete Composite, Stainless Steel Grade 304 |
| Color | Graphite |
Fuel Efficiency:
|
|
1.8 Gal [7 L]
|
|
Heats on Average |
538ft2 [50m2] |
|
Minimal Room |
3178ft3 [90m3] |
|
Thermal Output |
13650 BTU/h [4 kW 14.50 MJ/h] |
|
Burn Time |
9-12h [1.8 Gallon] |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 13in [330mm] |
| Height | 6.1in [156mm] |
| Depth | 36in [914mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Side View |
|
| Top View |  |
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files:
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
