Description

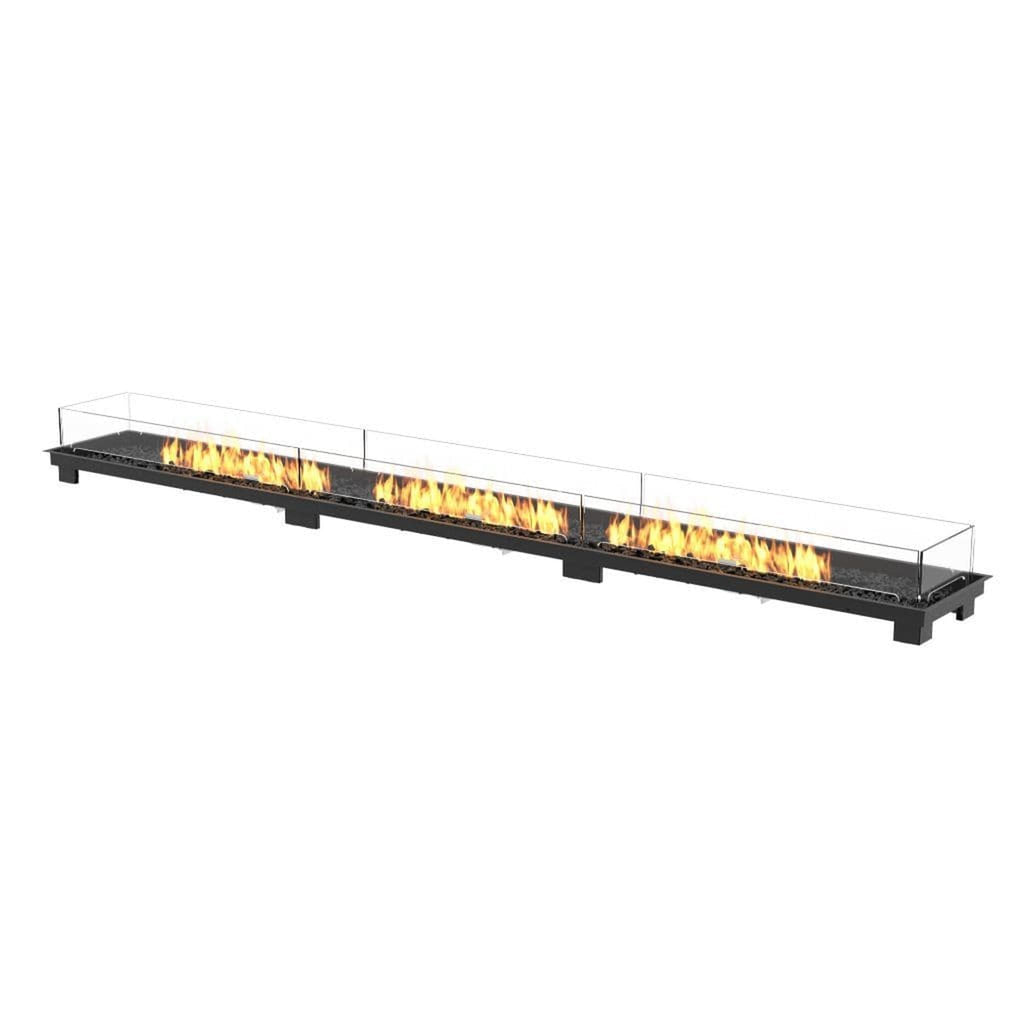

The EcoSmart Fire Linear 130 133" Black Outdoor Fire Pit Kit with Gas LP/NG Burner by Mad Design Group offers a perfect blend of modern sophistication and high-performance heating. Its long, streamlined design and deep black finish create a striking focal point, ideal for enhancing outdoor living spaces with both warmth and elegance.
This fire pit kit provides complete design freedom, allowing seamless integration into non-combustible surfaces like stone, concrete, or tile. The gas and liquid propane burner options deliver adjustable heat levels up to 65,000 BTUs, offering powerful warmth for cooler evenings. The clean-burning flame ensures an enjoyable fire experience without smoke, soot, or ash.
Built from premium stainless steel and toughened glass, the Linear 130 is engineered for durability and long-term outdoor use. With its smokeless operation and modern appeal, this fire pit kit transforms any outdoor area into an inviting space for year-round gatherings and relaxation.
Elongated aesthetics Fire Pit Kit:

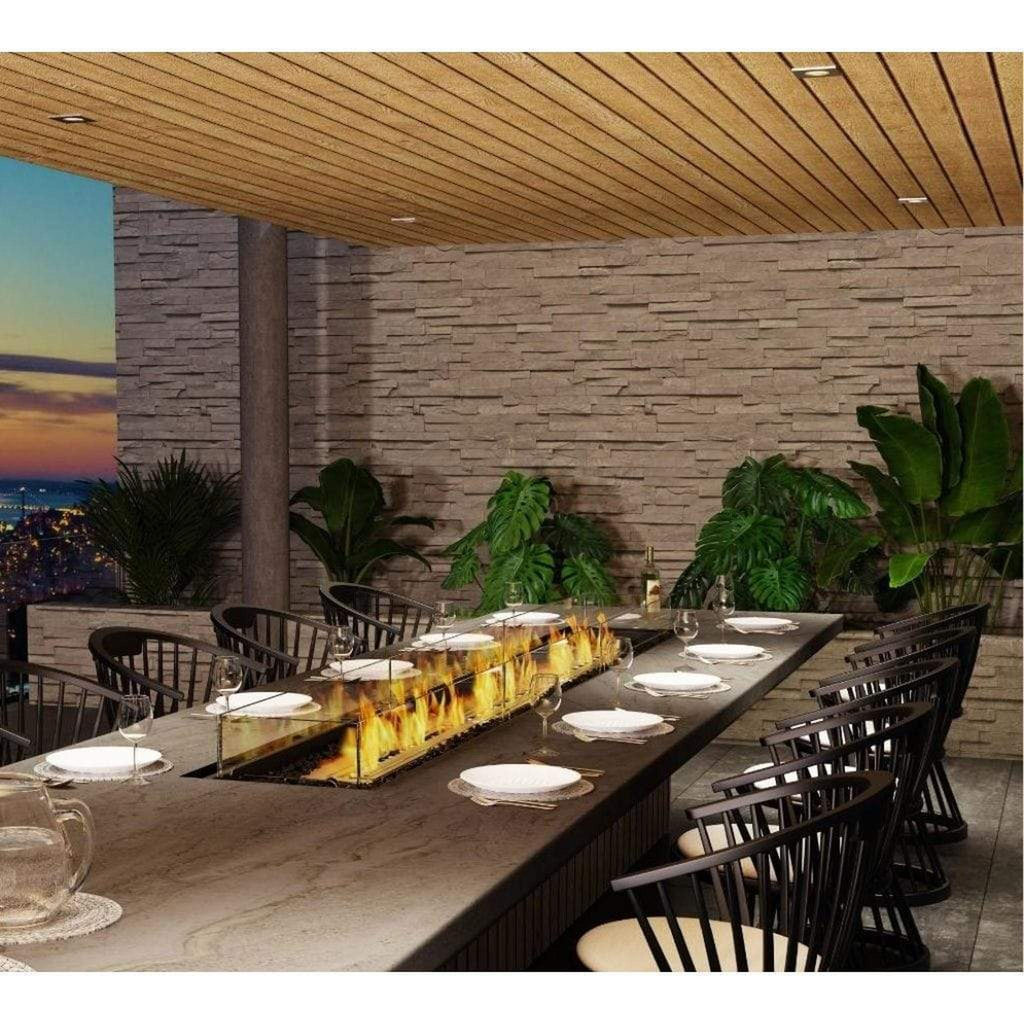

The Linear 130’s three ethanol or gas (NG/LP) burners provide the longest flame in the Fire Pit Kit Series, creating a stunning statement fireplace indoors or out – in spacious residential or commercial premises as a divider, definer, or design element integrated within a benchtop or dining table.
O-TL Listed in accordance with UL 1370.
What's Included:
- G35 Gas Burner
- Inset Metal Tray
- Black Glass Charcoal
- Gas burner assembly
Not Included (Sold Separately):
- XL900 Burner Cover
- L1080 Fire Screen
Features:
Indoor or Outdoor
Choose from three different types of fuel to enjoy a warm fire anywhere, from the comforts of your home or in your outdoor space.
Smokeless flame
Unlike traditional wood fire pits, our products produce no smoke, no soot, and no ash for an enjoyable experience without the mess.
Complete design freedom
Created for easy installation into your choice of non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops to create your own look.
Clean Burning Flame
Keeping your home safe from harmful emissions, our gas and ethanol fire pits produce no smoke, no soot, and no ash for an enjoyable experience without the mess.
Everything you need
All the components you need to create a one-of-a-kind fire pit.
Adjustable heat options
Gas and Liquid Propane provide the highest heat, up to 65,000 BTU/h. Ethanol delivers comfortable warmth up to 20,433 BTU/h. Choose the ideal heating level for your indoor or outdoor environment.
Three fuel choices
Eco-friendly ethanol can be installed in just minutes and can be relocated without any limitations - indoors or out. Natural Gas delivers not only the lowest cost of operation but requires no refueling of any type, ever. Liquid Propane is readily available and powers with the simple push of a button.
Tested World Wide
Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.
Specifications:
| Weight | 233lb [106kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Black |
Fuel Efficiency:
|
Minimal Room |
Outdoor Only |
|
Thermal Output |
195000 BTU/h |
|
Burn Time |
LP Burner: 7-20 Hours / Tank NG Burner: Unlimited Hours / Tank |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 17in [431mm] |
| Height | 12.1in [308mm] |
| Depth | 132.9in [3375mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Top View |
|
| Side View |  |
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
DOWNLOADS:
- Download Installation and Operation Manual
- Download Burner Manual
- Download Specs Sheet
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
