Description

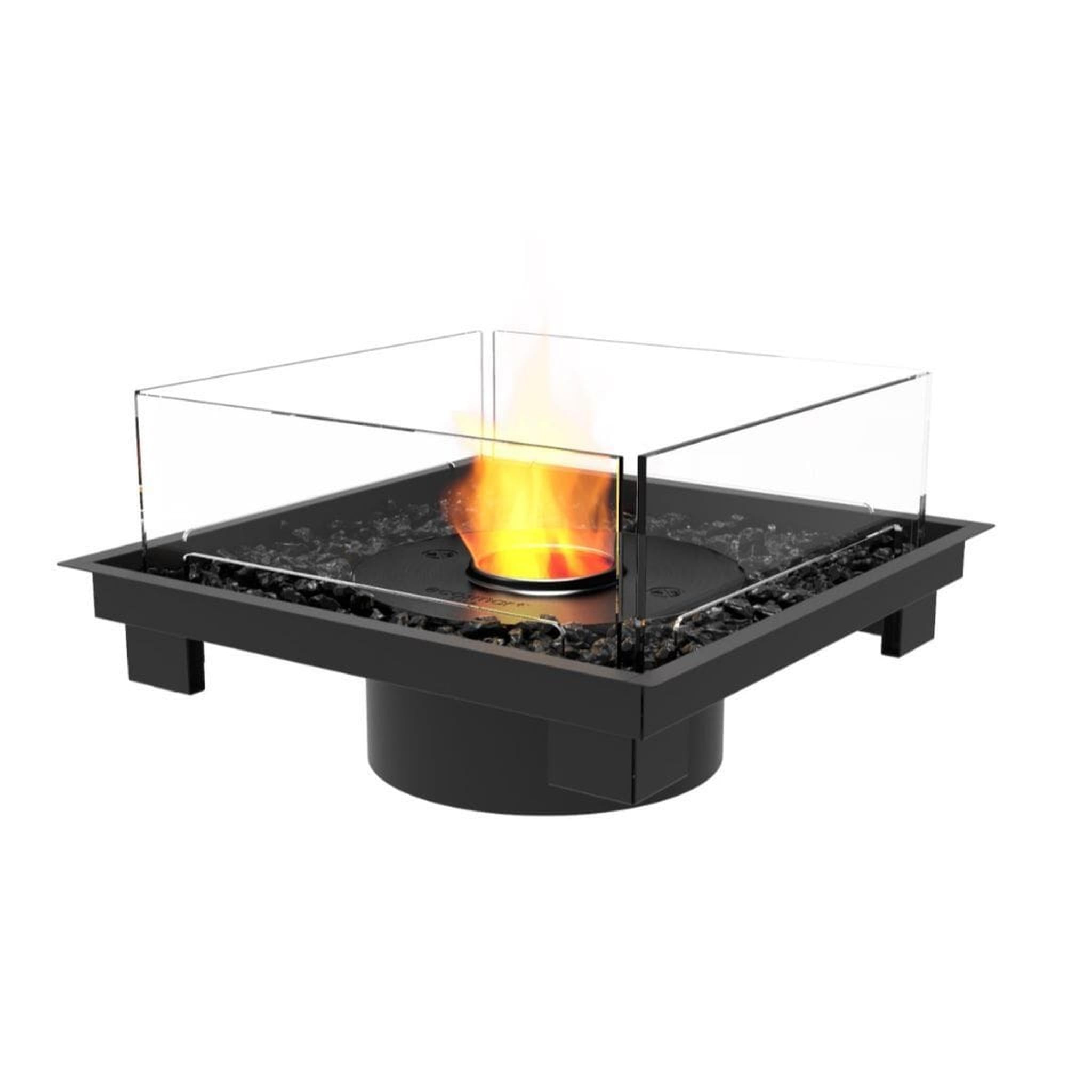

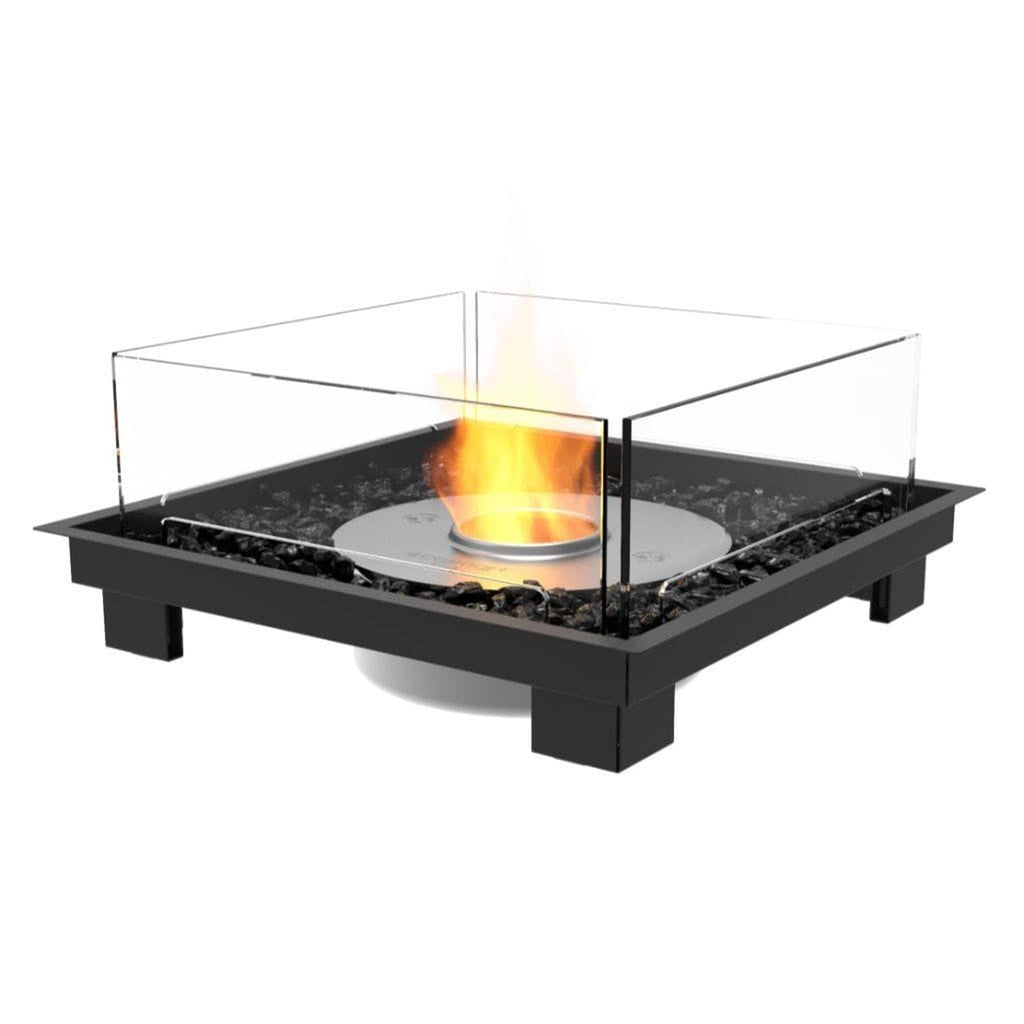

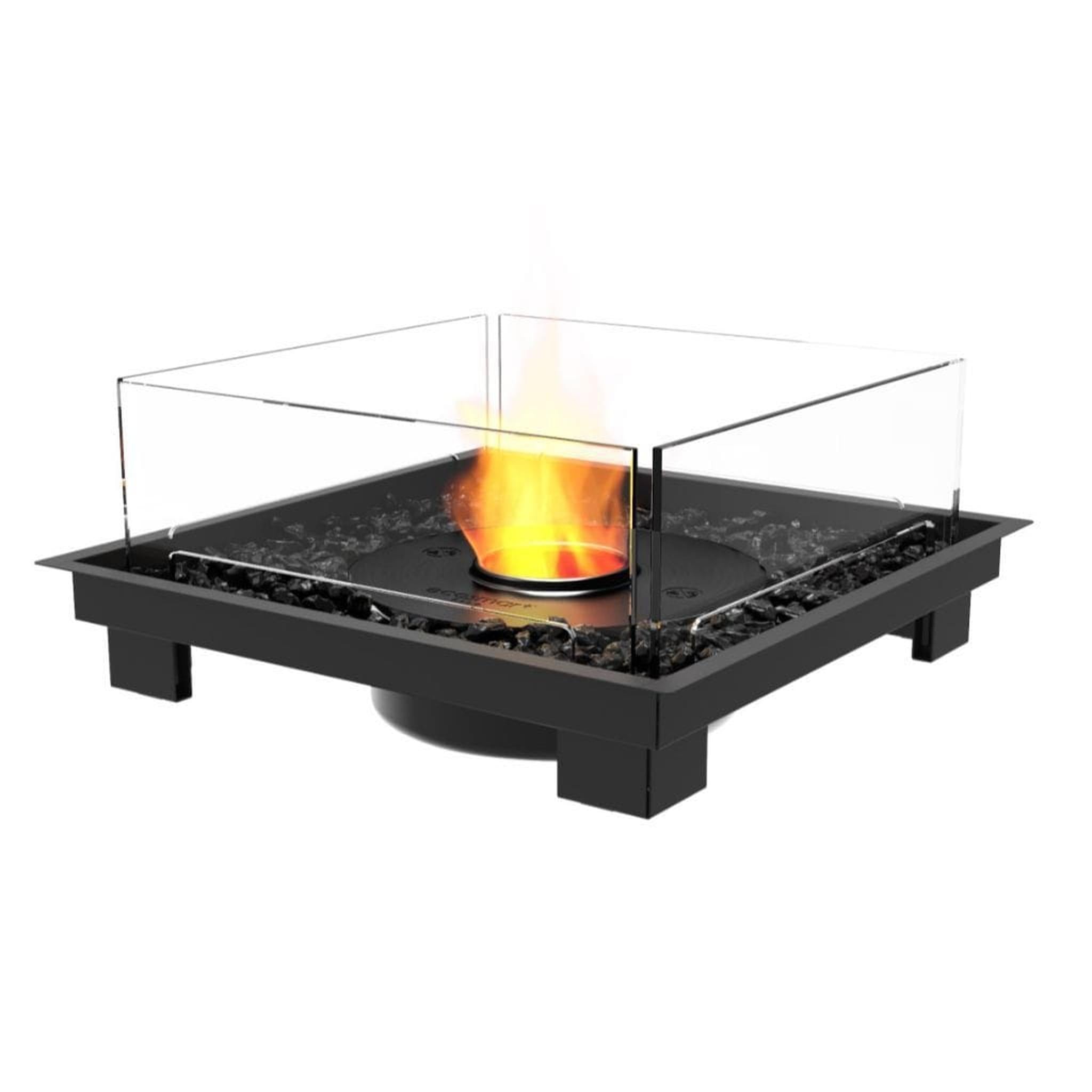

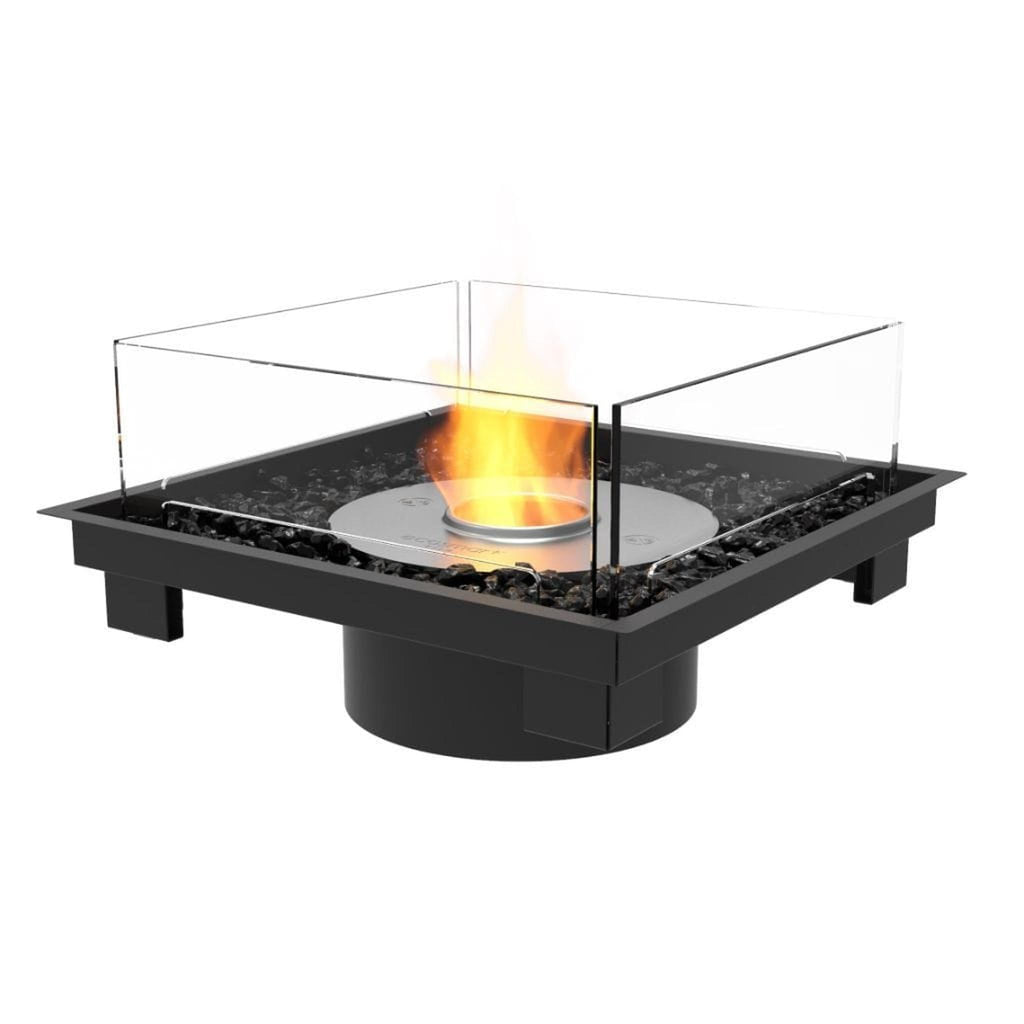

The EcoSmart Fire Square 22 24" Indoor Black Fire Pit Kit with Stainless Steel Ethanol Burner by Mad Design Group brings warmth and sophistication to any interior. With its sleek square form and deep black finish, it serves as both a stunning focal point and a functional source of clean, comforting heat.
Designed for flexibility, this compact fire pit integrates easily into non-combustible surfaces such as stone, concrete, or tile, allowing full creative freedom in your layout. The eco-friendly ethanol burner delivers a bright, smoke-free flame that enhances your space without producing soot or ash—ideal for maintaining a clean indoor environment.
Built with premium stainless steel and toughened glass, the Square 22 fire pit ensures long-lasting durability and visual appeal. Complete with decorative black glass charcoal and a glass fire screen, it combines beauty and practicality, making it a timeless addition to modern indoor settings.
Compact yet captivating Fire Pit Kit:
The Square 22’s compact design features a round stainless steel ethanol or gas burner set within a square tray, enabling the Fire Pit Kit to be easily integrated into a square or rectangular layout, such as a coffee table. Perfect for creating an inviting, intimate setting.
O-TL Listed in accordance with UL 1370.
What's Included:
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
-
Butane
- Black Glass Charcoal
- AB8 Efficiency Ring
Not Included (Sold Separately):
- e-NRG Bioethanol Fuel
- R400 Fire Screen
- AB8 Burner Cover
- S22 Cover Plate
- S500 Fire Screen
Features:
Design flexibility
The freedom to install within a square or rectangular setting plus the square lines provide a softer look while still giving any space a clean-lined, stylish looking fire pit.
Trans-seasonal
Our patio fire pits are designed for year-round enjoyment, across the seasons, indoors and outside.
Three Fuel Options
Eco-friendly and sustainable, ethanol fuel produces a vibrant orange flame and comfortable warmth indoors or outdoors. Our outdoor gas fire pits operate with a push button ignition and produce a higher heat for colder settings.
Clean Burning Flame
Enjoy the experience of a warm fire without the mess. Our ethanol and gas fire pits produce no smoke, no soot, and no ash.
Tailored solutions
Our Fire Pit Kits are created to fit with an individual design brief, floor plan or available space; made for easy integration with non-combustible surfaces including stone countertops, concrete surfaces, brick and tiled tops.
Enhancing accessories
Features decorative black glass charcoal and surrounding glass fire screen, creating a stunning focal point.
Tested World Wide
Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
Specifications:
| Weight | 54.67lb [24.80kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Black |
Fuel Efficiency:
|
|
2.1 Gal [8 L] |
|
Heats on Average |
646ft2 [60m2] |
|
Minimal Room |
4097ft3 [116m3] |
|
Thermal Output |
21.56 MJ/h - 20433 BTU/h - 6 kW |
|
Burn Time |
7 - 11h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions:
| Width | 24.5in [623mm] |
| Height | 13.7in [349mm] |
| Depth | 24.5in [623mm] |
Technical Drawings:
|
Front View |
 |
|---|---|
| Top View |
|
Warranty:
 |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
 |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
DOWNLOADS:
- Download Installation and Operation Manual
- Download Burner Manual
- Download Specs Sheet
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos:
About The Manufacturer:
Discover the innovative spirit and eco-friendly philosophy behind EcoSmart Fire. Learn how our commitment to sustainable design and cutting-edge technology is revolutionizing the fireplace industry.
