Description
The Empire Spirit 22" Vent-Free Cast Iron Stove in a porcelain black finish blends classic charm with modern efficiency. With a compact design and richly detailed casting, this unit offers a traditional stove appearance while delivering reliable zone heating performance. Its 20,000 BTU output ensures warmth for spaces up to 1,000 square feet, making it ideal for small homes, cabins, or rooms needing supplemental heat.
Powered by natural gas and featuring an intermittent pilot ignition with an On/Off switch, the stove offers quick startup and dependable operation. Empire's unique contour burner system, enhanced with ceramic beads, produces lifelike flames and glowing embers that closely mimic a real wood fire. The hand-painted ceramic fiber log set adds further realism, enhancing the cozy ambiance it brings to your space.
Designed for easy installation and operation, this vent-free stove requires no chimney or external venting. It is approved for use in mobile homes and bedrooms, giving you flexibility in placement. The porcelain black finish complements a variety of décor styles while the cast iron doors open for full flame viewing. Optional accessories like side shelves and floor pads add to its versatility and charm.

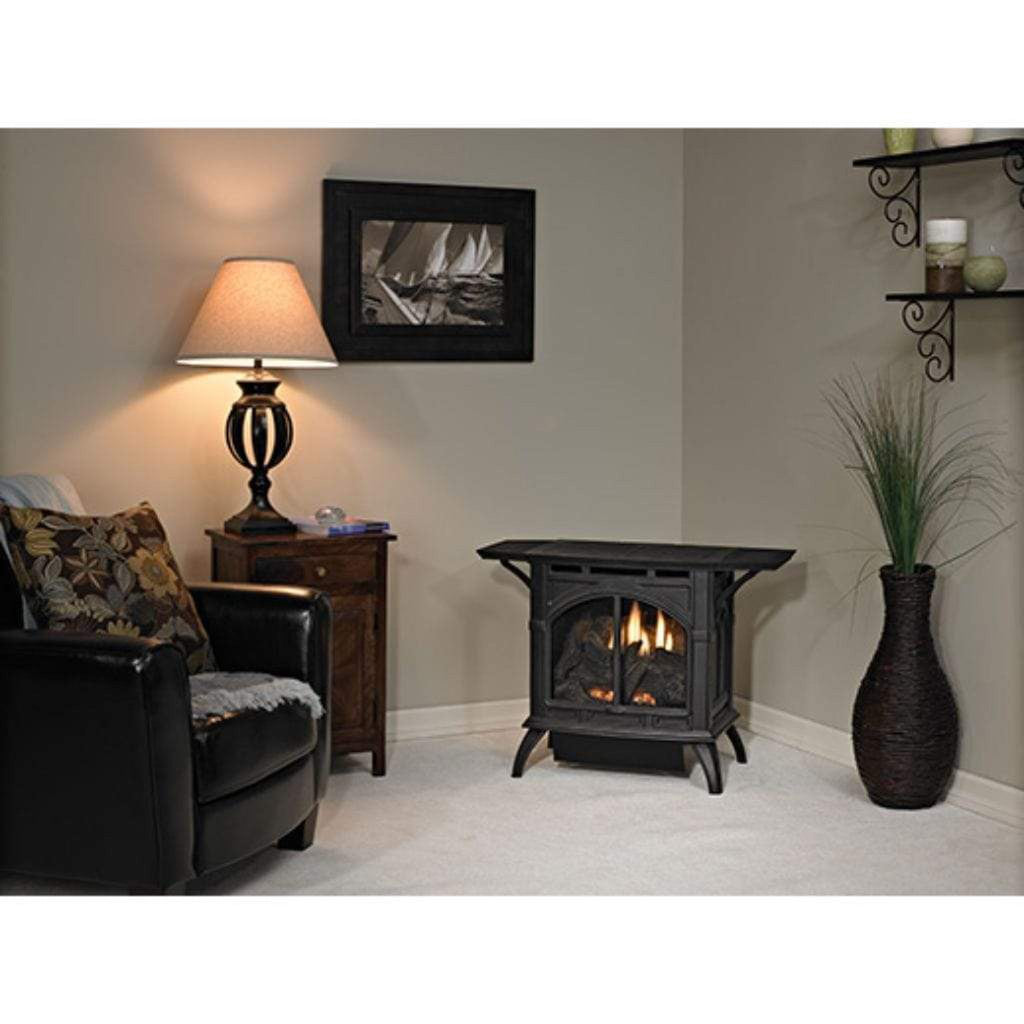

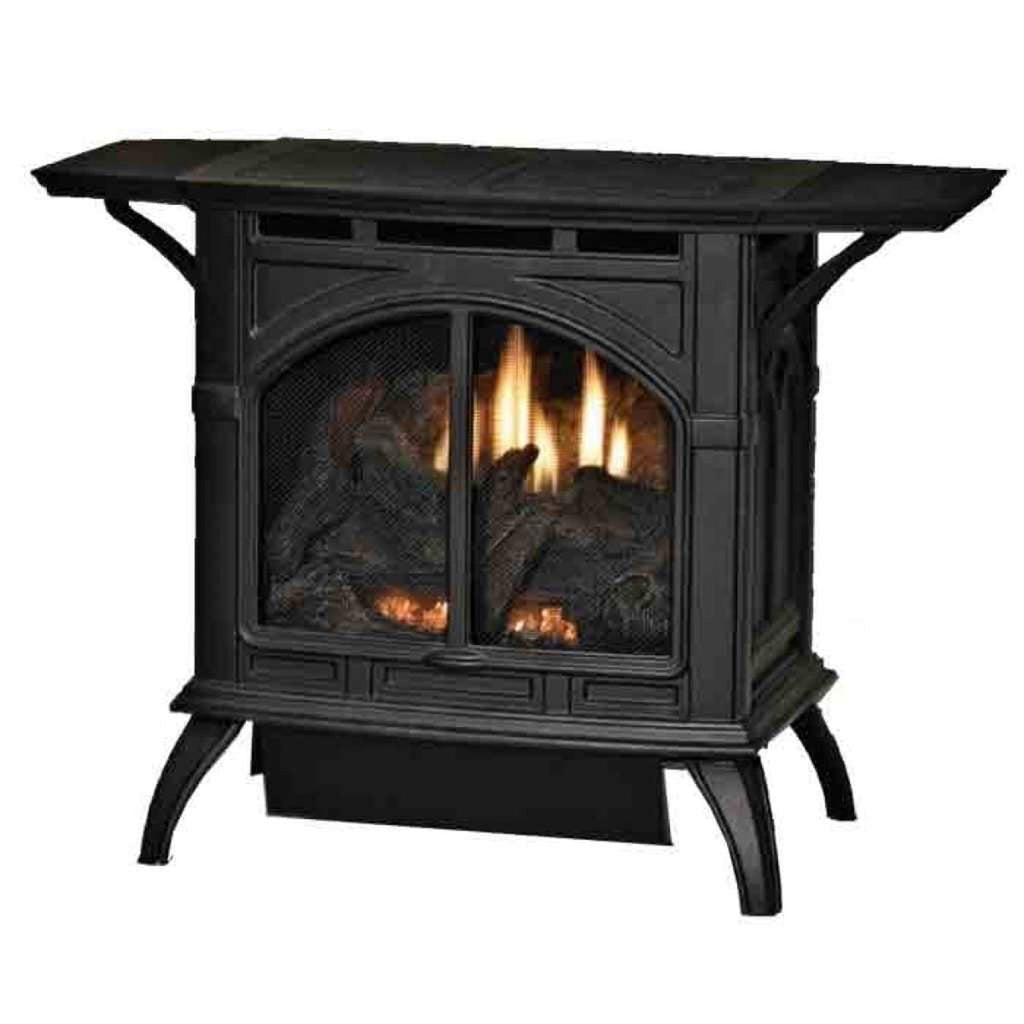

*Please Note: Pictured with optional cast iron shelf kit.
What's Included:
- Cast Iron Small Stove
- 6-Piece Log Set
- Contour Burner
- On/Off Switch
Not Included (Sold Separately):
- Flex Gas Line
- Control Options
- Automatic Blower
- Cast Iron Stove Shelf Kit
- Optional Traditional / Corner Floor Pad
- Stone Inlay Kit Required for Floor Pad
Features:
- Up to 20,000 BTUs
- Richly detailed casting
- Optional floor pads available
- Optional side shelf sets available
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Fully operable decorative cast iron doors
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
- Vent-free cast iron stoves feature Empire's contour burner system, creating extra glow from the expanded ember bed
- Ceramic beads within the burner create a swirling and tumbling of the gas
- This movement creates dancing flames that are indistinguishable from a wood fire
- Our hand painted ceramic fiber log set creates an effect that is stunningly realistic
- Vent-free technology eliminates the need for venting, which greatly simplifies installation
- Choose from three sizes and three colors – porcelain black, porcelain mahogany, and matte black
Specifications:
| Model | VFD20CC70 |
| Input BTU/HR (KW/H) Max | 20,000 |
| Input BTU/HR (KW/H) Min | 14,500 |
| Vent Type | Vent Free |
| Ignition Type | Intermittent Pilot |
| Type of Gas | Natural Gas |
| Installation | Freestanding |
| Gas Inlet (Pipe) | 3/8" |
| Air Shutter Setting | 1/8" |
Dimensions:
| Width | 22" |
| Height | 24" |
| Depth | 15" |
Warranty:
- All parts carry a five-year limited warranty with a five-year limited labor warranty
- All remote controls carry a one-year limited warranty
Documents & Files:
-
Download Vent-Free Stove Brochure
- Download Installation and Owner's Manual
- Download Installation Manual Optional Stone Inlays CIFPB1
- Download Installation Manual Optional Stone Inlays CIFPB1C
-
Download Specification Sheet VFD20CC30/70
