Description

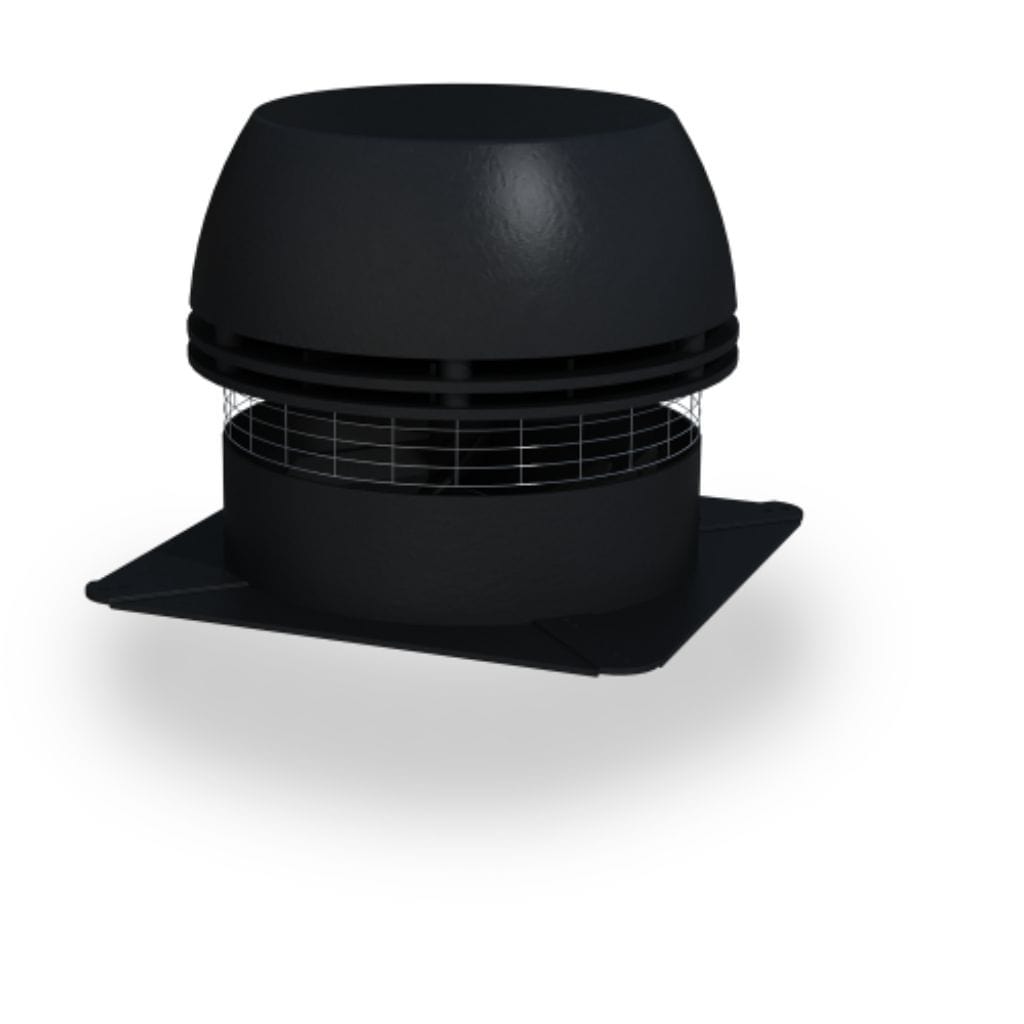

Welcome to the future of chimney performance with the Enervex RS14 Chimney Fans, designed with Horizontal Discharge. If you've ever struggled with draft problems, unwanted smoke, or concerns about the safety of your home, this product is here to change the game for you.
The Enervex RS14 Chimney Fan is a remarkable solution, offering enhanced performance and safety for your chimney system. No more enduring draft issues or dealing with the inconvenience of smoke in your living space. This chimney fan ensures efficient smoke removal, guarantees optimal draft, and allows your fireplace or heating appliance to operate at its peak efficiency. It's a transformational addition to any home, bringing safety, comfort, and the luxury of a smoke-free environment.
Benefits:
- Consistent Draft: Achieve a reliable, consistent draft for your chimney, ensuring peak performance.
- Smoke-Free Living: Bid farewell to frustrating and unsafe smoke-related problems.
- Safety First: Minimize the risk of backdrafts, making your home a safer place.
- Energy Efficiency: Improved chimney efficiency leads to reduced energy consumption.
- User-Friendly: Easy installation and operation for a hassle-free experience.
- Built to Last: Sturdy, durable design ensures long-lasting, trouble-free performance.
- Peace of Mind: Enjoy your fireplace without the worry of smoke or draft issues.
Standard Equipment:
- 2"x4" or 4"x4" Junction Box with Cover and Conduit
- Fiber Mat and Mounting Brackets
- Bird Screen
- 5 Amp Fan Speed Control
Common Companion Product:
- Fan and Damper Control
- Mechanical Fireplace Damper
Features:
- Quiet Operation
- Variable-speed motor
- Use with gas-fired appliances
- Comes in 4 sizes
- Complete fan and control packages available from a single manufacturer
- Low operating costs
- 6-months Performance Guarantee
Specification:
| Capacities | 0-1,800 CFM (0-3,000 m3/h) |
| Material | Cast Aluminum Housing and Stainless Steel Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | 575°F (300°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RS 014 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class H | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 1.4 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 1400 | |
| Motor Output | hp / kW | 1/7 / 0.1 | |
| Weight | lbs / kg | 47 / 21 | |
| kg | 21 | ||
| Dimensions | A | in / mm | 13.1 / 334 |
| B x B | in / mm | 16.6 / 422 | |
| C | in / mm | 15.5 / 395 | |
| D | in / mm | 3.9 / 100 | |
| E | in | 13.5 / 342 | |
| Temperature Rating | Interm. | 575°F / 300°C | |
| Cont. | 482°F / 250°C | ||
