Description

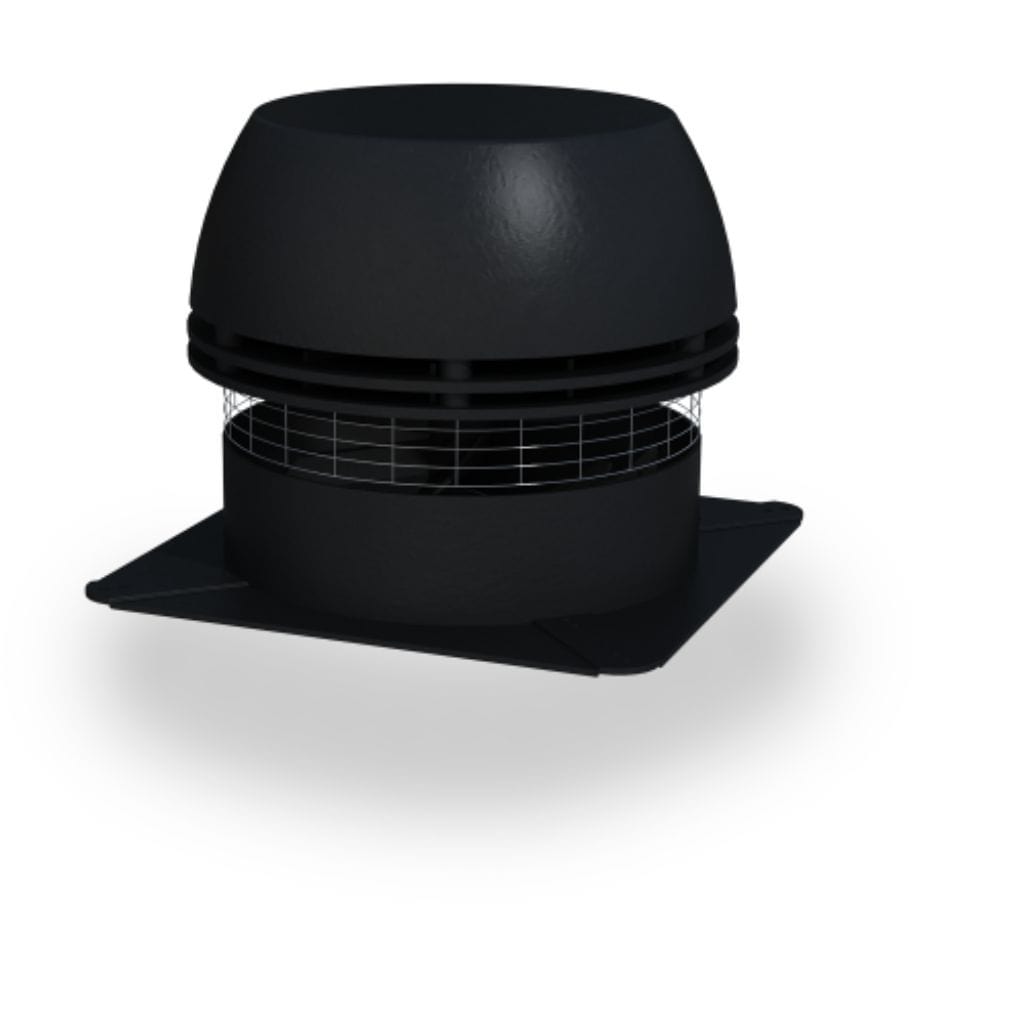

Discover the Enervex RS9 EcoDamper Chimney Fan System, a groundbreaking solution to elevate the performance of your fireplace and chimney. If you've ever been frustrated by issues with smoke, downdrafts, or inefficient fires, the RS9 EcoDamper is the answer you've been searching for.
This innovative system is designed to transform your fireplace experience. The RS9 EcoDamper ensures a steady, efficient draft for your fireplace, making it easier than ever to enjoy fires without the hassle of smoke, soot, or poor burning performance. With its cutting-edge technology, this system can be easily integrated into your existing chimney, and its energy-efficient operation ensures that you can have both warmth and cost savings.
Benefits:
- Efficient Draft: The RS9 EcoDamper provides a consistent and dependable draft for your fireplace, ensuring optimal burning conditions.
- Smoke Elimination: Say goodbye to smoke issues and enjoy a clean, healthy indoor environment.
- Energy Savings: Improve the efficiency of your fireplace, reducing energy consumption and lowering heating costs.
- Eco-Friendly: This system's eco-damper technology promotes clean-burning fires, reducing the environmental impact.
- Simple Installation: Installation is straightforward, and you'll quickly experience the benefits of the RS9 EcoDamper.
- Safe Operation: Enhance fireplace safety by preventing downdrafts and related hazards.
- Longevity: Built to last, the RS9 EcoDamper is a durable solution that will continue to perform efficiently over time.
Features:
- Quiet Operation
- Variable-speed motor
- Use with gas-fired appliances
- Comes in 4 sizes
- Complete fan and control packages available from a single manufacturer
- Low operating costs
- 6-months Performance Guarantee
Specification:
| Capacities | 0-1,800 CFM (0-3,000 m3/h) |
| Material | Cast Aluminum Housing and Stainless Steel Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | 575°F (300°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RS 009 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class H | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 0.5 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 450 | |
| Motor Output | hp / kW | 1/30 / .025 | |
| Weight | lbs / kg | 29 / 13 | |
| kg | 13 | ||
| Dimensions | A | in / mm | 10.2 / 259 |
| B x B | in / mm | 11.7 / 296 | |
| C | in / mm | 10.8 / 275 | |
| D | in / mm | 3.0 / 75 | |
| E | in | 9.4 / 238 | |
| Temperature Rating | Interm. | 575°F / 300°C | |
| Cont. | 482°F / 250°C | ||
Downloads:
About The Manufacturer:
ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
