Description

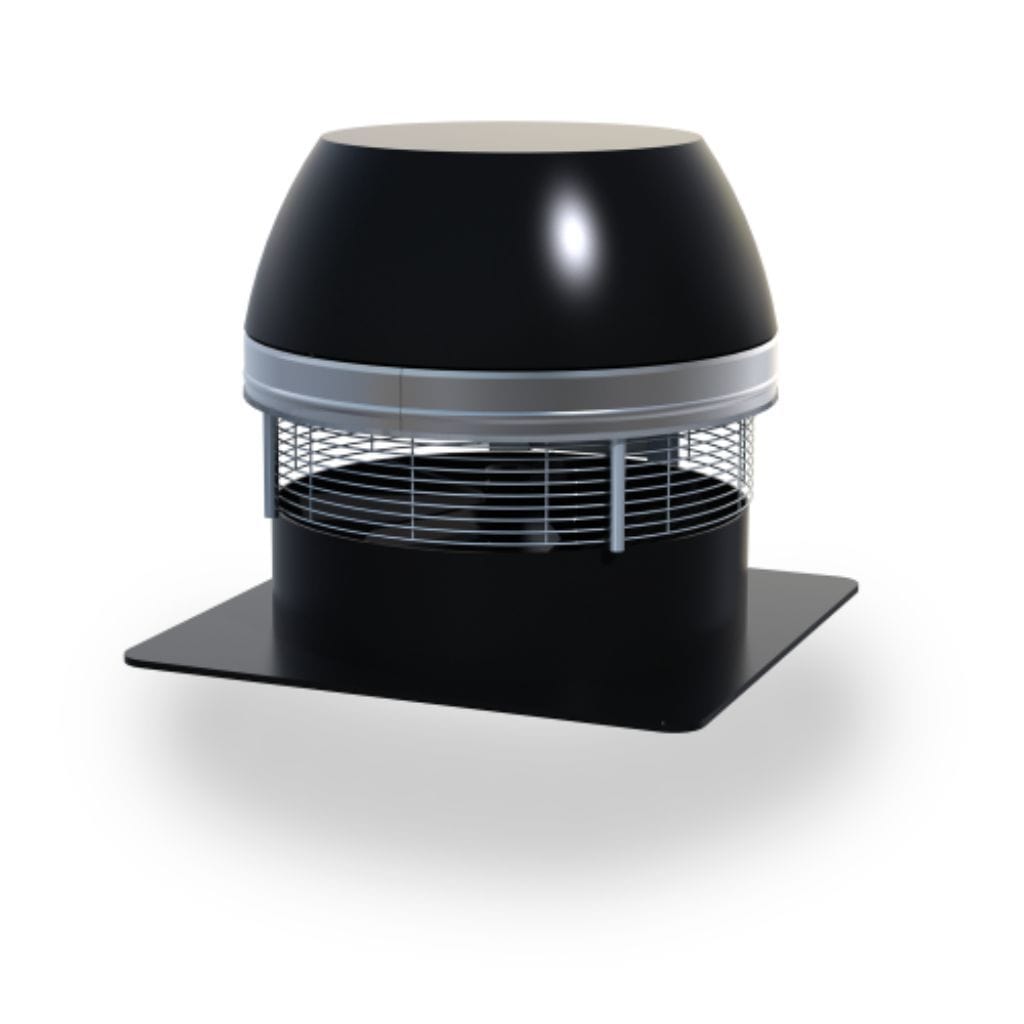

Introducing the Enervex RSHT 009 Chimney Fans, the pinnacle of draft control and efficiency for your chimney system. Whether you're a homeowner seeking a safer environment or a business owner focused on efficiency, these fans are the solution to ensure that your chimney operates flawlessly.
Designed with precision engineering and constructed from high-quality materials, the Enervex RSHT 009 Chimney Fans excel in horizontal discharge applications. They are the ideal choice for commercial kitchens, industrial facilities, or any space requiring superior draft control. These fans provide the assurance that your chimney system operates efficiently and safely.
The Enervex RSHT 009 Chimney Fans are the result of extensive research and development. They ensure that your chimney functions optimally, preventing smoke spillage and eliminating the risk of backdrafting. What sets these fans apart is their ability to deliver consistent and controlled draft, making them the preferred choice for professionals who demand the best for their chimney systems.
Benefits:
- Efficient Draft Control: Achieve perfect draft control, making your chimney system safer and more efficient.
- Horizontal Discharge: Specifically designed for horizontal discharge applications, these fans excel where others fall short.
- High-Quality Construction: Crafted with precision and built from top-grade materials, ensuring longevity and reliability.
- Eliminate Backdrafting: Prevents the risk of backdrafting, maintaining a safe and healthy indoor environment.
- Smoke Spillage Prevention: Stops smoke spillage in its tracks, ensuring your chimney system performs as intended.
- Commercial-Grade: Ideal for commercial kitchens and industrial settings where dependable draft control is essential.
- Professional's Choice: The Enervex RSHT 009 Chimney Fans are the preferred choice for professionals who demand superior chimney performance.
Standard Equipment:
- 2"x4" or 4"x4" Junction Box with Cover and Conduit
- Fiber Mat and Mounting Brackets
- Bird Screen
- 5 Amp FSC Fan Speed Control
Common Companion Product
- Solid Fuel Fan Control
- Manual Fireplace Damper
Features:
- Quiet Operation
- Variable-speed motor
- Use with gas-fired appliances
- Comes in 4 sizes
- Complete fan and control packages available from a single manufacturer
- Low operating costs
- 6-months Performance Guarantee
Specification:
| Capacities | 0-1,500 CFM (450-2,550 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | Interm. 1400° (760°C), Contin. 1000°F (540°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RSHT 009 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class F | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 0.65 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 290 | |
| Motor Output | hp / kW | 0.11 / 0.08 | |
| Weight | lbs / kg | 25.6 / 11.6 | |
| Dimensions | A | in / mm | 11.7 / 298 |
| B x B | in / mm | 11.7 / 296 | |
| C | in / mm | 10.8 / 275 | |
| D | in / mm | 3.0 / 75 | |
| E | in | 8.7 / 220 | |
| Temperature Rating | Interm. | 1400ºF / 760ºC | |
| Cont. | 1000ºF / 538ºC | ||
