Description

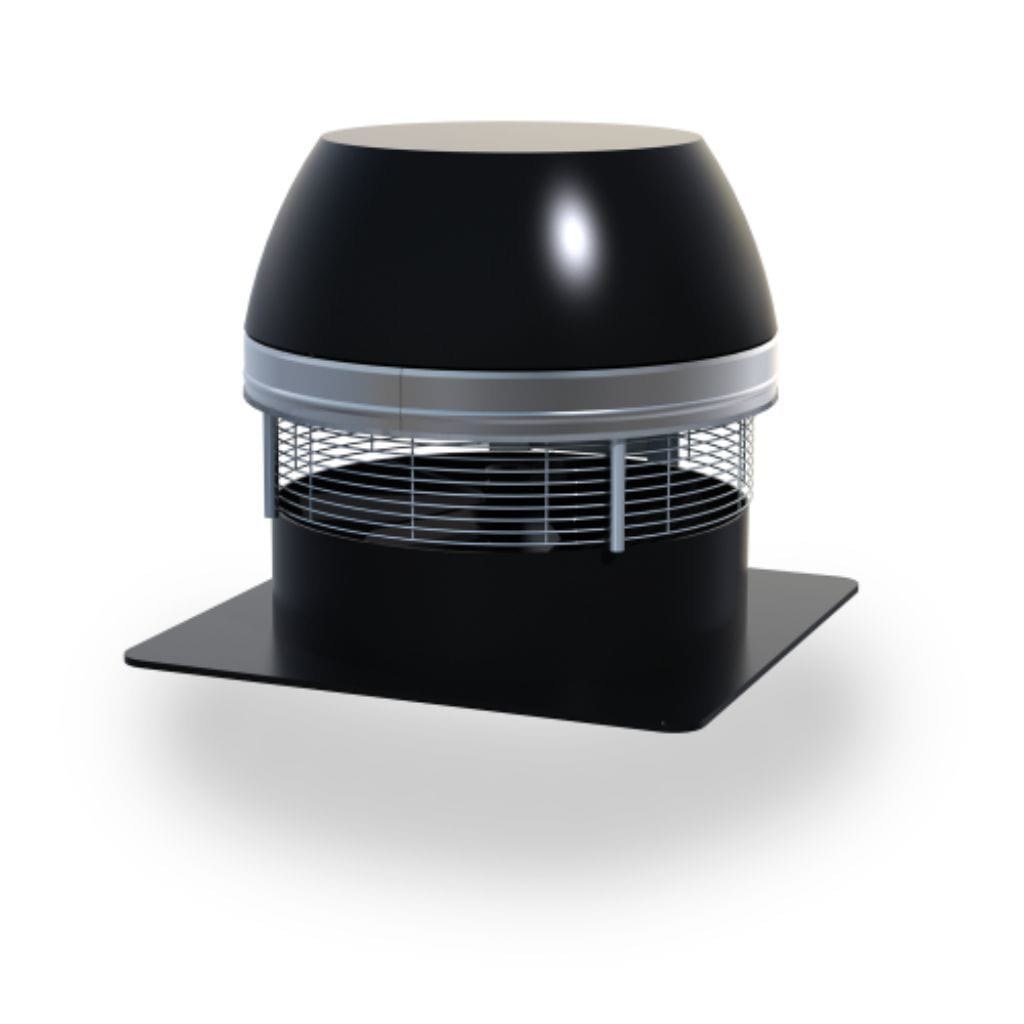

Unveiling the Enervex RSHT 012 Chimney Fans, the pinnacle of horizontal discharge draft control for your chimney system. Whether you're a homeowner looking for a safer environment or a business owner focused on operational efficiency, these fans are the ultimate solution to ensure your chimney operates flawlessly.
Constructed with precision engineering and crafted from high-quality materials, the Enervex RSHT 012 Chimney Fans are designed to excel in horizontal discharge applications. They are the go-to choice for commercial kitchens, industrial facilities, or any setting that requires superior draft control. With these fans, you can have peace of mind that your chimney system operates efficiently and safely.
The Enervex RSHT 012 Chimney Fans are the result of extensive research and development. They ensure that your chimney functions optimally by preventing smoke spillage and eliminating the risk of backdrafting. What sets these fans apart is their ability to deliver consistent and controlled draft, making them the preferred choice for professionals who demand the best for their chimney systems.
Benefits:
- Perfect Draft Control: Achieve precise draft control for enhanced safety and efficiency.
- Horizontal Discharge Expertise: Designed specifically for horizontal discharge applications, ensuring maximum performance.
- Premium Quality: Precision engineering and top-quality materials guarantee durability and reliability.
- Eliminate Backdrafting: Prevent the risk of backdrafting, maintaining a safe indoor environment.
- Smoke Spillage Prevention: Put an end to smoke spillage, ensuring your chimney system operates as intended.
- Commercial-Grade Reliability: Ideal for commercial kitchens and industrial environments where dependable draft control is essential.
- Professional's Top Choice: The Enervex RSHT 012 Chimney Fans are the preferred choice of professionals who require superior chimney performance.
Standard Equipment:
- 2"x4" or 4"x4" Junction Box with Cover and Conduit
- Fiber Mat and Mounting Brackets
- Bird Screen
- 5 Amp FSC Fan Speed Control
Common Companion Product:
- Solid Fuel Fan Control
- Manual Fireplace Damper
Features:
- Quiet Operation
- Variable-speed motor
- Use with gas-fired appliances
- Comes in 4 sizes
- Complete fan and control packages available from a single manufacturer
- Low operating costs
- 6-months Performance Guarantee
Specification
| Capacities | 0-1,500 CFM (450-2,550 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | Interm. 1400° (760°C), Contin. 1000°F (540°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RSHT 012 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class F | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 1.33 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 550 | |
| Motor Output | hp / kW | 0.13 / 0.10 | |
| Weight | lbs / kg | 33.5 / 15.2 | |
| Dimensions | A | in / mm | 12.8 / 325 |
| B x B | in / mm | 14.3 / 364 | |
| C | in / mm | 13.5 / 344 | |
| D | in / mm | 3.3 / 85 | |
| E | in | 11.0 / 280 | |
| Temperature Rating | Interm. | 1400ºF / 760ºC | |
| Cont. | 1000ºF / 538ºC | ||
