Description

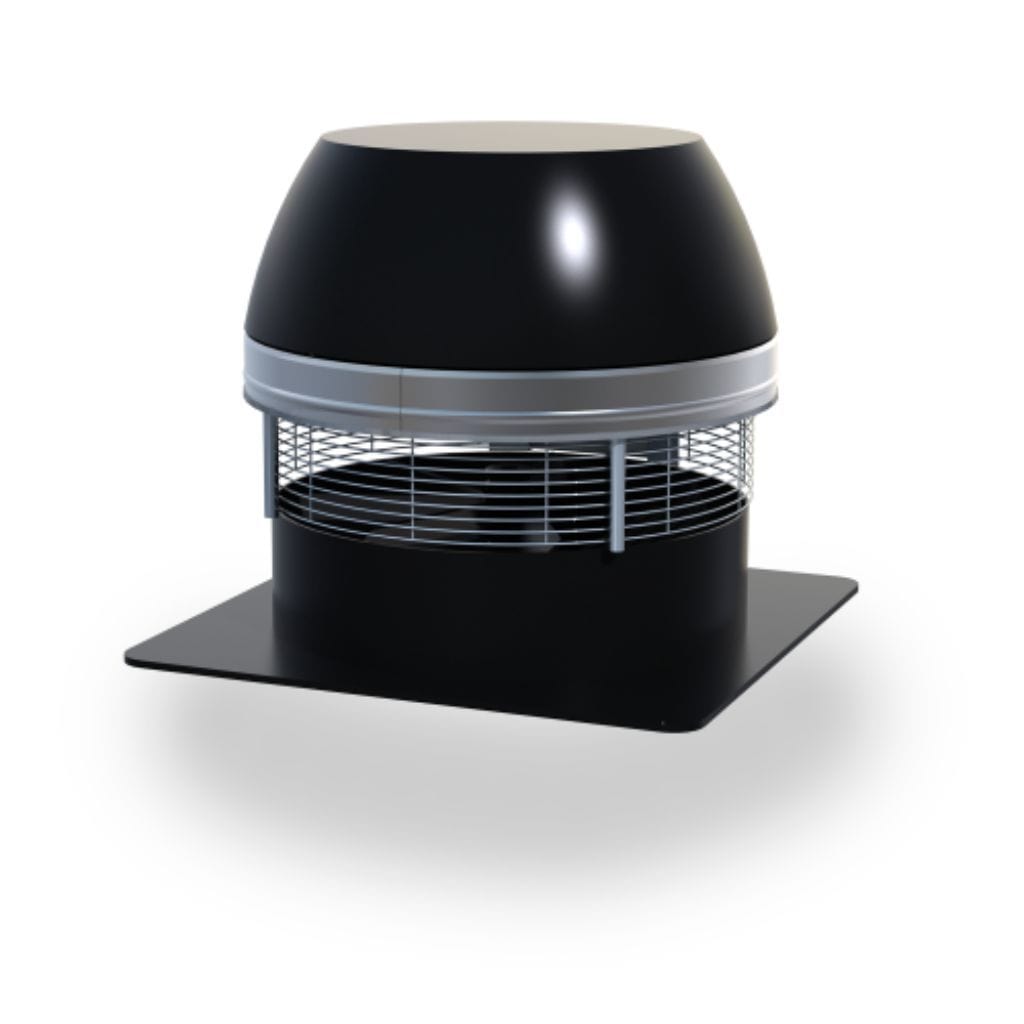

Introducing the Enervex RSHT 014 Chimney Fans - the epitome of chimney draft control and safety, specifically designed for horizontal discharge applications. Whether you're a homeowner seeking enhanced safety or a business owner focused on operational efficiency, these fans are engineered to ensure your chimney system operates at its best.
These fans are the result of meticulous craftsmanship and cutting-edge engineering. They are the preferred choice for professional settings, such as commercial kitchens, industrial facilities, and any environment that demands exceptional draft control. The Enervex RSHT 014 Chimney Fans are designed to offer both peace of mind and optimal performance, effectively eliminating the risk of backdrafting and smoke spillage.
Benefits:
- Unmatched Draft Control: Achieve precise draft control for maximum safety and efficiency.
- Tailored for Horizontal Discharge: These fans are expertly designed for horizontal discharge applications, ensuring peak performance.
- Top-Quality Craftsmanship: Crafted with precision engineering and high-quality materials, they guarantee durability and reliability.
- Backdrafting Prevention: Eliminate the risk of backdrafting, creating a safer indoor environment.
- Smoke Spillage Protection: Put an end to smoke spillage, allowing your chimney system to operate flawlessly.
- Commercial-Grade Reliability: Perfect for commercial kitchens and industrial settings where reliable draft control is non-negotiable.
- Professional's Choice: The Enervex RSHT 014 Chimney Fans are the go-to choice for professionals who demand excellence in chimney performance.
Standard Equipment:
- 2"x4" or 4"x4" Junction Box with Cover and Conduit
- Fiber Mat and Mounting Brackets
- Bird Screen
- 5 Amp FSC Fan Speed Control
Common Companion Product:
- Solid Fuel Fan Control
- Manual Fireplace Damper
Features:
- Quiet Operation
- Variable-speed motor
- Use with gas-fired appliances
- Comes in 4 sizes
- Complete fan and control packages available from a single manufacturer
- Low operating costs
- 6-months Performance Guarantee
Specification
| Capacities | 0-1,500 CFM (450-2,550 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | Interm. 1400° (760°C), Contin. 1000°F (540°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RSHT 014 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class F | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 2.70 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 880 | |
| Motor Output | hp / kW | 0.34 / 0.25 | |
| Weight | lbs / kg | 41.9 / 19.0 | |
| Dimensions | A | in / mm | 14.6 / 372 |
| B x B | in / mm | 16.6 / 422 | |
| C | in / mm | 15.6 / 395 | |
| D | in / mm | 3.9 / 100 | |
| E | in | 13.0 / 330 | |
| Temperature Rating | Interm. | 1400ºF / 760ºC | |
| Cont. | 1000ºF / 538ºC | ||
