Description

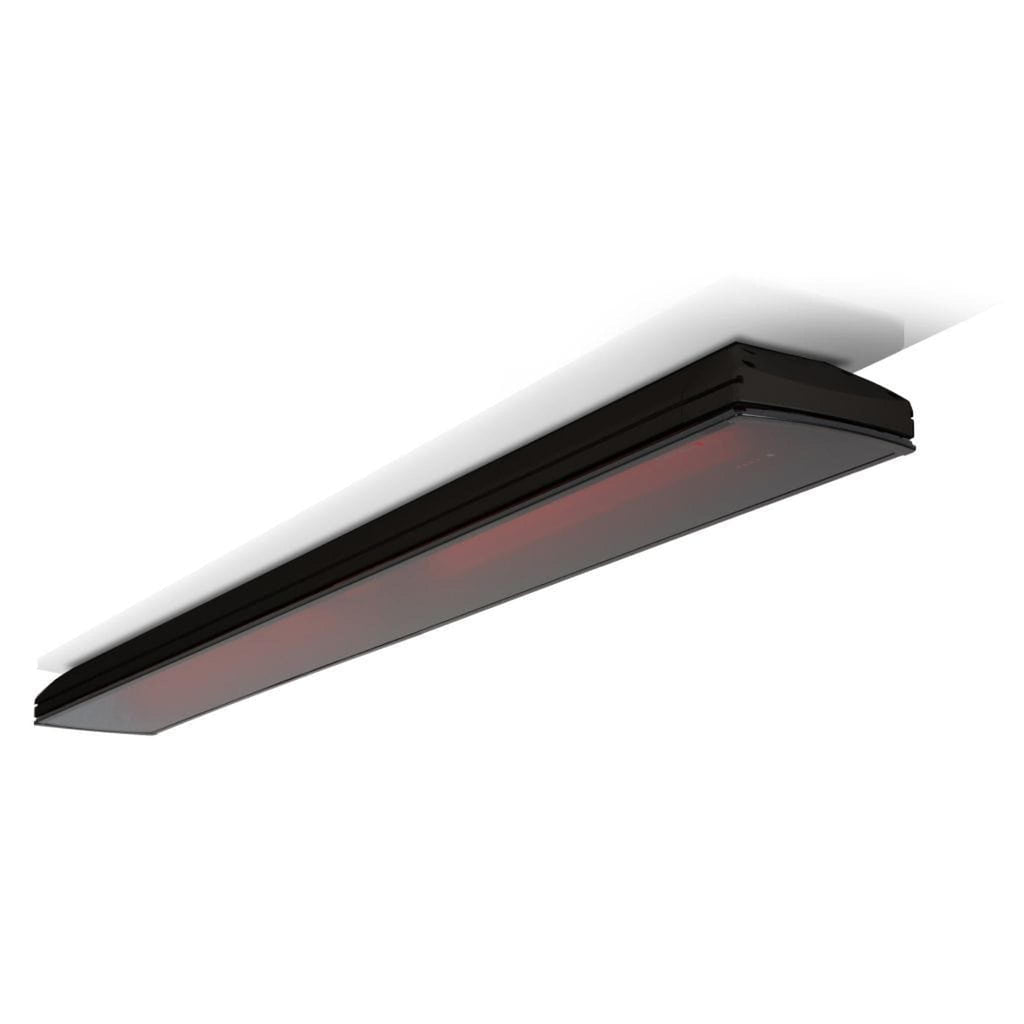

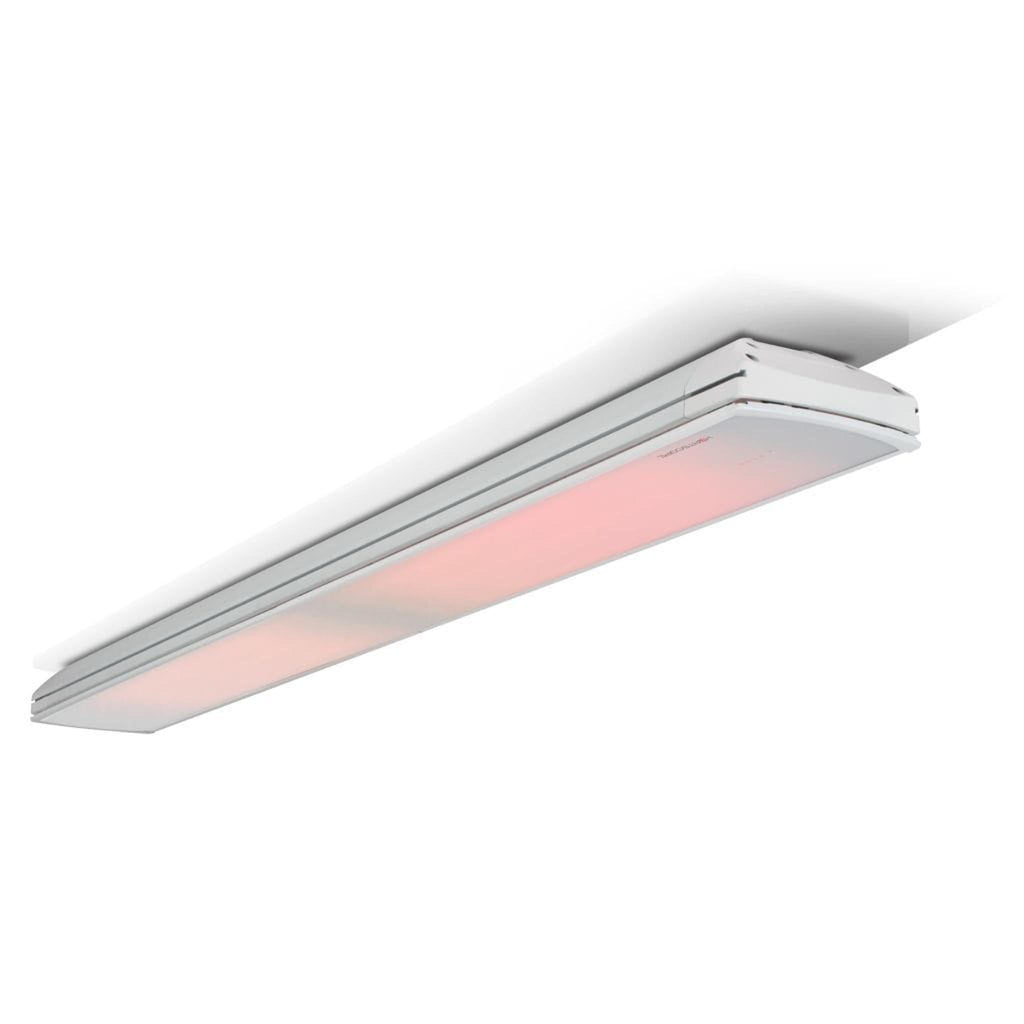

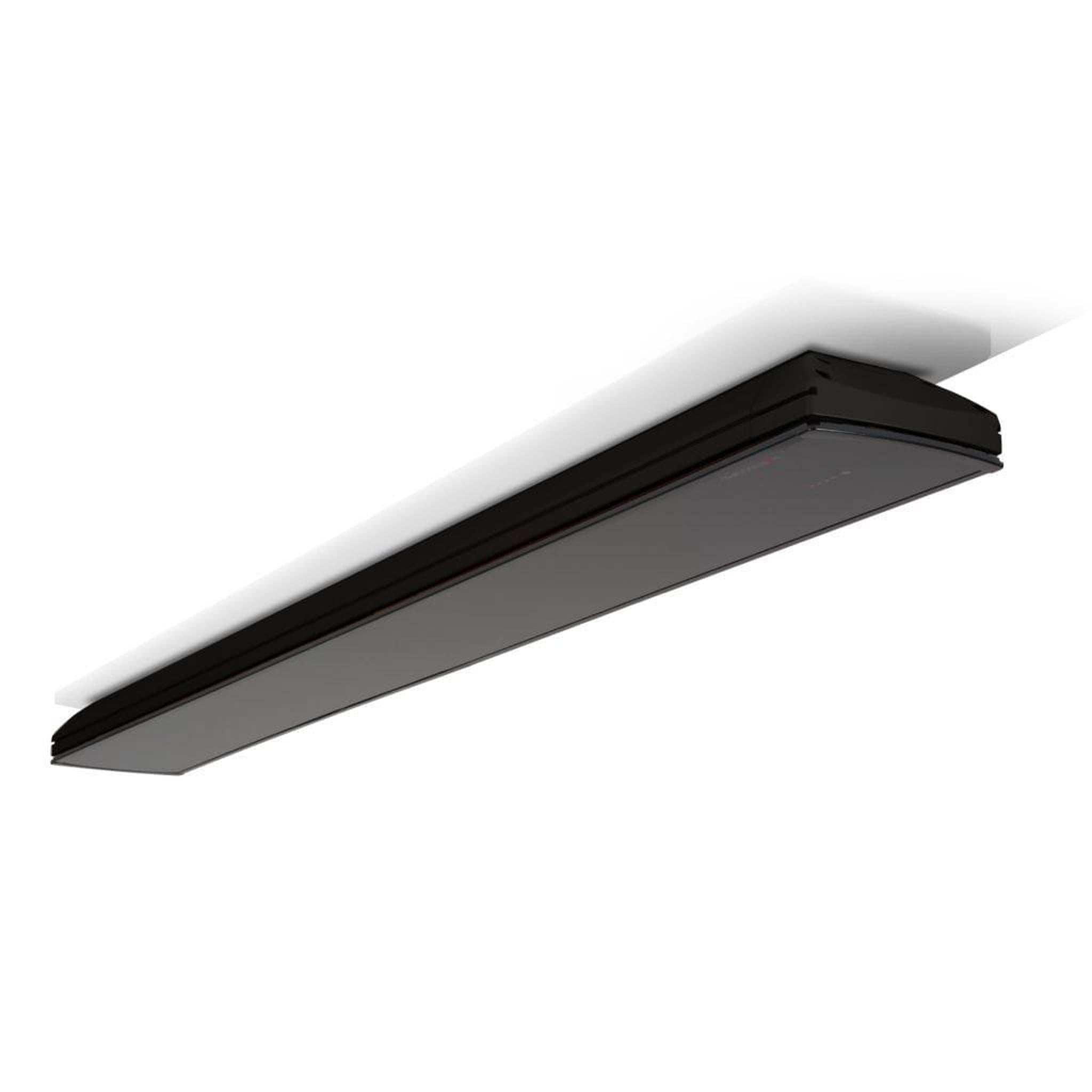

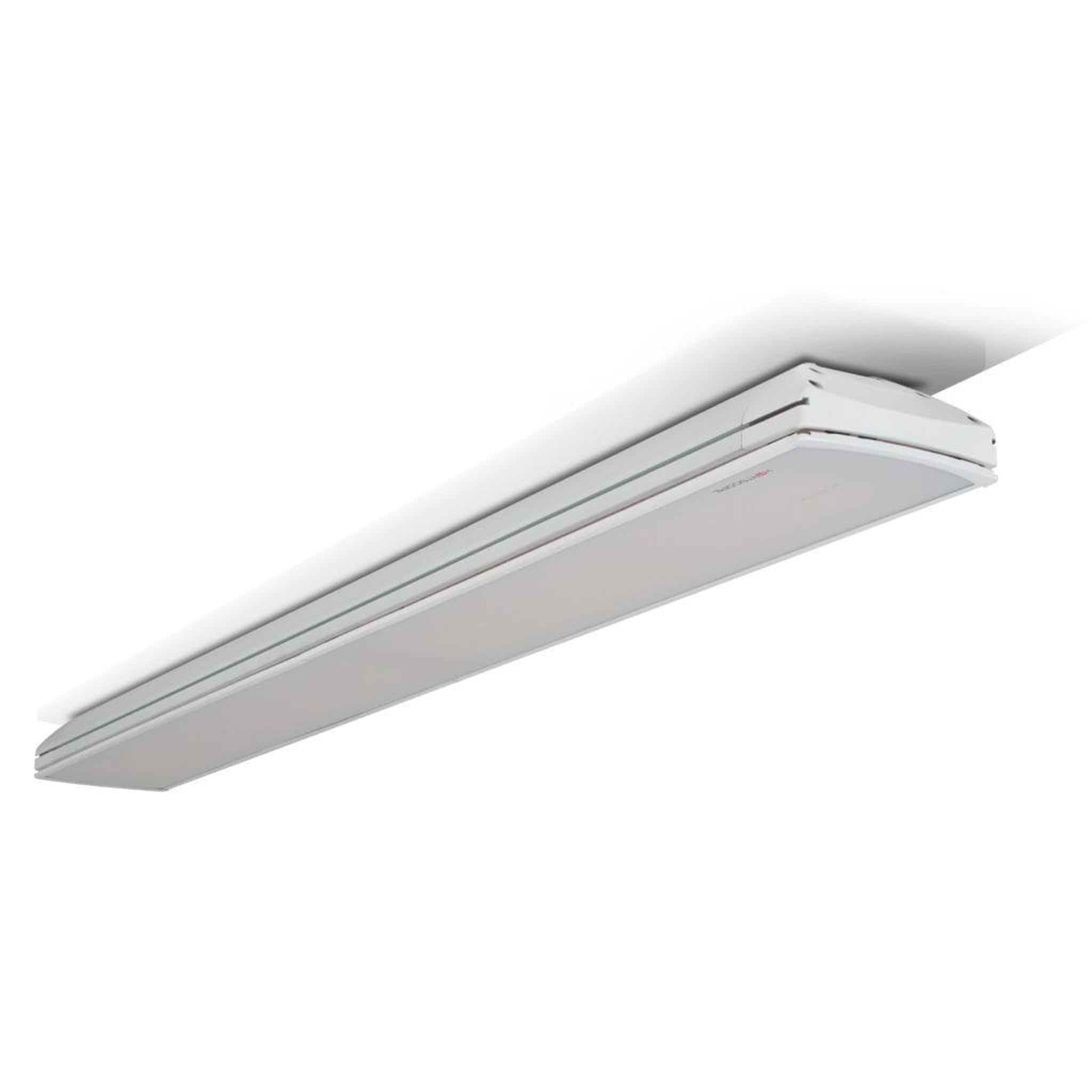

The Heatscope Heaters 65" Vision 3200W Electric Radiant Heater provides efficient, high-performance heating for both indoor and protected outdoor spaces. Its electric carbon technology ensures maximum heat output while producing minimal light, creating a comfortable environment without glare.

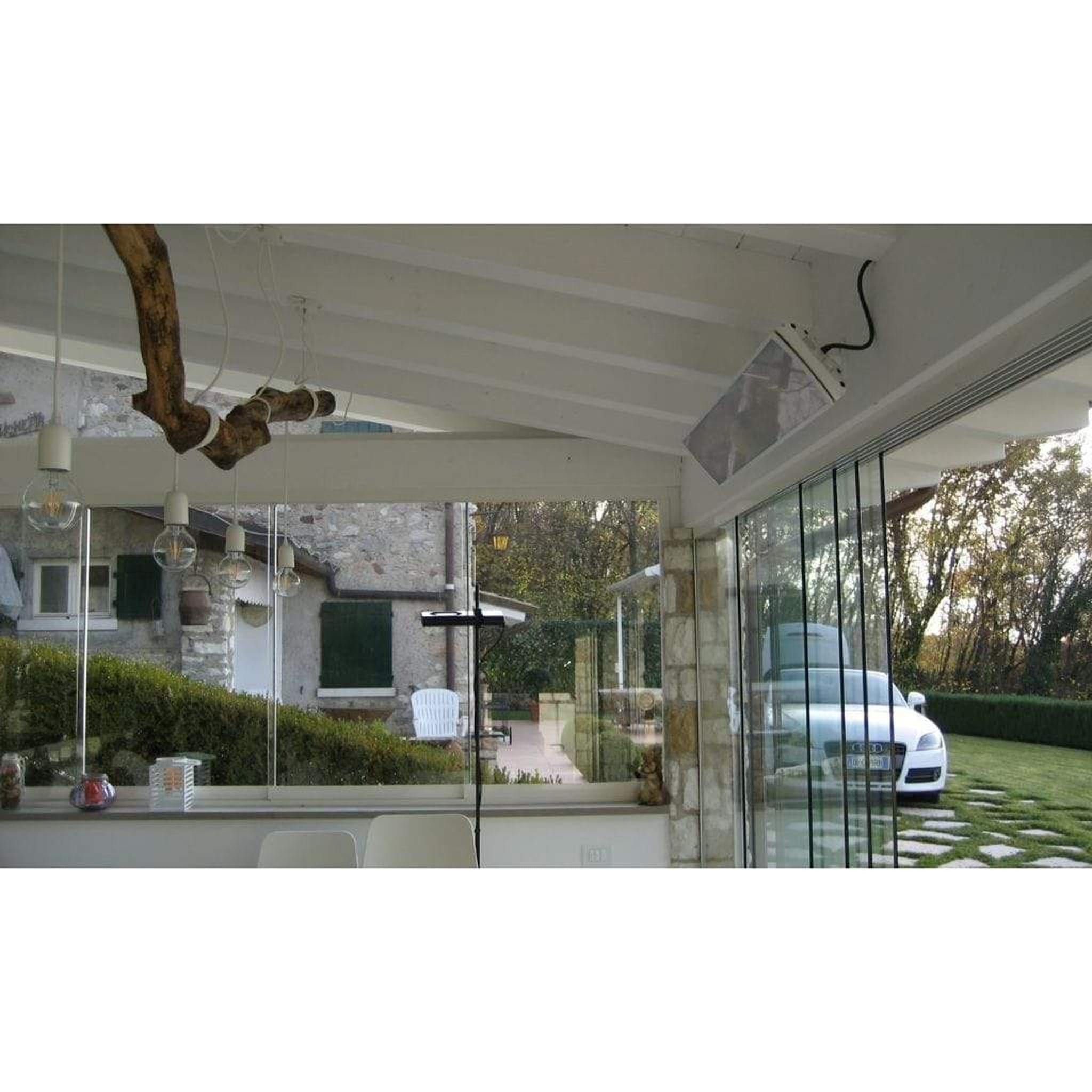

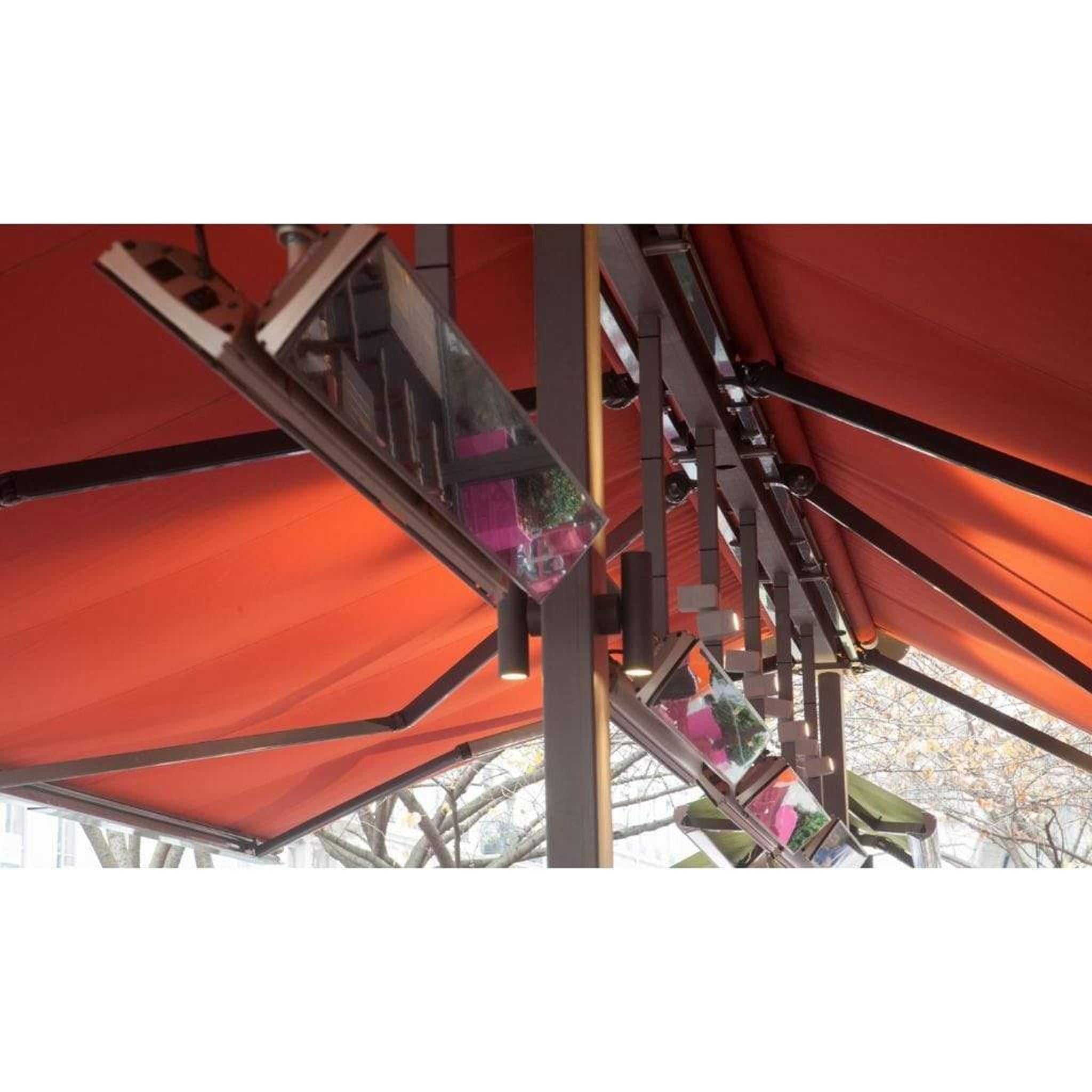

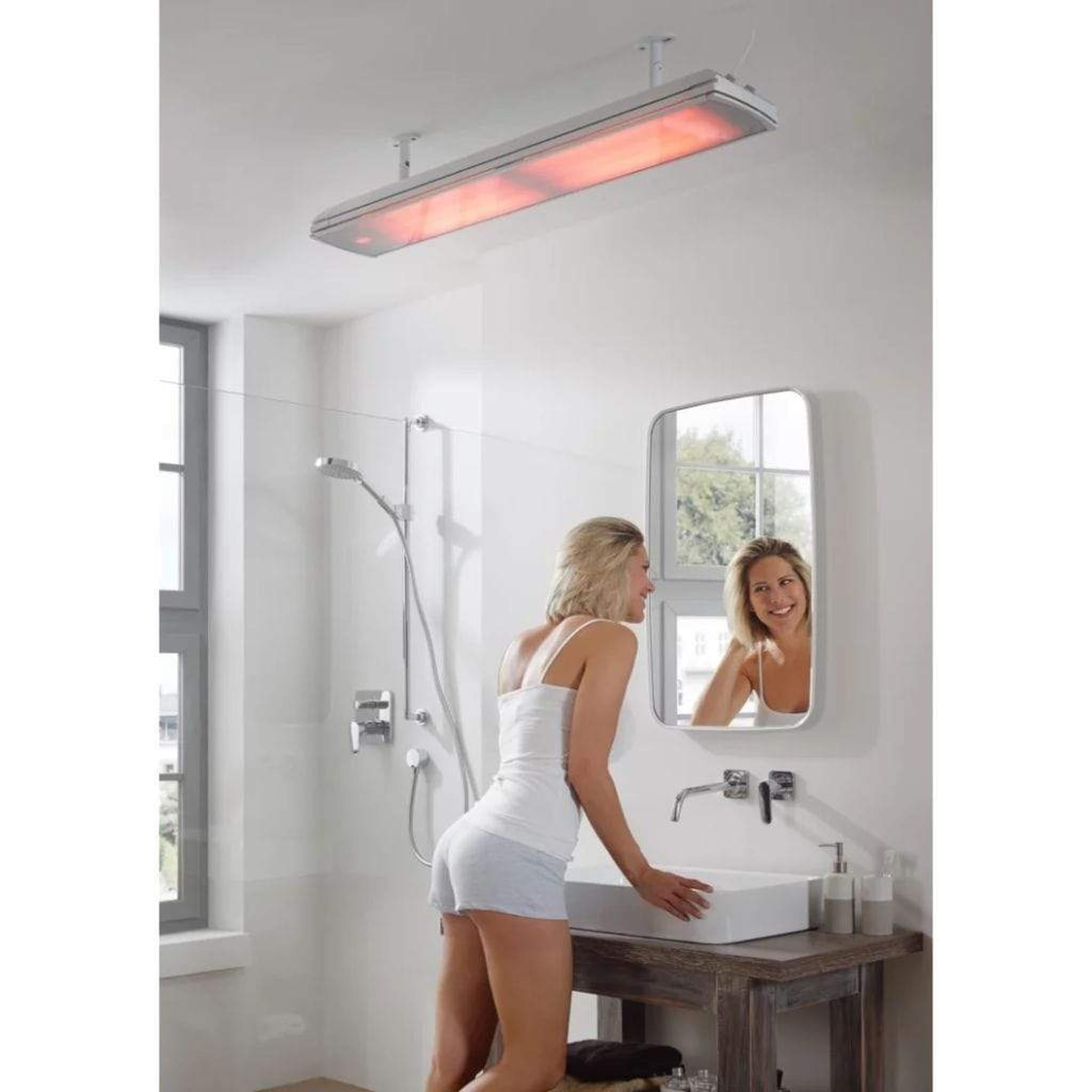

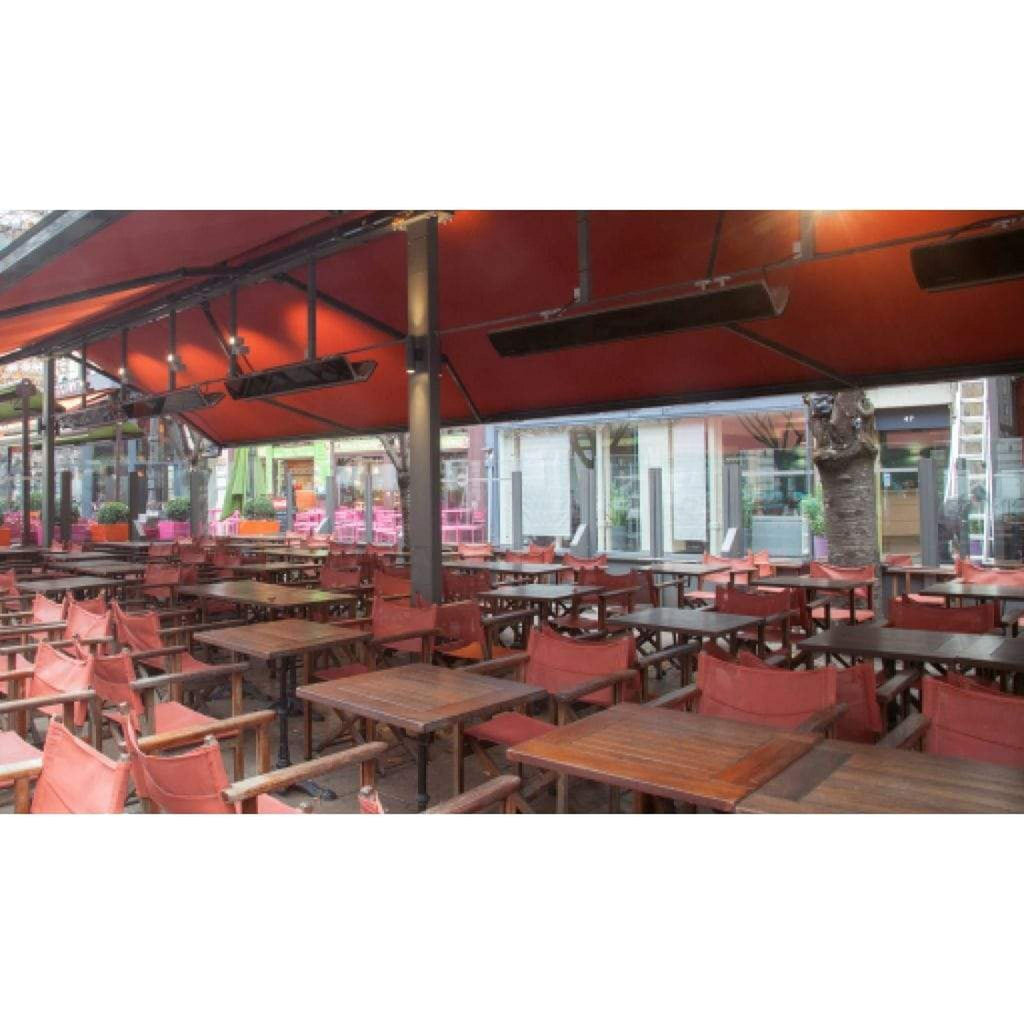

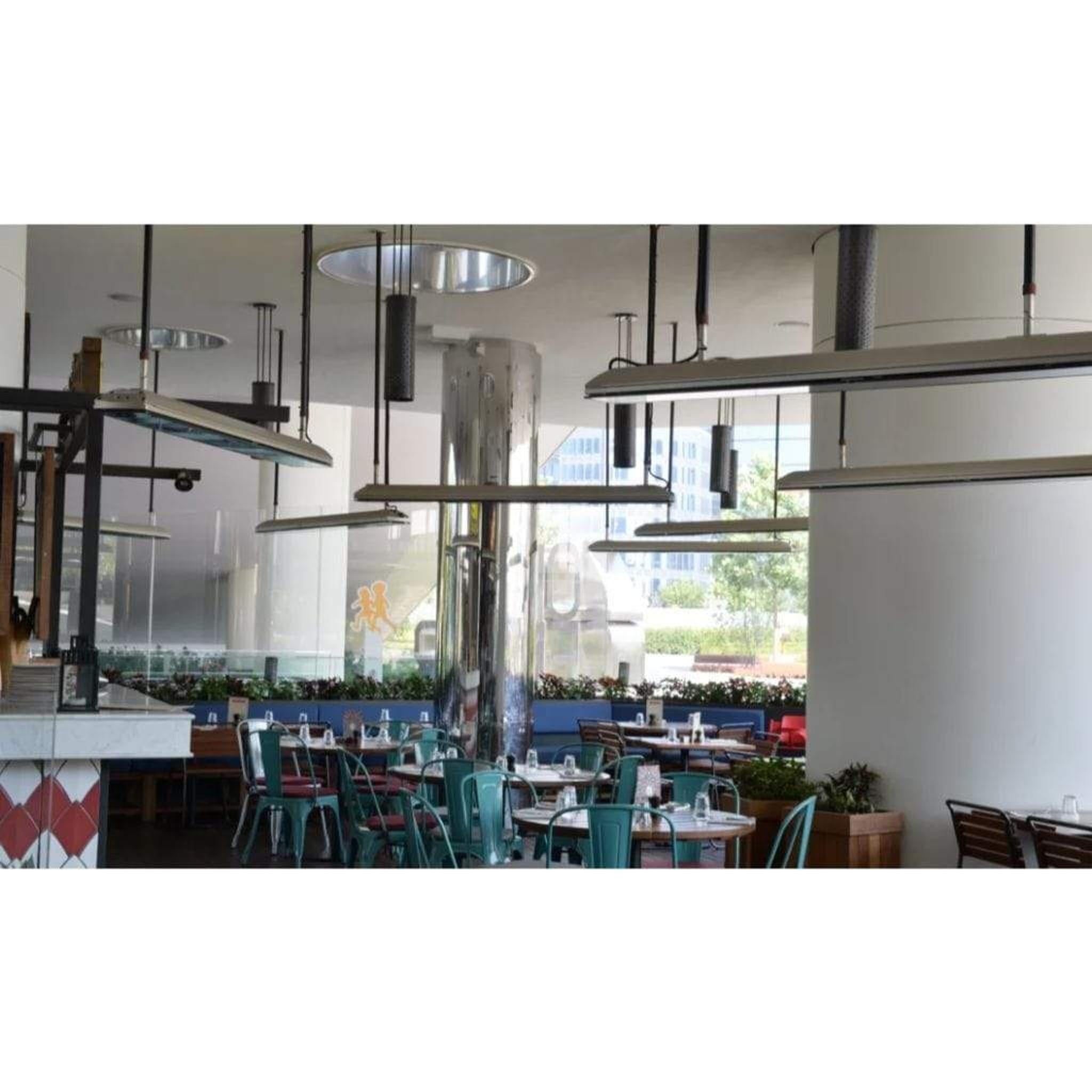

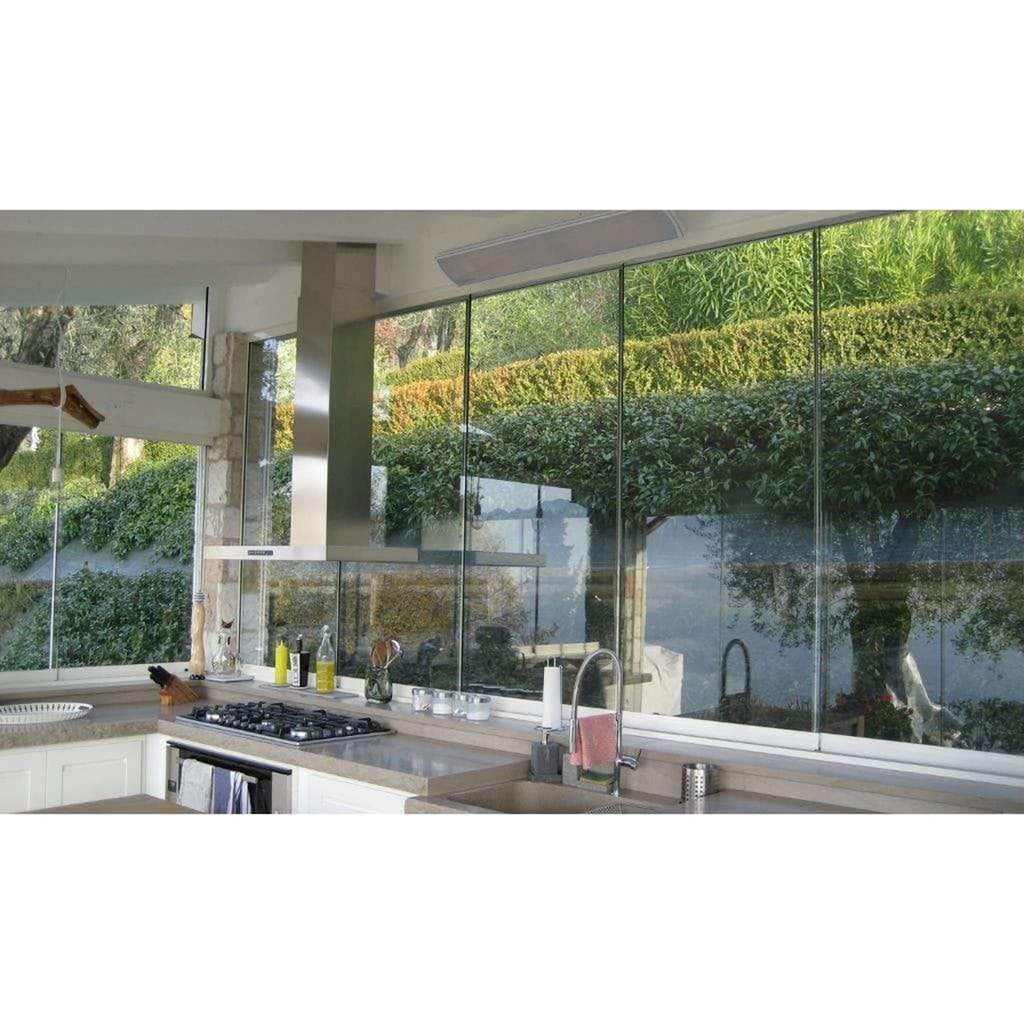

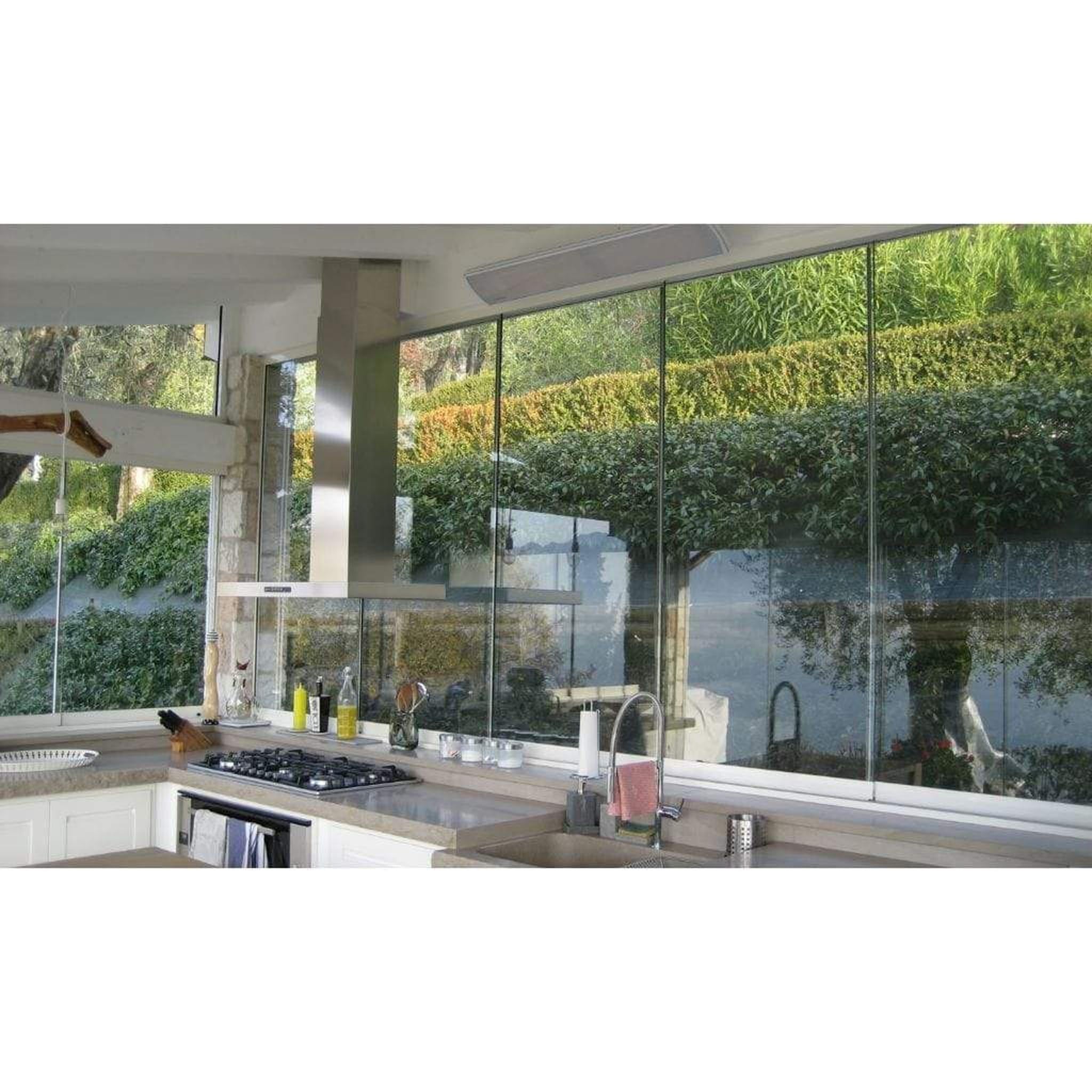

Designed with versatility in mind, this heater can be wall or ceiling mounted and comes with an adjustable mounting bracket for precise directional heating. Constructed from durable aluminum with a glass-ceramic front, it combines strength with an elegant, modern aesthetic.
Delivering 3200 Watts, 10,920 BTUs, and 13.91 Amps, the Vision 65" ensures reliable performance at 220-240 V AC. Easy to install and UL listed, this heater comes with a two-year limited warranty, providing peace of mind along with exceptional heating efficiency.
What's Included:
Electric Heater, Mounting Parts, and User's Manual
KEY FEATURES:
Efficiency Made Simple
HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.
Real Infrared
All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.
Inviting & Cozy
Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.
Super Fast
Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.
Full Control
The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).
Award-Winning Design
Delivers pleasant heat without the distraction. Clean-cut, modern designs and colors easily blend into any décor.
Weather-Resistant
All models are certified with an IP rating for protection against dust, splash-water, and wind.
No Aggressive Red Light
Produces a very ambient, modest light based on double carbon heating elements.
High Efficiency
Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.
Smart Switch
Operate and sync your heater(s) with your smart device (compatible with Alexa and Google Assistant). *Internet connection and additional accessories required
2-Year Warranty
Our radiant heaters come with an industry leading two-year limited warranty.
STANDARD FEATURES:
- Electric Carbon Radiant Heater for Indoor or Protected Outdoor Use
- Optional weather shield is required for open outdoor installation

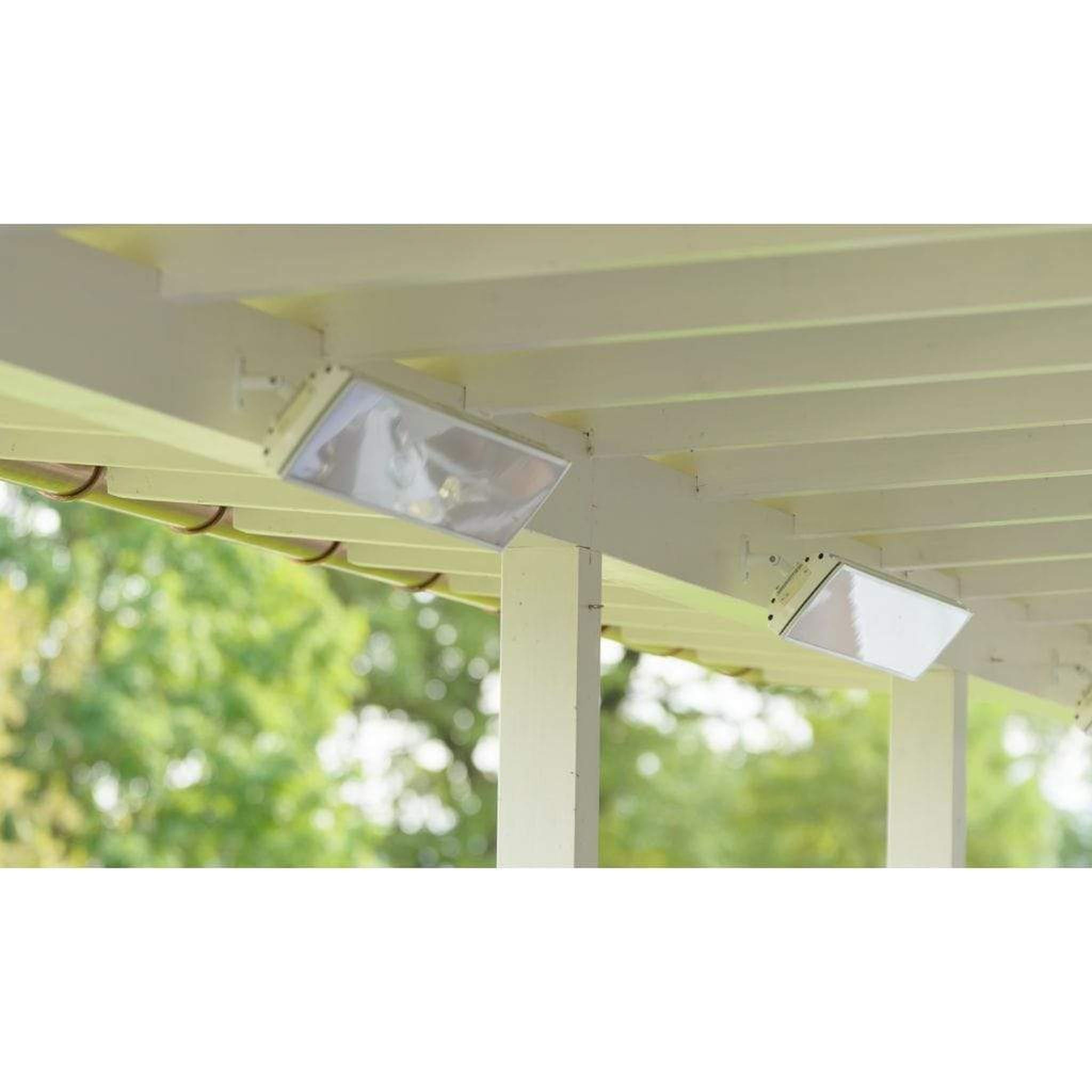

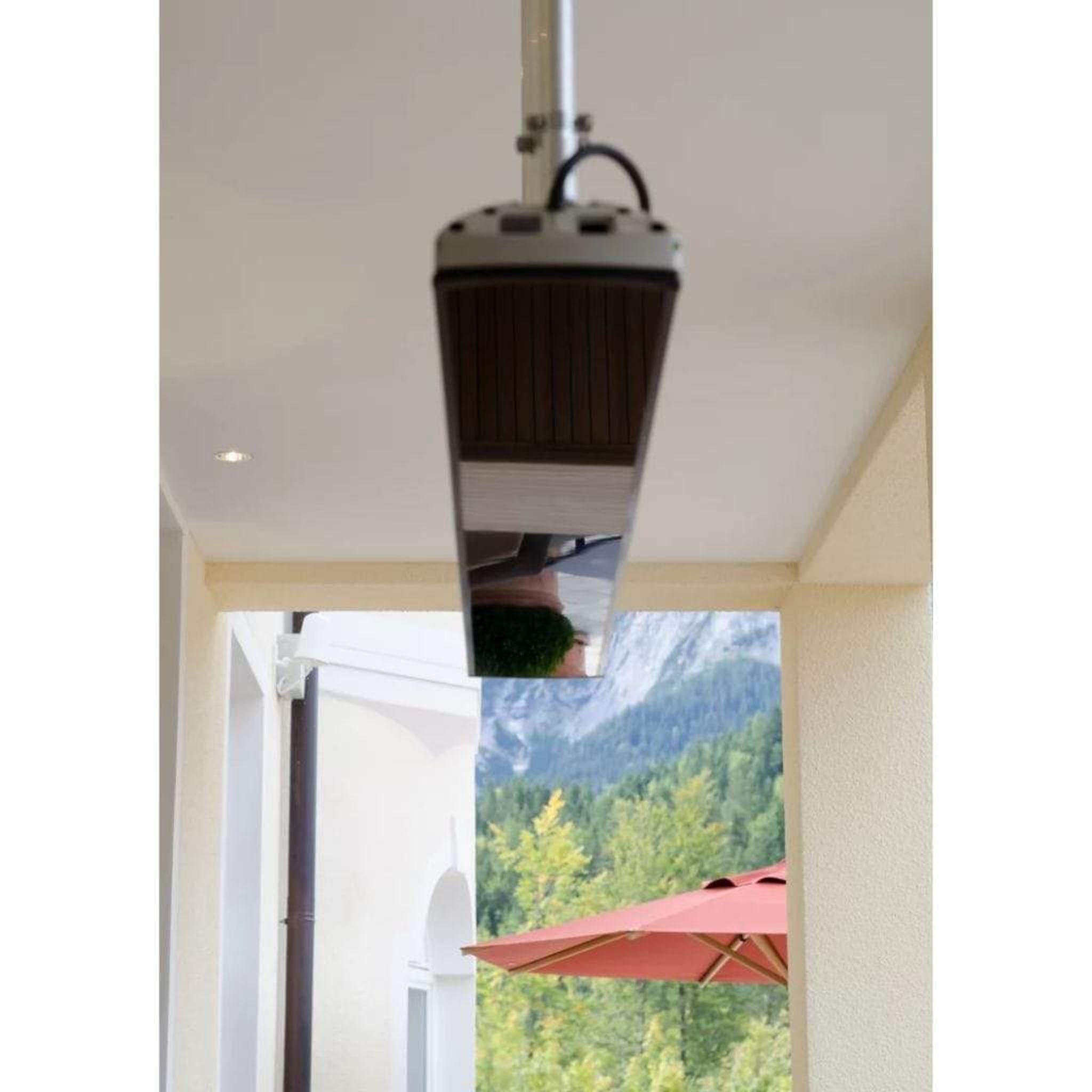

- Wall or Ceiling Mounted
- Available in Black or White
- Maximum heat with minimum light
- Aluminum construction
- Glass-Ceramic front
- Adjustable Mounting Bracket for directional heat
- 3200 Watts
- 10,920 BTUs
- 13.91 Amps
- 220-240 V AC
- Easy to install
- UL Listed
SPECIFICATIONS:
|
Dimensions |
65.4" L x 7.2" W x 3.4" H |
|---|---|
| Weight |
22.05lb [10kg] |
| Warranty |
|
TECHNICAL SPECIFICATIONS:
|
Installation Height |
6.9-8.9 ft |
|
Power / Current |
3200 W / 13.91 A
|
|
Voltage |
220-240 V AC ~ 50/60 Hz
|
|
Max Power In |
30-60 sec |
|
Radiant Efficiency |
90% |
|
Visible Light |
< 300 Lumen |
*Please Note: "All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height)."
COVERAGE AREA:
*Note: "This graphic shows the heating performance of Heatscope Vision 3200W heaters. Please note that the heat output always depends on a wide range of factors."
TECHNICAL DRAWINGS:
|
Front View |
 |
|---|---|
| Side View |
 |
| Top View |
 |
DOWNLOADS:
- Download Installation and Operation Manual
- Download C&I Manual
- Download Specs Sheet
- Download Summary Brochure
Lift Add-Ons (*Require the Lift System):
Add a box case and frame to complete the ceiling recess uniformly and beautifully.
*Note: "Lift Box and Lift Frame require the Lift System.
Zigbee Accessories (Use with Dual WiFi Smart Switch Control):
Wireless Switch (remote control) and Motion Sensor require a ZigBee Bridge to operate. You can group up to 32x Heatscope Heaters per bridge controller, but every heater needs its own Dual WiFi Smart Switch.
