Heatscope Heaters Spot 26" 1600W Electric Radiant Heater with Glass Front by Mad Design Group

KEY FEATURES:

Efficiency Made Simple

HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.

Real Infrared

All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.

Inviting & Cozy

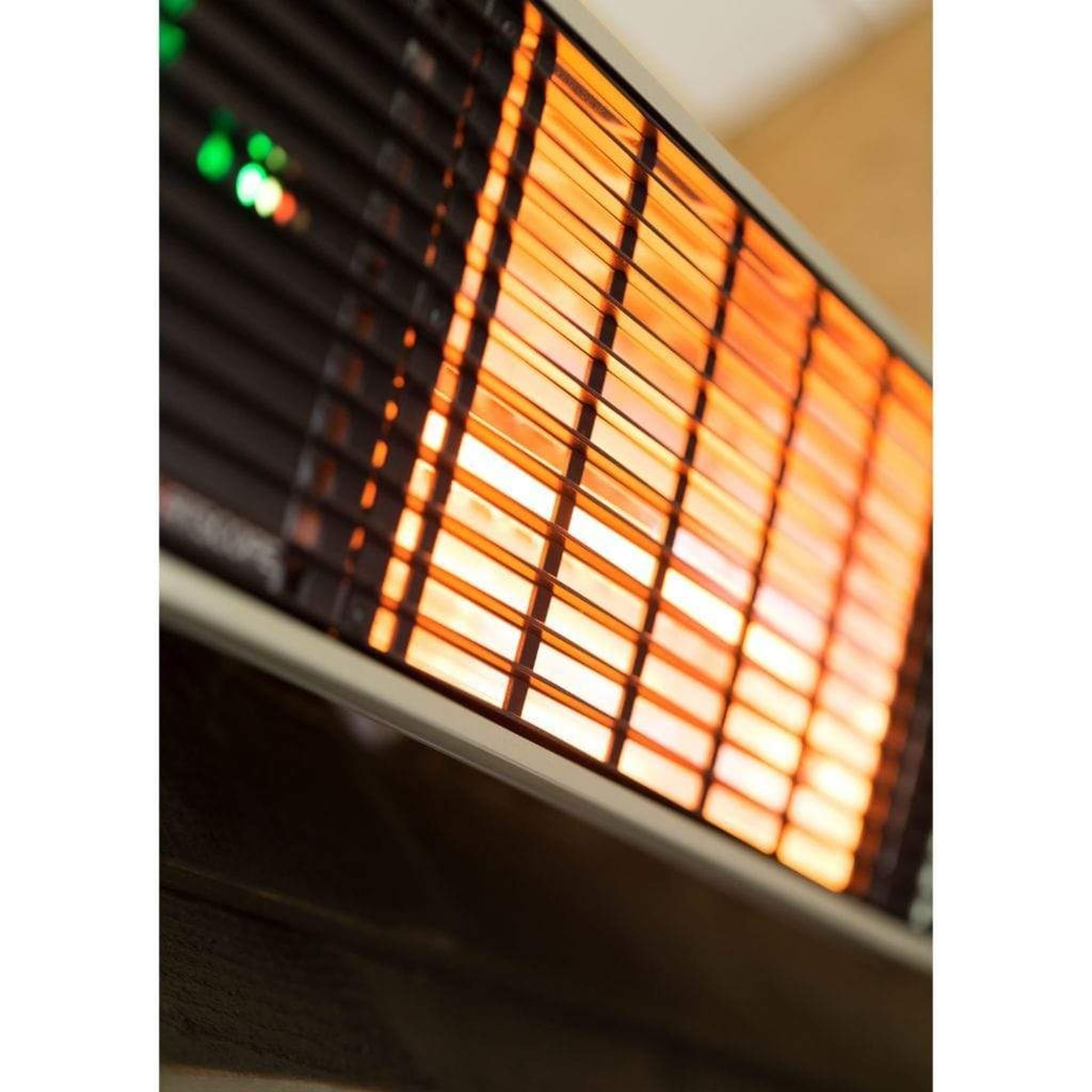

Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.

Super Fast

Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.

Full Control

The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).

Award-Winning Design

Delivers pleasant heat without the distraction. Clean-cut, modern designs and colours easily blend into any decor.

Weather-Resistant

All models are certified with an IP rating for protection against dust, splash-water, and wind.

No Aggressive Red Light

Produces a very ambient, modest light based on double carbon heating elements.

High Efficiency

Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.

STANDARD FEATURES:

• Electric Carbon Radiant Heater for Indoor or Protected Outdoor Use

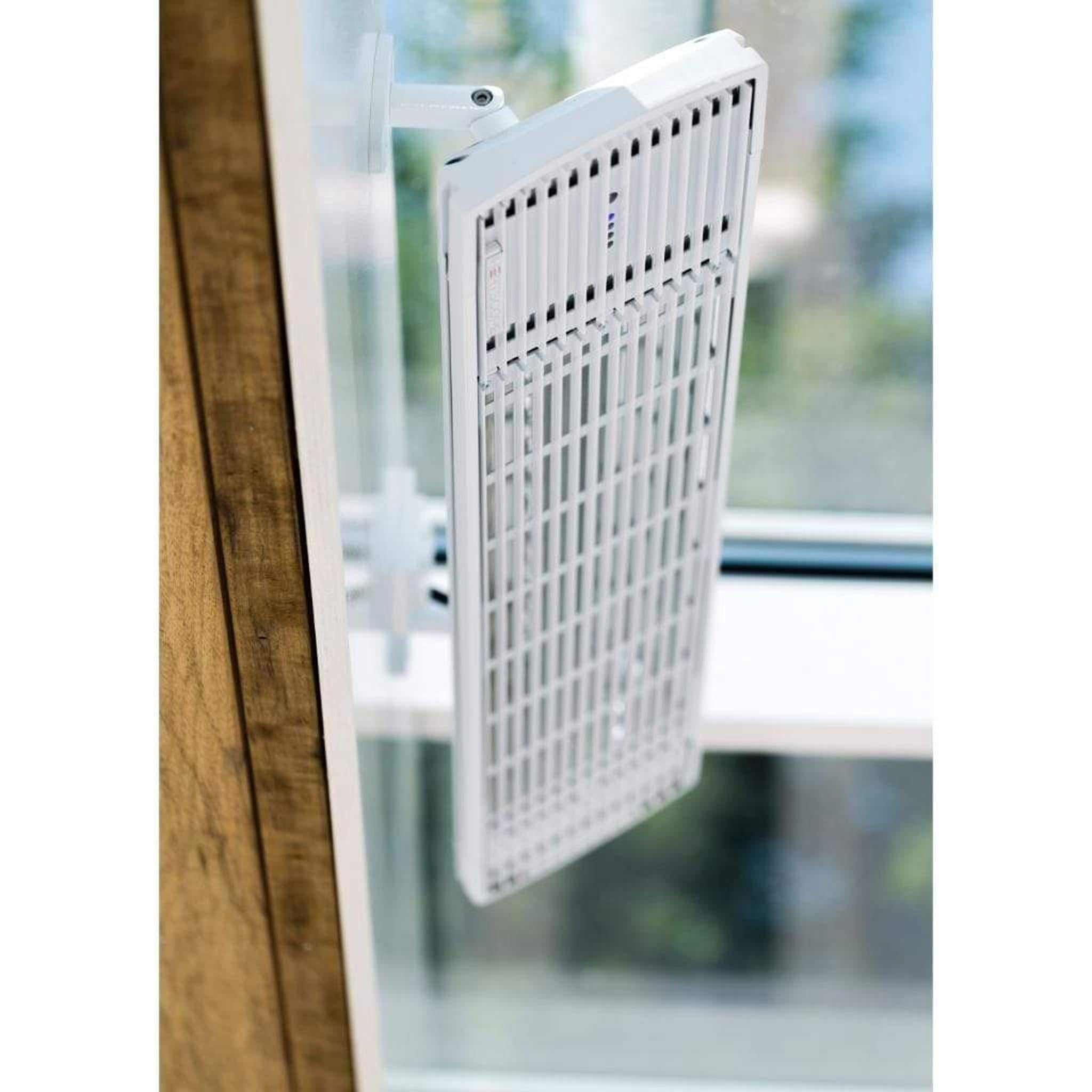

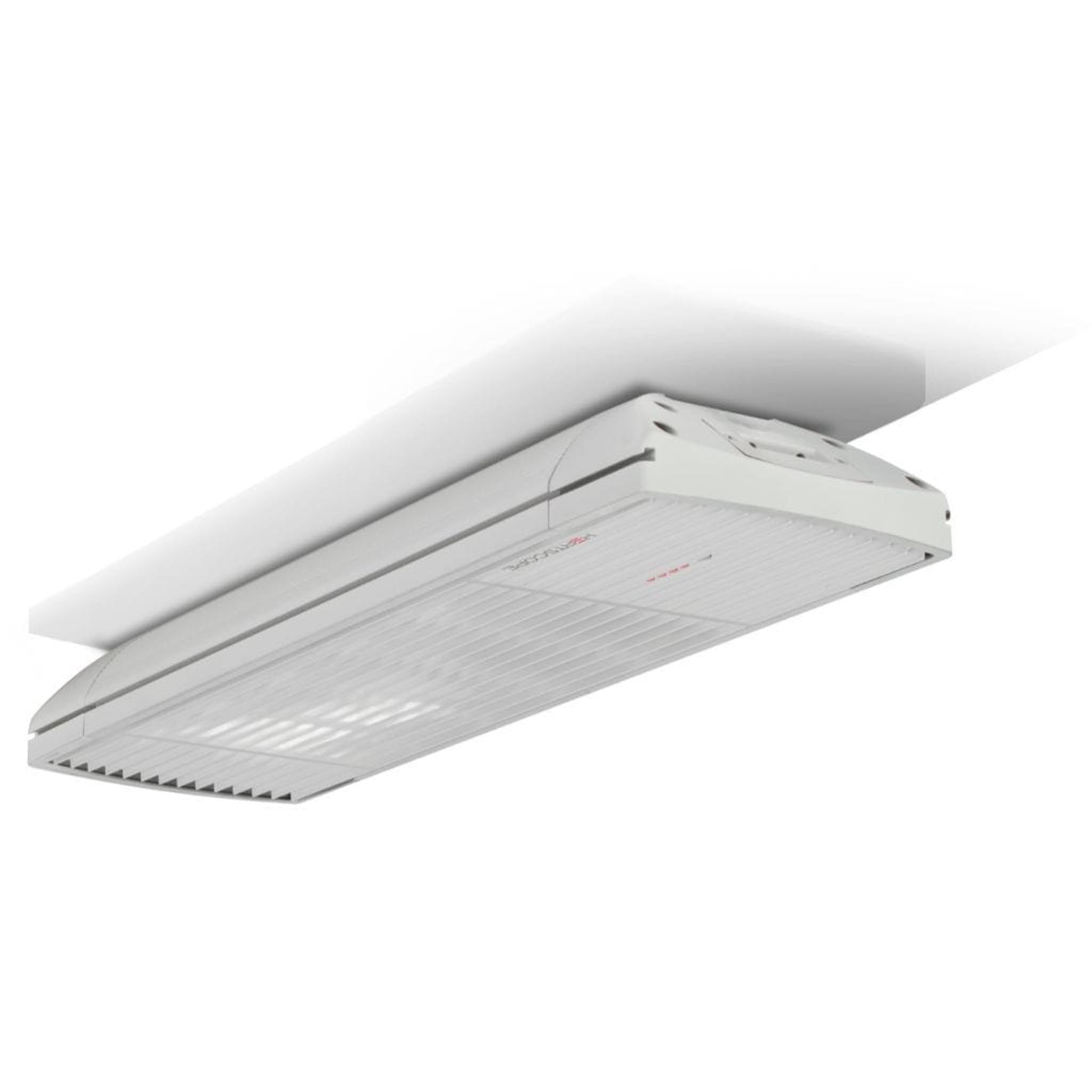

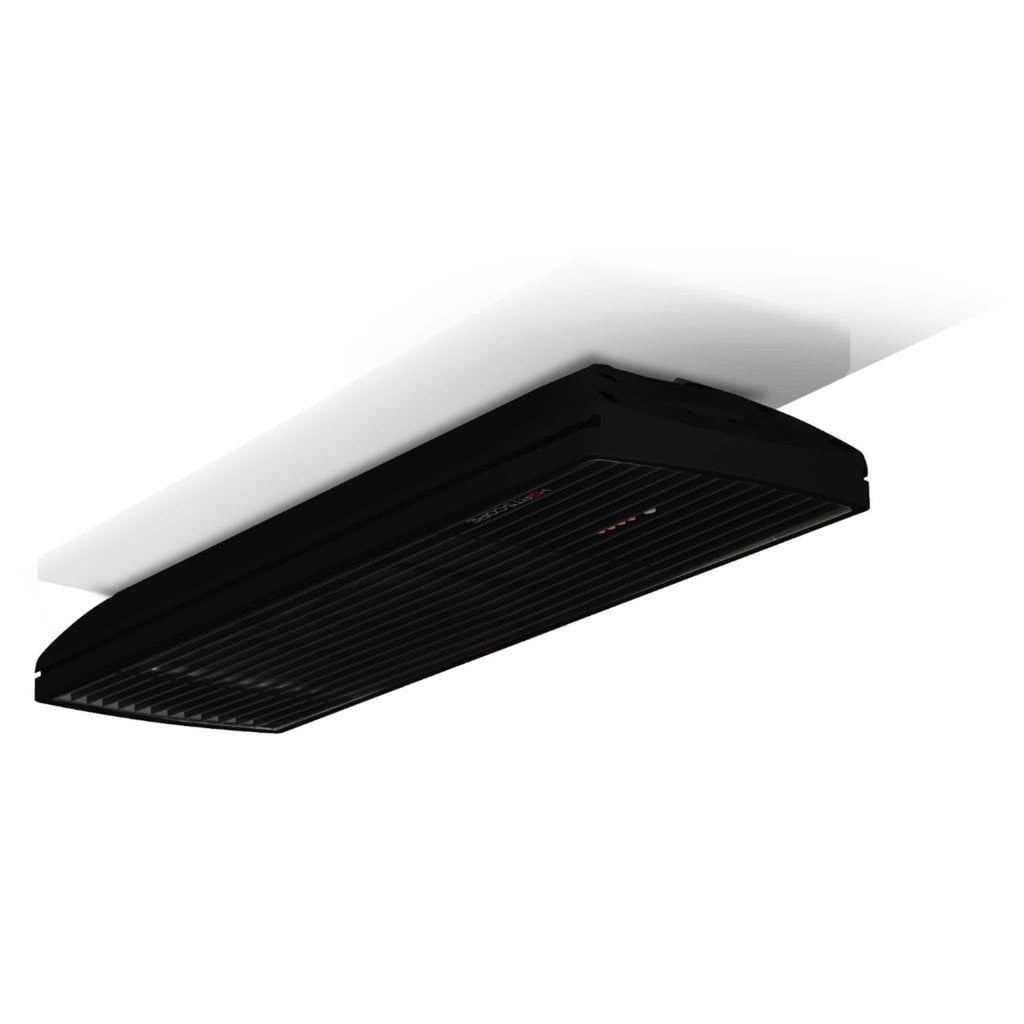

• Wall or Ceiling Mounted

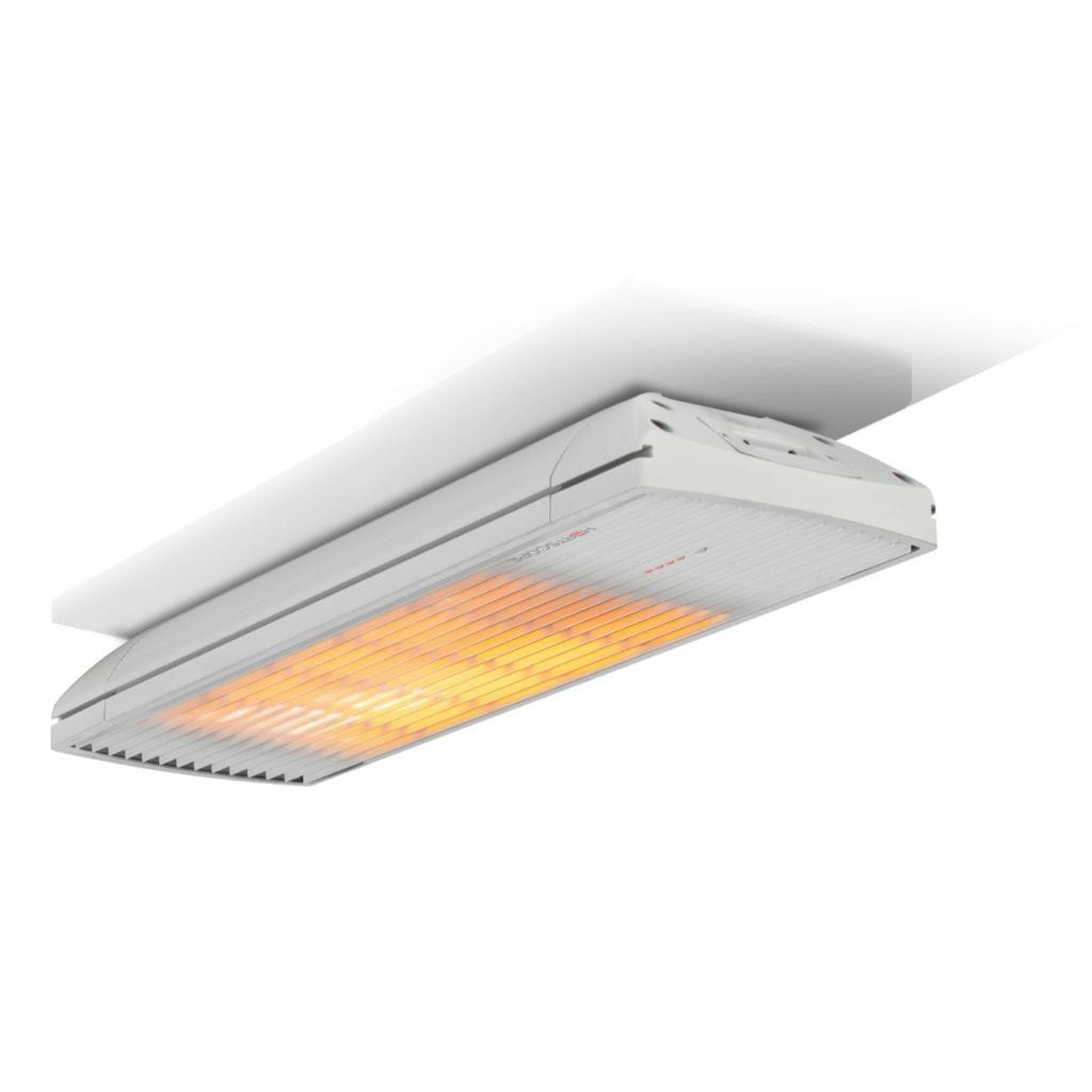

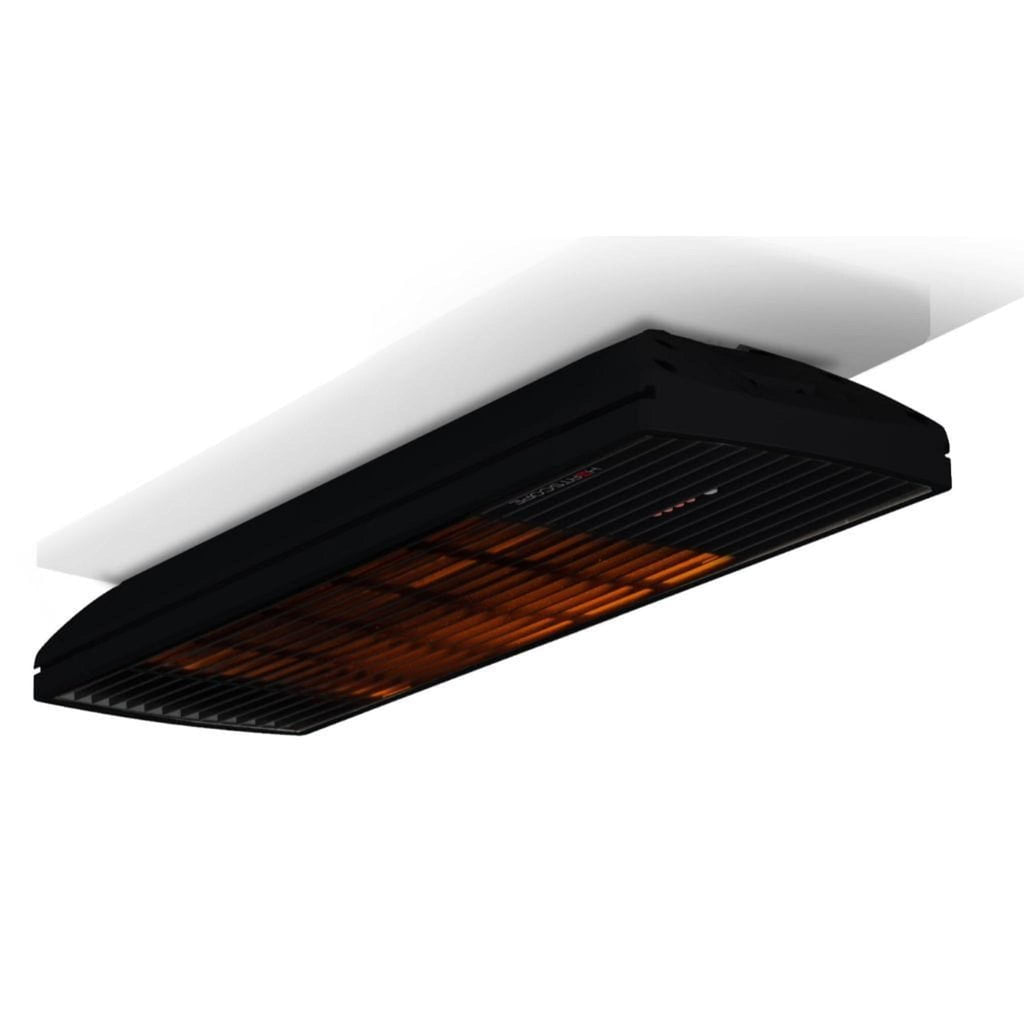

• Available in Black or White
• Glass front
• Adjustable Mounting Bracket for directional heat
• Easy to install
• UL Listed

Dimensions	26.4" L x 7.2" W x 3.1" H
Weight	8.8lb [4kg]
Warranty	The HEATSCOPE® is guaranteed for 24 months. The warranty period begins on the date on which the new unit was purchased. Expendable parts or defects that affect the usability of the unit only slightly are not covered by the guarantee. When making a guarantee claim, you must provide the original invoice showing the date of purchase and the unit model.

TECHNICAL SPECIFICATIONS:

Installation Height	6.9-9.8 ft
Power / Current	1600 W / 7 A
Voltage	220-240 V AC ~ 50/60 Hz
Max Power In	15 sec
Radiant Efficiency	94%
Visible Light	< 600 Lumen

*Please Note: "All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height)."

COVERAGE AREA:

*Note: "This graphic shows the heating performance of Heatscope Spot 1600W heaters. Please note that the heat output always depends on a wide range of factors."

TECHNICAL DRAWINGS:

Front View
Side View
Top View

DOWNLOADS:

• Download Installation and Operation Manual
• Download C&I Manual
• Download Specs Sheet
• Download Summary Brochure
