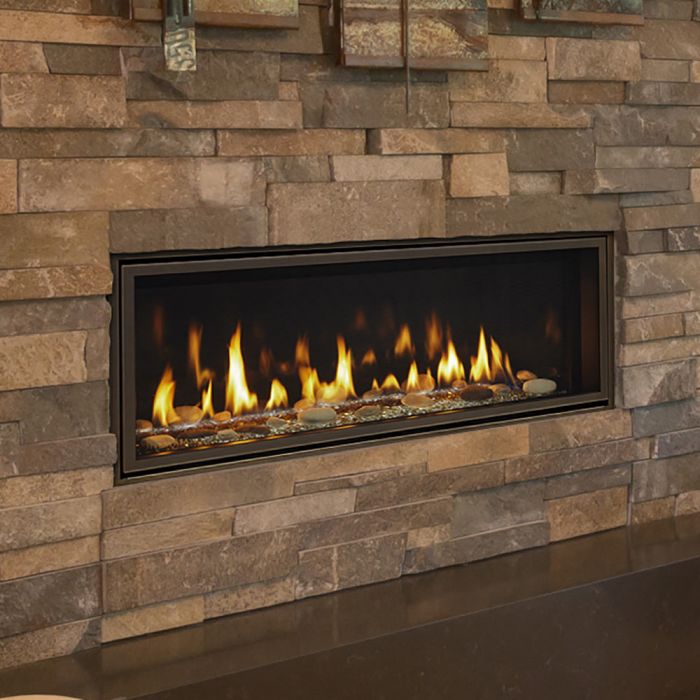

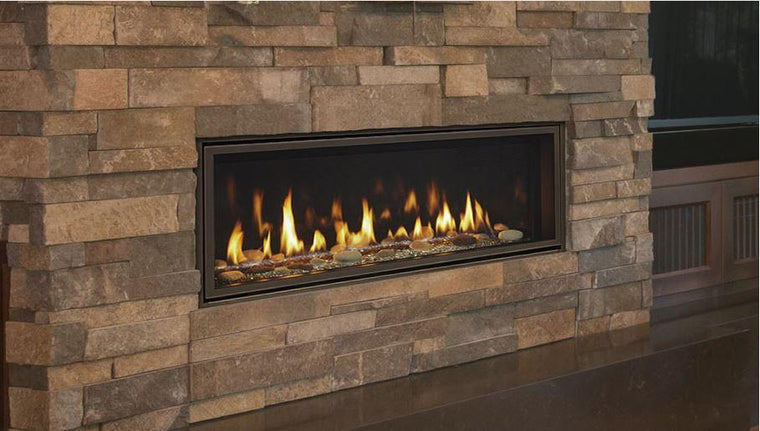

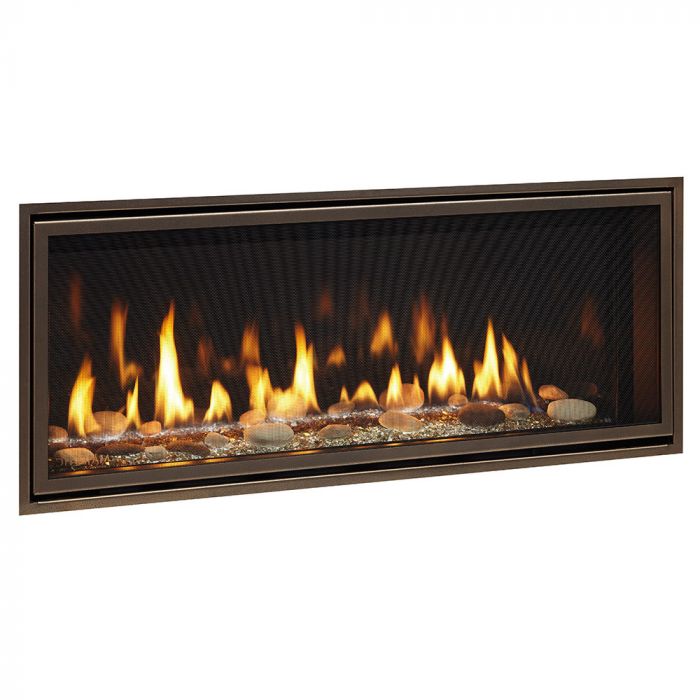

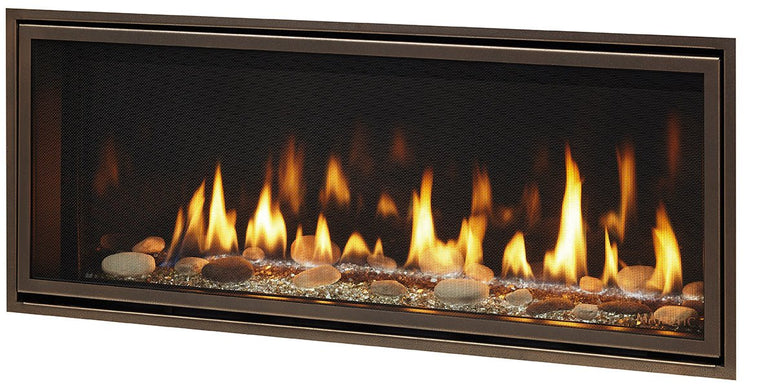

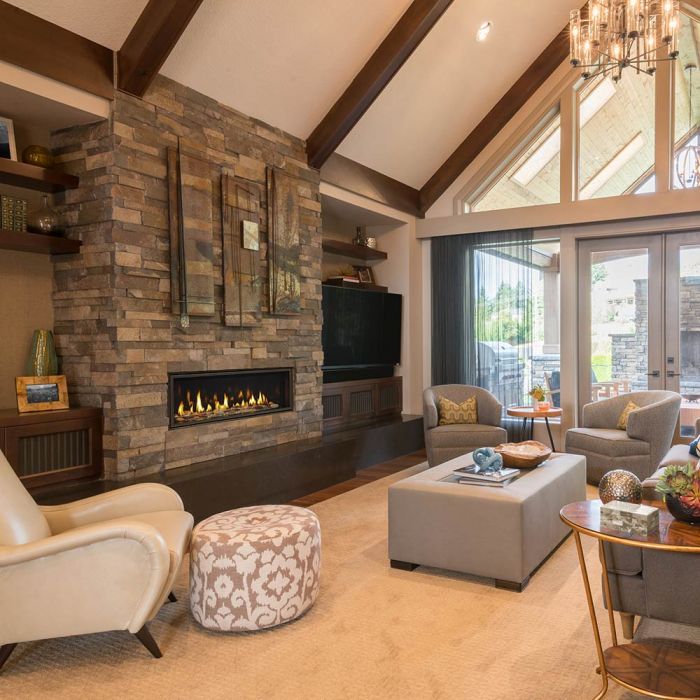

Majestic 48 Inch Echelon II See-Through Indoor Contemporary Direct Vent Gas Fireplace

Majestic Direct Vent Gas Fireplace

This Majestic 48-inch Echelon II see-through indoor contemporary direct vent gas fireplace will enhance your living space. Its modern aesthetics and high performance combine to provide elegance and efficient heating. It can heat up to 1,300 square feet, perfect for a home of any size. This Majestic Echelon II 48-inch fireplace provides easy and reliable operation that makes it easy to control your fireplace from anywhere.

The Majestic direct vent gas fireplace features a 47-1/2" x 12-1/2" viewing area that showcases a mesmerizing flame display through clear ceramic glass. It comes standard with bronze glass media, adding to its contemporary appeal. The clear LED dimmable lights add to the visual appeal of the flames. This modern direct vent gas fireplace can be personalized using crushed glass, natural stones, or a combination of both.

The 8" DVP pipe requirement and the 90-degree elbow flexibility make installation straightforward. With the dimensions and framing requirements of each appliance, you will be able to ensure a perfect fit. This best contemporary gas fireplace can be powered by a battery backup in case of power outages. With the RC400 remote control, you can control fireplace functions from a distance. This 48 inch direct vent gas fireplace boasts an efficiency rating of 56.9% AFUE when it comes to natural gas and 59.9% for liquid propane.

Includes:

• 21,000 - 40,000 Btu/Hour Input (NG)
• 20,000 - 34,000 Btu/Hour Input (LP)
• IntelliFire Touch ignition system
• Clear LED dimmable lights
• RC400 remote control
• Battery backup
• Ceramic glass
• Standard with bronze glass media
• If changing media, follow the required number of bags below:
• Crushed Glass: 4 bags of glass
• Natural stones: 3 bags of stone
• Log set & stones: 1 bag of stone

Required to Complete (Sold Separately):

• Front

Venting Notes:

• Requires 8" DVP pipe. Must have 18" minimum vertical before attaching a 90-degree elbow to the unit. See venting section of manual.
• Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.

Specifications:

Model	48" Echelon II - ECHEL48IN-C
Fuel Type	Natural gas or liquid propane by conversion
Viewing Area	47-1/2" x 12-1/2"
Heating Capacity²	Up to 1,300 sq.ft.
BTU/hr Input	40,000 (NG); 34,000 (LP)
Appliance Width	58"
Appliance Height	41-3/4"
Appliance Depth¹	17-1/8"
Appliance Rear Width	58"
Framing Height	42"
Framing Depth	18-1/4"
Framing Front Width	60-1/4"
Framing Back Width	60-1/4"

Efficiency

AFUE	56.9% (NG) / 59.9% (LP)
Canada EnerGuide	57.4% (NG) / 59.2% (LP)
