Description

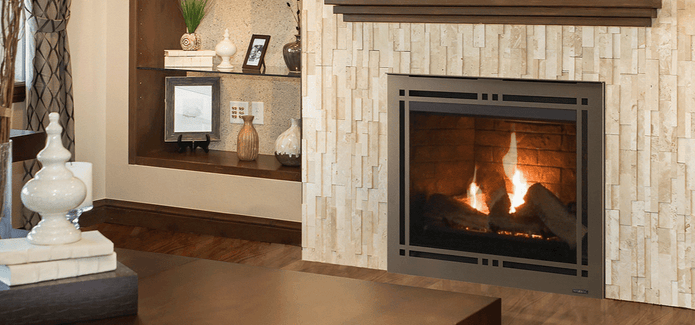

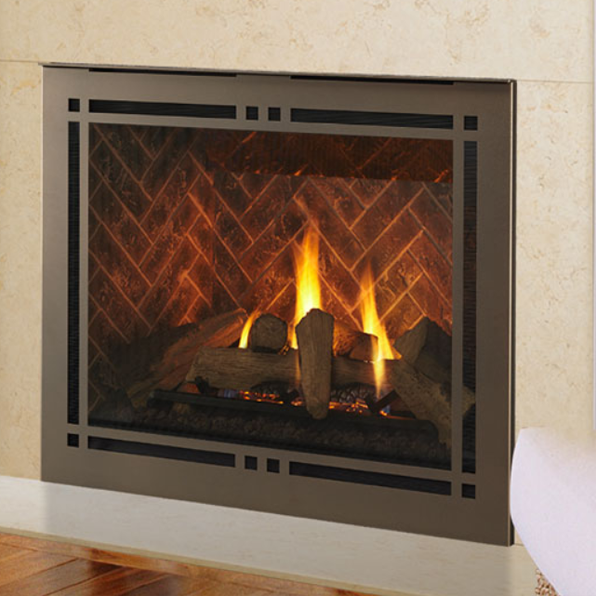

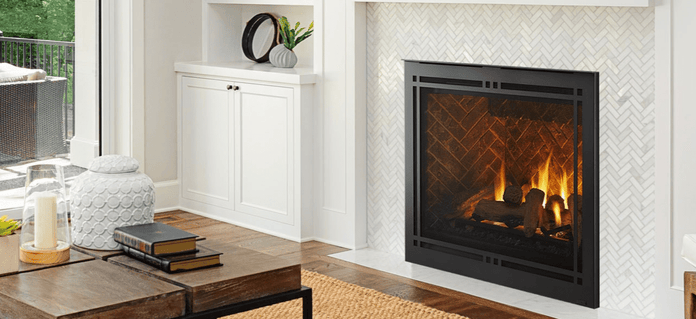

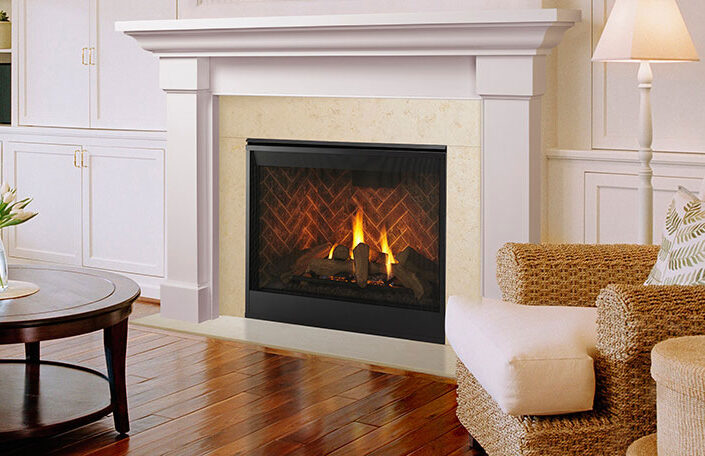

Majestic 36 Inch Direct Vent Gas Fireplace
The Majestic direct vent residential 36 inch Meridian gas fireplace comes with an advanced IntelliFire Touch Ignition System. With its classic aesthetics and modern technology, it provides a cozy and inviting atmosphere for your home. The Majestic Meridian 36-inch has a heating capacity of up to 1,200 square feet, which makes it perfect for warming large spaces during chilly weather. With glowing embers and ceramic fiber logs, this Meridian gas fireplace produces a realistic fire experience, while its tempered glass ensures safety and durability.
The Meridian direct vent fireplace is designed for versatility and ease of use. A manually operated gas shut-off valve, gas flex connector, junction box, and battery backup allow it to operate even when there is no electricity. It provides flexible heating options from 17,000 to 30,000 BTUs for natural gas and 16,000 to 29,000 BTUs for liquid propane. This 36 inch direct vent gas fireplace allows for a large and mesmerizing view of the flames, enhancing any room's ambiance. This modern direct vent fireplace focuses on efficiency and safety. Its AFUE efficiency rating is 59.7% for both natural gas and liquid propane, while its Canada EnerGuide ratings are 61.6% and 59.3%, respectively. This liquid propane fireplace provides a stylish yet substantial addition to any home. The unit requires an 8" DVP pipe, and it can be vented with SLP systems. It is designed as a focal point in any room, providing warmth, comfort, and timeless style.Includes:
- 17,000 - 30,000 BTU/Hour Input (NG)
- 16,000 - 29,000 BTU/Hour Input (LP)
- IntelliFire Touch Ignition System
- Battery Backup
- 6 Ceramic Fiber Logs
- Tempered Glass
- Glowing Embers
- Manual Gas Shut Off Valve
- Gas Flex Connector
- Junction Box
Required to Complete (Sold Separately):
- Front
Venting Notes:
- Requires 8" DVP pipe
- Approved for use with SLP venting. See venting section of manual.
- Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately). See the venting section of the manual.
Specifications:
| Model | 36" Meridian - MERID36IN(L) |
| Fuel Type | Natural Gas/ Liquid Propane |
| Viewing Area | 32" x 21-9/16" |
| Heating Capacity² | Up to 1,200 sq.ft. |
| BTU/hr Input | 30,000 (NG); 29,000 (LP) |
| Appliance Width | 41" |
| Appliance Height | 40-7/8" |
| Appliance Depth¹ | 21" |
| Appliance Rear Width | 28-1/2" |
| Framing Height | 40-1/8" |
| Framing Depth | 22" |
| Framing Front Width | 42" |
| Framing Back Width | 42" |
Efficiency
| AFUE | 59.7% (NG) / 59.7% (LP) |
| Canada EnerGuide | 61.6% (NG) / 59.3% (LP) |
1 Appliance Depth includes the entire unit including the depth of the firebox and extension onto hearth.
2 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame, may differ from the image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing are subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
Downloads:
-
Meridian Series Brochure
-
Meridian Series Installation Manual
-
Meridian Series Owner's Manual
-
Meridian 36 Service Parts
-
Meridian 42 Service Parts
-
Meridian 36 Architect Guide
- Meridian 42 Architect Guide
-
Installation Instructions - Brick Refractory
- Installation Instructions - Glass Refractory Kit
-
Installation Manual - GFK-160C
-
Installation Manual - IntelliFire Touch IFT-ACM
-
Installation Manual - IntelliFire Touch IFT-RC150
-
Installation Manual - IntelliFire Touch IFT-RC400 / IFT-ACM
-
IntelliFire App Quick Start Guide
-
IntelliFire App User Guide
-
IntelliFire Touch IFT-RC150 User Guide
-
IntelliFire Touch IFT-RC400 - User Guide
-
Installation Instructions - HEAT-OUT-GAS
-
Installation Instructions - HEAT-ZONE-GAS
- Installation Instructions - PVLP-SLP Power Vent Low Profile
- Installation Instructions - PVV-SLP
- Installation Instructions - WiFi Module
About The Manufacturer:

Since 1894, Majestic has been dedicated to keeping families warm. Originally a manufacturer of cast iron furnaces and coal chutes, Majestic created its first factory built fireplace in the 1930's and never looked back. Since then, Majestic has been producing wood and gas fireplaces known for outstanding durability, superior quality and stunning good looks. Traditional to contemporary. Indoor or outdoor. Wood, gas or electric. With a wide range of eye-catching styles, convenient sizes and trending trims, Majestic products are designed be the beautiful heart of your home.
