Description

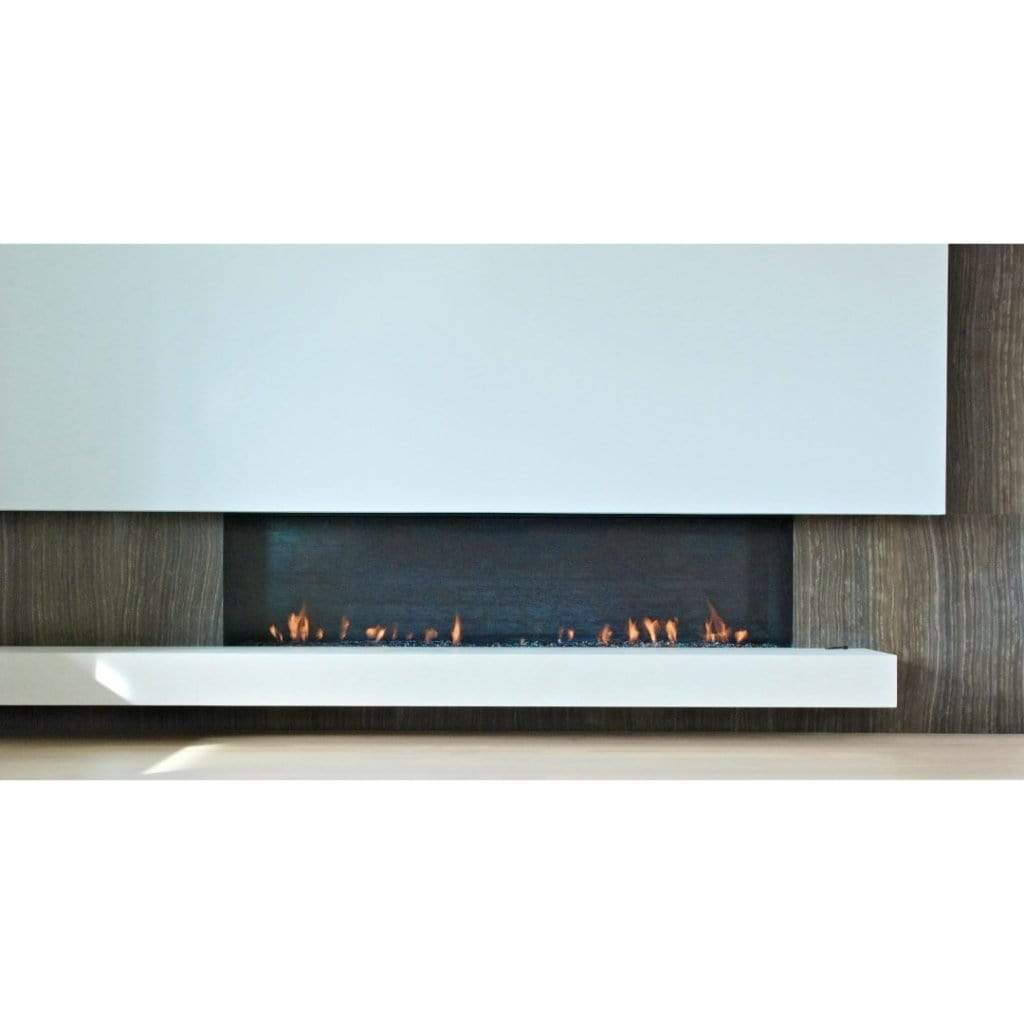

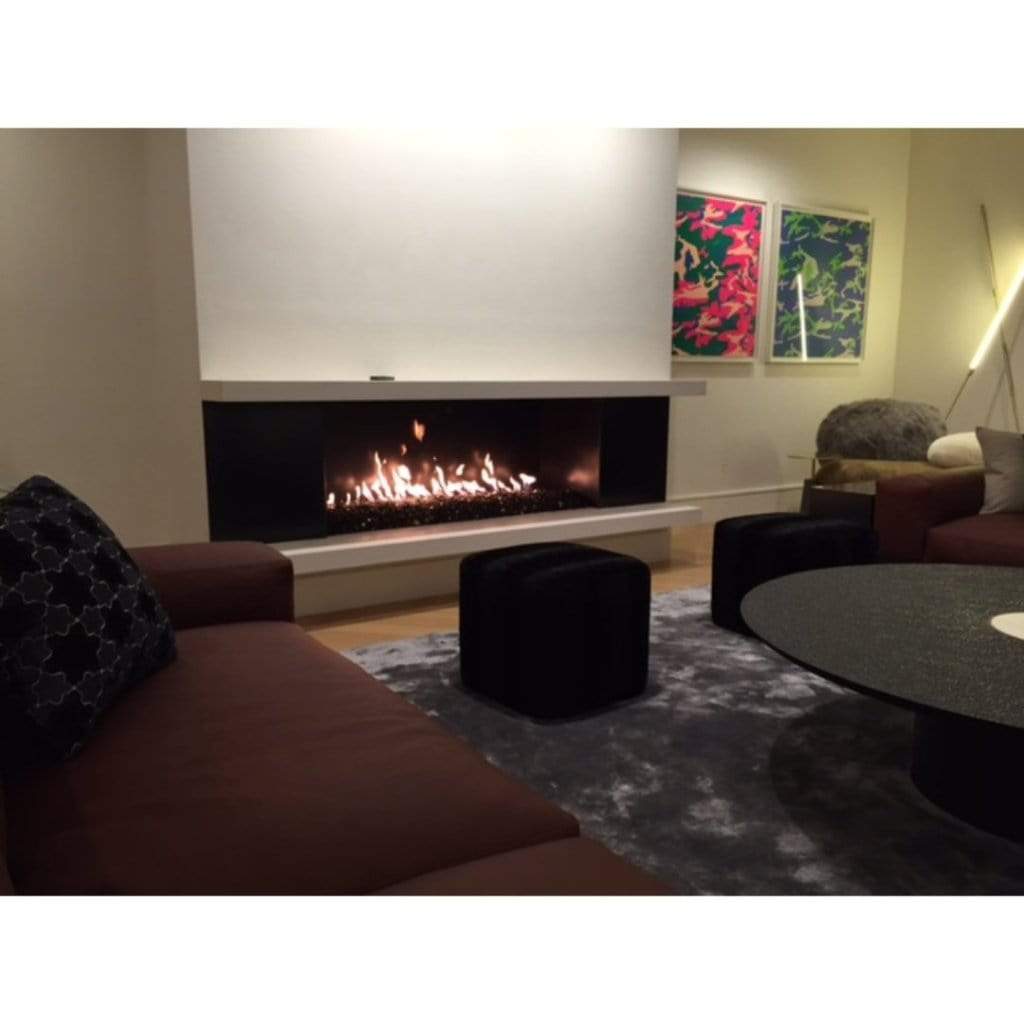

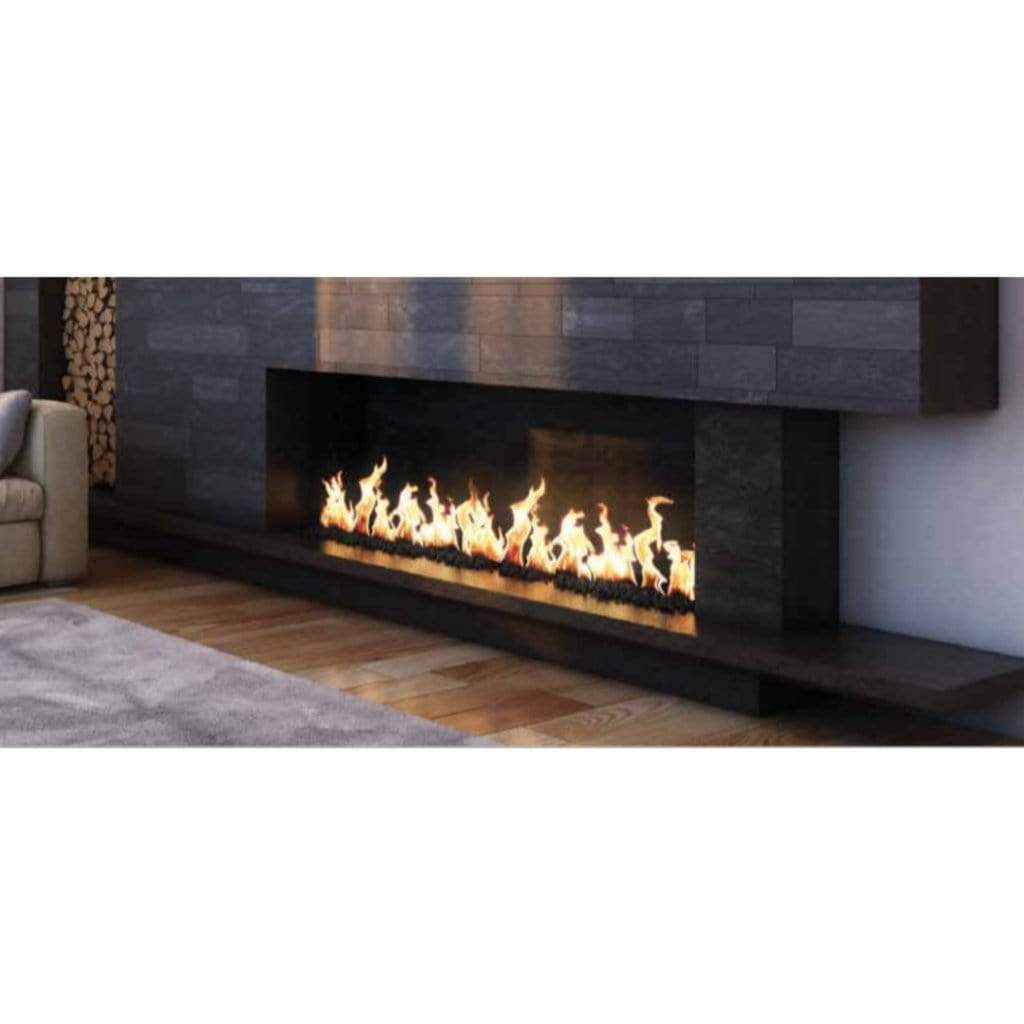

Mason-lite 48" linear gas fireplace
This Mason-Lite outdoor linear 48 inch contemporary fireplace (no trough) 12" B-vent combines modern design with high performance to appeal to the sophisticated homeowner. Its expansive 48-inch display, clean linear design, and inviting ambience create a warm and inviting atmosphere in any contemporary space. With square sides and sharp 90o angles at the rear corners, the Mason-lite 48" linear gas fireplace is an ideal choice for flush, corner, or center room installations. This outdoor LMFP48-NT linear fireplace features a non-combustible floor system, which ensures that it will fit nicely into your living space. This outdoor 48 inch b-vent fireplace speaks of its contemporary quality and durability.
This modular pre-cast fireplace starts with 85,000 BTU/hr of output, which can be upgraded to 200,000 BTU/hr depending on the model to provide enough heat for your space. With its 12" B-vent chimney system, you have the option to choose between single or dual chimney configurations to meet your specific installation requirements. The Mason-lite 48" linear gas fireplace can also be upgraded to include high-quality burners such as the Golden Blount Alpine Burner and the Warming Trends Crossfire Burner. It is available in a wide range of sizes ranging from 48" to 120" wide, with custom widths available to accommodate unique spaces, including corners and see-through installations complying with NFPA211. This ANSI z21.50 compliant fireplace offers a seamless appearance and seamless functionality, whether you prefer a flush hearth or no trough.
This outdoor 48 inch B-vent fireplace uses Mason-Lite's innovative modular precast technology to reduce both labor and assembly time dramatically. It simplifies the installation process and ensures a perfect fit and finish, as well as enhancing the overall appeal of your fireplace. This modular pre-cast fireplace chimney operates in accordance with the highest safety standards, as it complies with ANSI Z21.50 and accepts Class A chimneys. It also comes with a limited lifetime warranty, which ensures quality and long-term durability. The Mason-lite 48" linear gas fireplace combines modern luxury with performance in a stylish unit that heats your space and creates a cozy, elegant atmosphere.
Features:
- Class A chimney accepted
- ANSI Z21.50 compliant
- Glassdoor tested & listed
- Square sides - 90º angle in rear corners
- Choice of flush hearth or burner trough
- Units available with & without burner trough
- BTUs starting at 85,000 to 200,000, depending on model
- Standard sizes are designed to use single or dual 12” B-vent chimney
- Available with Golden Blount Alpine Burner & Warming Trends Crossfire Burner
- Custom widths also available including, but not limited to, corners & see-throughs (meet NFPA211 requirements)
- Modular Pre-cast fireplaces reduce labor and assembly time
Specifications:
| Model | LMFP48-NT |
| Dimension A | 61" |
| Dimension B | 51" |
| Dimension C | 48" |
| Dimension D | 45" |
| Framing Dimension (Non-combustible floor system) | 66" (W) x 40.5" (H1) x 54.25" (H2) |
| Floor Area | 62" x 28" (12 ft²) |
| H-Burner BTU/HR | 85,000 |
| Gas Log Burner BTU/HR | 85,000 |
| Mortar, Rebar, and Ready Mix Concrete | 250 lbs. |
| Weight | 1778 lbs. |
| Flue | 12” Ø |
| Style | Contemporary |
| Installation Type | Flush Installation / Corner / Internal Wall / Full Projection |
| Certification | ANSI Z21.50 compliant |
| Warranty | Limited lifetime warranty |
Downloads:
About The Manufacture:
Masonry Fireplace Industries (MFI) is a Riverside, California based company that is the manufacturer of MASON-LITE Fireplace and Chimney Systems. MFI also offers MASON-LITE Linear units and provides custom drawings for all your fireplace needs.
