Description

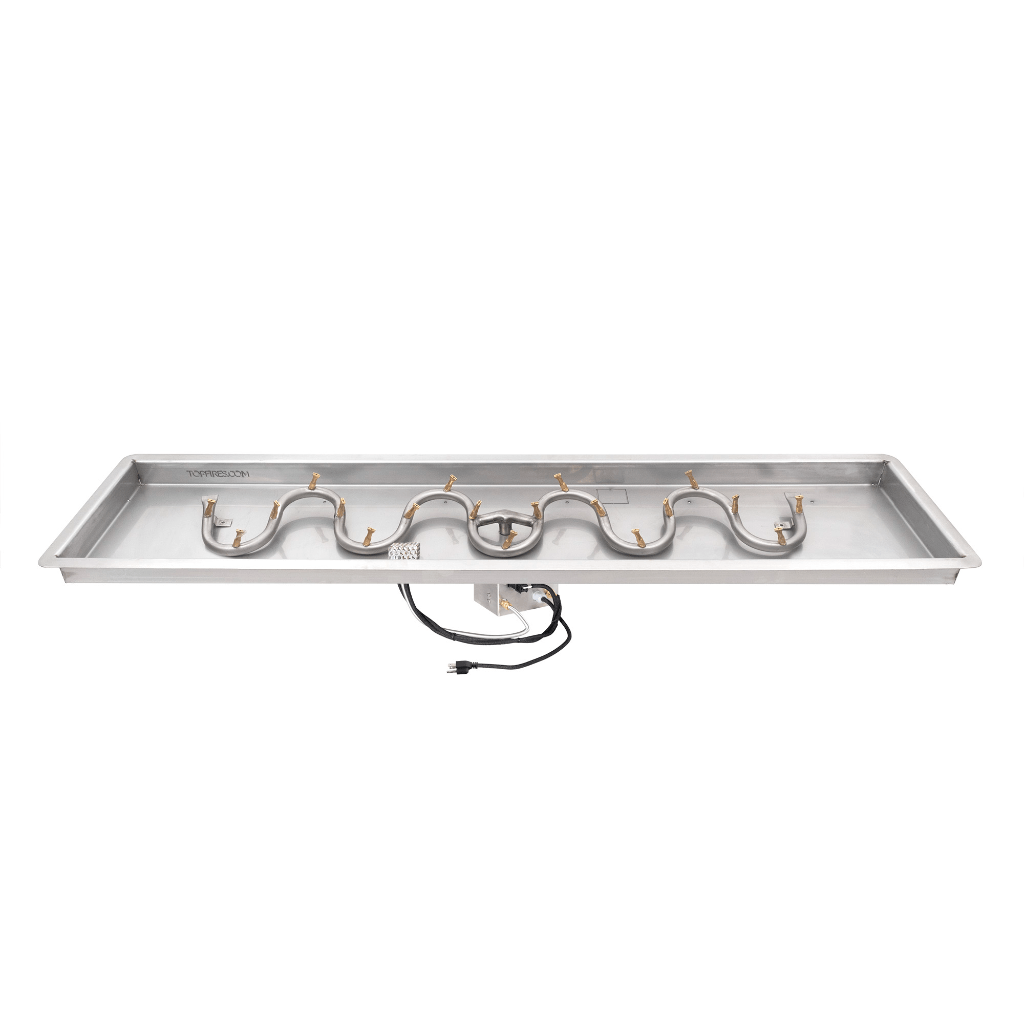

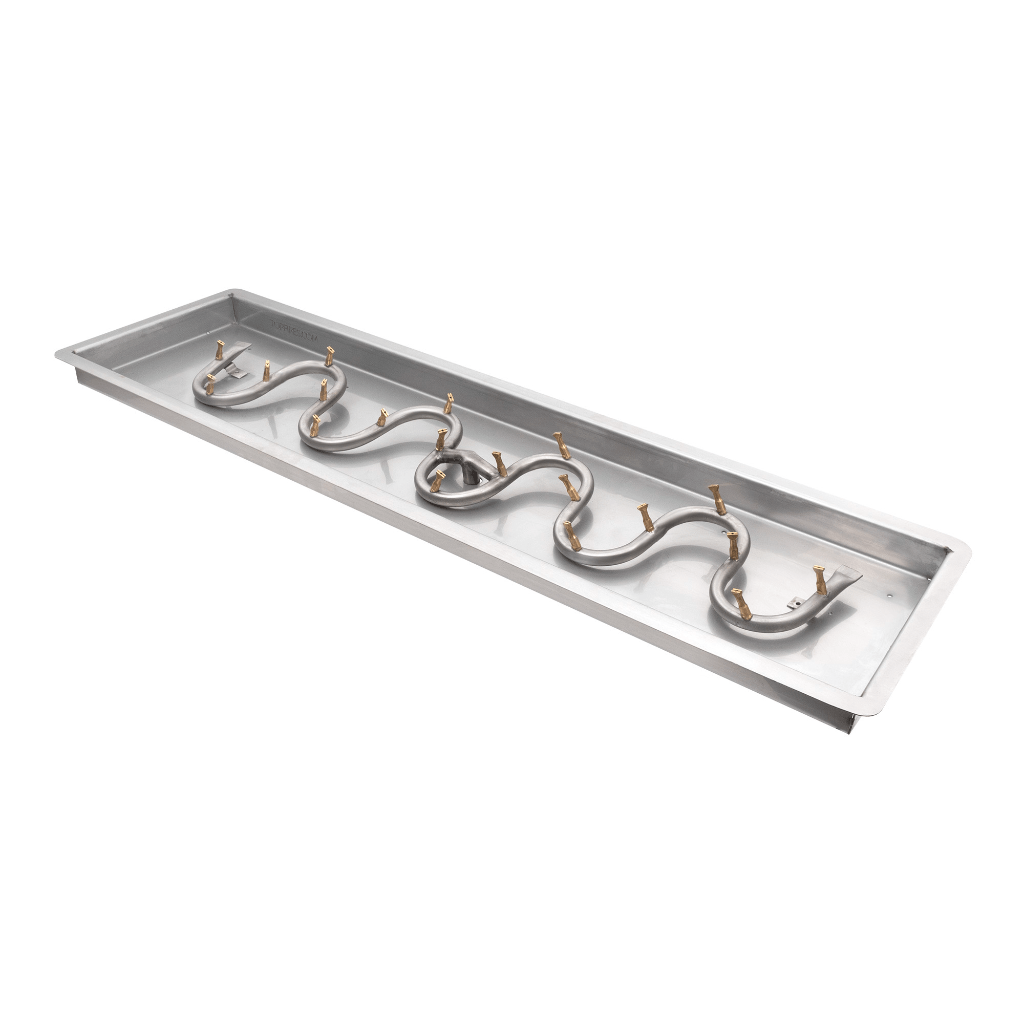

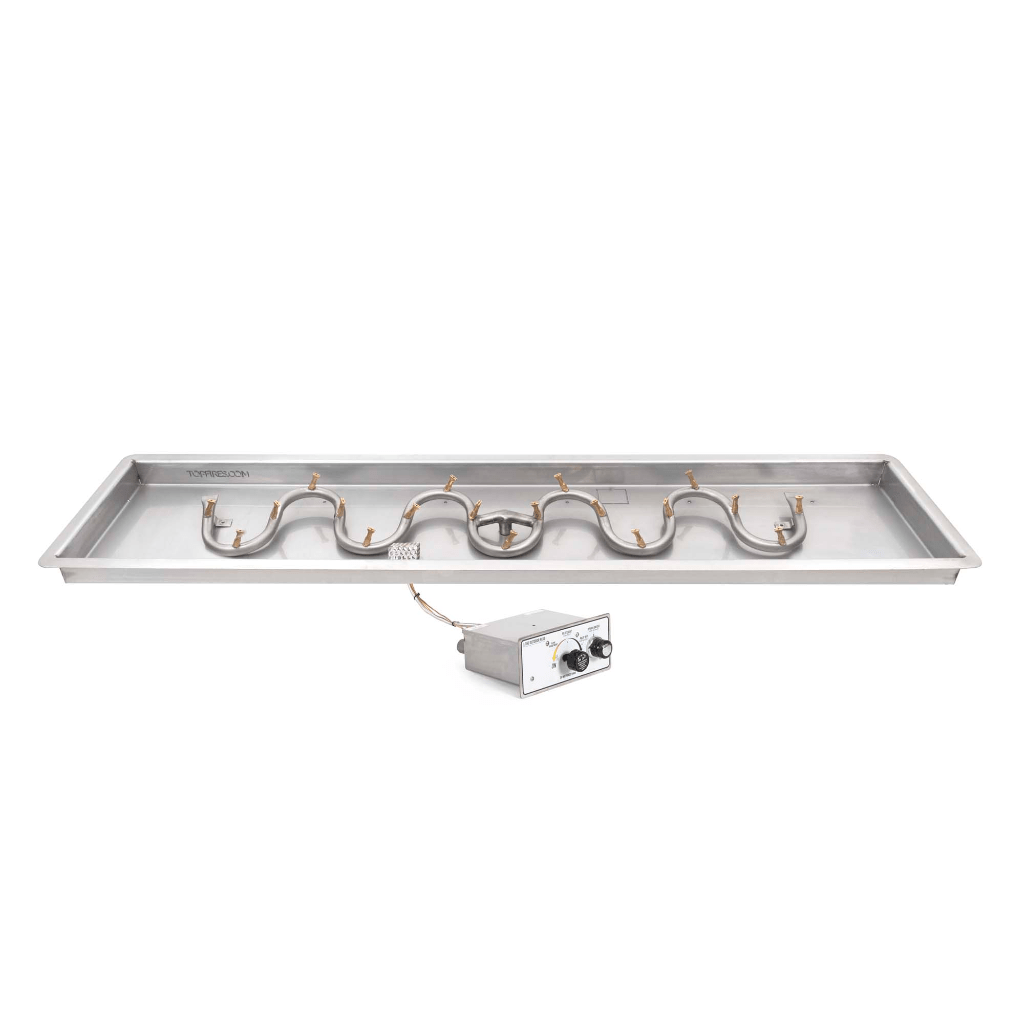

Upgrade your fire pit experience with The Outdoor Plus's Rectangular Drop-in Pan and Switchback Bullet Burner. This exceptional duo offers a unique combination of aesthetics and efficiency, transforming your outdoor space into a captivating haven.
Designed to effortlessly replace standard burners, the Switchback Bullet Burner boasts a taller and fuller flame while conserving 30% more gas than typical import burners. Crafted from high-grade Stainless Steel, this burner ensures durability and longevity, resisting rust and corrosion even under regular use.
The patented Bullet Burner Orifices enhance gas flow by incorporating oxygen, delivering a superior blaze. Whether you choose natural gas or liquid propane, the Switchback Bullet Burner guarantees the same flame height with less gas consumption or an option for a dramatic, impressive flame.
The raised and tapered inlet, along with multiple drain holes, prevents water entry into the gas line, ensuring a safe and reliable operation. With seven size options ranging from 18 to 84 inches and five ignition types, you can personalize your fire pit or bowl to match your style.
Benefits:
- Fuel-efficient with 30% gas savings
- Durable Stainless Steel construction
- Taller and fuller flame
- Versatile for natural gas or liquid propane
- Patented Bullet Burners eliminate the need for an additional air mixer
- Multiple size and ignition options for customization
- Reliable operation with water-resistant design
Features:
- Fuel-efficient
- Pan Lip: 1 Inch
- Pan Height: 2 Inch
- Pan Width: 12 inch
- Tall and Full Flame
- More flame, less gas
- Pan Shape: Rectangle
- Burner Shape: S-Shaped
- Limited lifetime warranty
- Pan Material: Aluminum
- Burner Material: Stainless Steel
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 70,000 BTU – 360,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
- Burner Sizes: 18, 30, 42, 48, 60, 72 and 84 inches
- 110V Ignition System Kits use a 3-prong grounded plug
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade Stainless Steel, Providing you with a long-lasting burner
- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Kit Size | Burner Size | Inlet | BTU |
| 24”x12” Pan Kit | 24" x 12" | 18” x 6” | 1/2" | 70,000 |
| 36”x12” Pan Kit | 36" x 12" | 30” x 6” | 1/2" | 90,000 |
| 48”x12” Pan Kit | 48" x 12" | 42” x 6” | 3/4" | 125,000 |
| 60”x12” Pan Kit | 60" x 12" | 48” x 6" | 3/4" | 165,000 |
| 72”x12” Pan Kit | 72" x 12" | 60” x 6”(M) | 3/4" |
200,000 |
| 84”x12” Pan Kit | 84" x 12" | 72” x 6”(M) | 3/4" | 240,000 |
| 96”x12” Pan Kit | 96" x 12" | 84” x 6”(M) | 3/4" | 360,000 |
Legend: M = Uses manifold, Adds 5″ in height.
Includes:
- Pan
- Burner

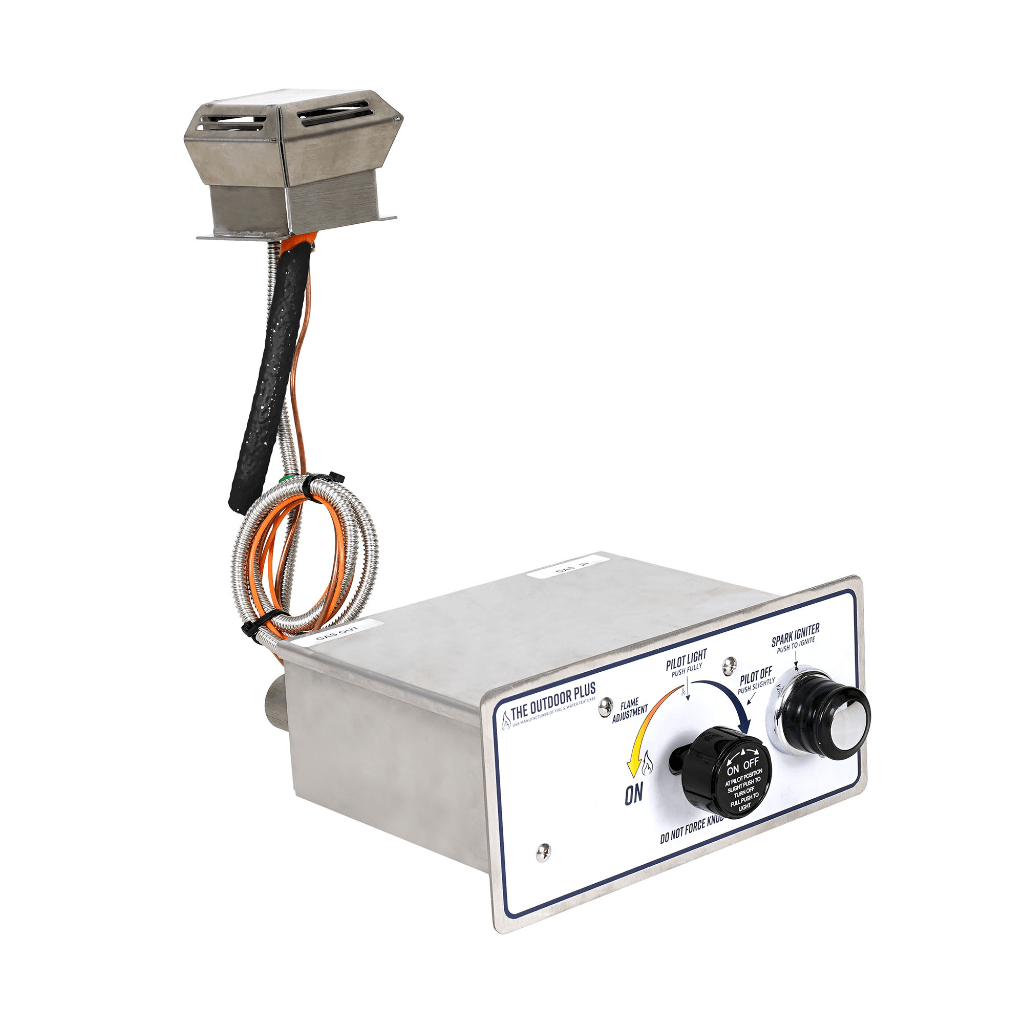

- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
About The Manufacturer:
With over 25 years of professional experience, the Outdoor Plus is a leader in designing and building fire pits, fire tables, and unique one of a kind fire and water displays. Located in Southern California, many of their designs are inspired by the California beaches and cliffs. All TOP Fires fire pits, burners, and burner pans are individually made and proudly manufactured in the U.S.A. Their mission is to help homeowners make their vision of the perfect backyard entertainment experience a reality. The Outdoor Plus prides itself in being able to create any custom fire pit project you can think up. With state-of-the-art CNC equipment and years of experience, anything The Outdoor Plus creates is cut perfectly to spec, making for endless custom fire pit possibilities.
