Description

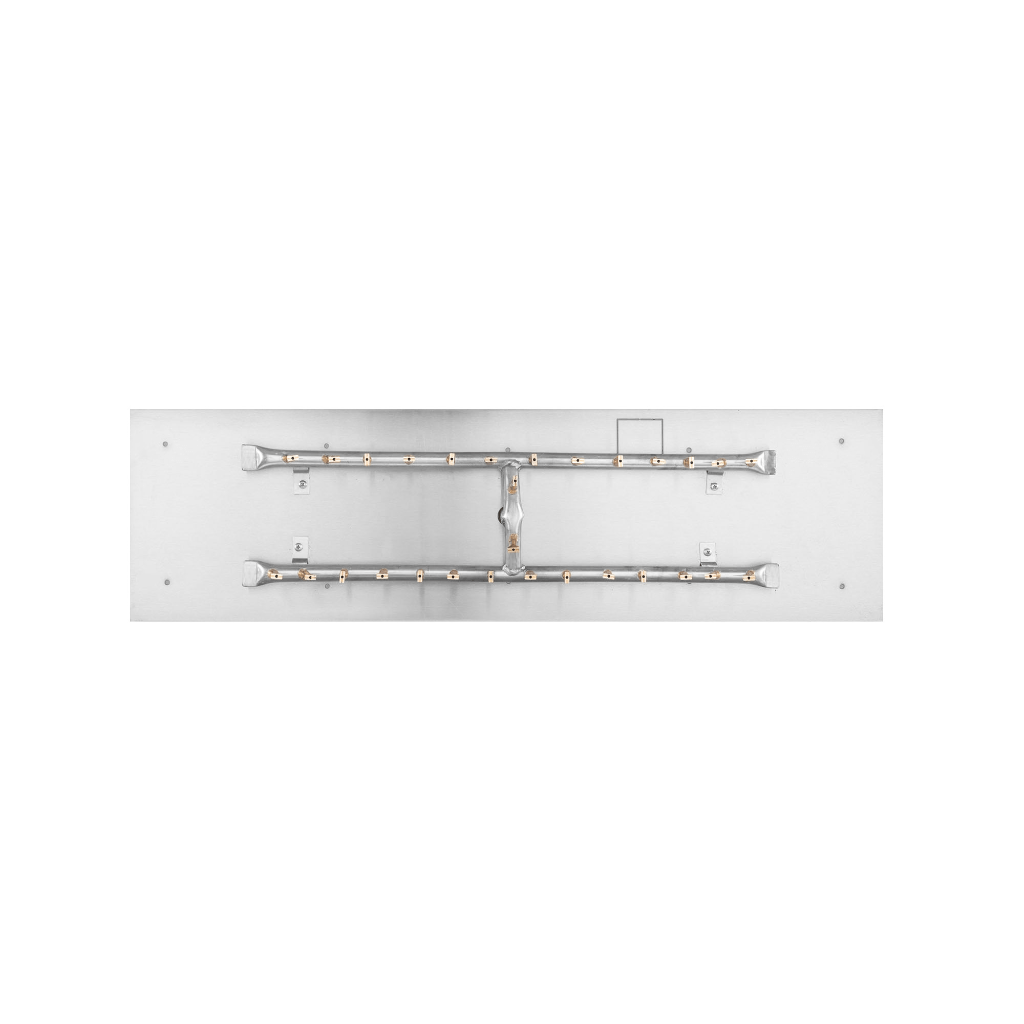

Transform your outdoor ambiance with The Outdoor Plus's Rectangular Flat Pan and Stainless Steel 'H' Bullet Burner. Designed as the ideal enhancement for your fire pit or bowl, this linear-shaped burner offers a taller and fuller flame, all while being 30% more gas-efficient than standard burners. Crafted with high-grade Stainless Steel, this burner ensures longevity, resisting rust and corrosion even under regular use.
The unique Bullet Burner Orifices optimize gas flow, infusing oxygen to create a superior blaze. Patented technology eliminates the need for an extra air mixer with liquid propane use. Compatible with natural gas or liquid propane applications, it allows you to control the flame height while using less gas. The raised and tapered inlet prevents water entry, ensuring the burner's durability. With multiple drain holes, any water that may enter through the flame holes is efficiently released.
This 'H' Bullet Burner comes in seven sizes, ranging from 18 to 84 inches, and offers five ignition types. Select the perfect size and ignition for your fire pit or bowl, elevating your fire pit experience with our Flat Pan and Patented Bullet Burner. Maintain an adequate space between the burner and the inner edge of your fire pit or bowl for optimal performance.
Benefits:
- Fuel-efficient design for cost savings
- Achieve a taller and fuller flame with less gas
- Long-lasting Stainless Steel construction
- Resistant to rust and corrosion
- Unique Bullet Burner Orifices for superior blaze
- Patented technology eliminates the need for an extra air mixer
- Compatible with natural gas or liquid propane applications
Features:
- Fuel-efficient
- Tall and Full Flame
- More flame, less gas
- Pan Shape: Rectangle
- Burner Shape: Linear H
- Limited lifetime warranty
- Pan Material: Aluminum
- Burner Material: Stainless Steel
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 85,000 BTU – 350,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
- Burner Sizes: 18, 30, 42, 48, 60, 72 and 84 inches
- 110V Ignition System Kits use a 3-prong grounded plug
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade Stainless Steel, Providing you with a long-lasting burner

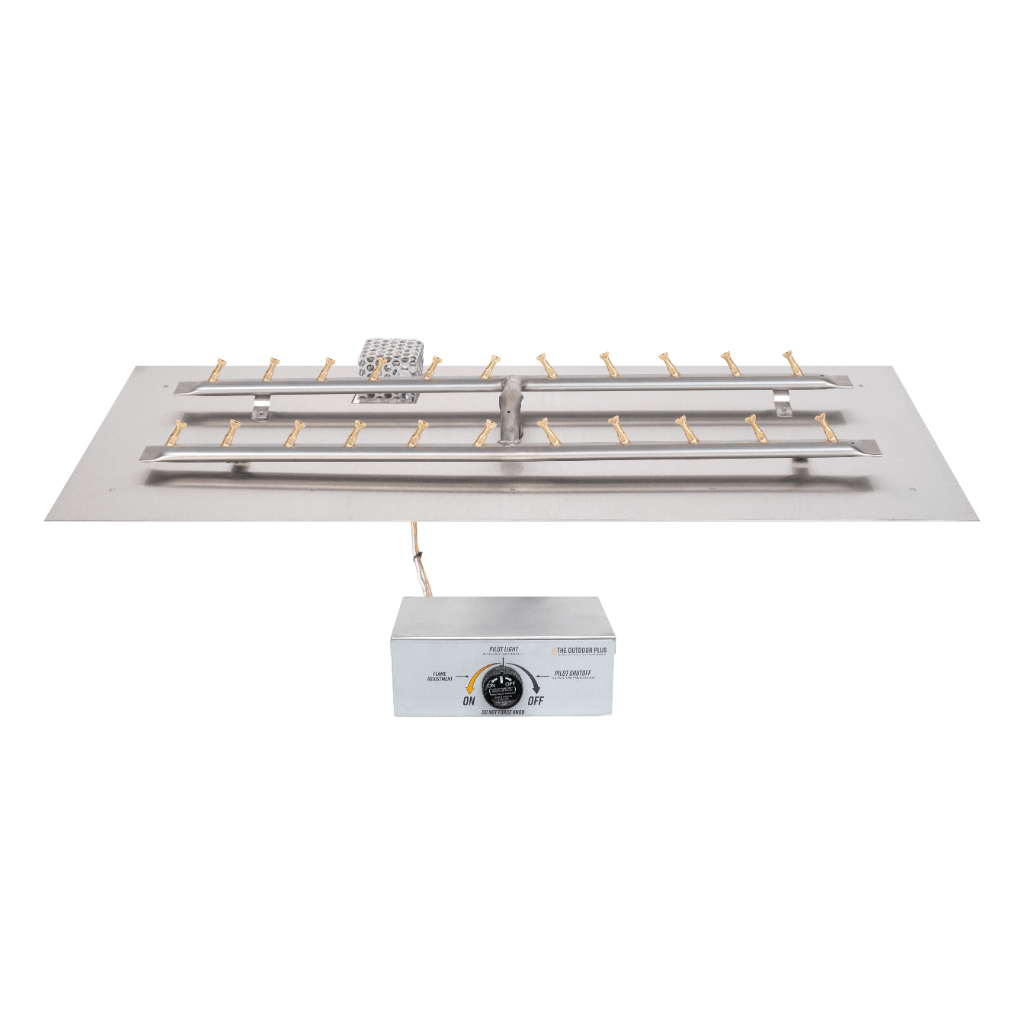

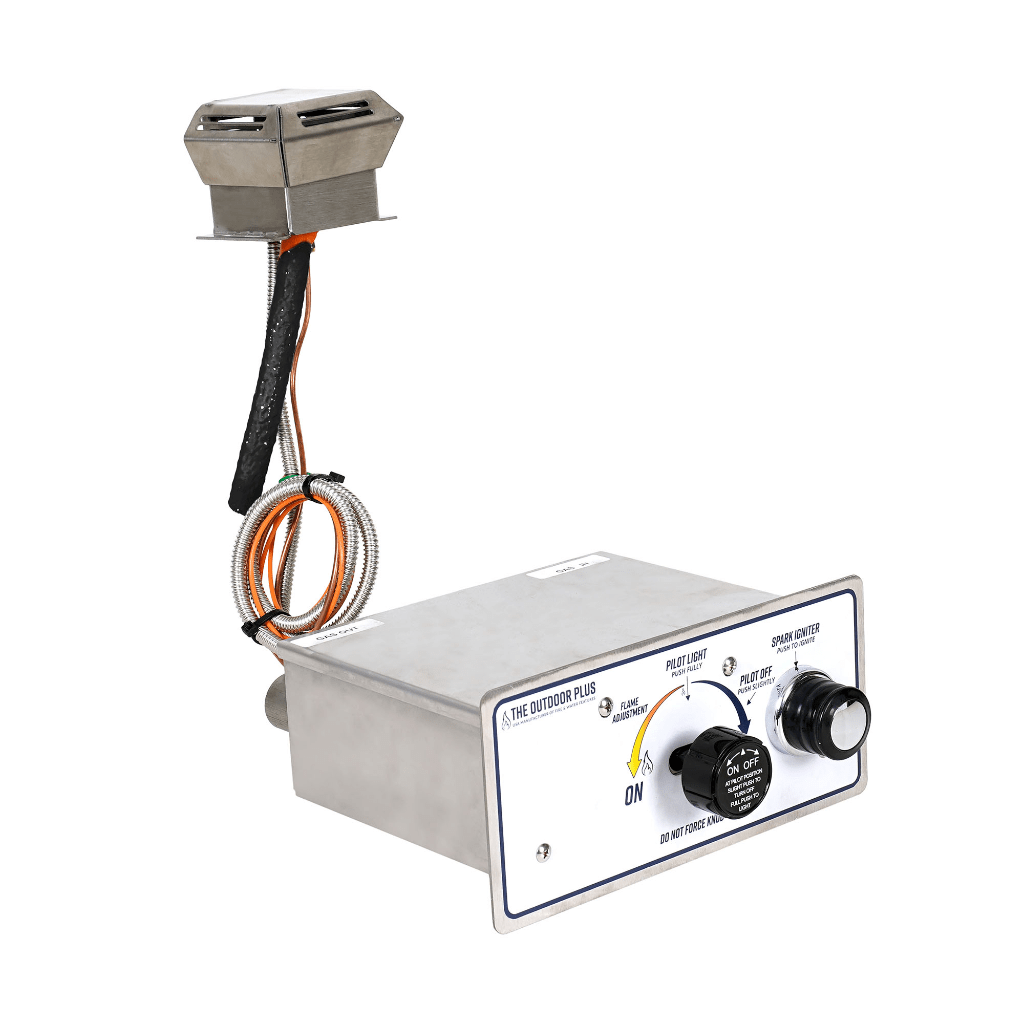

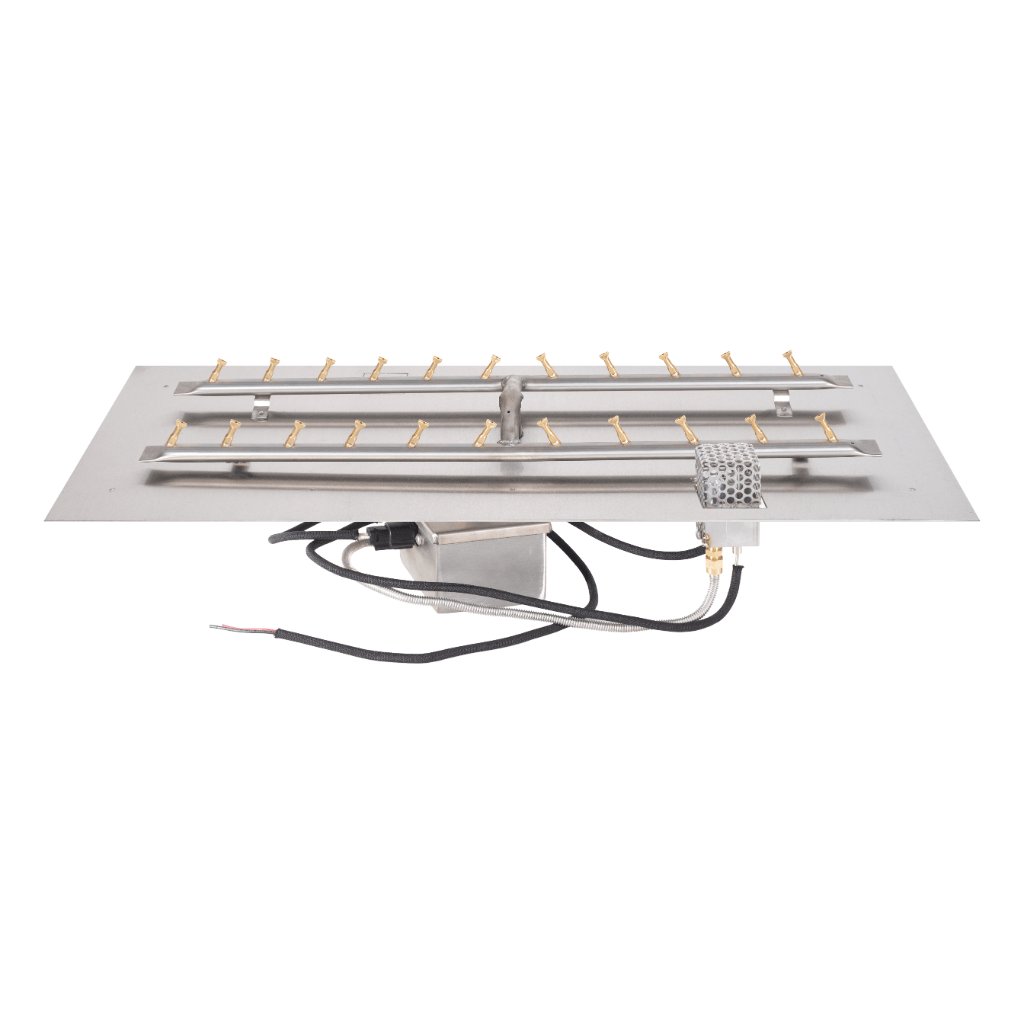

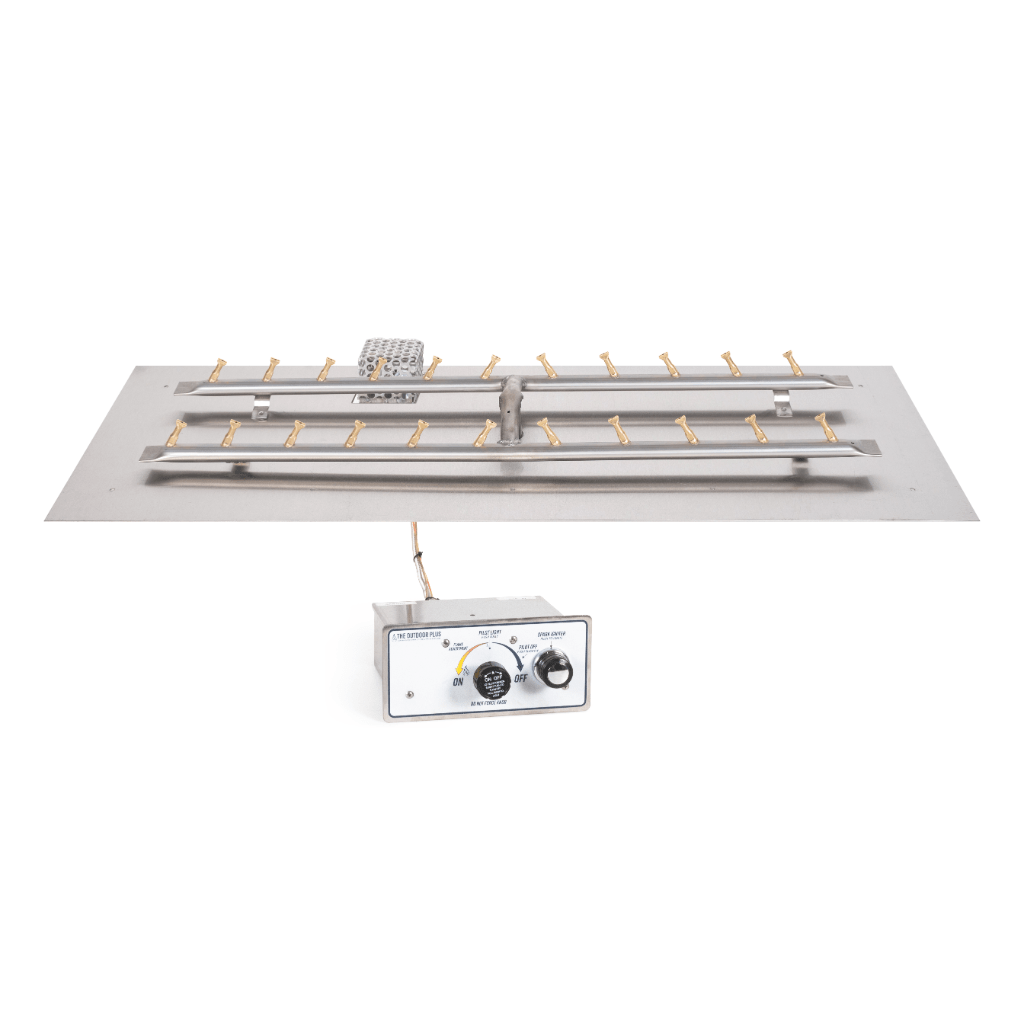

- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Size | Burner Size | Inlet | BTU |
| 24”x12” Pan Kit | 24" x 12" | 18” x 6” | 1/2" | 85,000 |
| 36”x12” Pan Kit | 36" x 12" | 30” x 6” | 1/2" | 110,000 |
| 48”x12” Pan Kit | 48" x 12" | 42” x 6” | 3/4" | 160,000 |
| 60”x12” Pan Kit | 60" x 12" | 48” x 6” | 3/4" | 205,000 |
| 72”x12” Pan Kit | 72" x 12" | 60” x 6”(M) | 3/4" |
255,000 |
| 84”x12” Pan Kit | 84" x 12" | 72” x 6”(M) | 3/4" | 300,000 |
| 96”x12” Pan Kit | 96" x 12" | 84” x 6”(M) | 3/4" | 350,000 |
Legend: M = Uses manifold, Adds 5″ in height
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
