Description

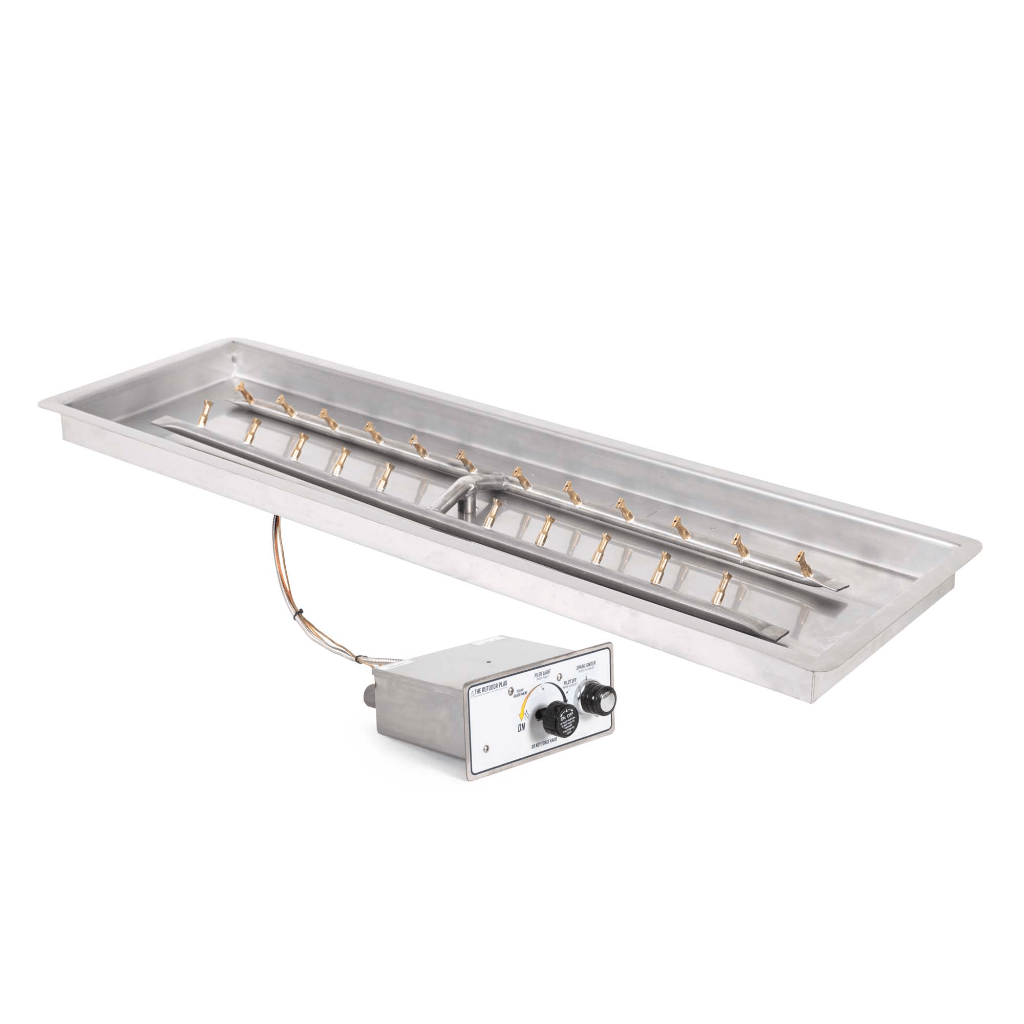

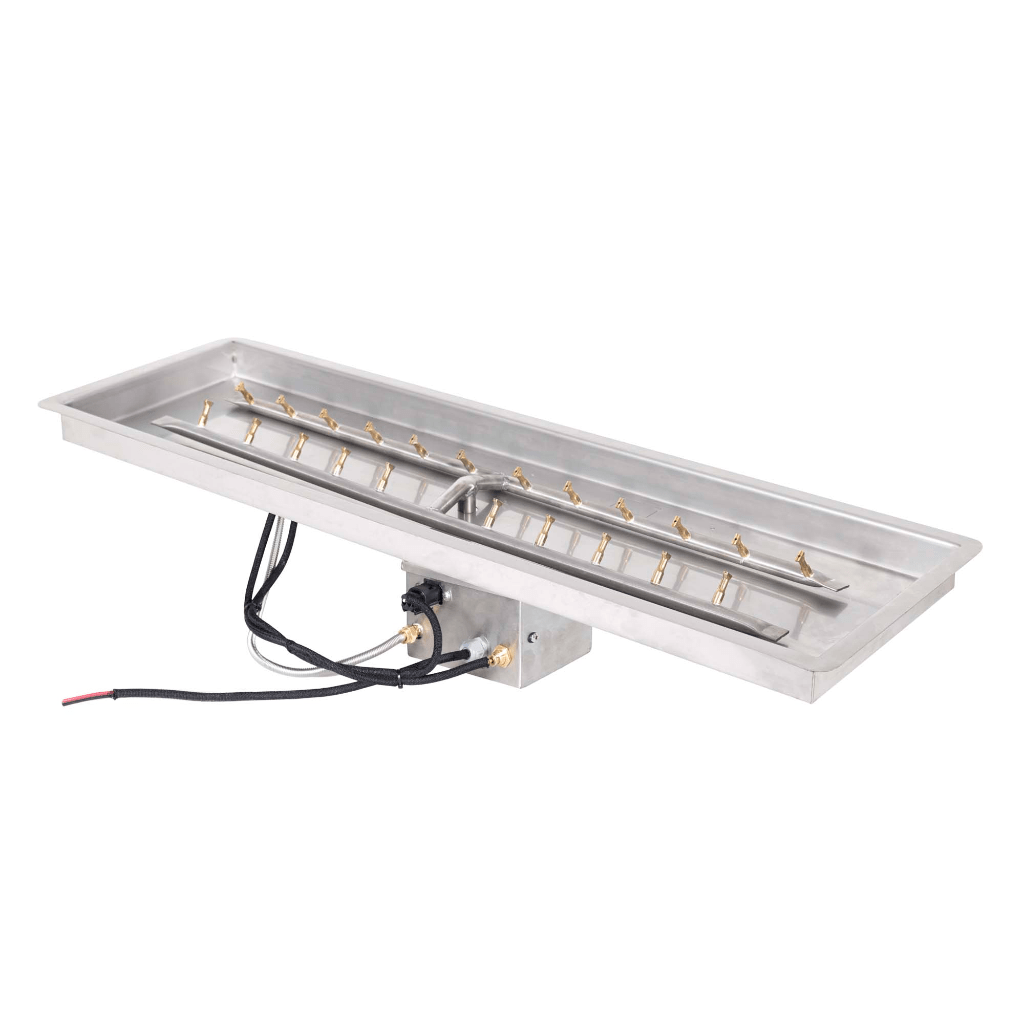

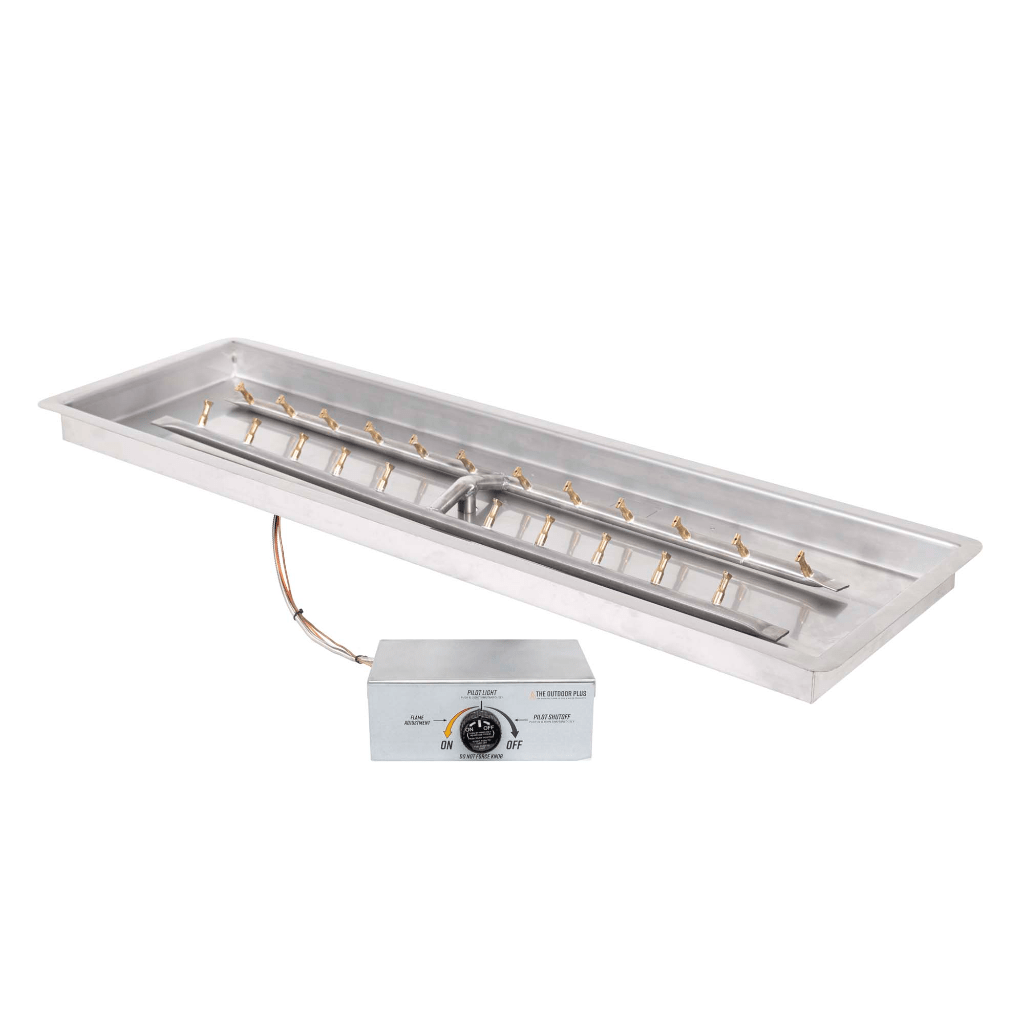

Enhance your fire pit with The Outdoor Plus's Rectangular Drop-in Pan and 'H' Bullet Burner, a pinnacle of innovation in fire feature design. This burner effortlessly replaces standard ones, offering a taller, fuller flame while using 30% less gas—a boon for both aesthetics and your wallet.
Crafted from high-grade Stainless Steel, this burner stands the test of time, resisting rust and corrosion. The patented Bullet Burner Orifices ensure optimal gas flow, creating a superior blaze without the need for an extra air mixer, suitable for both natural gas and liquid propane applications.
Expect the same flame height while using less gas or crank it up for a dramatic display, taller than any standard burner. The raised and tapered inlet prevents water entry, with multiple drain holes ensuring a hassle-free experience. With seven sizes and five ignition types, find the perfect fit for your fire pit or bowl.
Benefits:
- Fuel-efficient design for cost savings
- Taller and fuller flames with less gas consumption
- Resistant to rust and corrosion, ensuring durability
- Patented Bullet Burner Orifices for superior blaze
- Versatility for use with both natural gas and liquid propane
- Multiple sizes and ignition types for customization
- Hassle-free water drainage with raised inlet and drain holes
Features:
- Fuel-efficient
- Pan Lip: 1 Inch
- Pan Height: 2 Inch
- Tall and Full Flame
- More flame, less gas
- Pan Shape: Rectangle

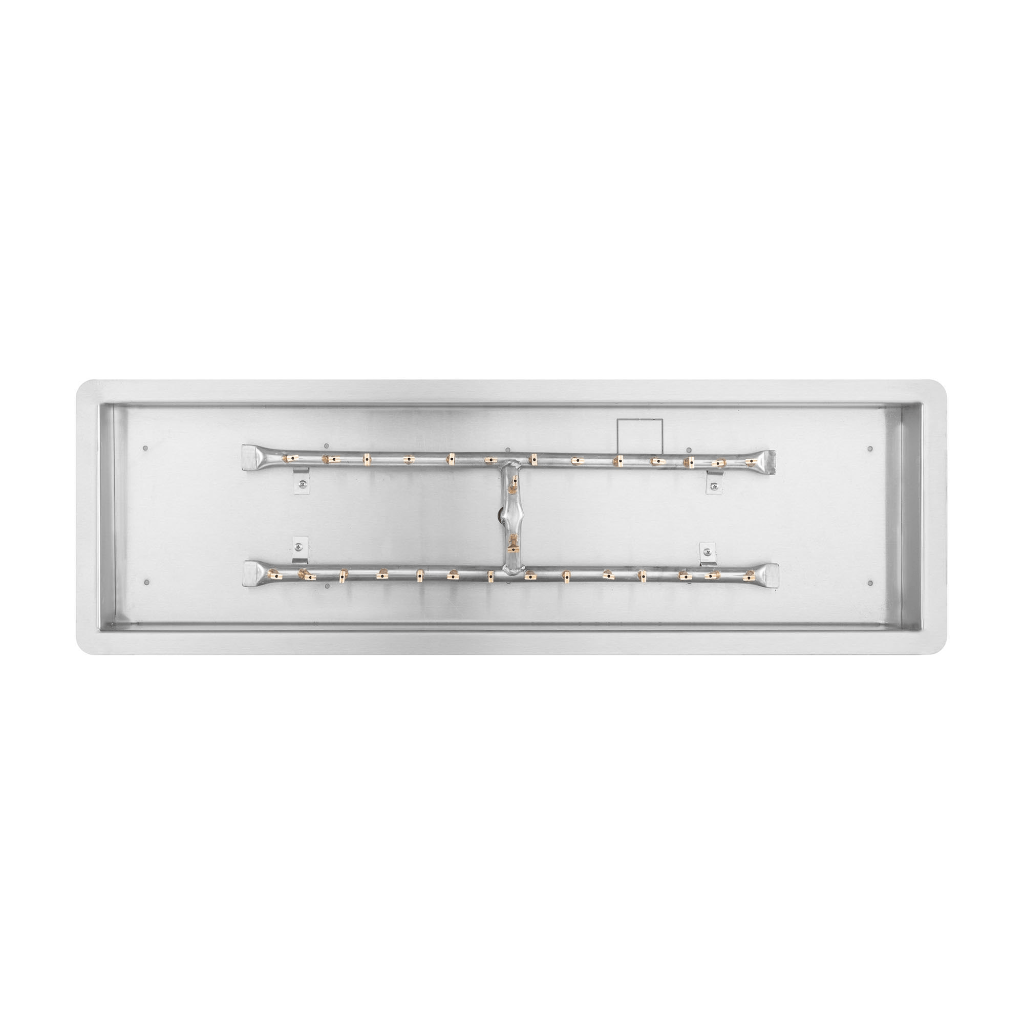

- Burner Shape: Linear H
- Limited lifetime warranty
- Pan Material: Aluminum
- Burner Material: Stainless Steel
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 85,000 BTU – 350,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
- Burner Sizes: 18, 24, 42, 48, 60, 72 and 84 inches
- 110V Ignition System Kits use a 3-prong grounded plug
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade stainless steel, providing you with a long-lasting burner

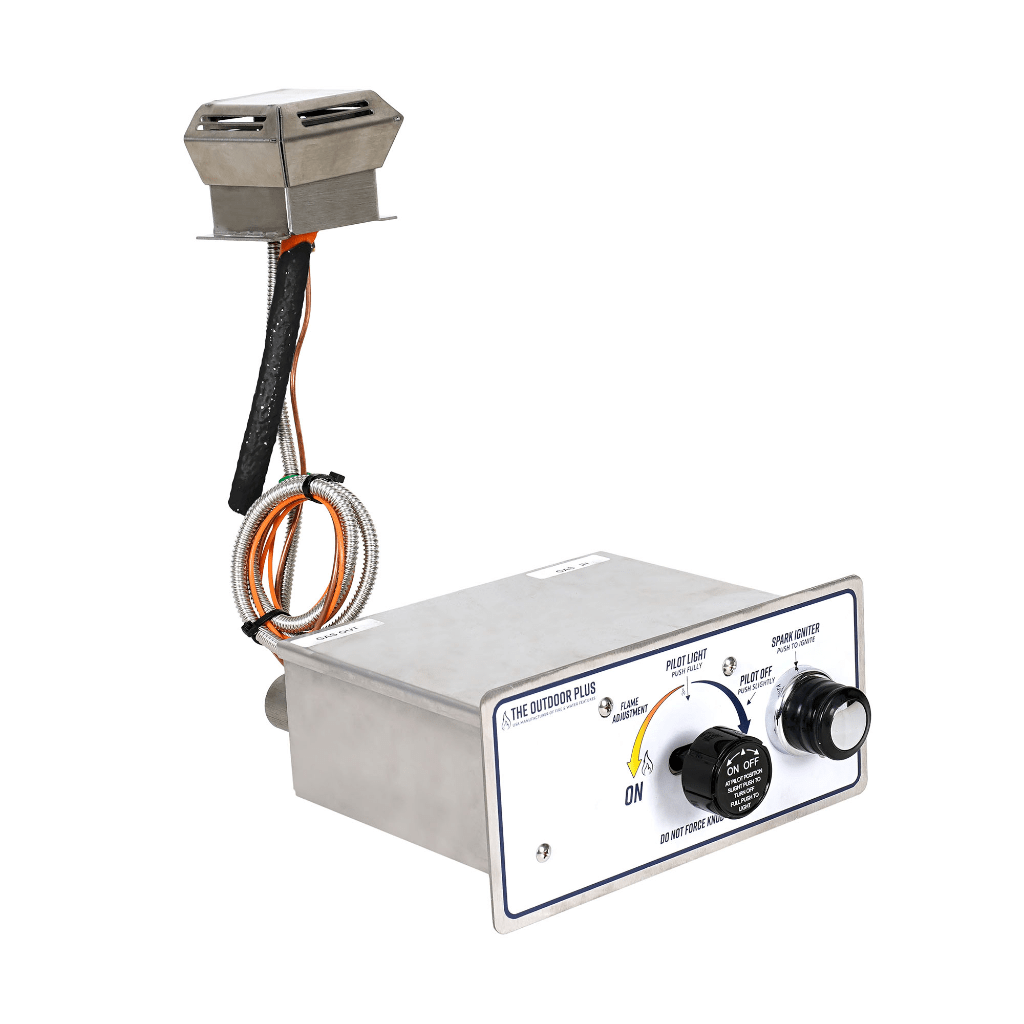

- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Kit Size | Burner Size | Inlet | BTU |
| 24”x12” Pan Kit | 24" x 12" | 18” x 6” | 1/2" | 85,000 |
| 36”x12” Pan Kit | 36" x 12" | 24” x 6” | 1/2" | 110,000 |
| 48”x12” Pan Kit | 48" x 12" | 42” x 6” | 1/2" | 160,000 |
| 60”x12” Pan Kit | 60" x 12" | 48” x 6” | 1/2" | 205,000 |
| 72”x12” Pan Kit | 72" x 12" | 60” x 6” (M) | 3/4" |
255,000 |
| 84”x12” Pan Kit | 84" x 12" | 72” x 6” (M) | 3/4" | 300,000 |
| 96”x12” Pan Kit | 96" x 12" | 84” x 6” (M) | 3/4" | 350,000 |
Legend: M = Uses manifold, Adds 5″ in height.
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
