Description

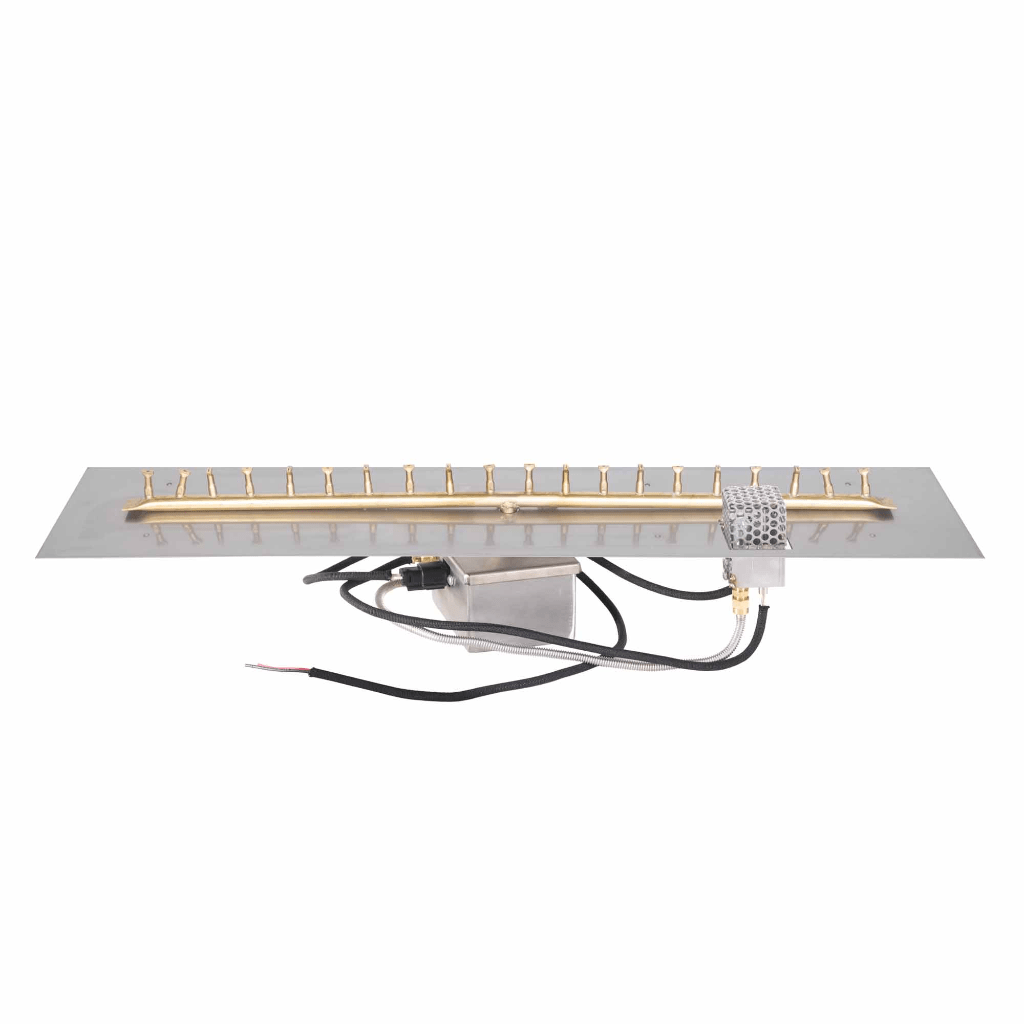

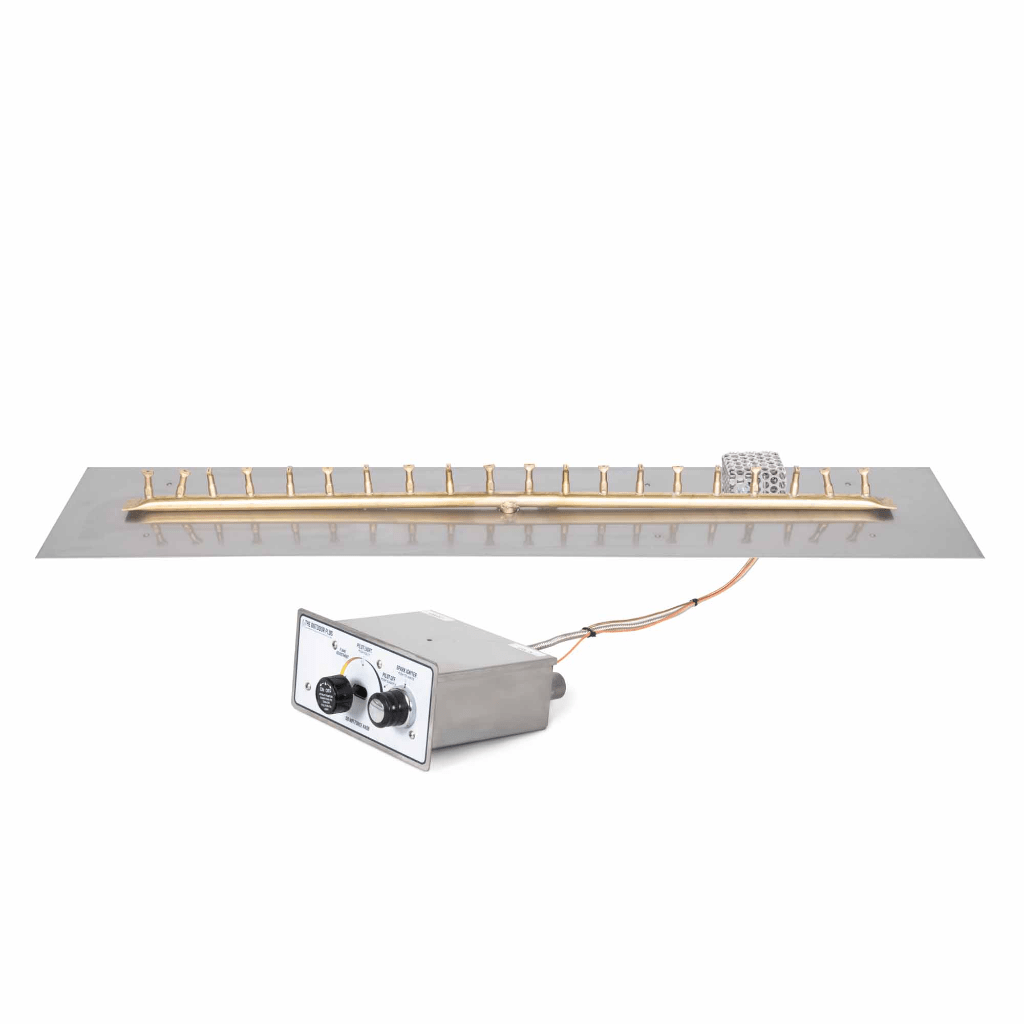

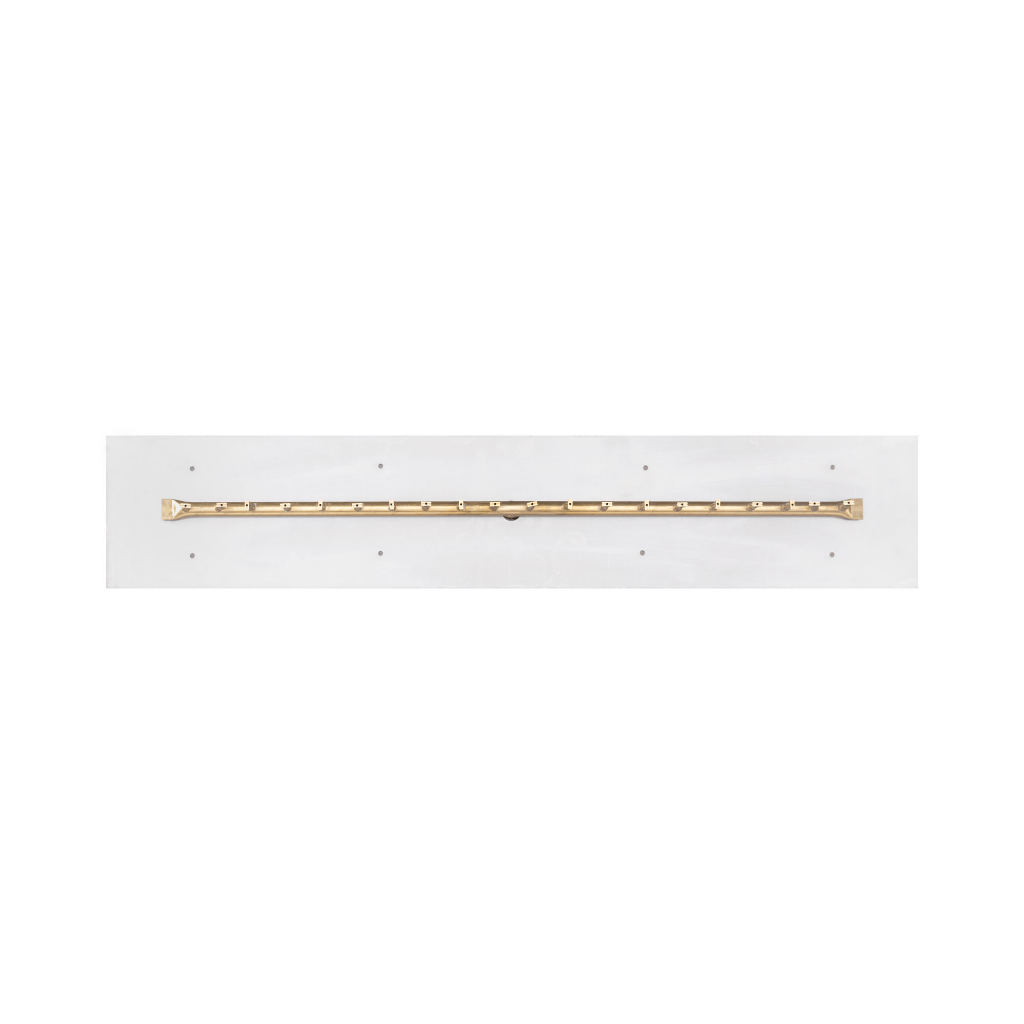

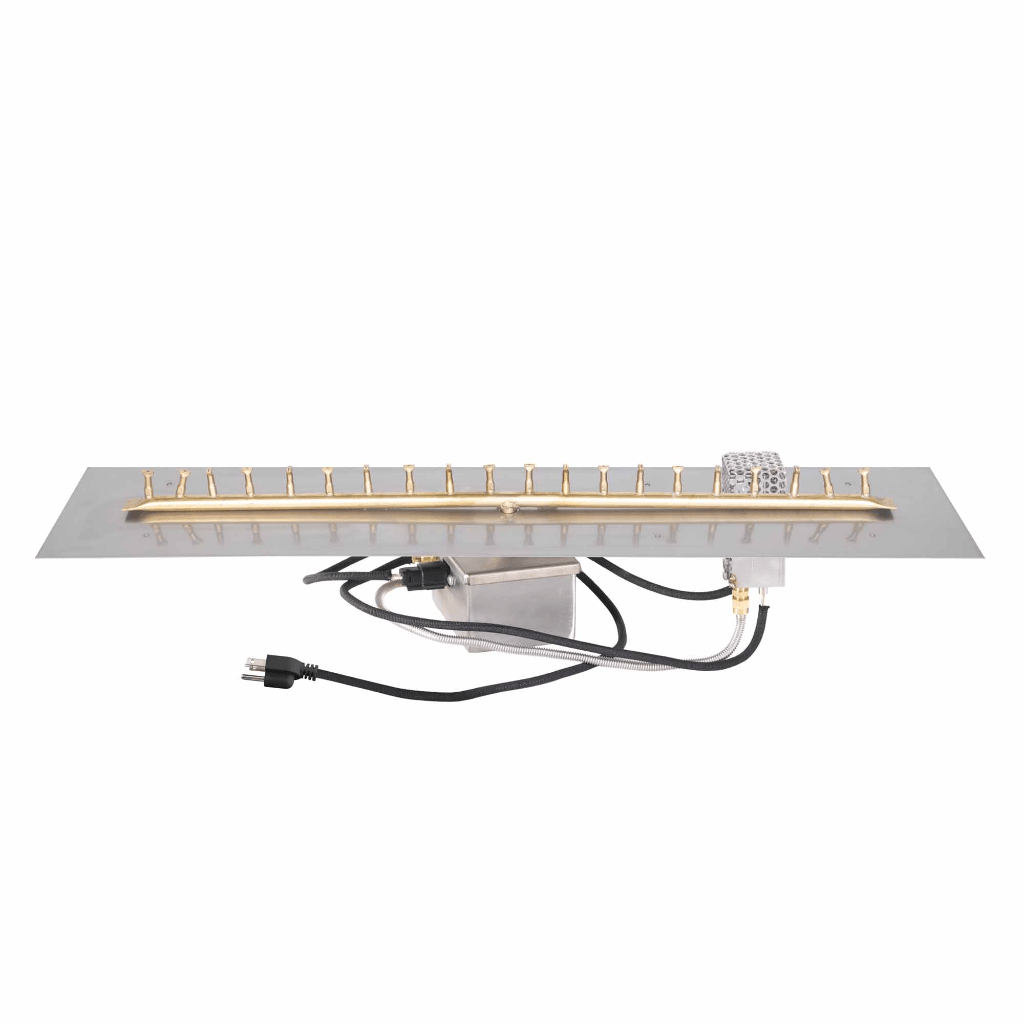

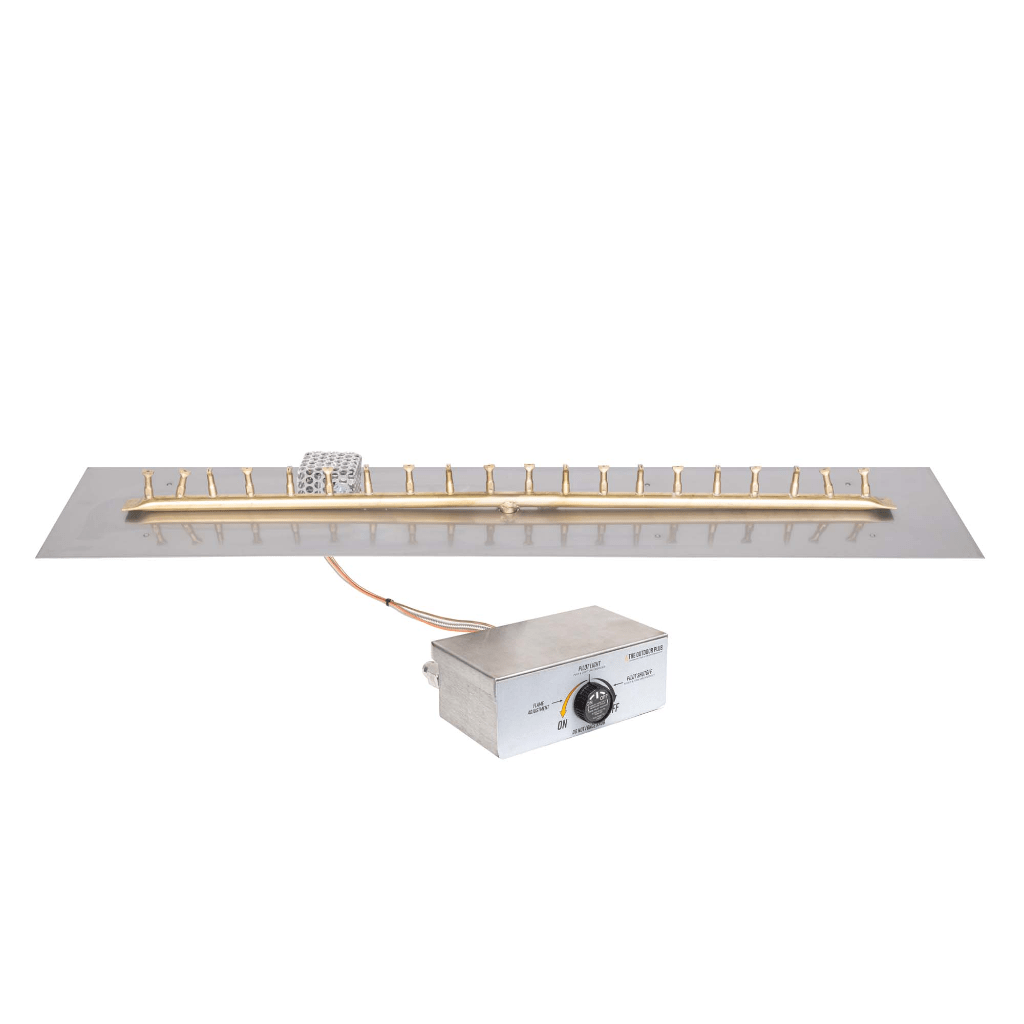

Elevate your outdoor ambiance with The Outdoor Plus's Rectangular Flat Pan and Brass Linear Bullet Burner. This isn't just a burner; it's a masterpiece designed to redefine your fire pit experience. Crafted with precision and innovation, this burner brings not only warmth but also an aesthetic touch to your outdoor space.
The Linear Bullet Burner effortlessly replaces standard burners, offering a taller and fuller flame while being 30% more efficient than typical counterparts. Made from high-grade brass, this burner boasts longevity and resilience against rust and corrosion. It's not just a purchase; it's an investment in years of cozy evenings around the fire.
Benefits:
- Fuel-efficient design for cost savings
- Achieve a tall and full flame for a captivating atmosphere
- More flame, less gas consumption
- Corrosion-resistant and durable brass construction
- Proudly manufactured in the USA
- Patented Flat Flame Technology for a unique blaze
- Suitable for both natural gas and liquid propane applications
Features:
- Fuel-efficient
- Tall and Full Flame
- More flame, less gas
- Burner Shape: Linear
- Pan Shape: Rectangle
- Burner Material: Brass
- Pan Material: Aluminum
- Limited lifetime warranty
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 40,000 BTU – 170,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
- Burner Sizes: 18, 30, 42, 48, 60, 72 and 84 inches
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade brass, Providing you with a long-lasting burner
- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Kit Size | Burner Size | Inlet | BTU |
| 24”x8” Pan Kit | 24" (L) x 8" (W) | 18" | 1/2" | 40,000 |
| 36”x8” Pan Kit | 36" (L) x 8" (W) | 30" | 1/2" | 60,000 |
| 48”x8” Pan Kit | 48" (L) x 8" (W) | 42" | 1/2" | 80,000 |
| 60”x8” Pan Kit | 60" (L) x 8" (W) | 48" | 1/2" | 100,000 |
| 72”x8” Pan Kit | 72" (L) x 8" (W) | 60" |
1/2" |
120,000 |
| 84”x8” Pan Kit | 84" (L) x 8" (W) | 72" | 3/4" | 140,000 |
| 96”x8” Pan Kit | 96" (L) x 8" (W) | 84" | 3/4" | 170,000 |
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
About The Manufacturer:
With over 25 years of professional experience, the Outdoor Plus is a leader in designing and building fire pits, fire tables, and unique one of a kind fire and water displays. Located in Southern California, many of their designs are inspired by the California beaches and cliffs. All TOP Fires fire pits, burners, and burner pans are individually made and proudly manufactured in the U.S.A. Their mission is to help homeowners make their vision of the perfect backyard entertainment experience a reality. The Outdoor Plus prides itself in being able to create any custom fire pit project you can think up. With state-of-the-art CNC equipment and years of experience, anything The Outdoor Plus creates is cut perfectly to spec, making for endless custom fire pit possibilities.
