Description

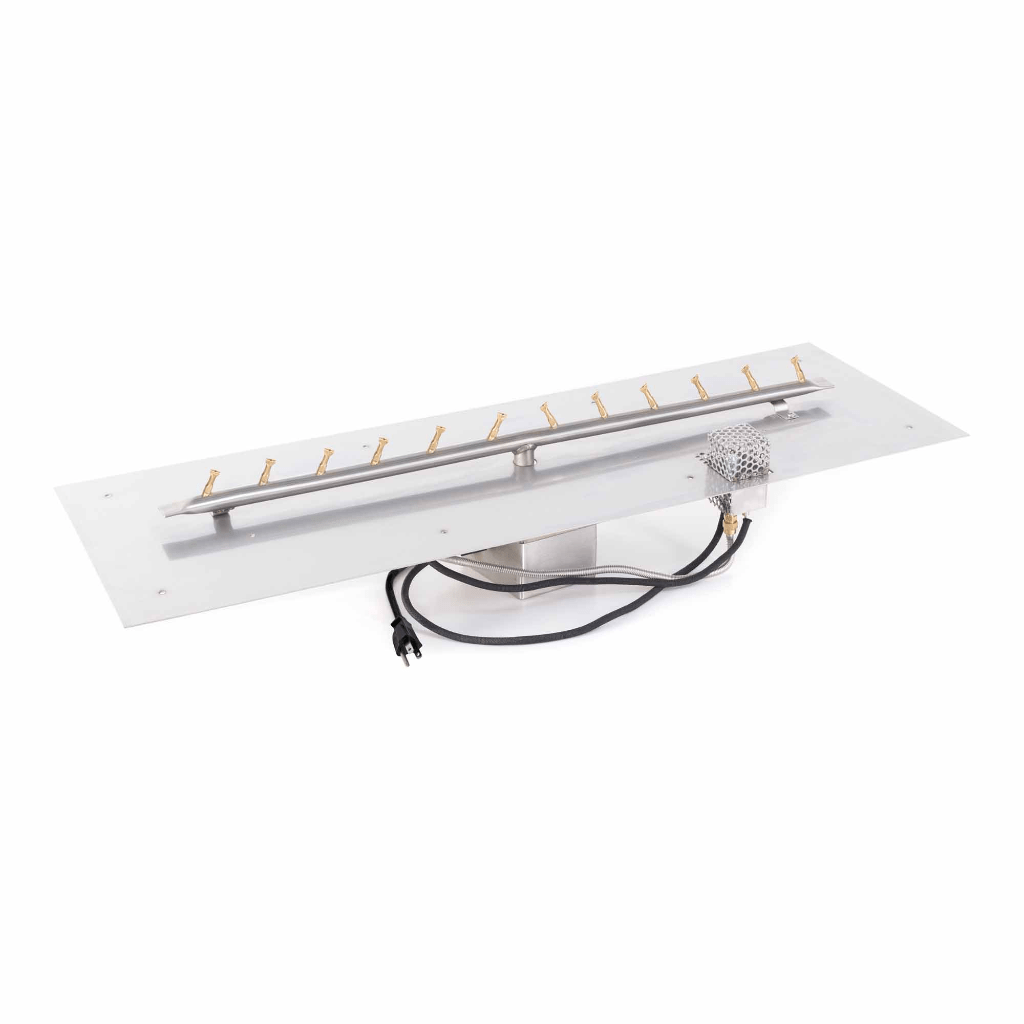

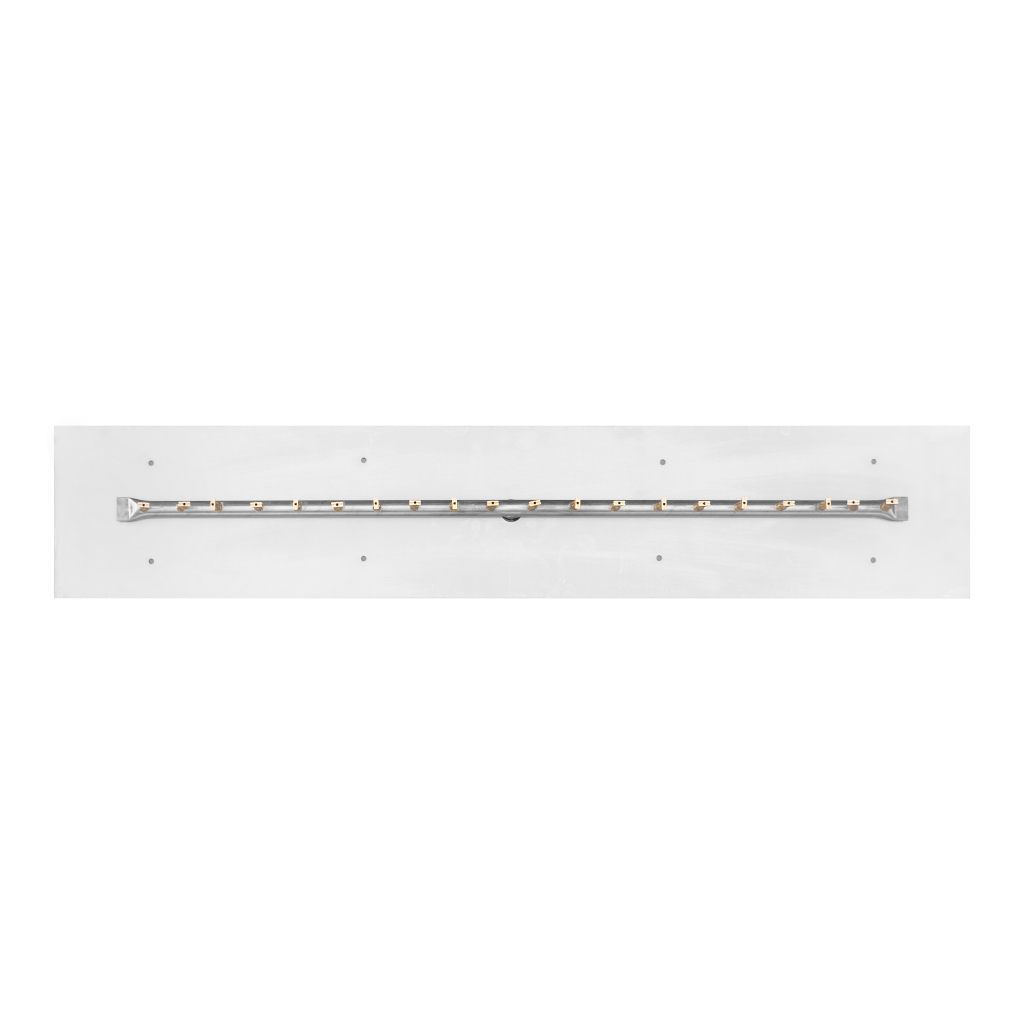

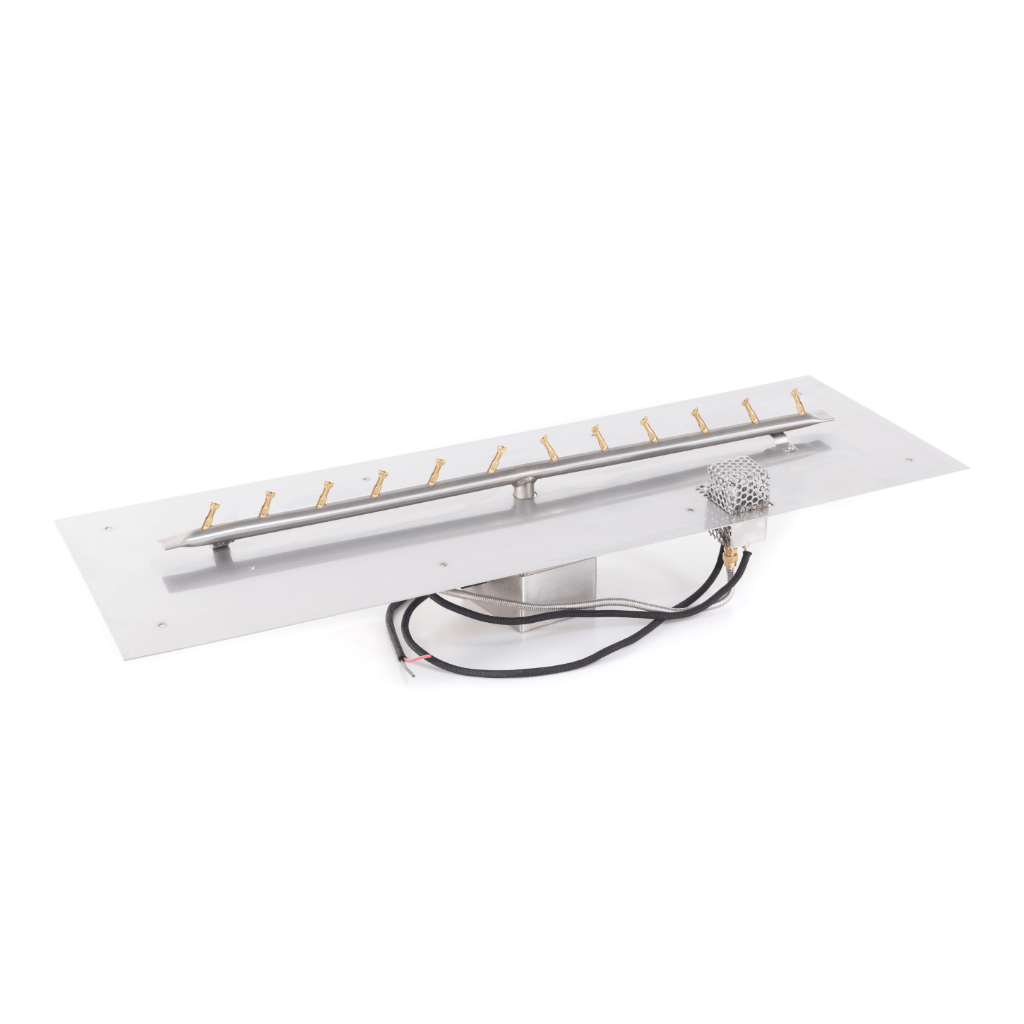

Enhance your outdoor ambiance with The Outdoor Plus's Rectangular Flat Pan and Stainless Steel Linear Bullet Burner. This premium addition ensures a fuller, taller flame, surpassing typical burners by consuming 30% less gas. Crafted with high-grade Stainless Steel, it guarantees durability, resisting rust and corrosion for an extended lifespan.
The unique Bullet Burner Orifices efficiently compress gas flow, incorporating oxygen for a superior blaze. Its patented design eliminates the need for an extra air mixer when using liquid propane, suitable for both natural gas and propane applications. Experience consistent flame height with reduced gas consumption or amplify it for a dramatic display.
The raised and tapered inlet prevents water from entering the gas line, featuring multiple drain holes to release any water that may intrude through flame holes. Available in seven sizes from 18 to 84 inches and five ignition types, this Linear Bullet Burner ensures a perfect fit for your fire pit or bowl. Elevate your firepit experience with our Flat Pan and Patented Bullet Burner, backed by a limited lifetime warranty.
Benefits:
- Fuel-efficient design
- Achieve a tall and full flame
- Uses less gas for a more extended burn time
- Constructed with corrosion-resistant 304 Stainless Steel
- Proudly manufactured in the USA
- Available in seven sizes for versatile applications
- Eliminates the need for an additional LP air mixer
Features:
- Fuel-efficient
- Tall and Full Flame
- More flame, less gas
- Burner Shape: Linear
- Pan Shape: Rectangle
- Limited lifetime warranty
- Pan Material: 304 Stainless Steel
- Burner Material: 304 Stainless Steel
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 40,000 BTU – 180,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 24, 36, 48, 60, 72, 84 and 96 inches
- Burner Sizes: 18, 30, 42, 48, 60, 72 and 84 inches
- 110V Ignition System Kits use a 3-prong grounded plug
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade Stainless Steel, Providing you with a long-lasting burner

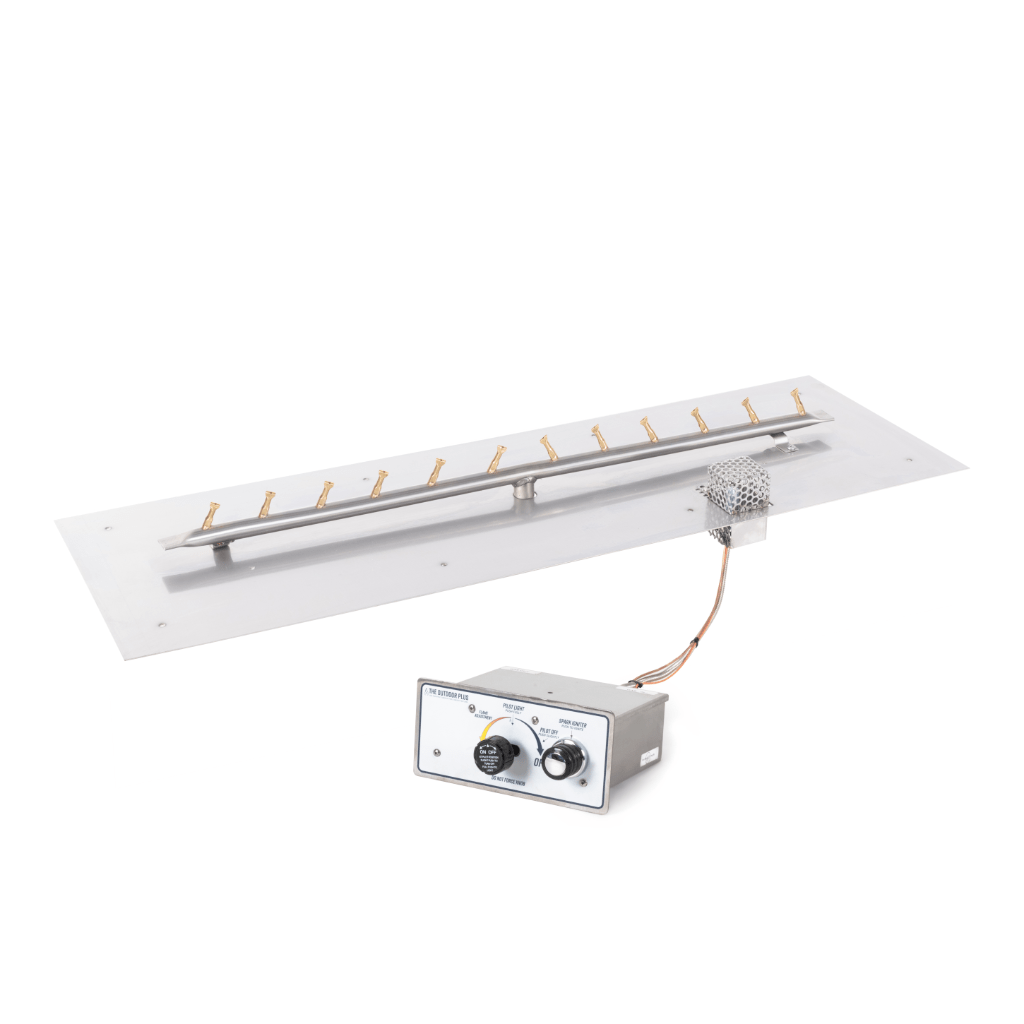

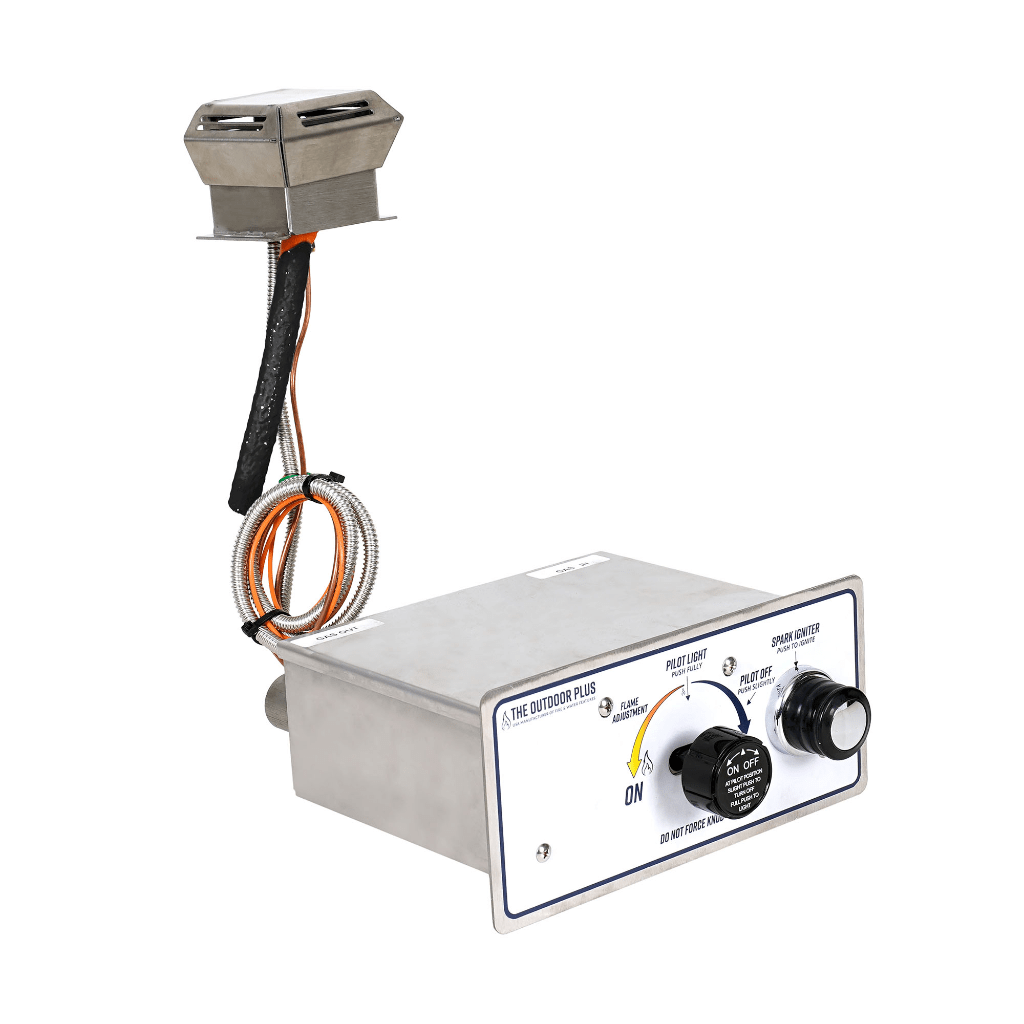

- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Kit Size | Burner Size | Inlet | BTU |
| 24”x8” Pan Kit | 24" x 8" | 18" | 1/2" | 40,000 |
| 36”x8” Pan Kit | 36" x 8" | 30" | 1/2" | 60,000 |
| 48”x8” Pan Kit | 48" x 8" | 42" | 1/2" | 85,000 |
| 60”x8” Pan Kit | 60" x 8" | 48" | 3/4" | 110,000 |
| 72”x8” Pan Kit | 72" x 8" | 60" |
3/4" |
135,000 |
| 84”x8” Pan Kit | 84" x 8" | 72" | 3/4" | 160,000 |
| 96”x8” Pan Kit | 96" x 8" | 84" | 3/4" | 180,000 |
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
About The Manufacturer:
With over 25 years of professional experience, the Outdoor Plus is a leader in designing and building fire pits, fire tables, and unique one of a kind fire and water displays. Located in Southern California, many of their designs are inspired by the California beaches and cliffs. All TOP Fires fire pits, burners, and burner pans are individually made and proudly manufactured in the U.S.A. Their mission is to help homeowners make their vision of the perfect backyard entertainment experience a reality. The Outdoor Plus prides itself in being able to create any custom fire pit project you can think up. With state-of-the-art CNC equipment and years of experience, anything The Outdoor Plus creates is cut perfectly to spec, making for endless custom fire pit possibilities.
