Description

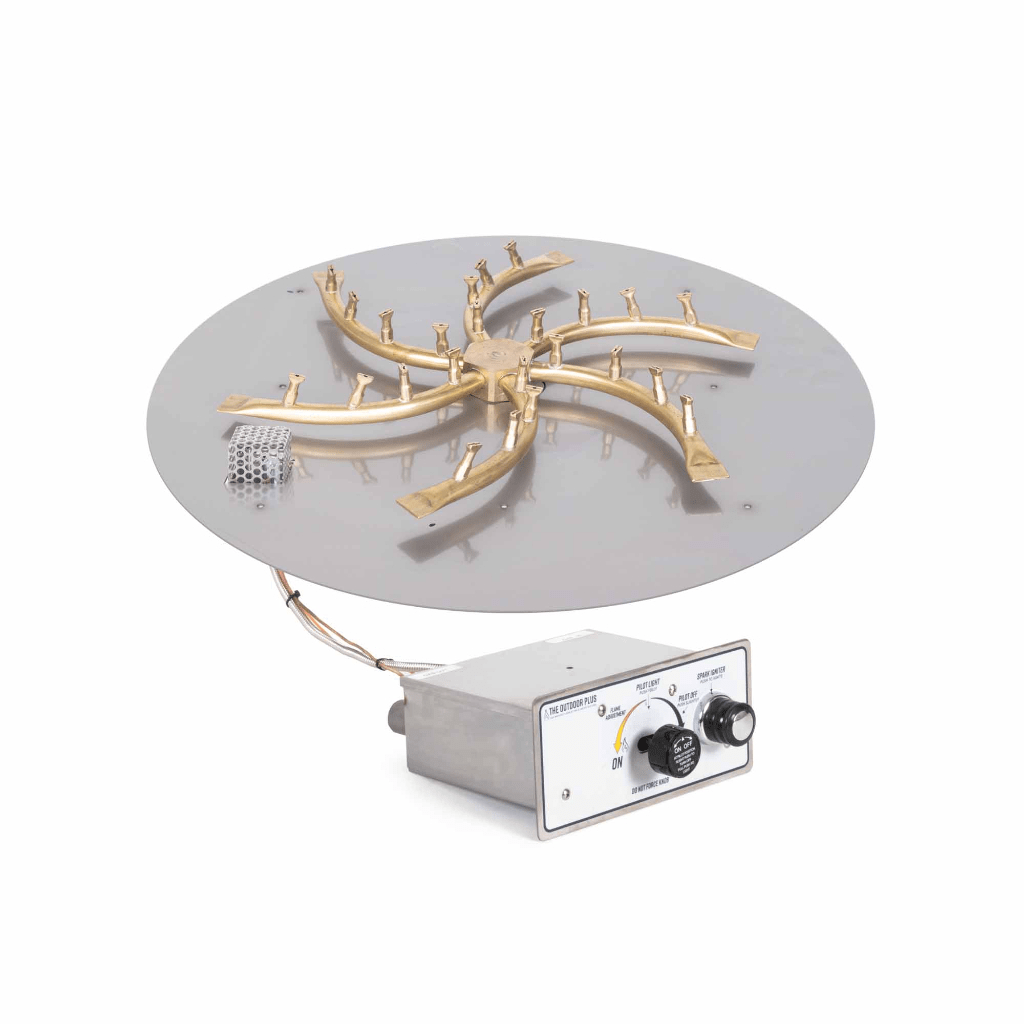

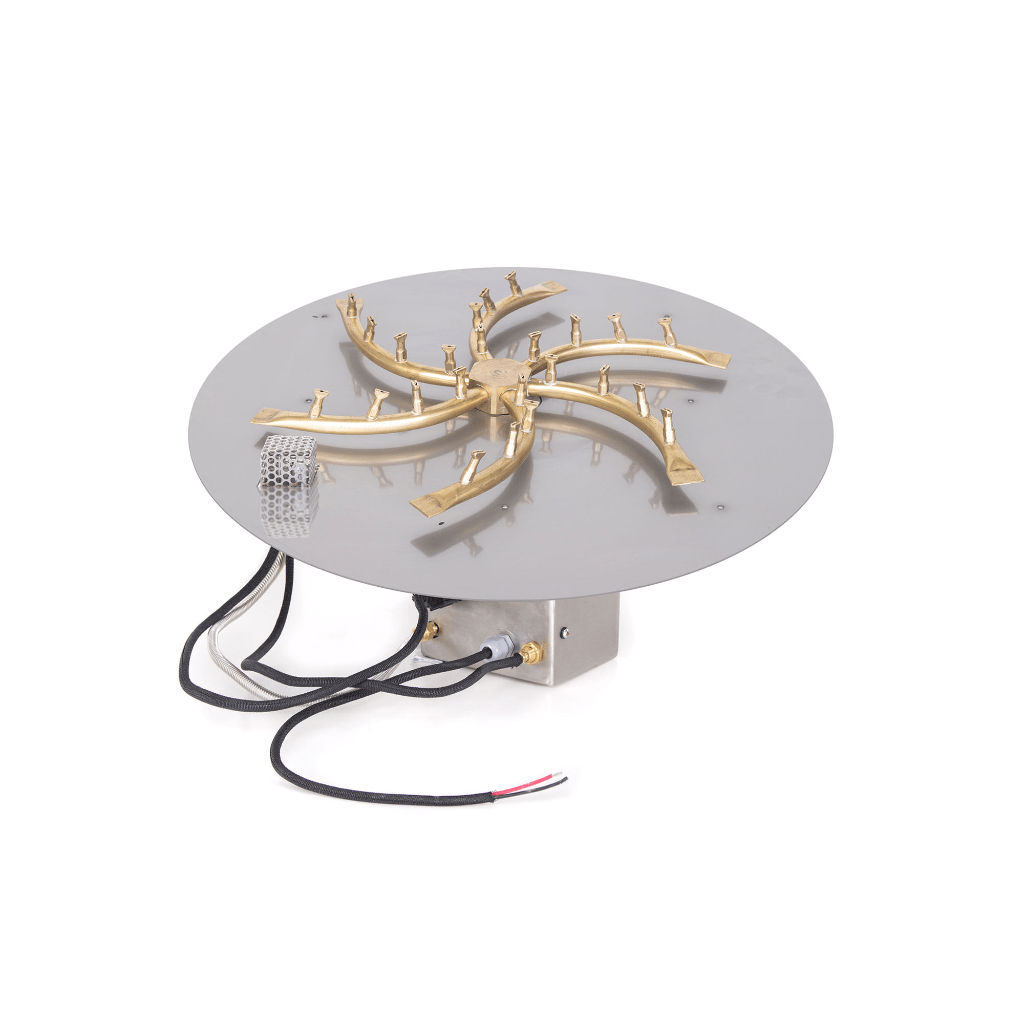

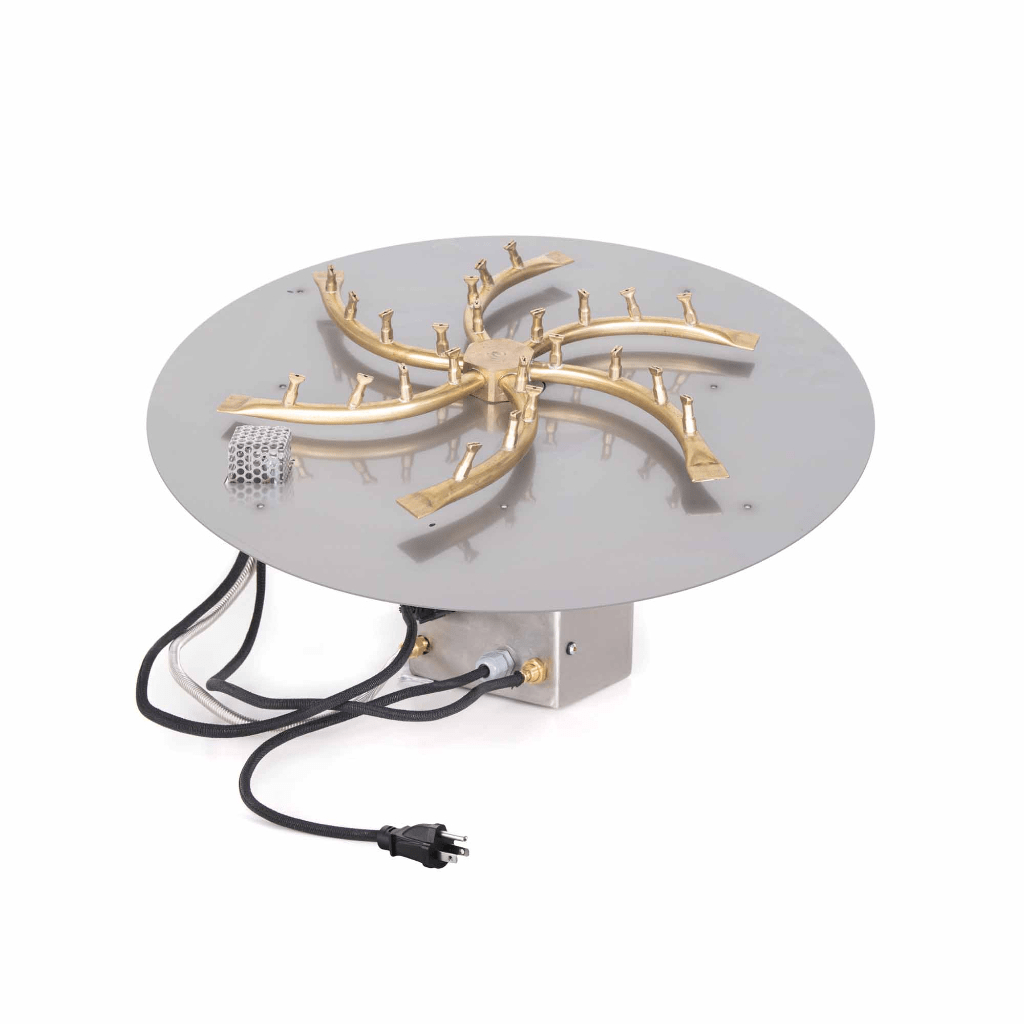

Enhance your outdoor ambiance with the Outdoor Plus Round Flat Pan featuring the innovative Triple 'S' Bullet Burner. This exceptional addition to your fire pit or bowl promises a heightened flame that not only captivates but also conserves fuel, thanks to its state-of-the-art design. Crafted with precision using high-grade Brass, this burner outlasts standard alternatives, ensuring longevity and durability for countless evenings of warmth and beauty.

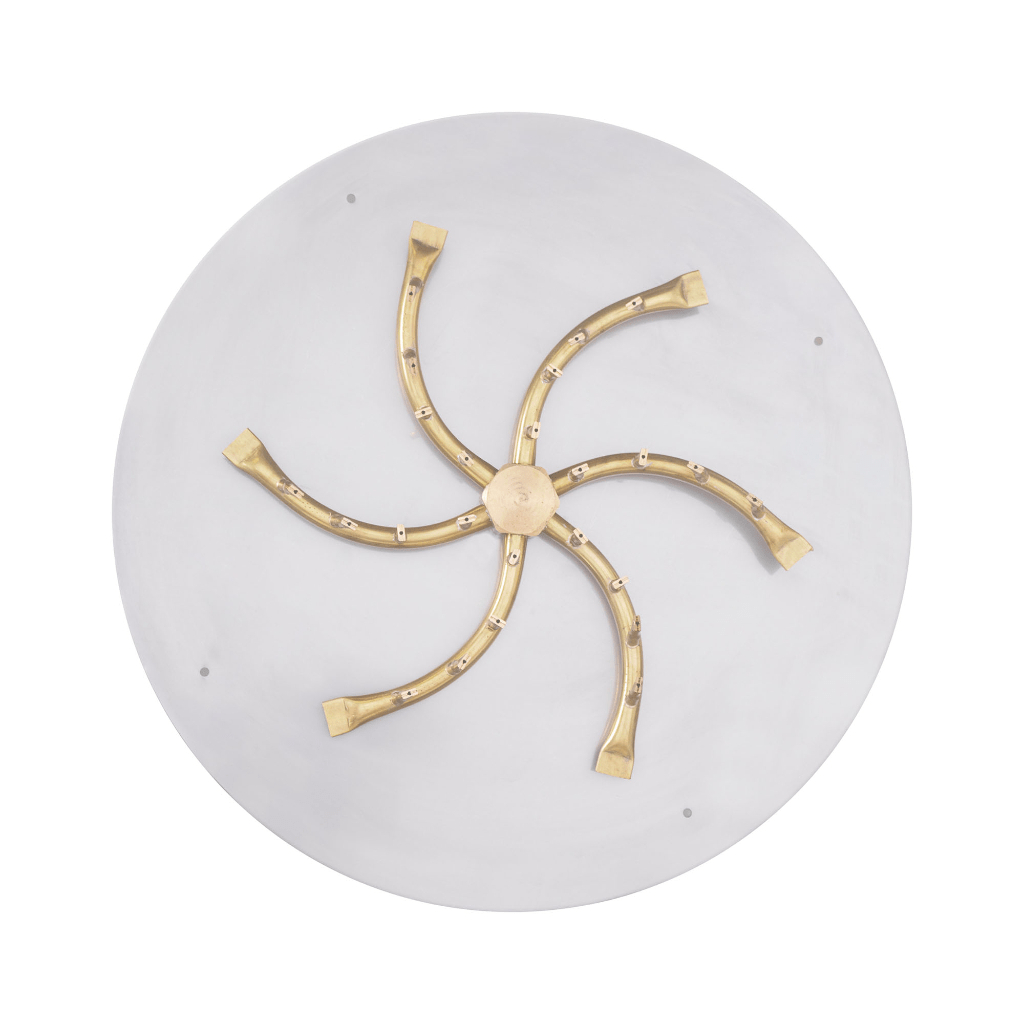

The Triple 'S' Bullet Burner's hexagonal center hub and curved arms distribute gas evenly, creating a visually striking and efficient flame. Compressed gas flow and oxygen integration through unique bullet burner orifices result in a superior blaze. The patented design eliminates the need for an extra air mixer when using liquid propane, making it versatile for both natural gas and propane applications. As a testament to its resilience, the burner's raised and tapered inlet prevents water from entering the gas line, and multiple drain holes release any water that may enter through the flame holes.
Choose from 7 different sizes ranging from 8 to 48 inches and five ignition types to personalize your fire pit experience. Whether you prefer a subtle glow or a dramatic display, the Outdoor Plus Round Flat Pan and Triple 'S' Bullet Burner deliver, promising the same flame height with less gas usage.
Benefits:
- Fuel-efficient design saves you money by consuming 30% less gas.
- The high-grade Brass construction ensures a long-lasting burner that won't rust or corrode.
- Hexagonal center hub and curved arms provide even gas distribution for a fuller flame.
- Patented Bullet Burner eliminates the need for an additional air mixer with liquid propane use.
- Suitable for both natural gas and liquid propane applications, offering versatility.
- Seven sizes and five ignition types allow customization for any fire pit or bowl.
- Durable and efficient, offering a limited lifetime warranty for peace of mind.
Features:
- Fuel-efficient
- Shape: Round
- Tall and Full Flame
- More flame, less gas
- Burner Material: Brass
- Limited lifetime warranty
- Pan Material: Aluminum
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 50,000 BTU – 385,000 BTU
- Burners holes are individually hand-drilled
- Pan Sizes: 18, 24, 30, 36, 48 and 60 inches
- Burner Sizes: 8, 12, 18, 24, 30, 36 and 48 inches
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Suitable for either natural gas or liquid propane applications
- Manufactured with high-grade brass, Providing you with a long-lasting burner
- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Size | Burner Size | Inlet | BTU |
| 18” Pan Kit - A |
18" | 8" | 1/2" | 50,000 |
| 18” Pan Kit - B |
18" | 12" | 1/2" | 75,000 |
| 24” Pan Kit |
24" | 18" | 1/2" | 110,000 |
| 30” Pan Kit |
30" | 24" | 1/2" | 145,000 |
| 36” Pan Kit |
36" | 30" | 3/4" | 180,000 |
| 48” Pan Kit |
48" | 36" | 3/4" | 220,000 |
| 60” Pan Kit |
60" | 48" | 3/4" | 385,000 |
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
About The Manufacturer:
With over 25 years of professional experience, the Outdoor Plus is a leader in designing and building fire pits, fire tables, and unique one of a kind fire and water displays. Located in Southern California, many of their designs are inspired by the California beaches and cliffs. All TOP Fires fire pits, burners, and burner pans are individually made and proudly manufactured in the U.S.A. Their mission is to help homeowners make their vision of the perfect backyard entertainment experience a reality. The Outdoor Plus prides itself in being able to create any custom fire pit project you can think up. With state-of-the-art CNC equipment and years of experience, anything The Outdoor Plus creates is cut perfectly to spec, making for endless custom fire pit possibilities.
