Description

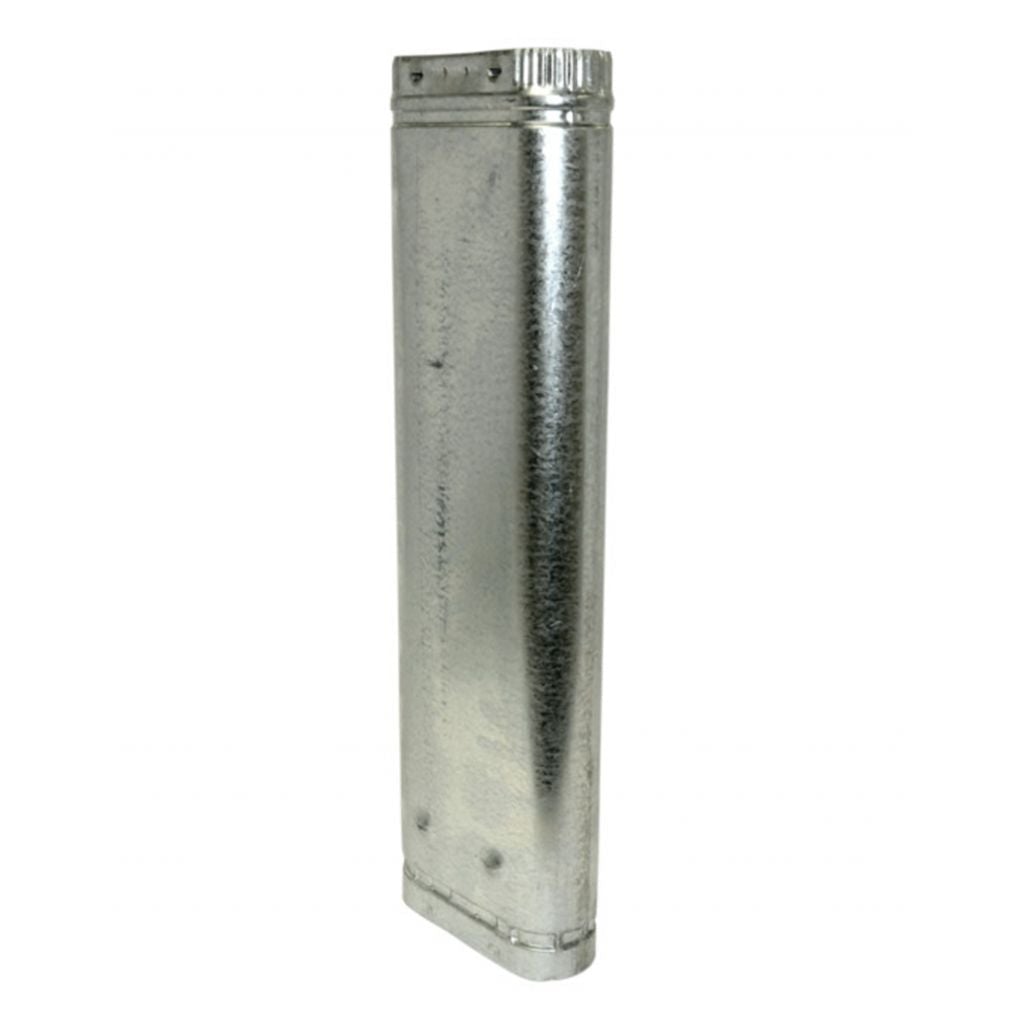

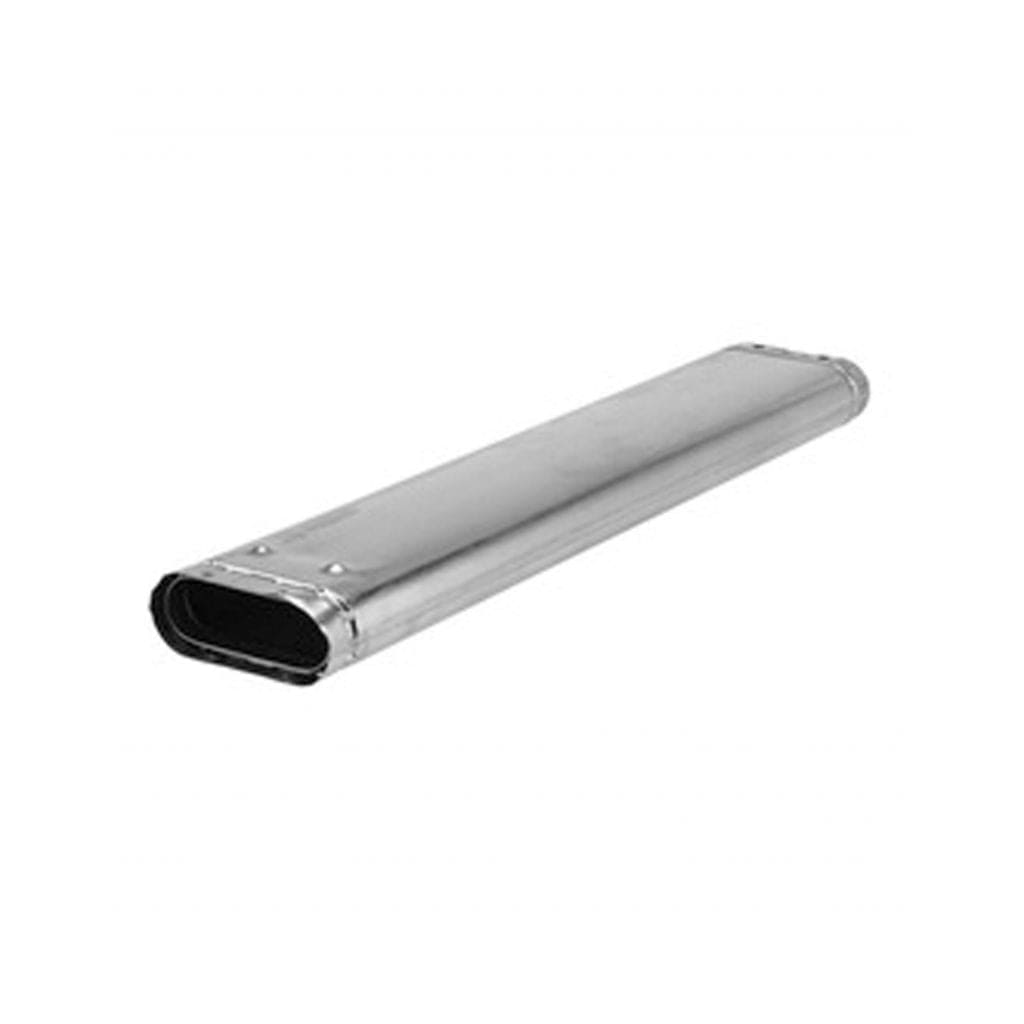

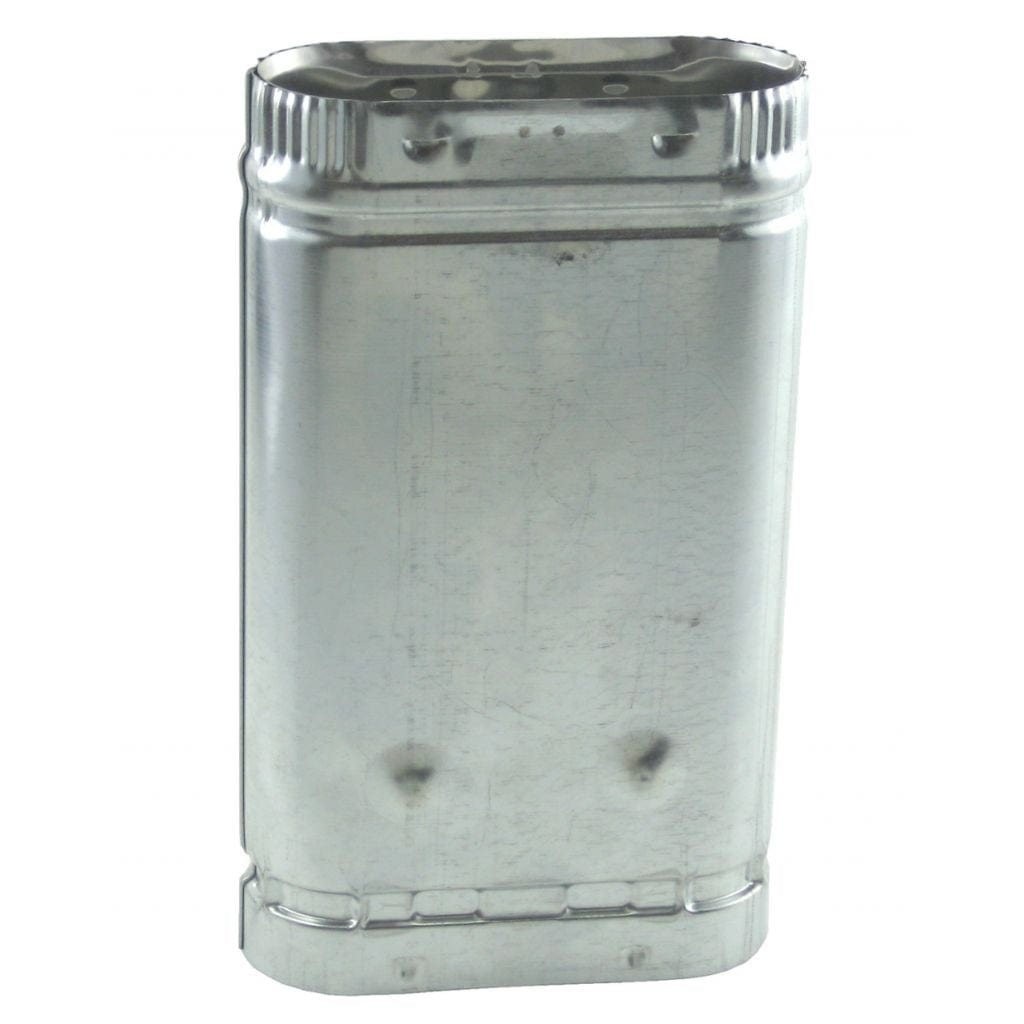

Elevate your home or commercial space with the Selkirk Oval Type B Gas Vent, seamlessly combining functionality and style. Engineered with a 4"/5"/6" inner diameter and pipe lengths ranging from 6" to 60", this gas vent system not only provides superior venting performance but also exudes a sleek and compact oval design.
Crafted with an aluminum inner liner, this gas vent ensures rapid venting action and minimizes condensation, offering an effective solution to your ventilation needs. The design versatility is unparalleled, catering to a range of installations, including conventional Type B, Type B-2x4 with firestop, Type BW-2x4 with a recessed heater, and more.
Benefits:
- Efficient Venting Performance
- Sleek Oval Design
- Quick Vent Action with Aluminum Inner Liner
- Versatile Installation Options
- Compact and Space-Saving
- Complete Line of Compatible Components
- Smart Choice Warranty for Peace of Mind
Features:
- 4"/5"/6" Inner Diameter Options
- Aluminum Inner Liner for Rapid Vent Action
- Galvanized Outer Wall for Durability
- Design Compatibility with Model RV Round Type B Gas Vent
- Oval Firestop Spacers for Stud Wall Installations
- Comprehensive Range: 6" to 60" Pipe Lengths
- Smart Choice Warranty for Confidence
Specifications:
- Listed to UL 441 Standards
- Type "B," Type "BW," Type B-2x4, and Type B-2x6 Options
- Installation Kits Available for Type "BW"
- Oval Firestop Spacers for Stud Wall Use
- Product Codes and Part Numbers for Easy Selection
- Smart Choice Warranty Covers All Components
- Suitable for Residential and Commercial Spaces
- Aluminum inner liner
- Galvanized outer wall
- 4" is Listed as Type "B", Type "BW" and Type B - 2 x 4
- 5" is Listed as Type "B" and a Type B - 2 x 4 and 2 x 6 for use in a stud wall.
- 6" is LIsted as Type "B" and Type B - 2 x 6 for use in a stud wall
- 4" Type "BW" installation kit available
- Oval Firestop Spacers available for use in stud walls
- Smart Choice warranty on all components
Approvals:
- Listed to UL 441
4-Inch Diameter:
|
Product Code |
Part No | Size (Diameter x Length) |
| 164006 | 4OV-6 | 4" x 6" |
| 164012 | 4OV-12 | 4" x 12" |
| 164018 | 4OV-18 | 4" x 18" |
| 164024 | 4OV-24 | 4" x 24" |
| 164036 | 4OV-36 | 4" x 36" |
| 164048 | 4OV-48 | 4" x 48" |
| 164060 | 4OV-60 | 4" x 60" |
5-Inch Diameter:
|
Product Code |
Part No | Size (Diameter x Length) |
| 165006 | 5OV-6 | 5" x 6" |
| 165012 | 5OV-12 | 5" x 12" |
| 165018 | 5OV-18 | 5" x 18" |
| 165024 | 5OV-24 | 5" x 24" |
| 165036 | 5OV-36 | 5" x 36" |
| 165048 | 5OV-48 | 5" x 48" |
| 165060 | 5OV-60 | 5" x 60" |
6-Inch Diameter:
|
Product Code |
Part No | Size (Diameter x Length) |
| 166006 | 6OV-6 | 6" x 6" |
| 166012 | 6OV-12 | 6" x 12" |
| 166018 | 6OV-18 | 6" x 18" |
| 166024 | 6OV-24 | 6" x 24" |
| 166036 | 6OV-36 | 6" x 36" |
Warranty: Lifetime Limited Warranty
Refer to the Smart Choice Warranty for full warranty details.
Downloads:
- Download Product Catalog
- Download Product List OV Oval Type B Gas Vent
- Download Oval Gas Vent Installation Instructions
- Download OV to WV Gas Vent Adapter Instructions
- Download Chimney Venting Sizing Handbook
- Download Smart Choice Warranty Information
