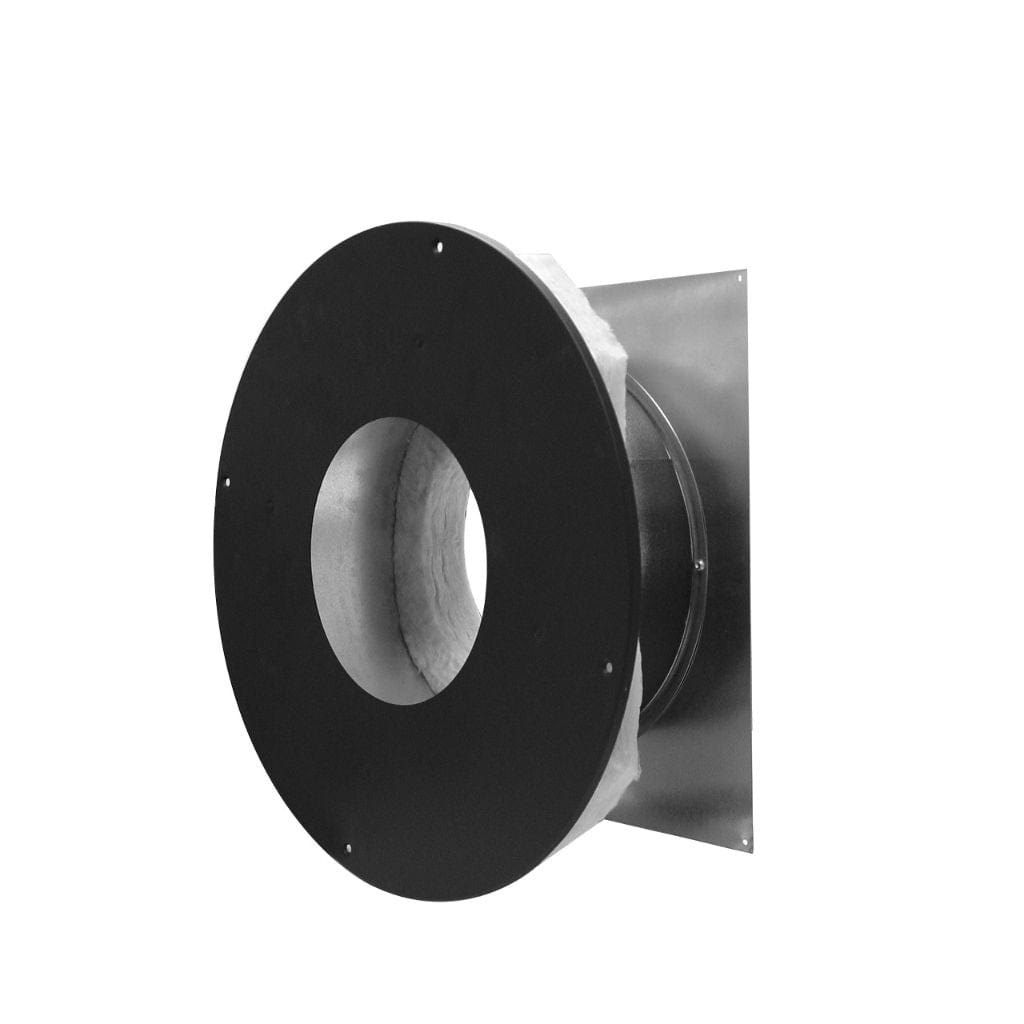

Selkirk - 5" to 14" Insulated Wall Thimble (Ultra Temp)

SelkirkSKU: 5T-IWT

Size: 5-Inch
Price:
Sale price$165.96

Description

In the realm of chimney solutions, the Selkirk 5" to 14" Insulated Wall Thimble stands as a paragon of innovation and efficiency. Designed to expedite installation while eradicating the need for individual firestops, this thimble offers a seamless, sophisticated solution for both residential and light commercial applications.

Crafted with precision, the interior plate boasts a black matte finish, adding a touch of elegance to its functionality. The ingenious round shielding acts as a radiation shield, ensuring a vital 2" airspace clearance to combustibles, thereby enhancing safety. The telescopic design effortlessly accommodates wall thickness ranging from 6" to 11", providing adaptability without compromise.

Efficiency meets aesthetics as the coupling systems Twist-Lock together, allowing for a swift and trouble-free installation. The slim design lock band not only secures seams but also adds a discreet touch to the overall appearance. The Ultra-Temp All-Fuel chimney is a testament to versatility, offering various diameters to cater to a spectrum of residential and light commercial needs.

Benefits:

  • Swift Installation: Twist-Lock coupling systems for quick and easy setup.
  • Safety First: Radiation shielding with a 2" airspace clearance for combustibles.
  • Versatile Applications: Wide range of diameters suitable for residential and light commercial use.
  • Elegant Design: Black matte finish on the interior plate for a sophisticated appearance.
  • Adaptable Construction: Telescopic design accommodates wall thickness from 6" to 11".
  • Cost-Effective Solution: Smart Choice Warranty on all components for a reliable, budget-friendly choice.
  • Seamless Integration: Ultra-Temp and Galva-Temp compatibility for a comprehensive solution.

Features:

  • 304 Stainless Steel Inner Liner for 4" to 8" diameter models.
  • 430 Stainless Steel Outer Wall for robust construction.
  • 1" Solid Pack Mineral Wool Insulation for enhanced safety.
  • Adjustable lengths for easy installation.
  • Multiple Support Kits available for comprehensive solutions.
  • Suitable for various residential fuels.
  • Smart Choice Warranty ensuring durability and reliability.

4" to 8" Diameter:
  • 304 Stainless Steel Inner Liner
  • 430 Stainless Steel Outer Wall
  • 1" Solid Pack Mineral Wool Insulation
  • All residential fuels
  • Adjustable lengths for ease of installation
  • Multiple Support Kits available
  • 4" Diameter available for tiny homes and recreational applications
  • Ultra-Temp and Galva-Temp can be combined to make a complete and cost effective solution
  • Smart Choice Warranty on all components
10" to 14" Diameter:
  • 430 Stainless Steel Inner Liner
  • 430 Stainless Steel Outer Wall
  • 1" Solid Pack Mineral Wool Insulation
  • All residential fuels
  • Light commercial/industrial applications
  • Cost effective, smaller footprint option for new and existing construction
  • Ultra-Temp and Galva-Temp can be combined to make a complete and cost effective solution
  • Smart Choice Warranty on all components

Approvals:

  • 4" to 8" - Listed to UL103 TYPE HT
  • 10" to 14" - Listed to UL103 and UL 2561
  • On approved appliances
Product Code
Part No Size
5T-IWT 205463 5-Inch
6T-IWT 206463 6-Inch
7T-IWT 207463 7-Inch
8T-IWT 208463 8-Inch
10S-IWT 210463 10-Inch
12S-IWT 212463 12-Inch
14S-IWT 214463 14-Inch


Warranty: Lifetime Limited Warranty

Refer to the Smart Choice Warranty for full warranty details.


Downloads:

About The Manufacturer:



Selkirk products set themselves apart from the competition with their proven quality, safety, ease of installation, and lasting performance.  Selkirk is one of the most trusted brands in the industry because we stand behind everything we do.  From assisting with product selection, providing education and installation assistance, to our industry-leading warranties, we ensure your success every step of the way.
