Description

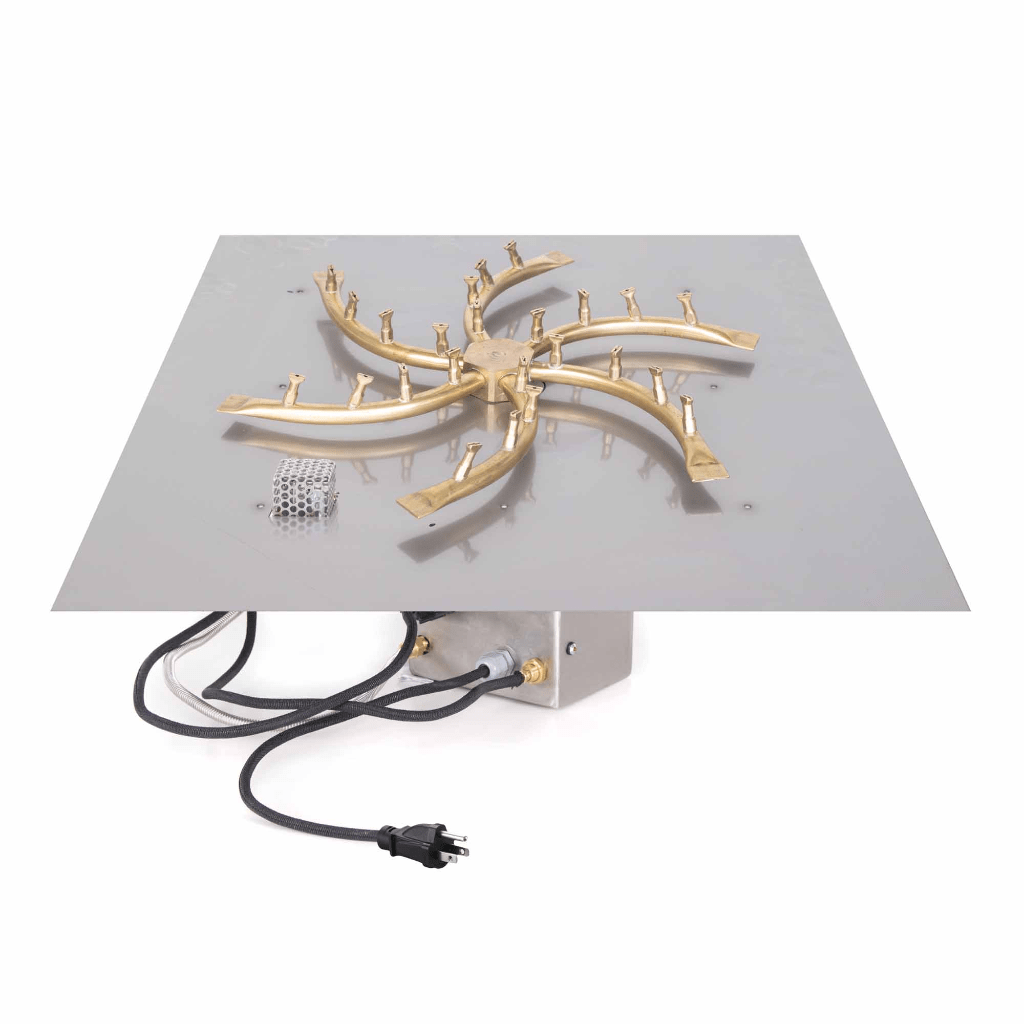

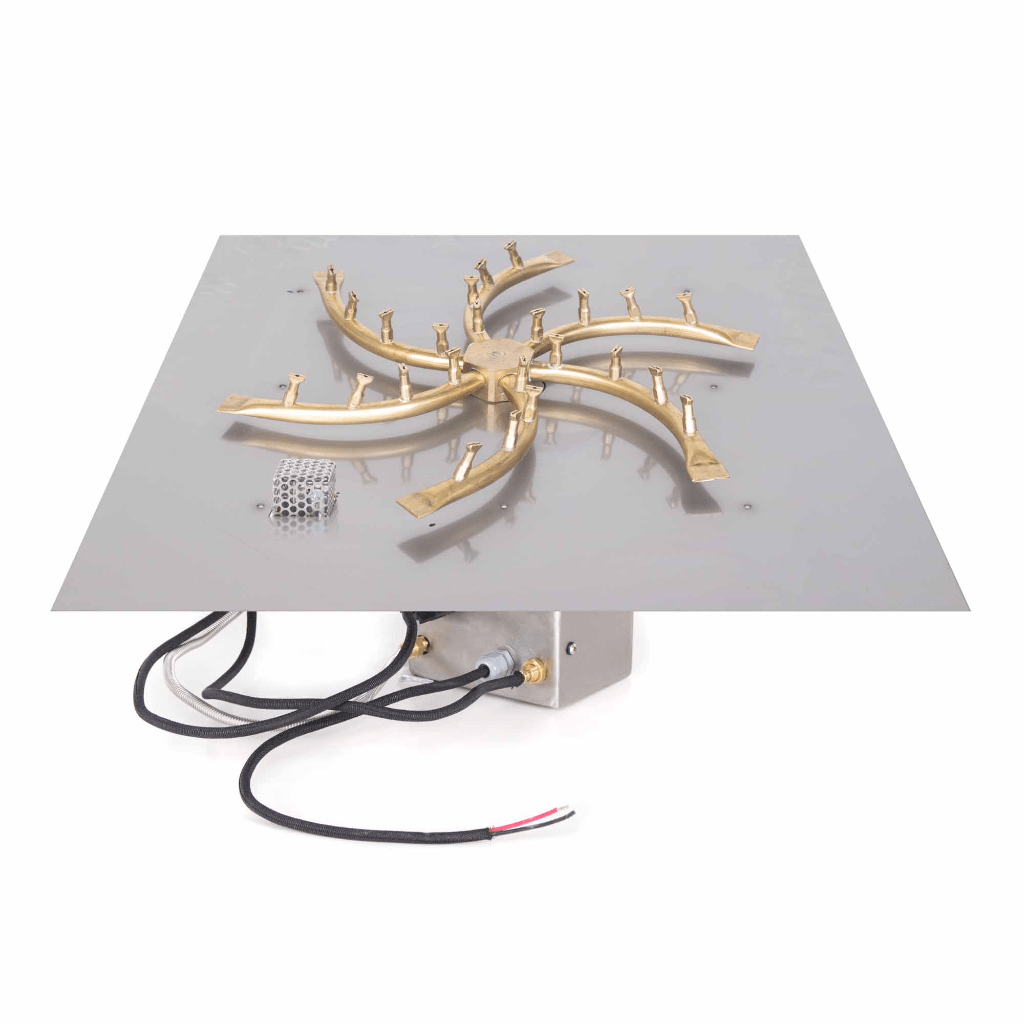

The Outdoor Plus presents the Square Flat Pan with Brass Triple 'S' Bullet Burner, a harmonious fusion of design and functionality for your fire pit or bowl. This exceptional combination delivers an elevated flame experience, standing taller and fuller while consuming 30% less gas than conventional burners. Crafted with precision from high-grade brass, this bullet burner ensures longevity, resisting rust and corrosion for enduring performance.

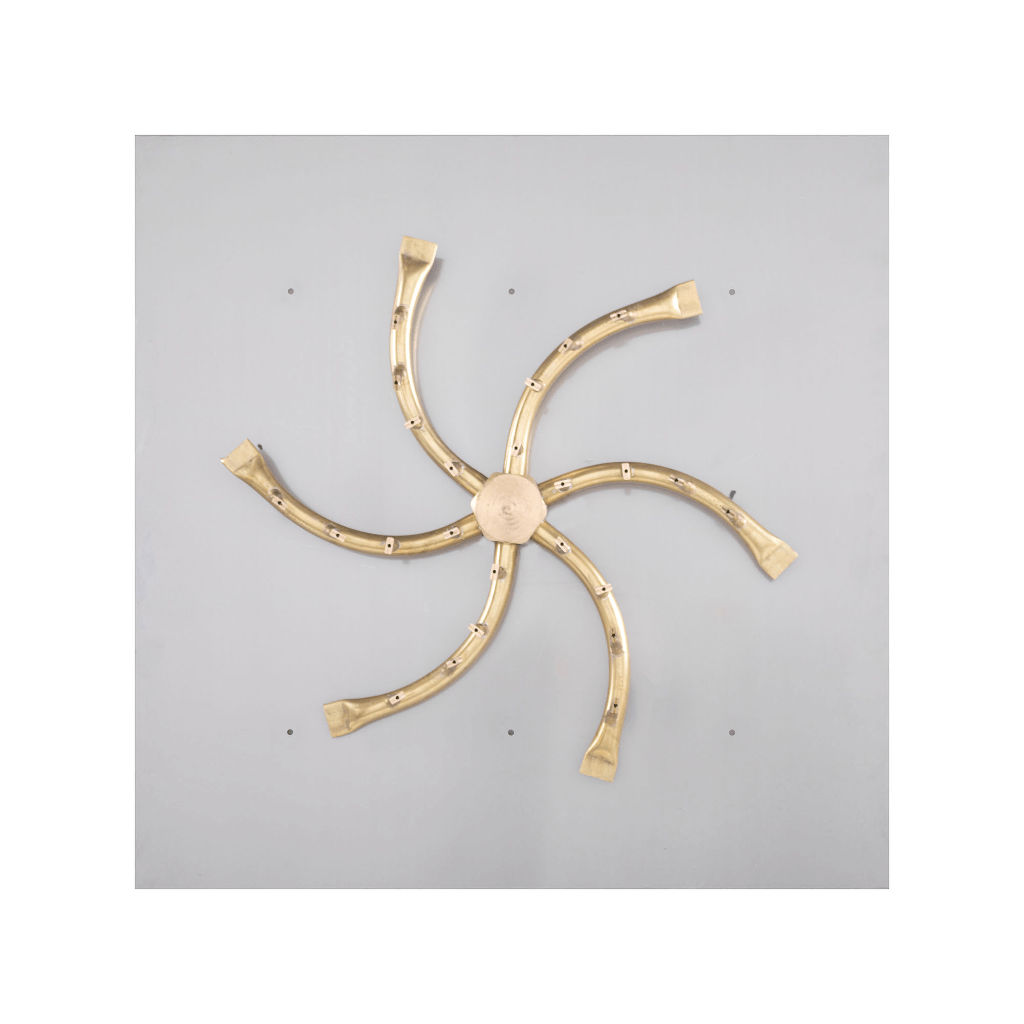

The unique Hexagonal Center Hub and Curved Arms of the Triple 'S' Bullet Burner facilitate even gas distribution, enhanced by Bullet Burner Orifices that compress gas flow for a superior blaze. The patented design eliminates the need for an extra air mixer when using liquid propane, making it versatile for both natural gas and propane applications. Expect consistent flame height with reduced gas consumption or unleash an impressive blaze, surpassing standard burners.
Benefits:
- Fuel-efficient, saving 30% on gas consumption.
- Tall and full flame for a captivating ambiance.
- Durable brass construction for long-lasting performance.
- Patented design eliminates the need for an extra air mixer.
- Suitable for natural gas or liquid propane applications.
- Seven sizes available for a customized fit.
- Proudly manufactured in the USA with a limited lifetime warranty.
Features:
- Fuel-efficient
- Tall and Full Flame
- Pan Shape: Square
- More flame, less gas
- Burner Material: Brass
- Limited lifetime warranty
- Pan Material: Aluminum
- Patented Flat Flame Technology
- Corrosion Resistant and Durable
- Proudly manufactured In the USA
- BTU: 50,000 BTU – 385,000 BTU
- Works with Liquid Propane or Natural Gas
- Burners holes are individually hand-drilled
- Pan Sizes: 18, 24, 30, 36, 48 and 60 inches
- Burner Sizes: 8, 12, 18, 24, 30, 36 and 48 inches
- Electronic ignition systems require 10" clearance below the pan
- The patented bullet burners eliminate the need for an additional LP air mixer
- Manufactured with high-grade brass, Providing you with a long-lasting burner

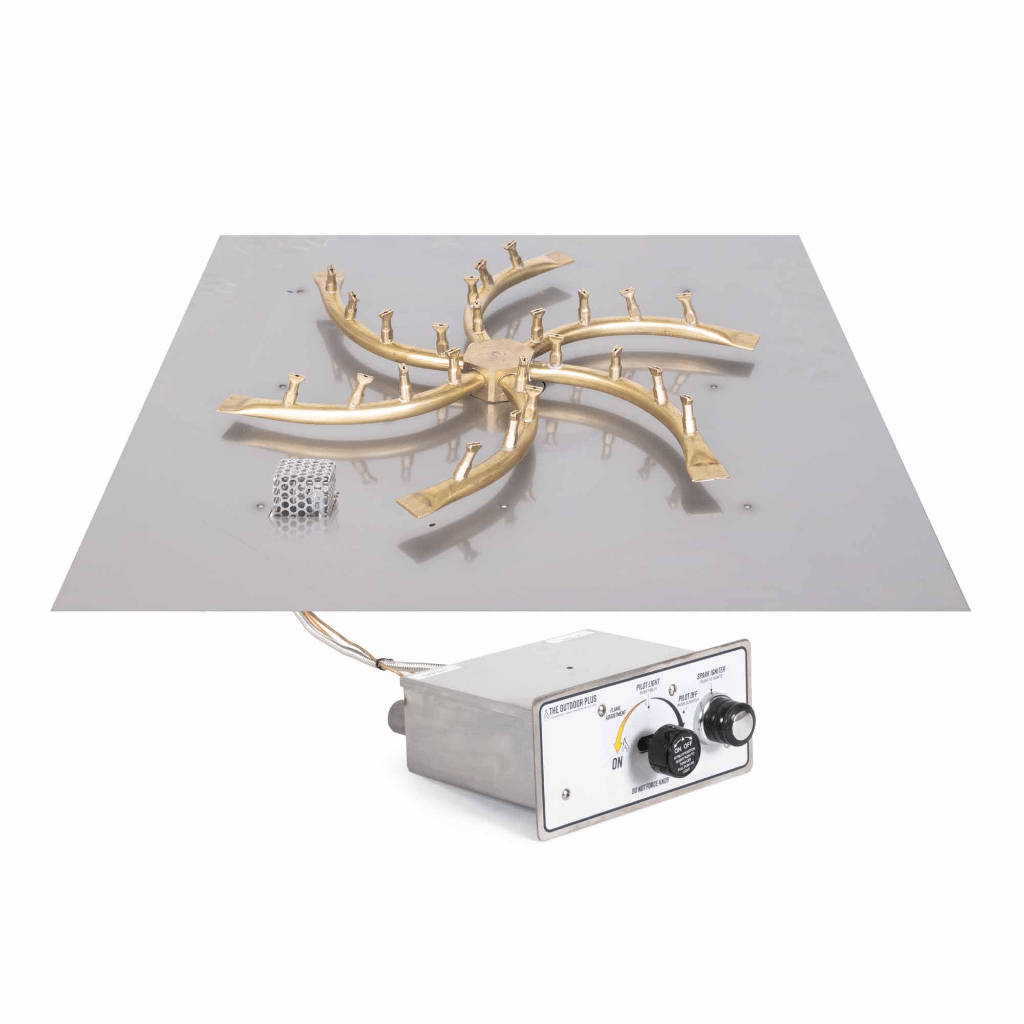

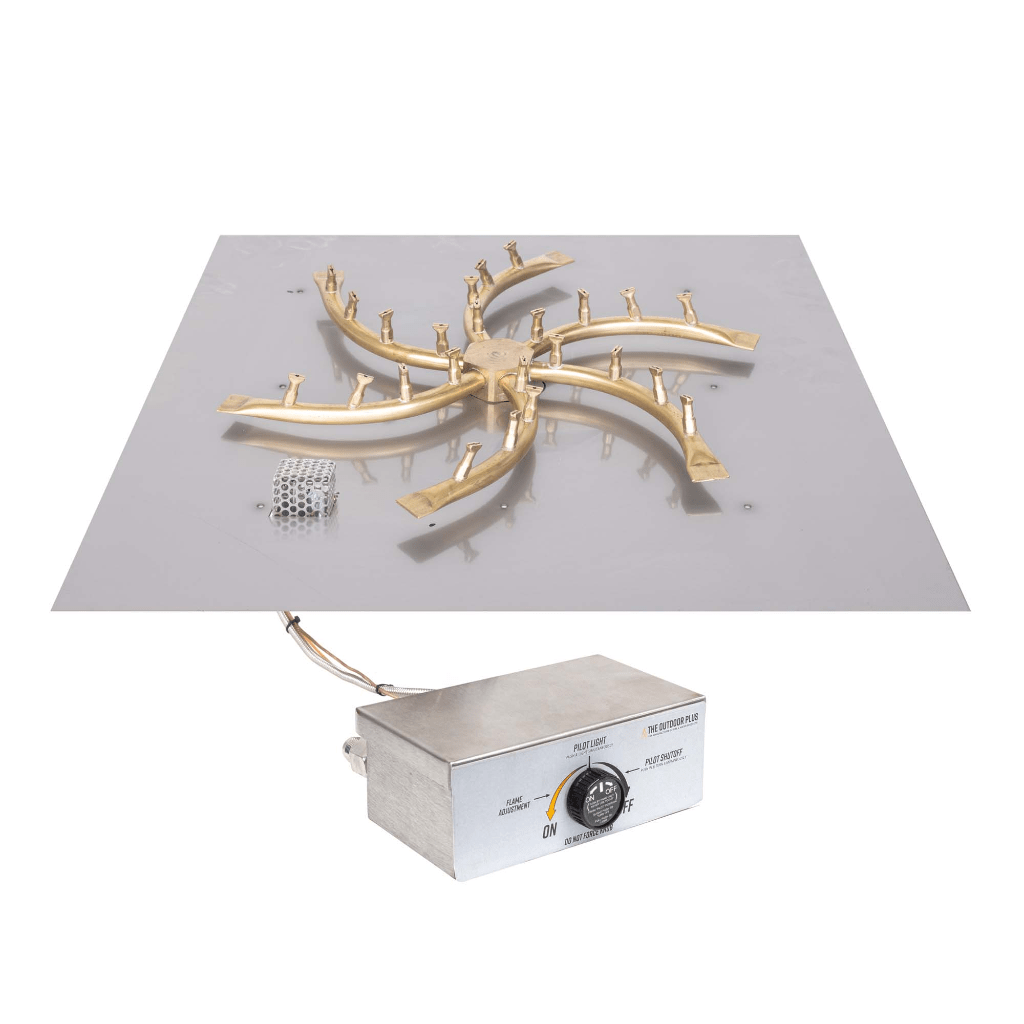

- Ignition Type: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, 12V Electronic and 110V Electronic
Product Specifications:
| Item | Pan Size | Burner Size | Inlet | BTU |
| 18” Pan Kit - A |
18" | 8" | 1/2" | 50,000 |
| 18” Pan Kit - B |
18" | 12" | 1/2" | 75,000 |
| 24” Pan Kit |
24" | 18" | 1/2" | 110,000 |
| 30” Pan Kit |
30" | 24" | 1/2" | 145,000 |
| 36” Pan Kit |
36" | 30" | 3/4" | 180,000 |
| 48” Pan Kit |
48" | 36" | 3/4" | 220,000 |
| 60” Pan Kit |
60" | 48" | 3/4" | 385,000 |
Includes:
- Pan
- Burner
- Pilot Igniter
- Electronic Valve
- 12V Transformer
- 110V Transformer
About The Manufacturer:
With over 25 years of professional experience, the Outdoor Plus is a leader in designing and building fire pits, fire tables, and unique one of a kind fire and water displays. Located in Southern California, many of their designs are inspired by the California beaches and cliffs. All TOP Fires fire pits, burners, and burner pans are individually made and proudly manufactured in the U.S.A. Their mission is to help homeowners make their vision of the perfect backyard entertainment experience a reality. The Outdoor Plus prides itself in being able to create any custom fire pit project you can think up. With state-of-the-art CNC equipment and years of experience, anything The Outdoor Plus creates is cut perfectly to spec, making for endless custom fire pit possibilities.
