Description

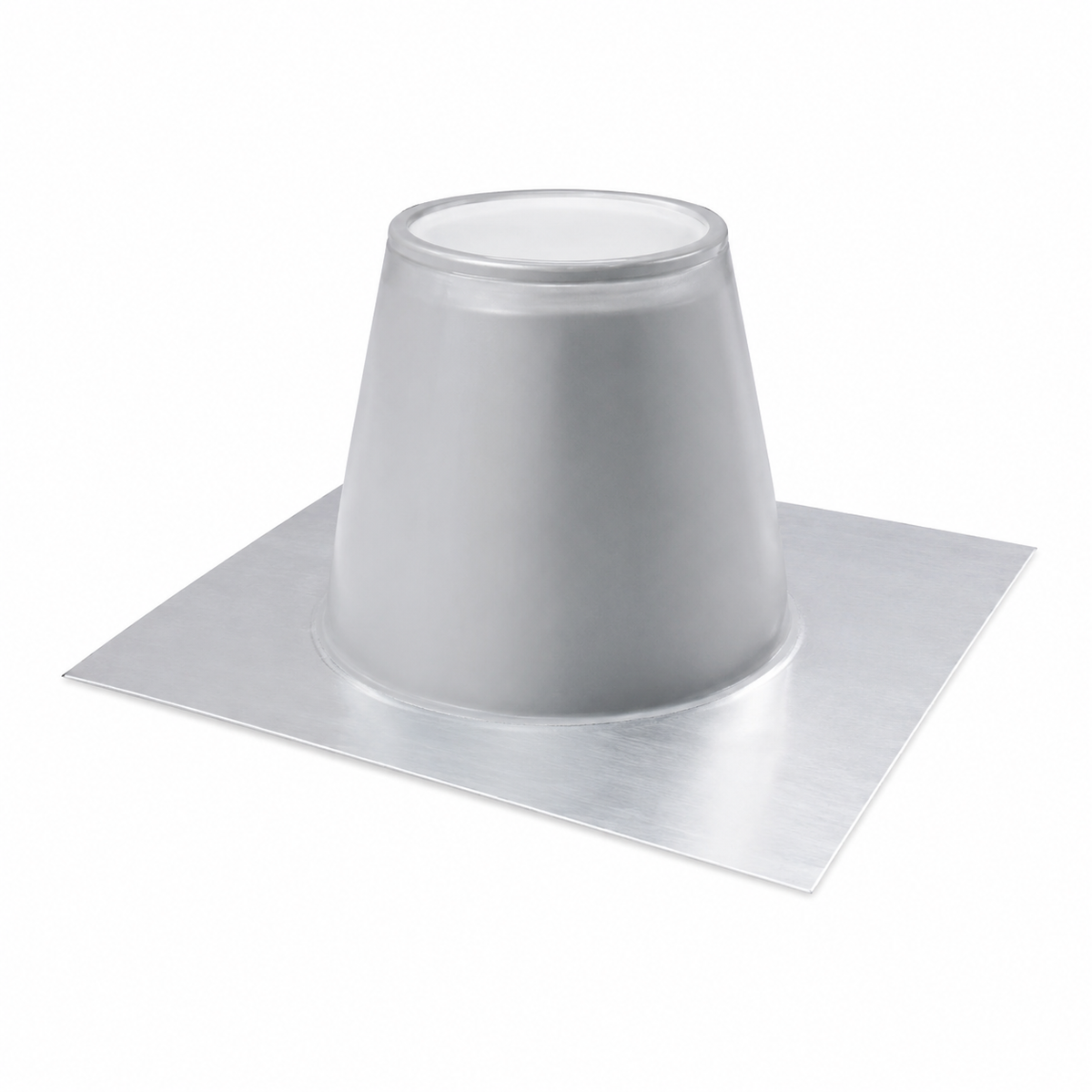

The Superior 7SPFF Flat Flashing is designed to provide a secure and weather-resistant seal where a 7-inch diameter chimney pipe passes through flat or low-slope roof surfaces. This essential component helps prevent water intrusion around the chimney penetration, protecting both the roofing structure and chimney system while ensuring a clean, professional installation finish.
Built for durability and easy installation, the 7SPFF features a Snap-Lock tab connection design for quick, secure assembly. It is constructed with a 430 stainless steel inner flue and outer casing, continuous laser-welded seams, and 1-1/2" ceramic fiber blanket insulation for excellent heat resistance and long-lasting performance. Certified to UL 103HT and ULC-S629 standards, it is rated for 2100°F intermittent use and 1000°F continuous operation, and maintains a 2-inch clearance to combustibles.
Included
- Flat Flashing
Features
- Easy to install
- A 7" diameter chimney system component/accessory
- 430 Stainless Steel Inner Flue And Outer Casing
- 1-1/2” Ceramic Fiber Blanketed Insulation
- Snap-Lock Tab Connection Design
- Continuous Laser Welded Flue And Casing
- UL103HT Listed / ULC-S629 2100° Intermittent; 1000° Continuous
- 2” Clearance To Combustibles
Specifications
| Model Number | 7SPFF |
| Catalog Number |
F4004 |
| Product Type |
Flat Flashing |
