Description

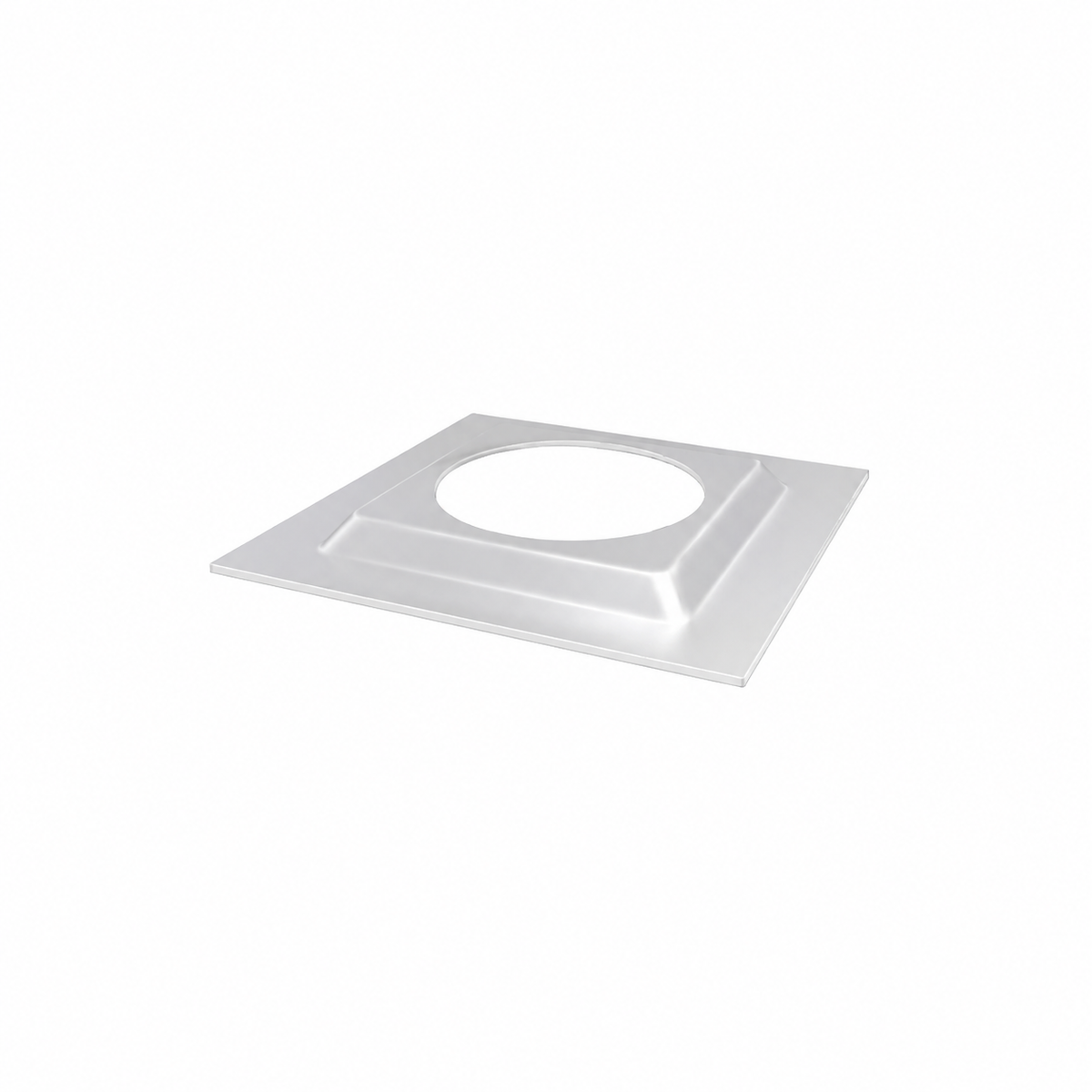

The Superior 7SPFS Firestop Spacer is designed to provide safe and code-compliant clearance protection for 7-inch diameter chimney systems where they pass through floors or ceiling assemblies. This essential component helps maintain proper separation from combustible materials, reducing fire risk while ensuring a stable and properly aligned chimney installation in residential wood-burning applications.
Built for durability and ease of installation, the 7SPFS features a Snap-Lock tab connection design for quick, secure assembly. It is constructed with a 430 stainless steel inner flue and outer casing, continuous laser-welded seams, and 1-1/2" ceramic fiber blanket insulation for reliable heat resistance and long-term performance. Certified to UL 103HT and ULC-S629 standards, it is rated for 2100°F intermittent use and 1000°F continuous operation, and maintains a 2-inch clearance to combustibles.
Included
- Firestop Spacer
Features
- Easy to install
- A 7" diameter chimney system component/accessory
- 430 Stainless Steel Inner Flue And Outer Casing
- 1-1/2” Ceramic Fiber Blanketed Insulation
- Snap-Lock Tab Connection Design
- Continuous Laser Welded Flue And Casing
- UL103HT Listed / ULC-S629 2100° Intermittent; 1000° Continuous
- 2” Clearance To Combustibles
Specifications
| Model Number | 7SPFS |
| Catalog Number |
F4002 |
| Product Type |
Firestop Spacer |
