Description

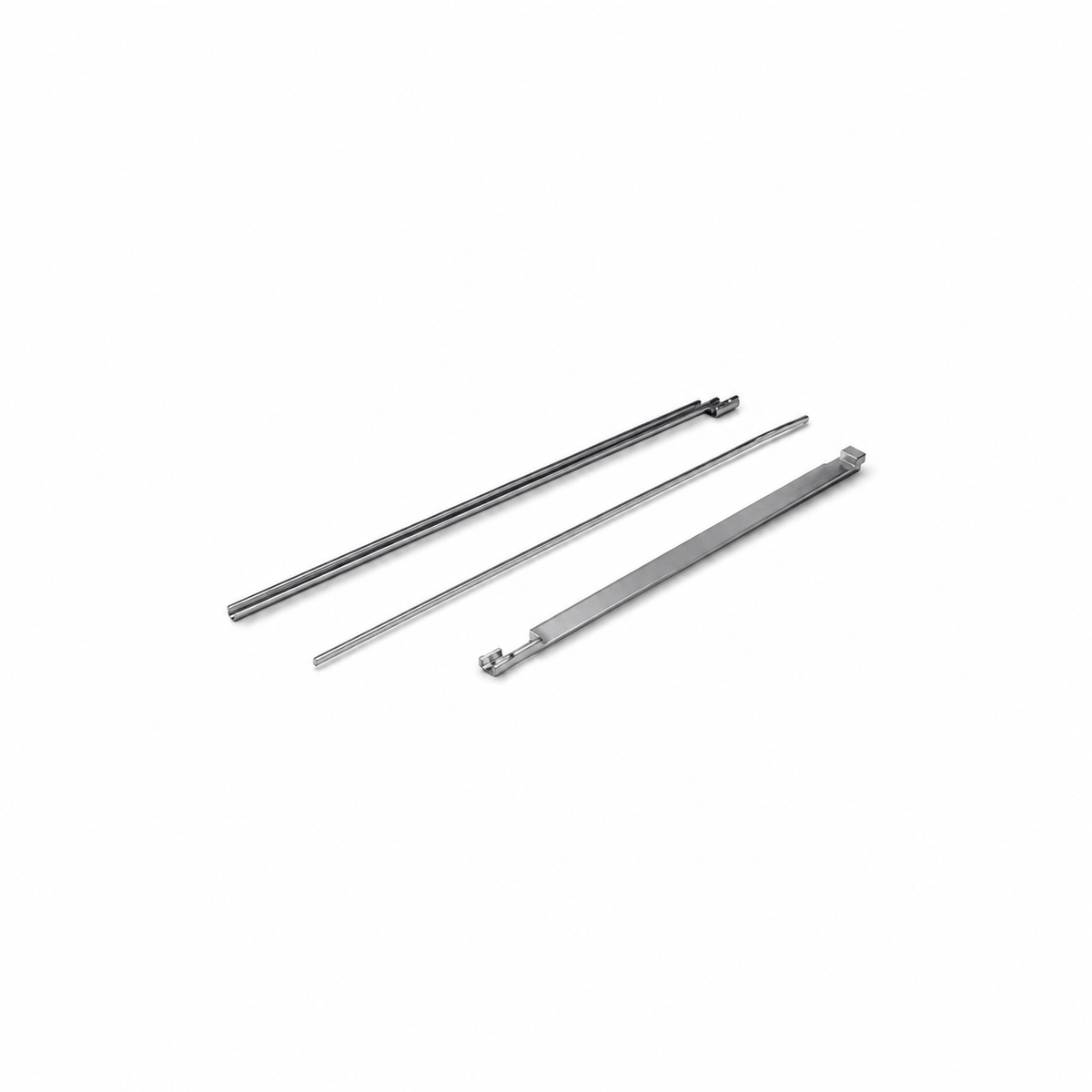

The Superior 7SPRB Roof Brace is designed to provide essential structural support for 7-inch diameter chimney systems that extend above the roofline. This component helps stabilize the chimney against wind loads and external forces, maintaining proper alignment and enhancing the overall safety and durability of the venting system.
Built for easy installation and long-lasting performance, the 7SPRB features a Snap-Lock tab connection design for secure integration with compatible chimney components. Constructed with a 430 stainless steel inner flue and outer casing, continuous laser-welded seams, and 1-1/2" ceramic fiber blanket insulation, it offers exceptional strength and heat resistance. Certified to UL 103HT and ULC-S629 standards, it is rated for 2100°F intermittent use and 1000°F continuous operation, while maintaining a 2-inch clearance to combustibles for safe installation.
Included
- Roof Brace
Features
- Easy to install
- A 7" diameter chimney system component/accessory
- 430 Stainless Steel Inner Flue And Outer Casing
- 1-1/2” Ceramic Fiber Blanketed Insulation
- Snap-Lock Tab Connection Design
- Continuous Laser Welded Flue And Casing
- UL103HT Listed / ULC-S629 2100° Intermittent; 1000° Continuous
- 2” Clearance To Combustibles
Specifications
| Model Number | 7SPRB |
| Catalog Number |
F4008 |
| Product Type |
Roof Brace |
