Description

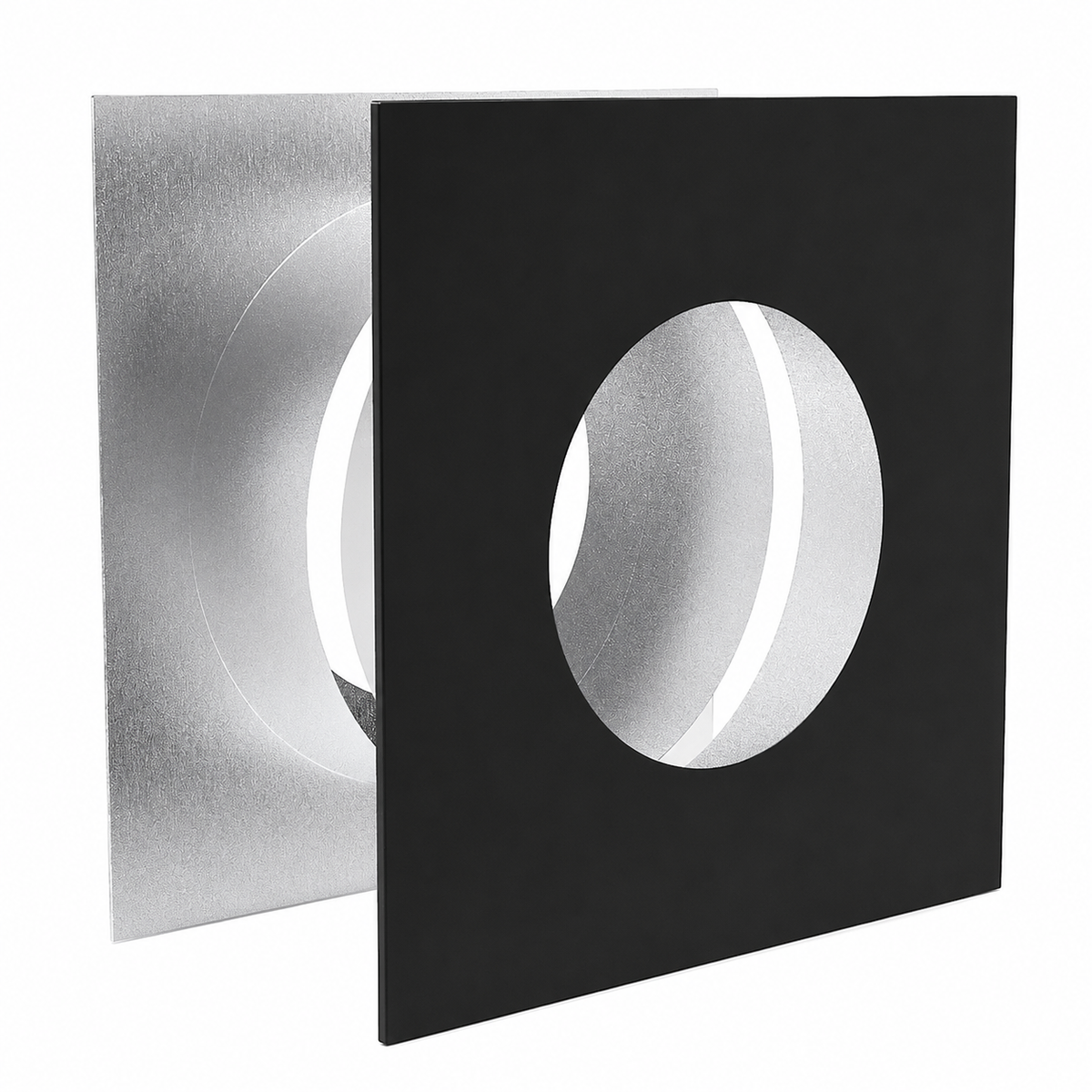

The Superior 7SPWF Non-Insulated Wall Firestop is designed to provide safe and code-compliant wall penetration support for 7-inch diameter chimney systems. This essential component helps maintain the required clearance to combustible materials when a chimney passes through an interior or exterior wall, promoting safer installation and long-term system reliability.
Built for easy installation and dependable performance, the 7SPWF features a Snap-Lock tab connection design for secure integration with compatible chimney components. Constructed with a 430 stainless steel inner flue and outer casing, continuous laser-welded seams, and 1-1/2" ceramic fiber blanket insulation, it offers excellent durability and heat resistance. Certified to UL 103HT and ULC-S629 standards, it is rated for 2100°F intermittent use and 1000°F continuous operation, while maintaining a 2-inch clearance to combustibles.
Included
- Non-Insulated Wall Firestop
Features
- Easy to install
- A 7" diameter chimney system component/accessory
- 430 Stainless Steel Inner Flue And Outer Casing
- 1-1/2” Ceramic Fiber Blanketed Insulation
- Snap-Lock Tab Connection Design
- Continuous Laser Welded Flue And Casing
- UL103HT Listed / ULC-S629 2100° Intermittent; 1000° Continuous
- 2” Clearance To Combustibles
Specifications
| Model Number | 7SPWF |
| Catalog Number |
F4011 |
| Product Type |
Non-Insulated Wall Firestop |
