Description
Included
- Fireplace Unit
- Literature Kit (Manuals and Guides)
- 2 Vent Restrictors
- 15 feet of Two Conductor Wire
- 1 Non-Combustible Board, 2 Side Brackets, and 1 Center Bracket
- 1 Header Shield
- Reflective Black Glass Media (5 lb bag provided)
- Front Ramp
- 1 Elbow/Wall Heat Shield
- 2 Vent Cover Plates
- 1 Rear Flue Cover
Required Accessories
- Facade

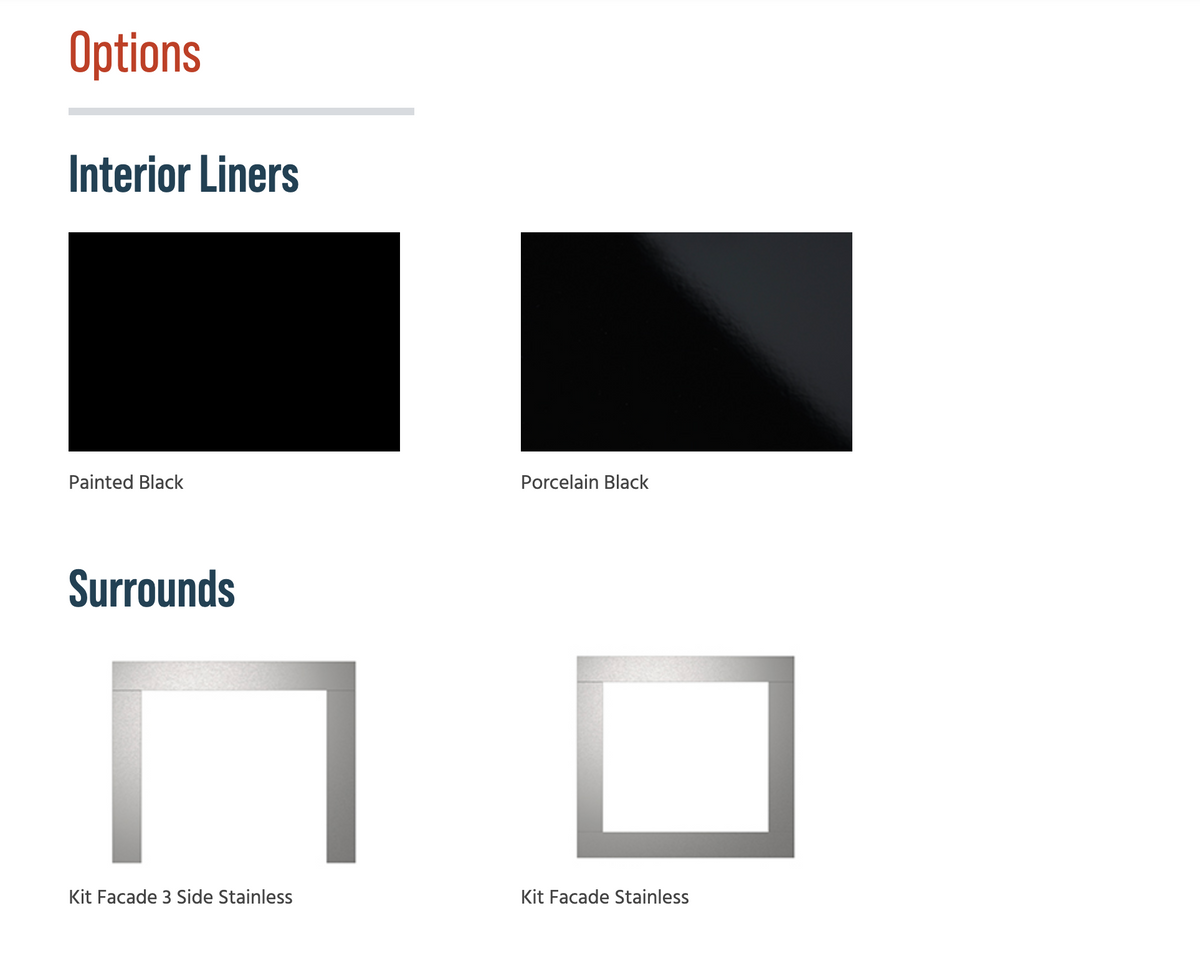

Optional Accessories
- Log Set
- Liner Kit
- Decorative Face Surround
- Floor Media Kit
- Remote Control Kits and Wall Switches
- Common Accessories
Features
- Available in 35”, 40” and 45” models
- Mid-size 17” depth saves installed floor space
- Combination top/rear flue configuration
- Electronic ignition with seamless battery backup provides continued operation in the event of a power outage (IPI/CPI switch standard)
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Reflective black crushed glass media included with optional colors available to customize the look. (No more than 3 lbs should be used in a 35" unit, 4 lbs in a 40" unit or 5 lbs in a 45" unit.)

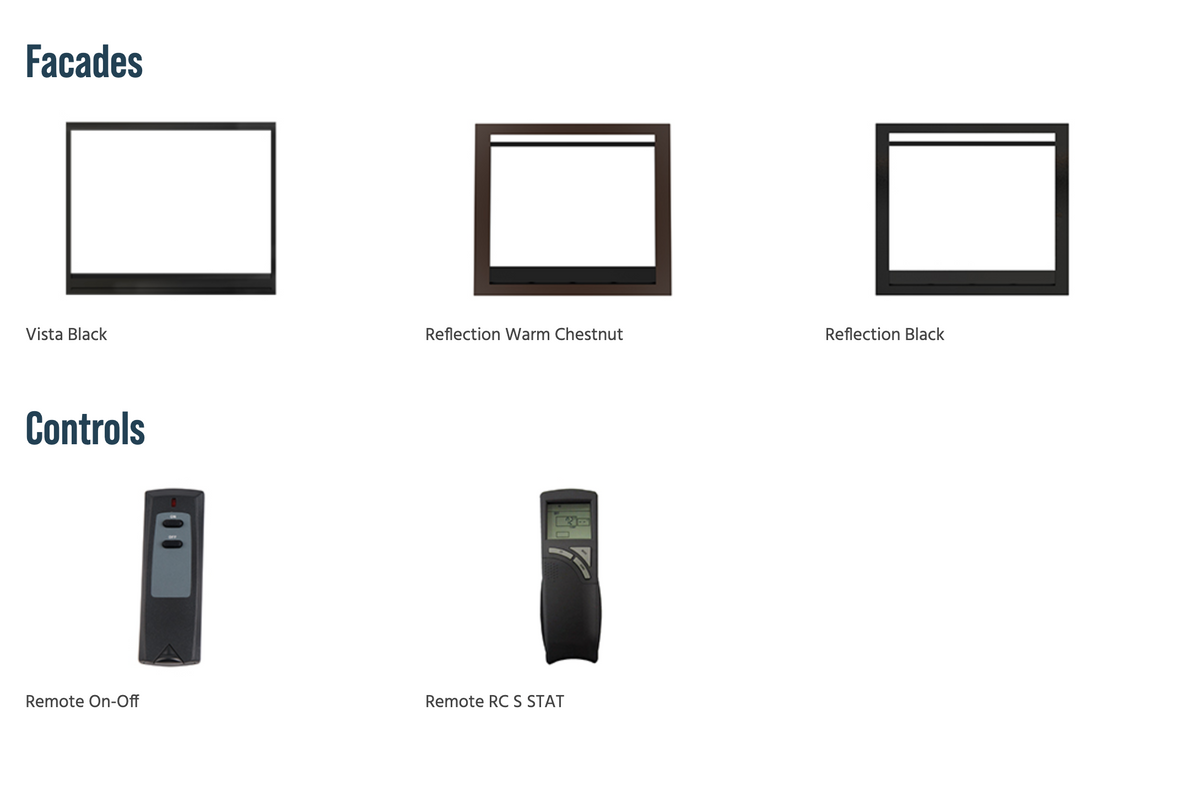

- Face selections include a Vista inside fit façade or one of several Designer overlap fit facades (required)
- Black painted interior (optional liner available)
- Optional blower and touch remote or hand-held remote control available for all models
- Durable textured powder coat finish
- Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094
- 20 year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Venting Notes
- Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components
Specifications
| Model | DRC3035 |
| Series |
DRC3000 (ProSeries) |
| Item Number | DRC3035DEN-E |
| Catalog Number | F5022 |
| Product Type | Direct Vent Gas Fireplace |
| Fuel Type |
Natural Gas LP using a conversion kit |
| Framing Width | 35-7/8" |
| Framing Height | 35-7/8″ 36-1/4" |
| Framing Depth | 18-1/2" |
| BTU | 20,000 - 15,000 |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Optional Remote |
| Warranty | 20 Year Limited Warranty |
| Agency Listing |
Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094 |
Technical Dimensions

Warranty
![]() ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Mid-Size Fireplace Brochure
-
DRC3000 Smart Sheet
-
DRC3000 Installation and Operation Manual
- DRC3000 Specification Sheet
About The Manufacturer

Superior Fireplaces is dedicated to delivering best-in-class hearth products backed by exceptional customer service. Known for industry-leading quality, warmth, and innovative design, Superior offers a comprehensive selection of fireplaces, inserts, freestanding stoves, gas log sets, and chimneys to suit every style and budget. Their product lineup includes wood, gas, and electric solutions, along with a wide range of accessories designed to enhance comfort, performance, and style.
