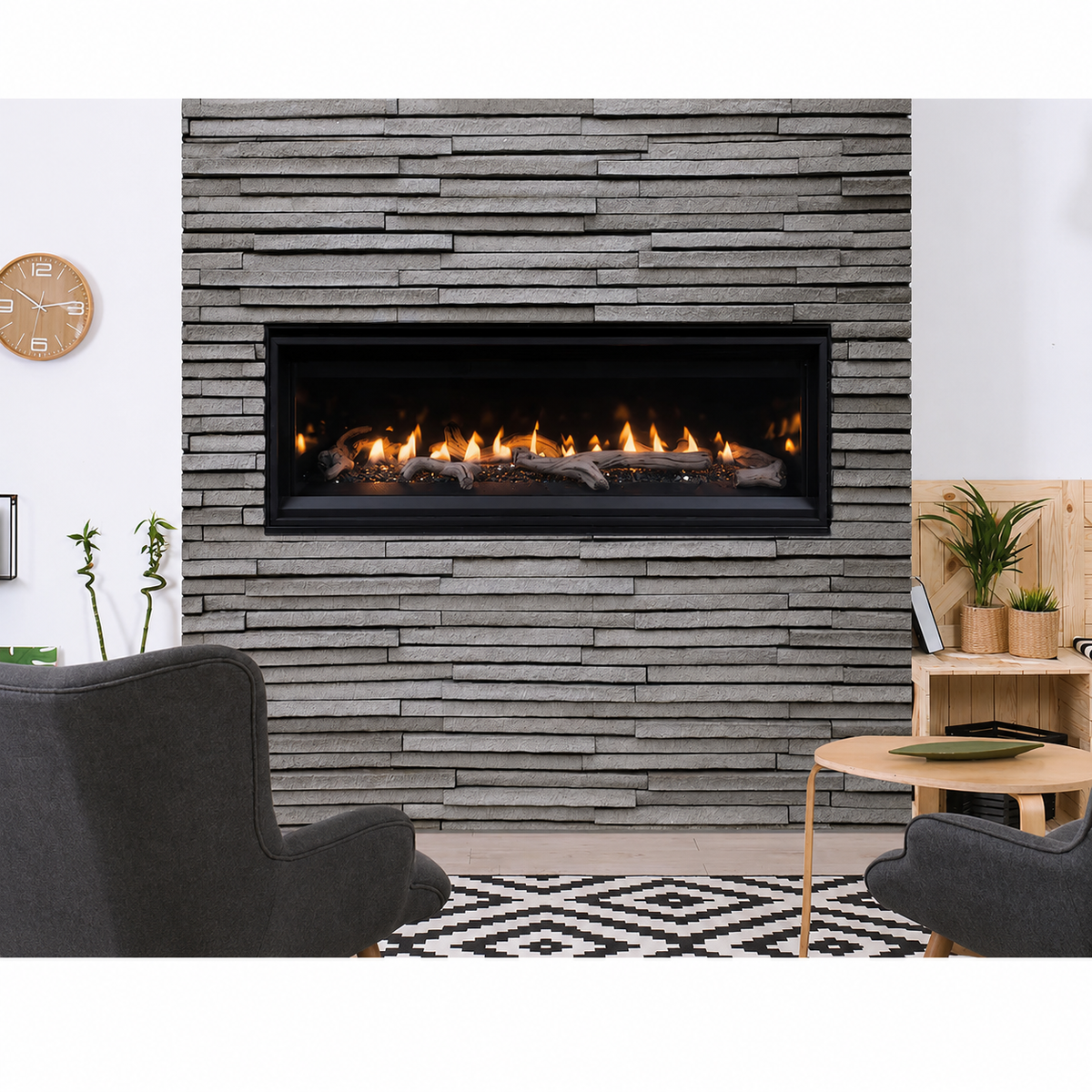

Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition
Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition
Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition
Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition
Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition
Roll over image to zoom in Click on image to zoom
Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic IgnitionSuperior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic IgnitionSuperior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic IgnitionSuperior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic IgnitionSuperior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition

Superior DRL2045 45" Linear Direct Vent Gas Fireplace With Electronic Ignition

SuperiorSKU: DRL2045TEN
Fuel Type: Natural Gas
Price:
$3,199.00

Description

The Superior DRL2045 45 Inch Linear Direct Vent Gas Fireplace With Electronic Ignition brings contemporary elegance and efficient heating performance together in a sleek 45-inch linear design. Featuring a clean-face appearance with integrated tile stops, this fireplace creates a streamlined look that blends seamlessly into modern living spaces. Reflective black crushed glass media comes standard to enhance the flame presentation, while optional colored glass, driftwood logs, and river rocks allow homeowners to personalize the fireplace to match contemporary or transitional décor styles.

Designed for convenience and dependable operation, the Superior DRL2045 features electronic ignition with battery backup for continued performance during power outages. Available in both natural gas and propane configurations, this fireplace delivers up to 18,000 BTUs on natural gas and up to 16,000 BTUs on propane. The optional HeatFlo™ kit helps redirect heat above heat-sensitive wall décor and televisions, providing greater installation flexibility. Optional blower kits and hand-held remote controls further enhance comfort and ease of operation.

Built for long-lasting reliability, the DRL2045 includes tempered glass, a protective screen, and a durable textured powder coat finish. Homeowners can customize the appearance with optional porcelain liners and decorative surrounds designed to complement drywall-finished installations. Compatible with Secure Vent rigid and flex direct vent systems and backed by a 20-year limited warranty, the Superior DRL2045 offers a sophisticated blend of modern styling, installation flexibility, and efficient supplemental heating.

Included

  • Fireplace Unit
  • Literature Kit (Manuals/Guides)
  • 15 feet of two conductor wire
  • 2.75” Non-combustible Board, 2 Side Brackets, and 1 Center Bracket
  • 5 Lbs of Black Glass Media.
  • 2 U-Shaped Vent Restrictors
  • 1 Minimal Vent Run Baffle

Optional Accessories

  • Surround
  • HeatFlo Kit & Extension Kit
  • Liner Kit
  • Blower Kit
  • Log Set
  • Rock Media Kit
  • Remote Control/Wall Switch
  • Top-Up Paint
  • Gas Conversion Kit
  • Other Venting Accessories

Features

  • Available in a 35", 45", and 55" linear configured models
  • HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings (45” & 55” models only)
  • Electronic ignition with battery backup provides continued operation in the event of a power outage
  • Clean-face design with integrated tile stops for easy finishing
  • Decorative surrounds available to complement drywall finished applications
  • Outstanding heating efficiency for increased comfort and lower operating costs
  • Standard tempered glass and a protective screen*
  • Reflective black crushed glass media included with several optional colors available to customize the look
  • Optional driftwood logs and river rocks are a perfect addition for a transitional design
  • Black painted interior (optional porcelain liner available)
  • Optional blower and hand-held remote controls available for all models
  • Durable textured powder coat finish
  • 20 year limited warranty

*All applicable models comply with ANSI Z21.50/88 barrier requirements.

Venting Notes

  • Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components

Specifications

Brand
 Superior
Catalog Number
 F4186, F4899
Model Number
 DRL2045TEN, DRL2045TEP
Fuel Type Natural Gas, Propane
Product Type Direct Vent Gas Fireplace
BTU

18,000 - 14,000 (NG)

16,000-13,000 (LP)
Framing Width 45-7/8"
Framing Height 29"
Framing Depth 18"
Design Style Contemporary
View Style Front-View
Controls Electronic Ignition
Agency Listing Built to ANSI Z21.88, CSA 233 - PFS (F19-008)
AFUE*

70.7% (NG)

56.6% (LP)
P4**

67.11% (NG)

64.5% (LP)
  • AFUE is a measurement of the US Department of Energy,
    Complies with CSA P.4.1:21 “Testing Method for Measuring Annual Fireplace Efficiency”. P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency. Efficiencies are based on Normal input operation.
    NOTE: ** CPI disabled per addendum instructions 900949-00 (provided with this appliance).

Product Dimensions

Videos

Warranty


ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 		Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture.

Documents & Files

About The Manufacturer

Superior Fireplaces is dedicated to delivering best-in-class hearth products backed by exceptional customer service. Known for industry-leading quality, warmth, and innovative design, Superior offers a comprehensive selection of fireplaces, inserts, freestanding stoves, gas log sets, and chimneys to suit every style and budget. Their product lineup includes wood, gas, and electric solutions, along with a wide range of accessories designed to enhance comfort, performance, and style.
