Description
The Superior DRL3555 55 Inch Contemporary Linear Direct Vent Gas Fireplace combines expansive linear styling with advanced comfort features to create a striking centerpiece for modern living spaces. Its clean-face design and integrated tile stops allow for a seamless built-in appearance, while the included platinum crushed glass media enhances the flame display with a sleek contemporary look. Optional colored glass media and porcelain liner upgrades provide additional customization options, making it easy to create a fireplace that complements a variety of interior design styles.
Designed for convenience and year-round enjoyment, the Superior DRL3555 features electronic ignition with battery backup for continued operation during power outages. Available in natural gas and propane configurations, this fireplace delivers up to 28,000 BTUs on natural gas and up to 27,000 BTUs on propane. A factory-installed blower with six adjustable speed settings helps distribute heat efficiently throughout the room, while the included multi-function remote control provides convenient access to thermostat settings, flame height, blower speed, lighting, and ignition functions. The optional HeatFlo™ kit offers additional installation flexibility by directing heat above heat-sensitive wall décor and electronics.
To further enhance ambiance, the DRL3555 includes integrated floor lighting with six distinctive settings that create a warm and inviting atmosphere even when the burner is not operating. Built with tempered glass, a protective screen, and a durable textured powder coat finish, this fireplace is engineered for long-term reliability and performance. Compatible with Secure Vent rigid and flex direct vent systems and backed by a 20-year limited warranty, the Superior DRL3555 delivers an exceptional blend of contemporary design, advanced functionality, and efficient heating performance.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guides)
- Elbow Heat Shield
- Header Heat shield
- 4.75” Non-combustible Board 2 Side Brackets and 1 Center Bracket
- Platinum Glass Media
- Remote Control
- 1 Wall Heatshield
- 2 U-Shaped Vent Restrictors
- 1 Minimal Vent Run Baffle
Optional Accessories
- HeatFlo Kit
- HeatFlo Flex Extension Kit

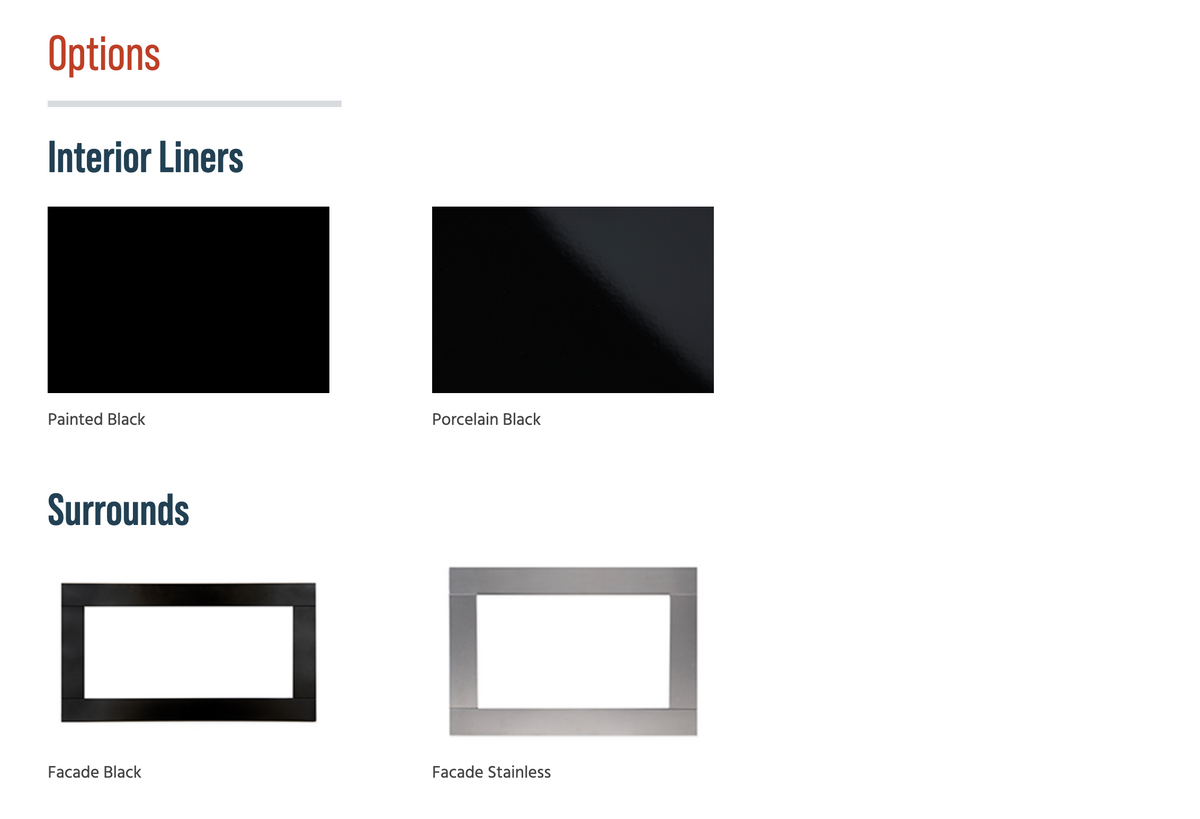

- Surround
- Liner Kit
- Additional Glass Media
- Driftwood Log Set
- River Rock
- Touch Up Paint
- Gas Conversion Kit
- Venting Components
Features
- Available in 35”, 45” and 55″ linear configured models
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings (45” & 55” models only)
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Black painted interior standard (optional porcelain liner available)
- Platinum crushed glass media is included with several optional colors available to customize the look
- Mood-enhancing floor lighting with six distinctive settings
- Factory-installed blower with six-speed settings to fine-tune your heating needs
- Multi-function remote control included (IPI/CPI, thermostat, flame height, blower, lighting)
- 20 year limited warranty
*This fireplace meets all ANSI Z21.88 barrier requirements.
Venting Notes
- Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components
Specifications
| Brand | Superior |
| Catalog Number |
F4237, F4904 |
| Model Number |
DRL3555TEN, DRL3555TEP |
| Fuel Type | Natural Gas, Propane |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 55-7/8" |
| Framing Height | 29" |
| Framing Depth | 18" |
| BTU |
28,000 - 19,000 (NG) 27,000-21,000 (LP) |
| Design Style | Contemporary |
| View Style |
Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88, CSA 233 - PFS (F19-008) |
| AFUE* |
67.7 (NG) 61.0 (LP) |
| P4** |
62.4 (NG) 63.4 (LP) |
*AFUE is a measurement of the US Department of Energy
**P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Product Brochure
- Smart Sheet
- Installation and Operation Manual
- Specification Sheet
-
HeatFlo Kit Instruction Sheet
- HeatFlo Extension Kit Instruction Sheet
