Description

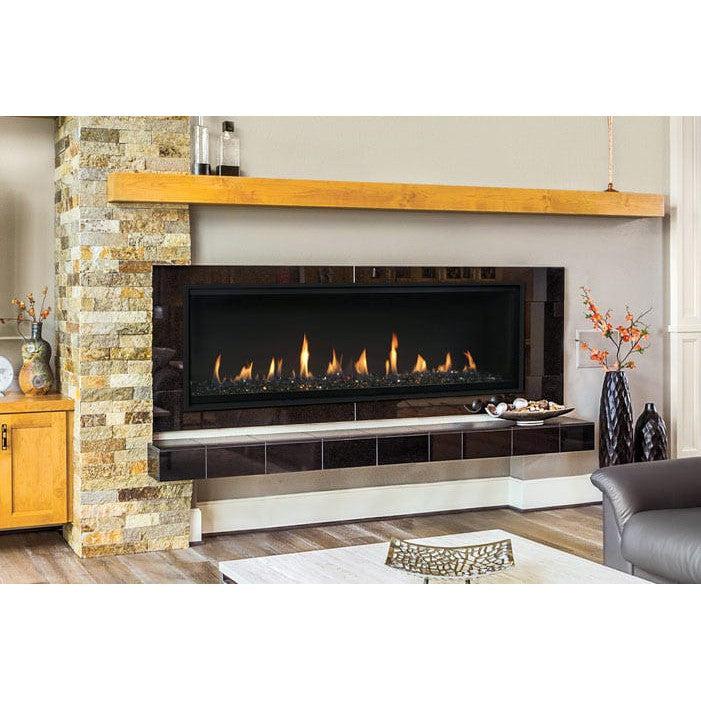

The DRL4000 Series linear direct vent gas fireplace offers a sleek modern appearance that is right at home in contemporary and transitional spaces. An expansive ceramic glass opening provides an exceptional view of the gently dancing flames rising through the beautiful reflective black glass floor media. Add the optional heat circulating blower and multi-function remote for the ultimate in comfort and control.
Included:
- Fireplace unit
- Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and Safety-In-Operation Warning Labels.
- Two (2), 5 lb. bags, Reflective Black Glass Media
- 12 feet of two conductor wire
- Four (4), AA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- 28 Self Drill Bugle Drywall Screws (to attach Fireboard)
- One (1) Heat Shield
- One (1) Pipe Shield
- Twelve (12) #10 Hex Head Screws
Not Included:
- See-Through Conversion Kit
- HeatFlo Kit & Extension
- Trim Kit
- Liner Kit
- Remote Kit
- Blower Kit
Features:
- Available in 48″, 60”, 72″ and 84″ linear configured models
- Indoor see-through conversion kit available to allow viewing from two living spaces
- Indoor/Outdoor see-through conversion kit available to enjoy the fire both inside and out (48” model only)
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand-held multi-function remote control available**
*All applicable models comply with ANSI Z21.88 barrier requirements.
**Blower use is not compatible with a see-through application.
Specifications:
| Model | DRL4048 |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type |
Direct Vent Gas Fireplace |
| Framing Width |
55-5/8" |
| Framing Height |
39-1/8" |
| Framing Depth |
19-1/2" 18-1/2" (See Through) |
| BTU | 40,000-28,000 (NG) 31,000-25,500 (LP-field converted) |
| Design Style |
Contemporary |
| View Style |
Front-View |
| Controls | Remote Control |
| AFUE* | 63.0% (NG) 63.0% (LP-field converted) |
| P4** | 62.5% (NG) 62.4% (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
