Description

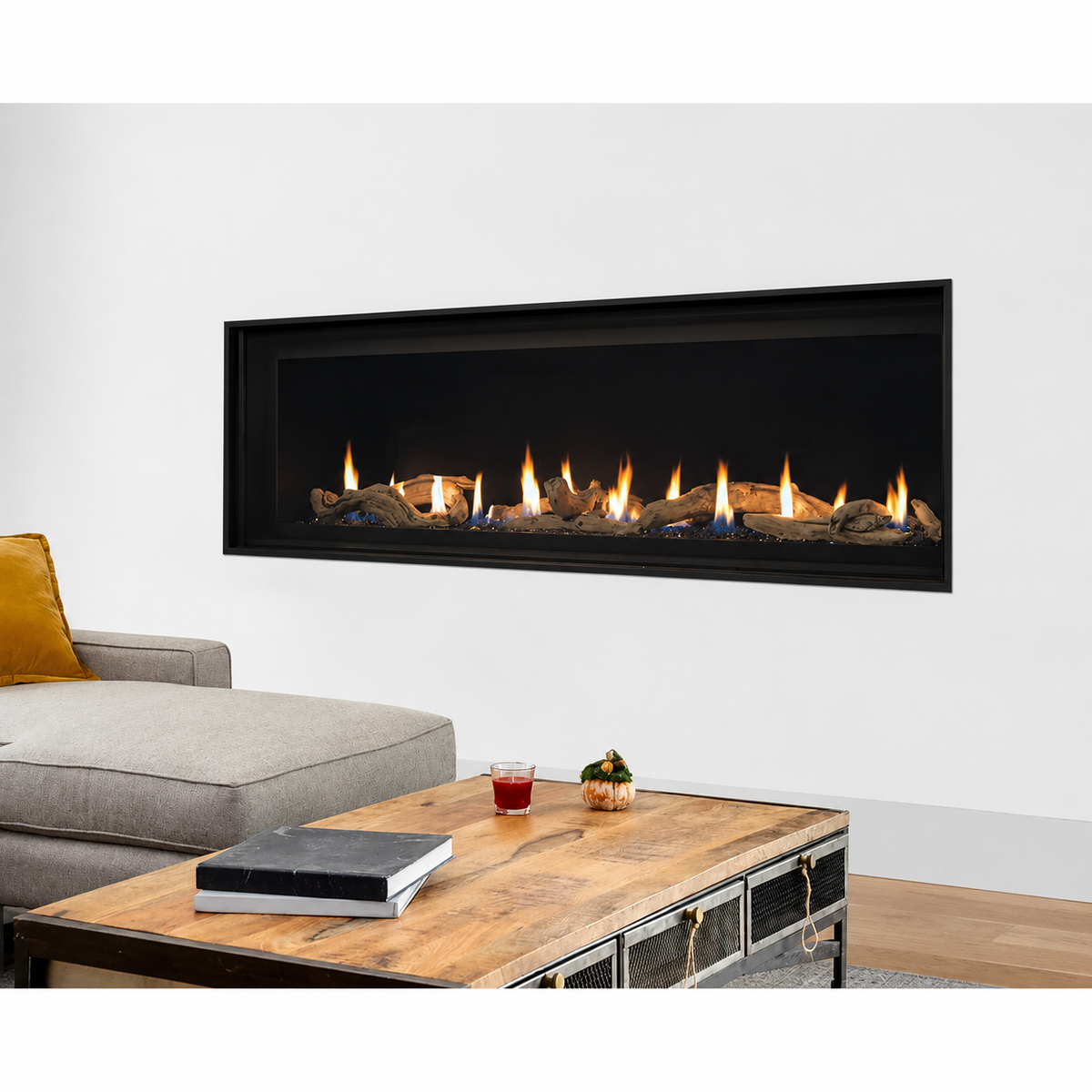

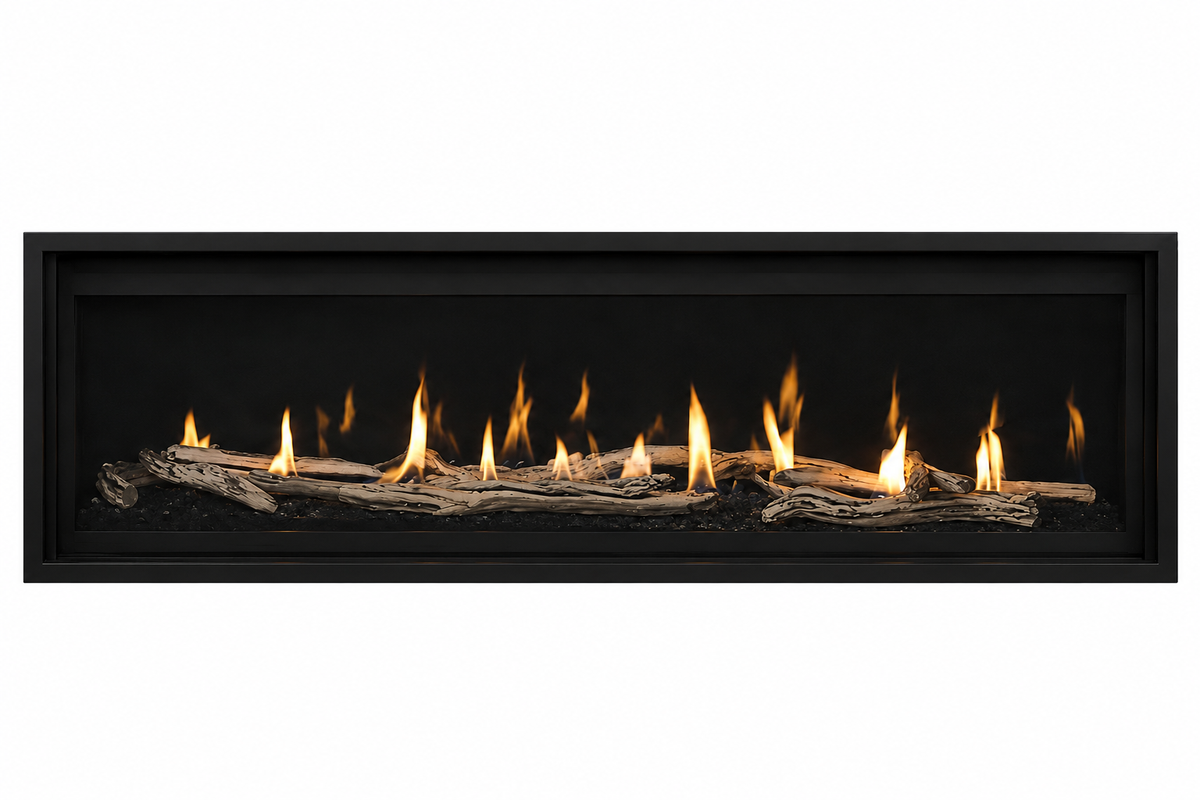

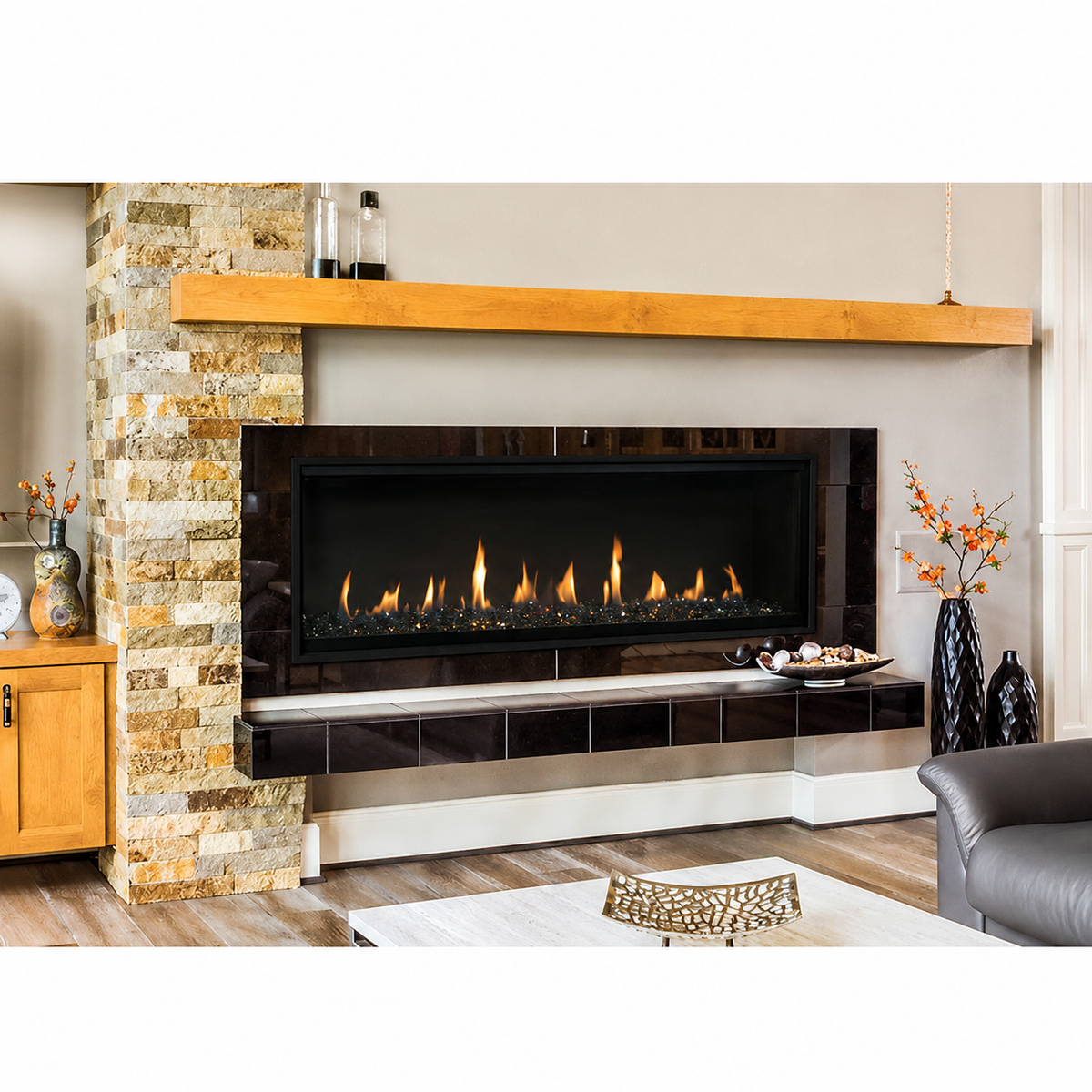

The Superior DRL4060 60 Inch Linear Direct Vent Gas Fireplace With Electronic Ignition combines expansive linear styling with versatile installation options to create a dramatic focal point in contemporary living spaces. Featuring a clean-face design with integrated tile stops, this 60-inch fireplace offers a sleek built-in appearance that complements modern interiors. Reflective black crushed glass media comes standard to enhance the flame presentation, while optional media colors and a reflective glass liner provide additional opportunities for customization. An optional indoor see-through conversion kit further expands design possibilities by allowing the fireplace to be enjoyed from two adjoining rooms.
Designed for convenience and dependable operation, the Superior DRL4060 features electronic ignition with battery backup, ensuring continued performance during power outages. Available for natural gas operation and field-convertible to propane, this fireplace delivers up to 40,000 BTUs of heat output. The optional HeatFlo™ kit helps redirect heat above heat-sensitive wall décor and electronics, making it easier to incorporate the fireplace into custom entertainment wall designs. Optional multi-function remote controls and blower kits are available to enhance comfort and fireplace operation, though blower use is not compatible with see-through configurations.
Built with ceramic glass for improved heat transfer and a protective screen for safety, the DRL4060 is engineered for long-term reliability and everyday performance. Its black painted interior and optional reflective glass liner create a striking visual effect that highlights the linear flame presentation. Compatible with 6DVL rigid direct vent components and backed by a 20-year limited warranty, the Superior DRL4060 offers a sophisticated combination of modern design, installation flexibility, and efficient supplemental heating.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guide)
- Three (3), 5 lb. bags of Reflective Black Glass Media
- 15 feet of two Conductor Wire
- Four (4), AA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
Optional Accessories
- See-Through Conversion Kit
- HeatFlo Kit and Extension
- Trim Kit
- Liner Kit
- Additional Glass Media
- River Rock
- Rock Media Kit
- Driftwood Log Set
- Remote Kit
- Blower Kit
- Touch Up Paint
- Gas Conversion Kit
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models
- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand held multi-function remote control available**
- 20-year limited warranty
*All applicable models comply with ANSI Z21.88 barrier requirements.
**Blower use is not compatible with a see-through application.
Venting Notes
- Uses 6" / 9" 6DVL Rigid Direct-Vent Components
Specifications
| Brand |
Superior |
| Catalog Number |
F4385 |
| Model Number |
DRL4060TEN-B |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type |
Direct Vent Gas Fireplace |
| Framing Width |
74-1/4" |
| Framing Height |
48-1/2" |
| Framing Depth |
19-1/2" 18-1/2" (See Through) |
| BTU | 40,000-28,000 (NG) 40,000-30,000 (LP-field converted) |
| Design Style |
Contemporary |
| View Style |
Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17 standards. PFS report F18-195 |
| AFUE* | 55.1% (NG) 54.0% (LP-field converted) |
| P4** | 52.6% (NG) 52.6% (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Product Brochure
- Smart Sheet
- Installation and Operation Manual
- Specifications Sheet
- See-Through Conversion Instructions
-
HeatFlo Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet (5in)
