Description

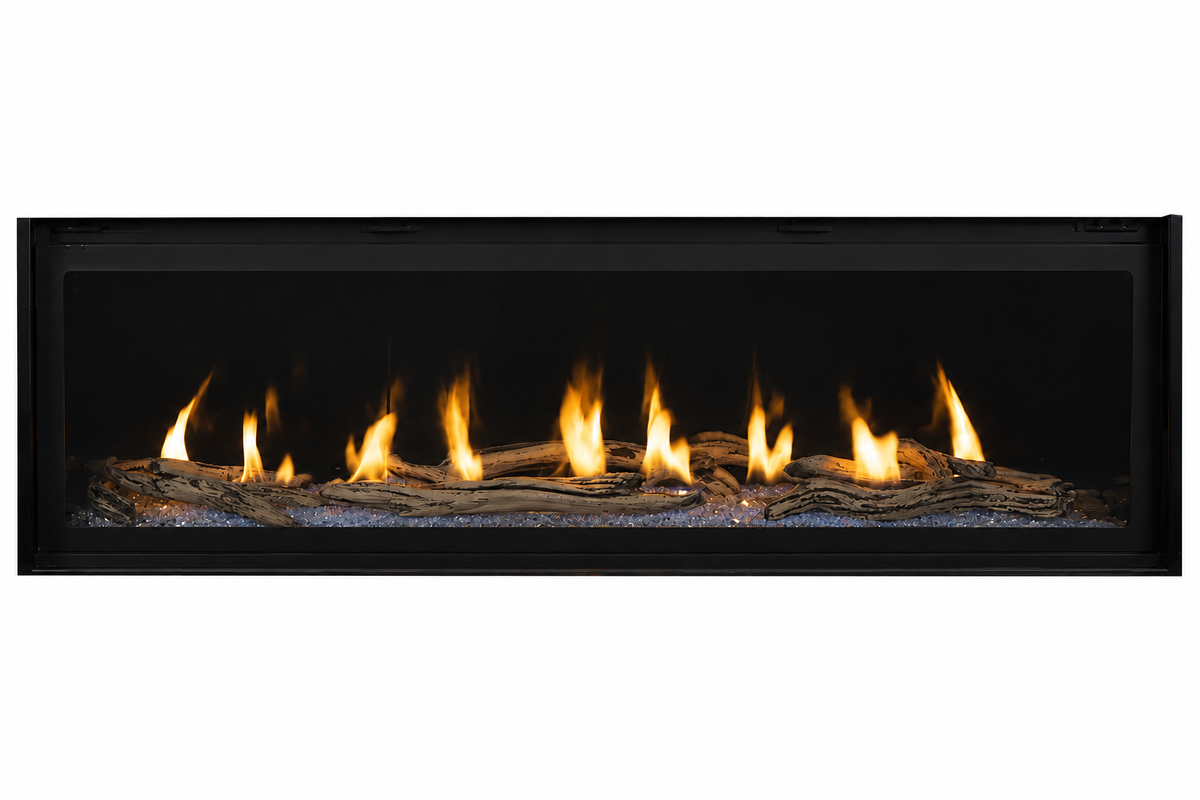

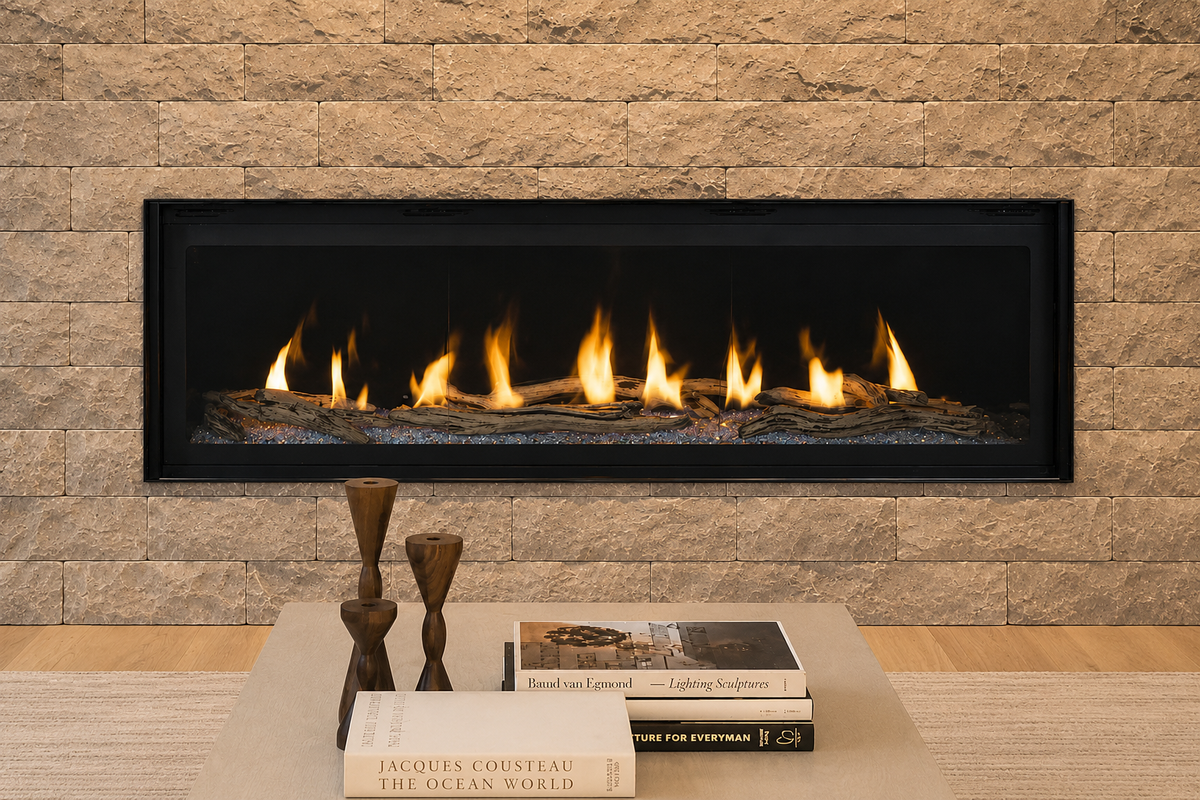

The Superior DRL6060 60 Inch Contemporary Linear Direct Vent Gas Fireplace combines expansive linear styling with advanced comfort features to create a striking centerpiece for modern living spaces. Its 60-inch clean-face design with integrated tile stops allows for a seamless built-in appearance, while the black porcelain liner and platinum crushed glass media create a dramatic flame presentation with enhanced visual depth. Optional colored glass media and a reflective interior further expand customization possibilities, making this fireplace an ideal addition to contemporary homes and open-concept living areas.
Engineered for performance and convenience, the Superior DRL6060 features electronic ignition with battery backup, ensuring reliable operation during power outages. Available for natural gas operation and field-convertible to propane, this fireplace delivers up to 40,000 BTUs of heat output. Six adjustable flame settings with up to a 30% turn-down capability allow precise control over heat and ambiance, while the factory-installed blower with six speed settings helps distribute warmth throughout the room. The included multi-function remote control provides convenient access to thermostat settings, flame height, blower speed, lighting functions, and ignition controls.
Designed to enhance both comfort and aesthetics, the DRL6060 includes integrated floor lighting that adds visual appeal even when the burner is not in use. The optional HeatFlo™ kit helps direct heat above heat-sensitive wall décor and electronics, while the optional see-through conversion kit allows the fireplace to be enjoyed from two adjoining spaces. Built with ceramic glass for efficient heat transfer, a protective screen for safety, and backed by a 20-year limited warranty, the Superior DRL6060 offers an exceptional combination of contemporary design, customization options, and dependable heating performance.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guides)
- Three (3), 5 lb. bags Platinum Glass Media
- One (1), Hand Held Remote Control
- Four (4), AA Batteries
- Three (3), AAA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
Optional Accessories
- See-Through Conversion Kit
- HeatFlo Kit & Extension
- Liner Kit
- Surround
- Additional Glass Media
- River Rock/Rock Media
- Driftwood Log Set
- Power Vent Kit
- Gas Conversion Kit
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models

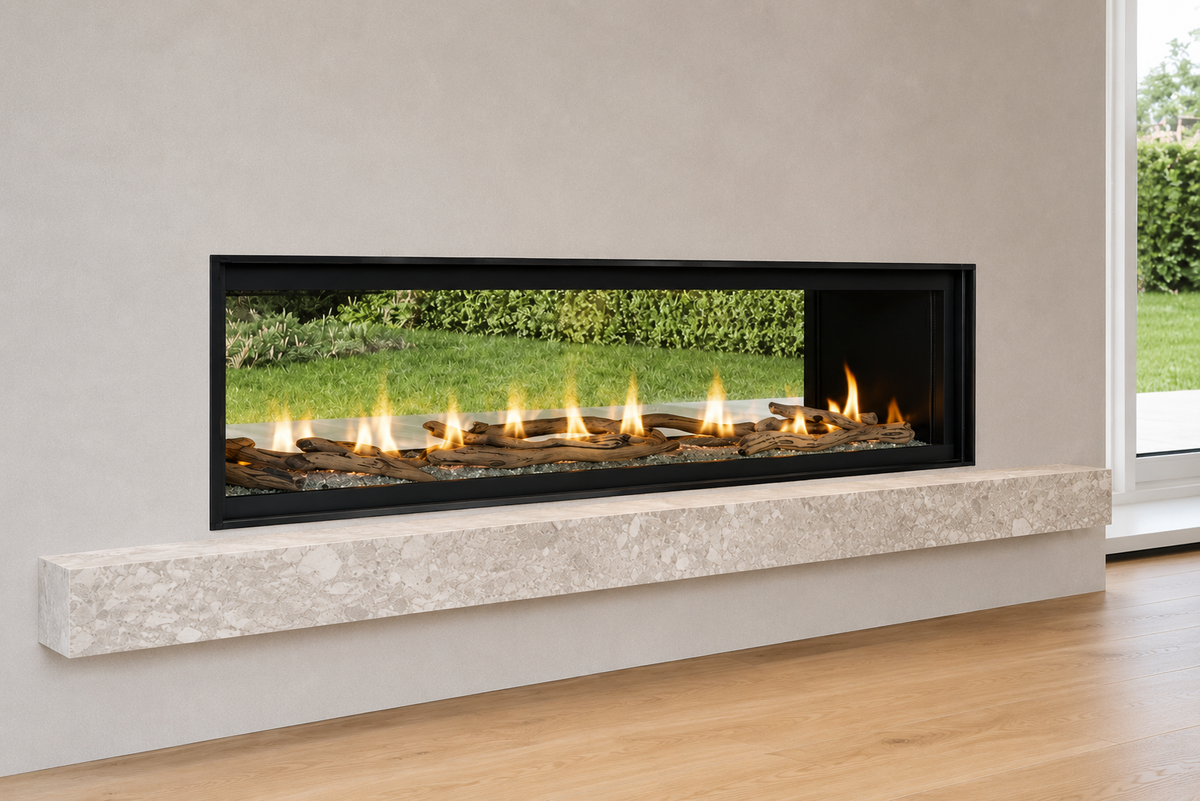

- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Factory-installed blower with six-speed settings to fine-tune your heating needs**
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media is included with several optional colors available to customize the look
- Mood-enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
- Optional Power-Vent system available for down-and-out installations
- 20-year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
**Blower use is not compatible with a see-through application.
Venting Notes
- Uses 6" / 9" 6DVL Rigid Direct-Vent Components
Specifications
| Brand |
Superior |
| Catalog Number |
F4386 |
| Model Number |
DRL6060TEN-B |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 74-1/4" |
| Framing Height | 48-1/2" |
| Framing Depth | 19-1/2" 18-1/2" (See Through) |
| BTU | 40,000-28,000 (NG) 40,000-30,000 (LP-field converted) |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17 standards. PFS report F18-195 |
| AFUE* | 52.6 (NG) 52.6 (LP-field converted) |
| P4** | 55.1 (NG) 54.0 (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Product Brochure
- Smart Sheet
- Installation and Operation Manual
- Specifications Sheet
- Power Vent Kit Instructions
- See-Through Conversion Instructions
-
HeatFlo Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet (5in)
