Description

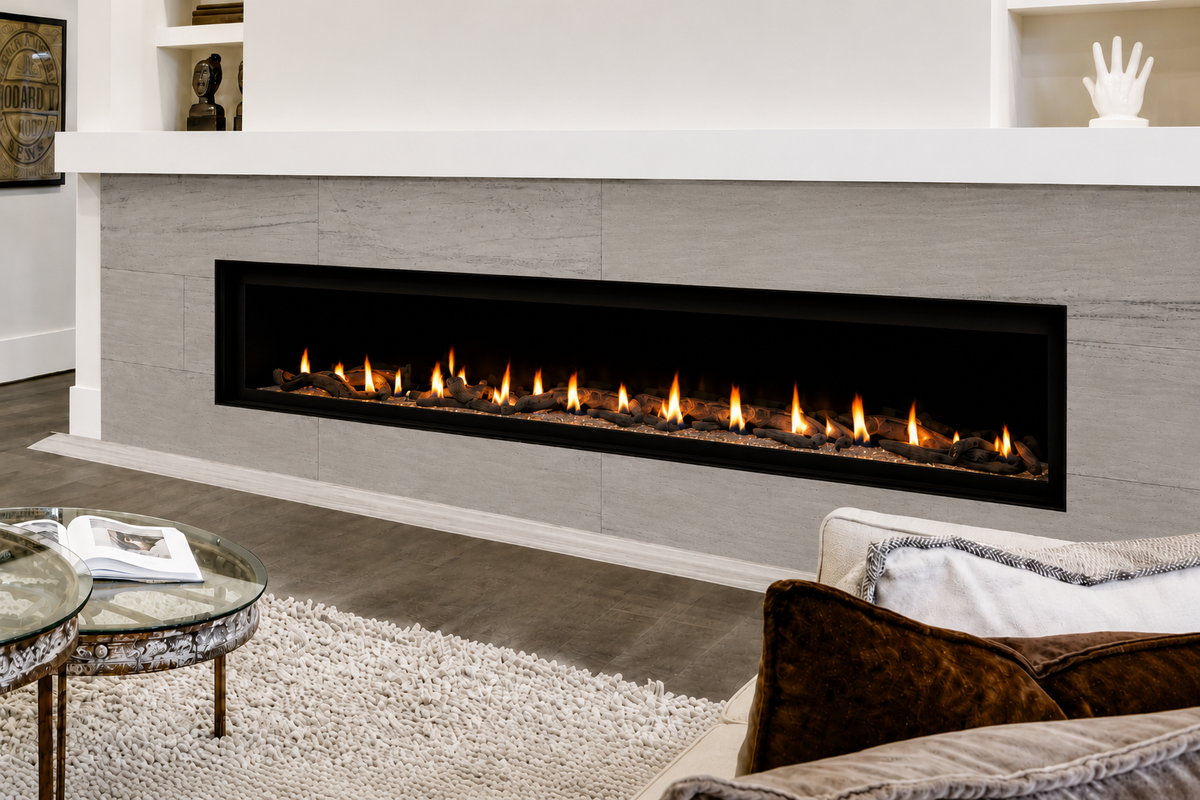

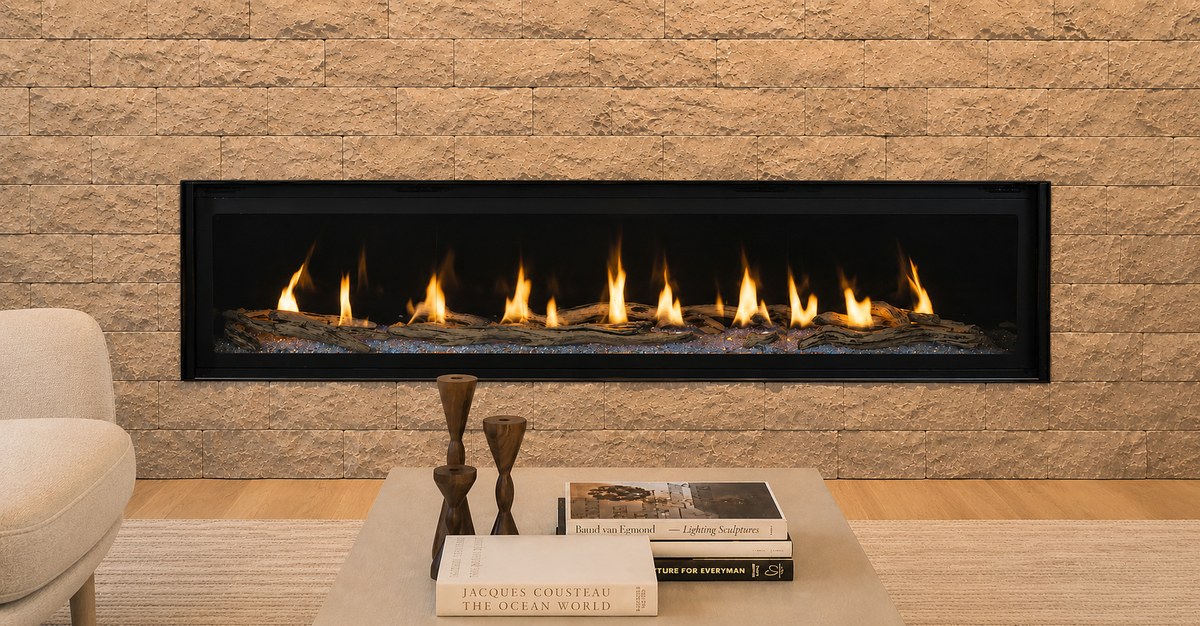

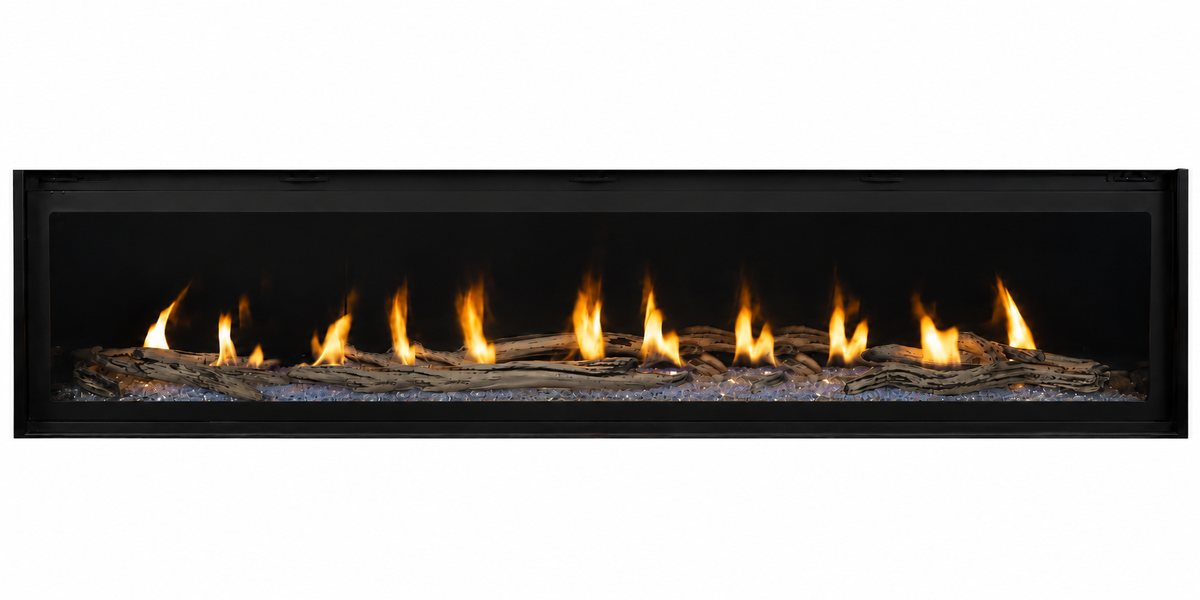

The Superior DRL6072 72 Inch Contemporary Linear Direct Vent Gas Fireplace delivers a dramatic contemporary design paired with advanced heating technology, making it an exceptional focal point for large living spaces. Its expansive 72-inch linear viewing area creates a striking visual statement, while the clean-face design with integrated tile stops allows for a seamless built-in appearance. The black porcelain liner enhances the depth and reflection of the flames, while the included platinum crushed glass media creates a sophisticated presentation that can be further customized with optional media colors.
Designed for convenience and performance, the Superior DRL6072 features electronic ignition with battery backup to maintain operation during power outages. Available for natural gas operation and field-convertible to propane, this fireplace provides up to 45,000 BTUs on natural gas and up to 43,000 BTUs on propane. Six adjustable flame settings with up to a 30% turn-down capability allow homeowners to fine-tune both ambiance and heat output. A factory-installed blower with six speed settings helps distribute warmth efficiently, while the included multi-function remote control provides convenient control of thermostat settings, flame height, blower speed, lighting, and ignition functions.
To further enhance the fireplace experience, the DRL6072 includes integrated floor lighting that creates a welcoming atmosphere with or without an active flame. The optional HeatFlo™ kit helps redirect heat above heat-sensitive wall décor and electronics, while the optional see-through conversion kit allows the fireplace to be enjoyed from two adjoining spaces. Built with ceramic glass for efficient heat transfer, a protective screen for safety, and backed by a 20-year limited warranty, the Superior DRL6072 offers an impressive blend of modern design, customization options, and dependable heating performance.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guides)
- Four (4), 5 lb. bags Platinum Glass Media
- One (1), Hand Held Remote Control
- Four (4), AA Batteries
- Three (3), AAA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
Optional Accessories
- See-Through Conversion Kit
- HeatFlo Kit & Extension
- Liner Kit
- Surround
- Additional Glass Media
- River Rock/Rock Media
- Driftwood Log Set
- Power Vent Kit
- Gas Conversion Kit
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models

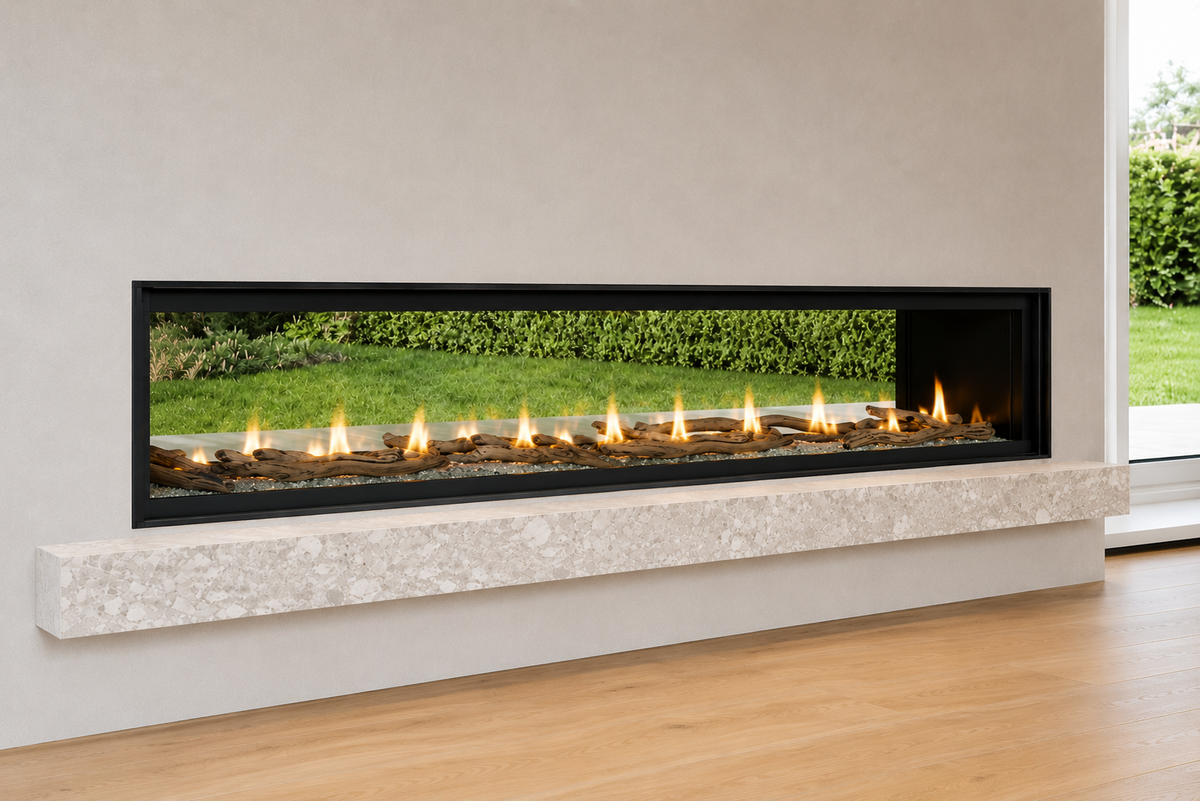

- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Factory-installed blower with six-speed settings to fine-tune your heating needs**
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media is included with several optional colors available to customize the look
- Mood-enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
- Optional Power-Vent system available for down-and-out installations
- 20-year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
**Blower use is not compatible with a see-through application.
Venting Notes
- Uses 6" / 9" 6DVL Rigid Direct-Vent Components
Specifications
| Brand | Superior |
| Catalog Number |
F4391 |
| Model Number |
DRL6072TEN |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 86-1/4" |
| Framing Height | 48-1/2" |
| Framing Depth | 19-1/2" 18-1/2" (See Through) |
| BTU | 45,000-31,500 (NG) 43,000-32,250 (LP-field converted) |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17 standards. PFS report F11-26 |
| AFUE* | 55.0 (NG) 55.0 (LP-field converted) |
| P4** | 57.0 (NG) 57.8 (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Product Brochure
- Smart Sheet
- Installation and Operation Manual
- Specifications Sheet
- Power Vent Kit Instructions
- See-Through Conversion Instructions
-
HeatFlo Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet (5in)
