Description

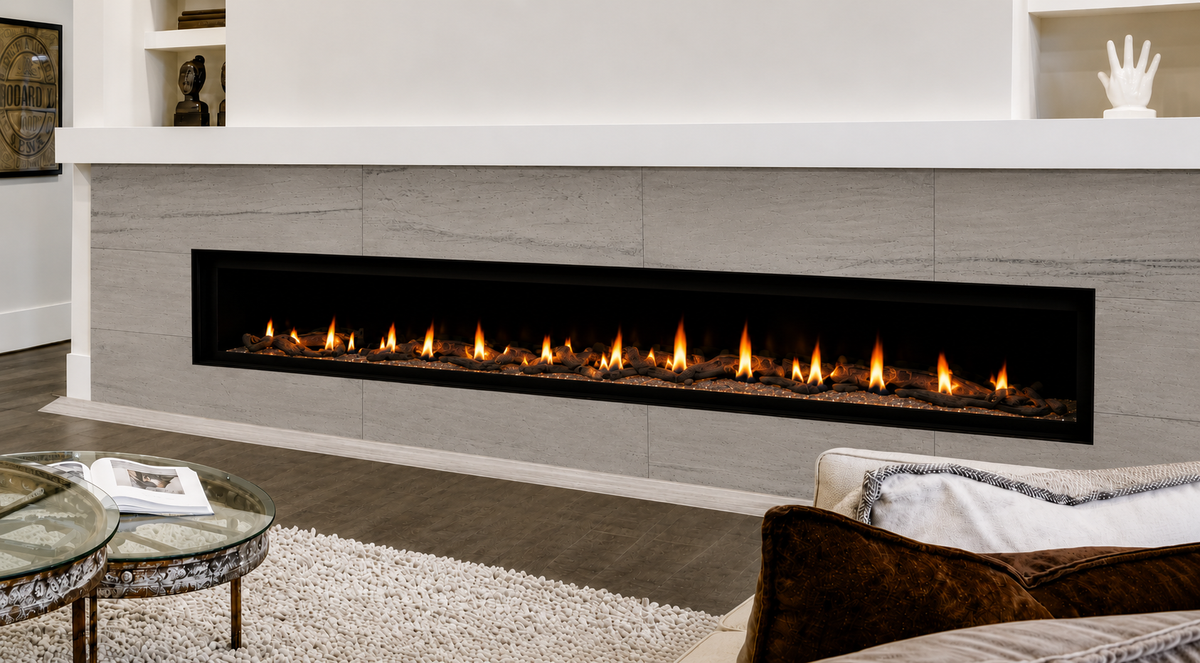

The Superior DRL6084 84 Inch Contemporary Linear Direct Vent Gas Fireplace is an impressive large-format linear fireplace designed to bring modern style and powerful heating performance to expansive living spaces. With its expansive 84-inch viewing area, clean-face design, and integrated tile stops, this fireplace creates a seamless architectural focal point that complements contemporary interiors. The black porcelain liner enhances flame reflections for greater visual depth, while the included platinum crushed glass media provides a sophisticated appearance that can be personalized with optional media colors.
Engineered for comfort and convenience, the Superior DRL6084 features electronic ignition with battery backup, allowing reliable operation even during power outages. Available for natural gas use and field-convertible to propane, this fireplace delivers up to 50,000 BTUs on natural gas and up to 47,000 BTUs on propane. Six adjustable flame settings with up to a 30% turn-down capability provide precise control over heat output and ambiance. A factory-installed blower with six speed settings helps distribute warmth efficiently throughout larger spaces, while the included multi-function remote control allows easy adjustment of thermostat settings, flame height, blower speed, lighting functions, and ignition controls.
To further enhance the overall experience, the DRL6084 includes integrated floor lighting that creates a dramatic visual effect whether the fireplace is operating or not. The optional HeatFlo™ kit helps redirect heat above heat-sensitive wall décor and electronics, while the optional indoor see-through conversion kit allows flames to be enjoyed from two adjoining rooms. Built with ceramic glass for improved heat transfer, a protective screen for safety, and compatibility with 6DVL rigid direct vent components, the Superior DRL6084 is backed by a 20-year limited warranty and delivers a premium combination of contemporary design, customization, and dependable heating performance.
Included
- Fireplace Unit
- Literature Kit (Manuals & Guides)
- Five (5), 5 lb. bags Platinum Glass Media
- One (1), Hand Held Remote Control
- Four (4), AA Batteries
- Three (3), AAA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
Optional Accessories
- See-Through Conversion Kit
- HeatFlo Kit & Extension
- Liner Kit
- Surround
- Additional Glass Media
- River Rock/Rock Media
- Driftwood Log Set
- Power Vent Kit
- Gas Conversion Kit
- Venting Components
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models
- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Factory-installed blower with six-speed settings to fine-tune your heating needs**
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media is included with several optional colors available to customize the look
- Mood-enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
- Optional Power-Vent system available for down-and-out installations
- 20-year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
**Blower use is not compatible with a see-through application.
Venting Notes
- Uses 6" / 9" 6DVL Rigid Direct-Vent Components
Specifications
| Brand |
Superior |
| Catalog Number |
F4396 |
| Model Number |
DRL6084TEN |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 98-1/4" |
| Framing Height | 48-1/2" |
| Framing Depth | 19-1/2" 18-1/2" (See Through) |
| BTU | 50,000-35,000 (NG) 47,000-35,250 (LP-field converted) |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Remote Control |
| Agency Listing | Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17 standards. PFS report F11-26 |
| AFUE* | 51.1 (NG) 56.7 (LP-field converted) |
| P4** | 55.4 (NG) 63.1 (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Product Brochure
- Smart Sheet
- Installation and Operation Manual
- Specifications Sheet
- Power Vent Kit Instructions
- See-Through Conversion Instructions
-
HeatFlo Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet
- HeatFlo Extension Kit Instructions Sheet (5in)
About The Manufacturer
