Description
Included
- Fireplace Unit
- Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and Safety-In-Operation Warning Labels)
- 2 Vent Restrictors
- 1 Non-Combustible Board, 2 Side Brackets, and 1 Center Bracket
- 1 Header Shield
- 1 Elbow/Wall Heat Shield
- 1 Log Set
- 1 Bag of Glowing Embers
- 15 feet of two Conductor Wire
- 2 Vent Cover Plates
- 1 Rear Flue Cover
Required Accessories
- Facades
Optional Accessories
- Liner Kit
- Decorative Face Surround
- Blower Kit
- Remote Control Kits and Wall Switches
- Common Accessories
- Additional Glowing Embers
Features
- Available in 35”, 40” and 45” models
- Mid-size 17” depth saves installed floor space
- Combination top/rear flue configuration
- Millivolt or Electronic ignition models available
- Electronic ignition models include seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)
- Outstanding heating efficiency for increased comfort and lower operating costs
- Standard tempered glass and a protective screen*
- Detailed ceramic fiber log set

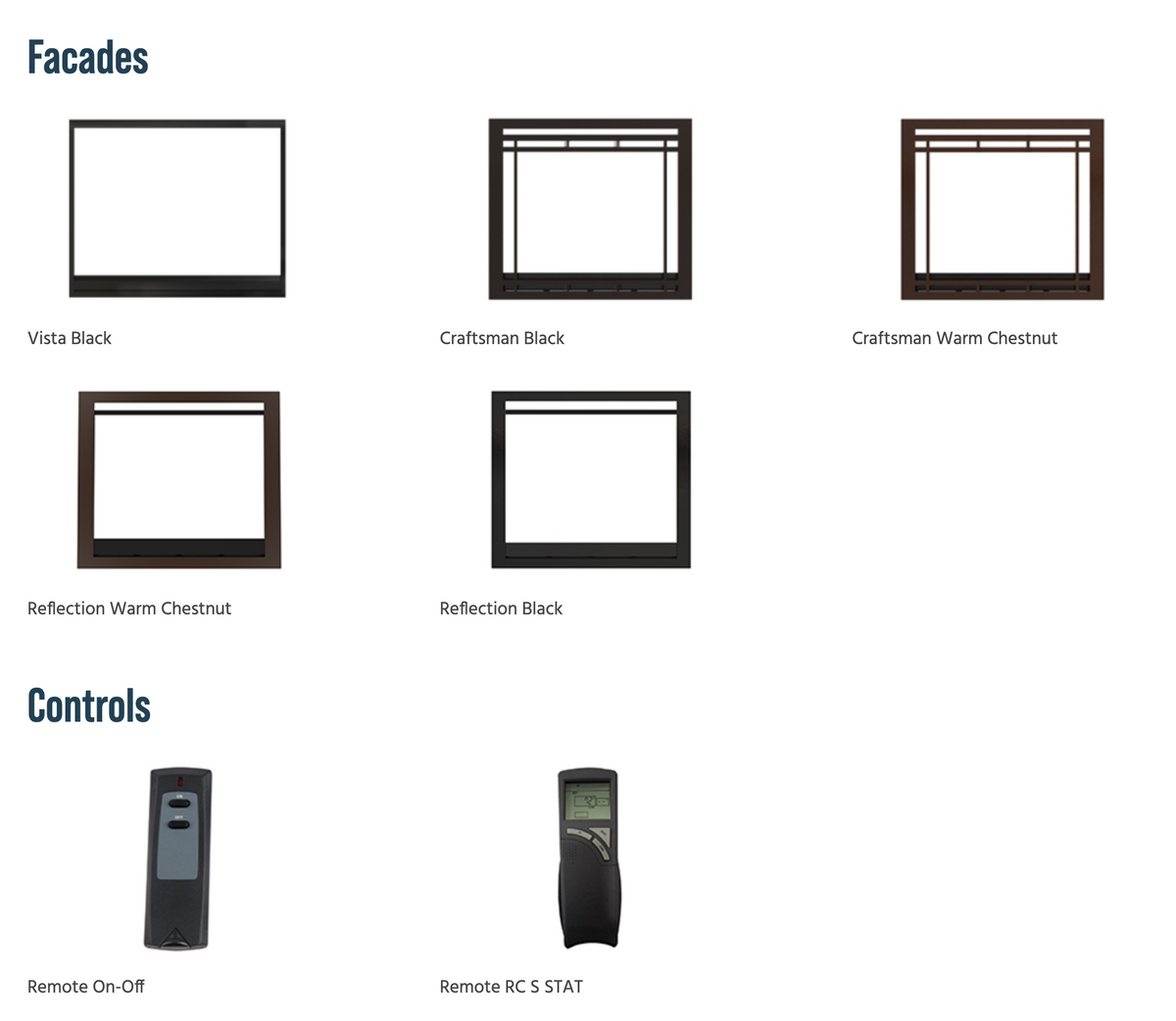

- Face selections include a Vista inside fit façade or one of several Designer overlap fit facades (required)

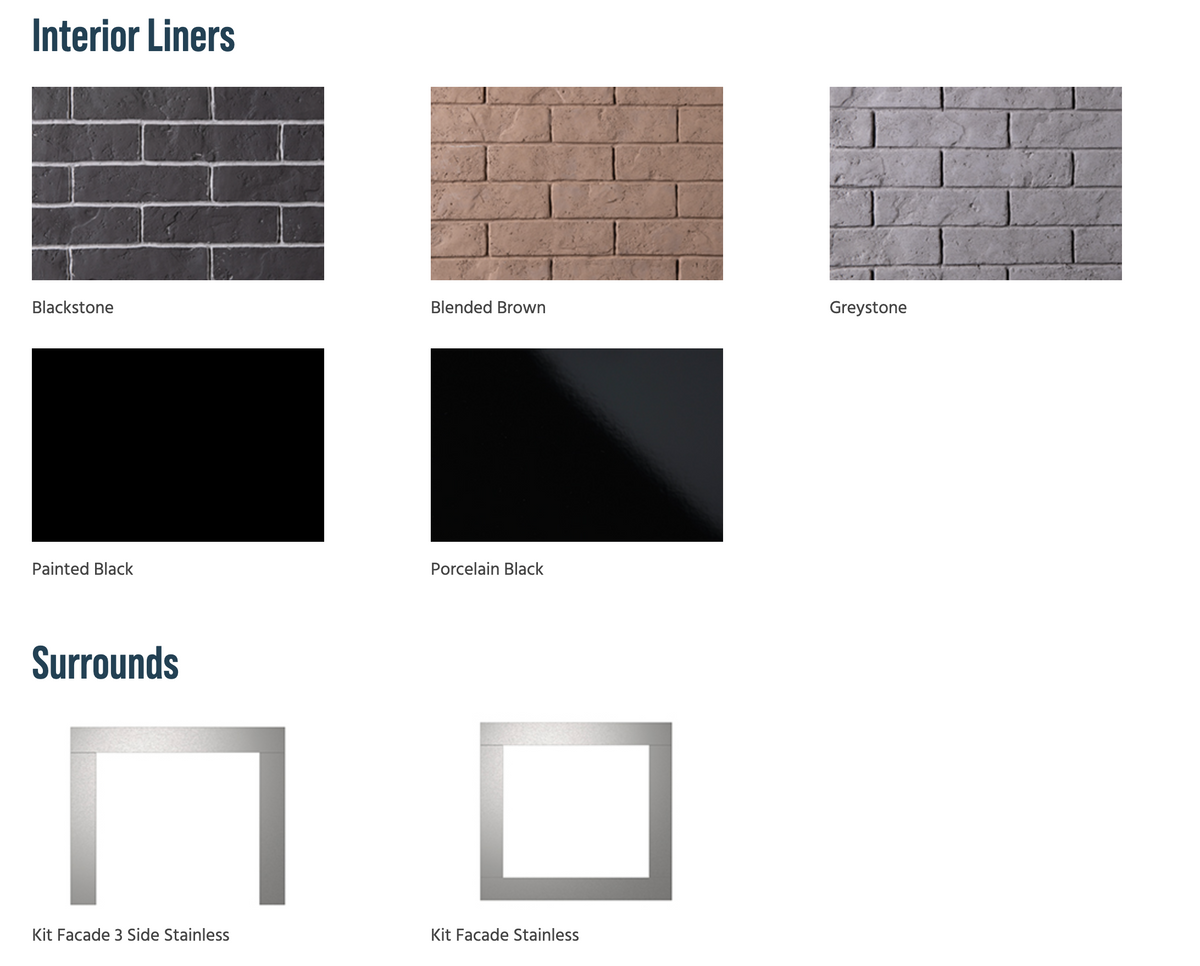

- Black painted interior (optional liners available)
- Optional blower and touch remote or hand-held remote control available for all models
- Durable textured powder coat finish
- Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094
- 20 year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Venting Notes
- Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components
Specifications
| Model | DRT3035 |
| Series |
DRT3000 (Pro Series) |
| Item Number | DRT3035DMN-E, DRT3035DMP-E, DRT3035DEN-E, DRT3035DEP-E |
| Catalog Number | F4993, F4994, F4995, F4996 |
| Product Type | Direct Vent Gas Fireplace |
| Fuel Type |
Natural Gas, Propane |
| Framing Width | 35-7/8" |
| Framing Height | 36-1/4" |
| Framing Depth | 18-1/2" |
| BTU |
Natural Gas - 20,000 BTU Propane - 17,000 BTU |
| Design Style | Traditional |
| View Style | Front-View |
| Controls | Optional Remote |
| Warranty | 20 Year Limited Warranty |
| Agency Listing |
Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094 |

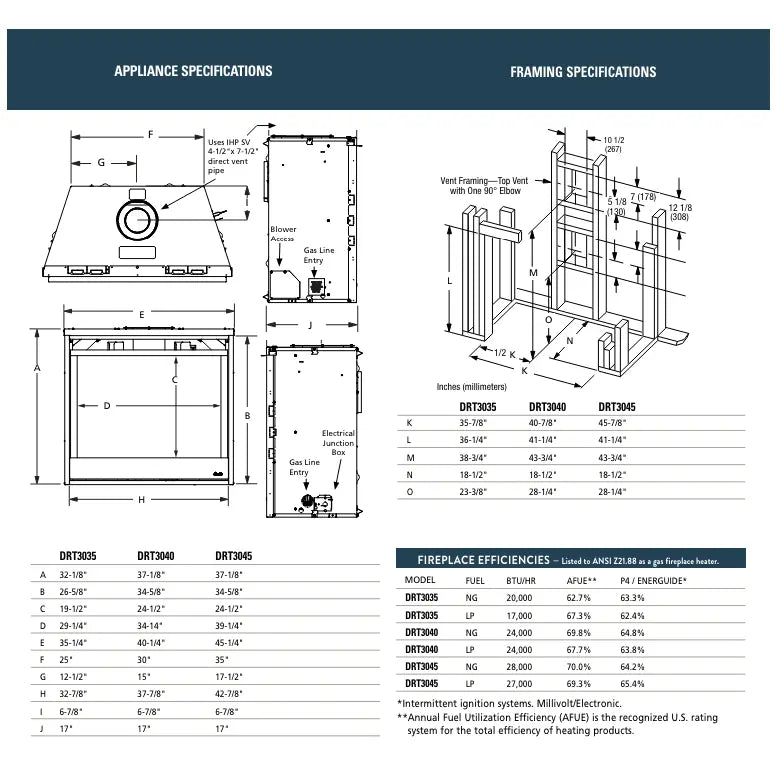

Technical Dimensions

Warranty
![]() ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
- Mid-Size Fireplace Brochure
-
DRT3000 Smart Sheet
-
DRT3000 Installation and Operation Manual
- DRT3000 Specification Sheet
